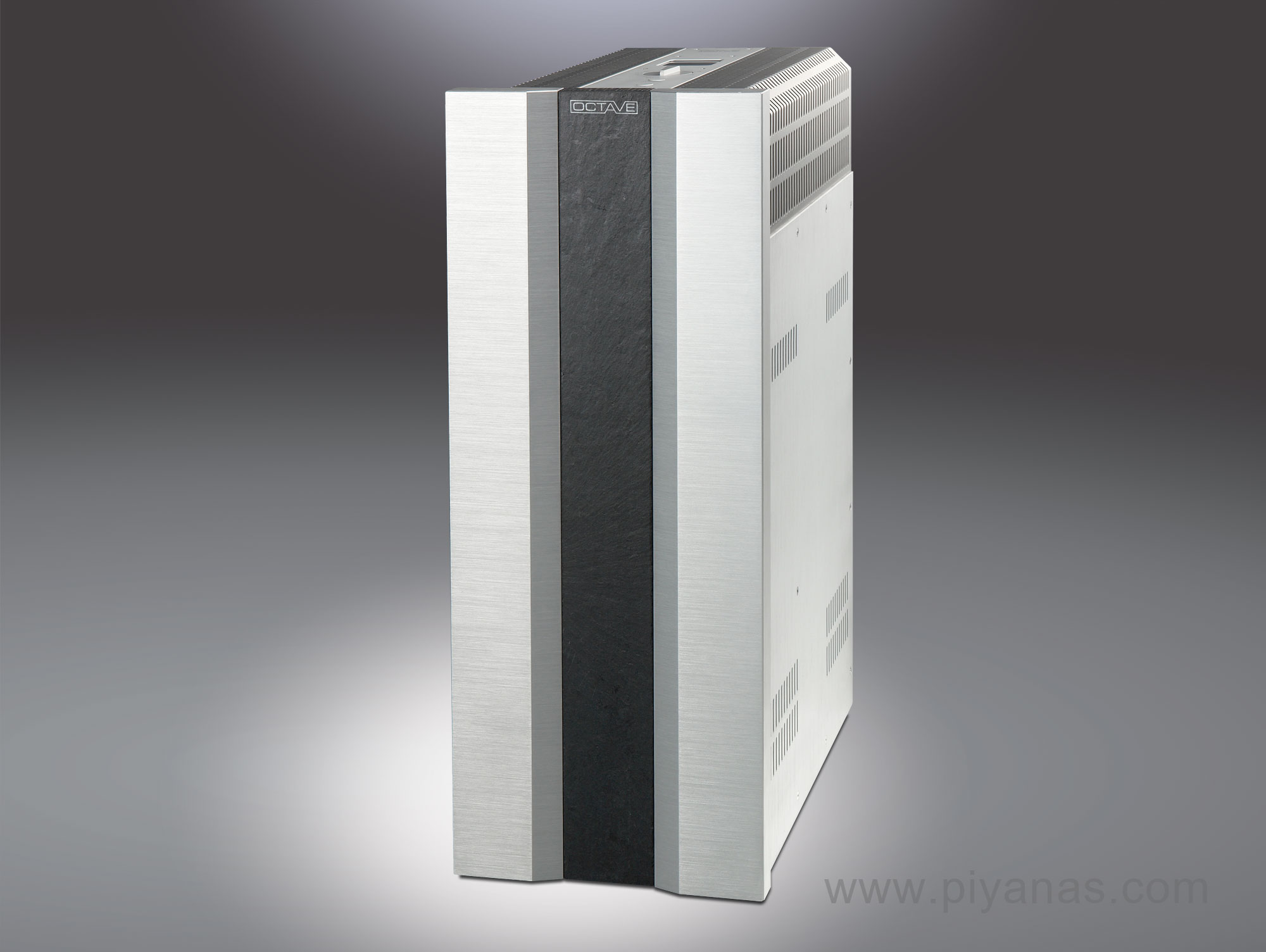

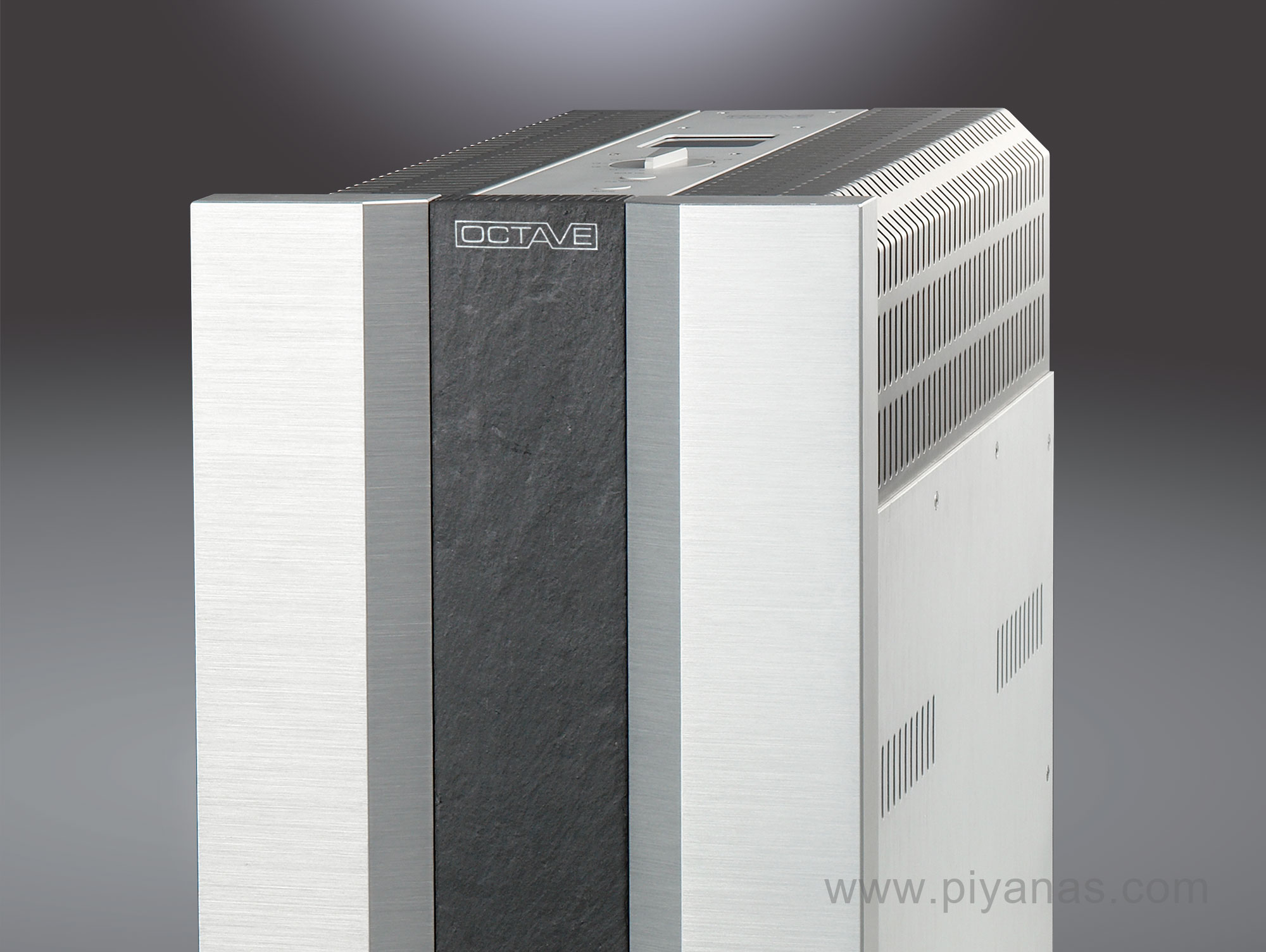

OCTAVE : Jubilee power amplifiers SE (pair) silver
400 watt/channel ,KT 120 Tubes

 fter more than 20 years, we felt the time was right to explore the limits of power amplifier technology. And so the Jubilee monoblocs were born. Achieving the dream of producing a matching power amplifier for our highly regarded reference preamplifier demanded a completely new power amplifier design, an uncompromising approach to amplifier size, and a rigid insistence on the highest standards. The target of our ambition was to develop a tube amplifier with substantial power reserves and an exceptional performance. The result is an extraordinary product in both appearance and sound quality. The OCTAVE team has no reservations in claiming that the Jubilee series power amplifiers are indeed very, very close to the original objective of perfection.

Monoamplifier Jubilee Monoamplifier..
Tube Complement 8 x KT120 / 4 x ECC 82 je Endstufe..
Design Aluminium silver or Aluminium black..
Center Front: 20 mm black Granit or grey Slate..

... are the guarantors of a perfect sound.
The Jubilee monoblocs do not „make“ music; they retain the music – faithful to the highest standards of high fidelity according to the principle that nothing is more beautiful than the original.

... revolutionize tube amplifier technology.
A newly developed driver stage perfects the push-pull principle and results in unequalled load stability.

In combination with the high-capacity power supply, which is backed by a double transformer with full-wave rectification, the Jubilee monobloc amplifiers provide a pulse-power of 300 watts per channel at the output in the bandwidth of 20 Hz to 80kHz.

These unusual reserve capacities explain the brute dynamics as well as the superior performance of this singular tube power amplifier.

... represent a maximum of reliability.
The power management, soft-start of all tube functions and precise stabilization circuitry lead to perfect conditions that enable incredible reliability and longevity.

... play safe.
The power amplifiers are protected extensively from operator error or tube faults by the comprehensive safety electronic systems. In the rare case of a tube short circuit, the worst-case scenario results in a fuse de-energizing the power supply virtually instantaneously.

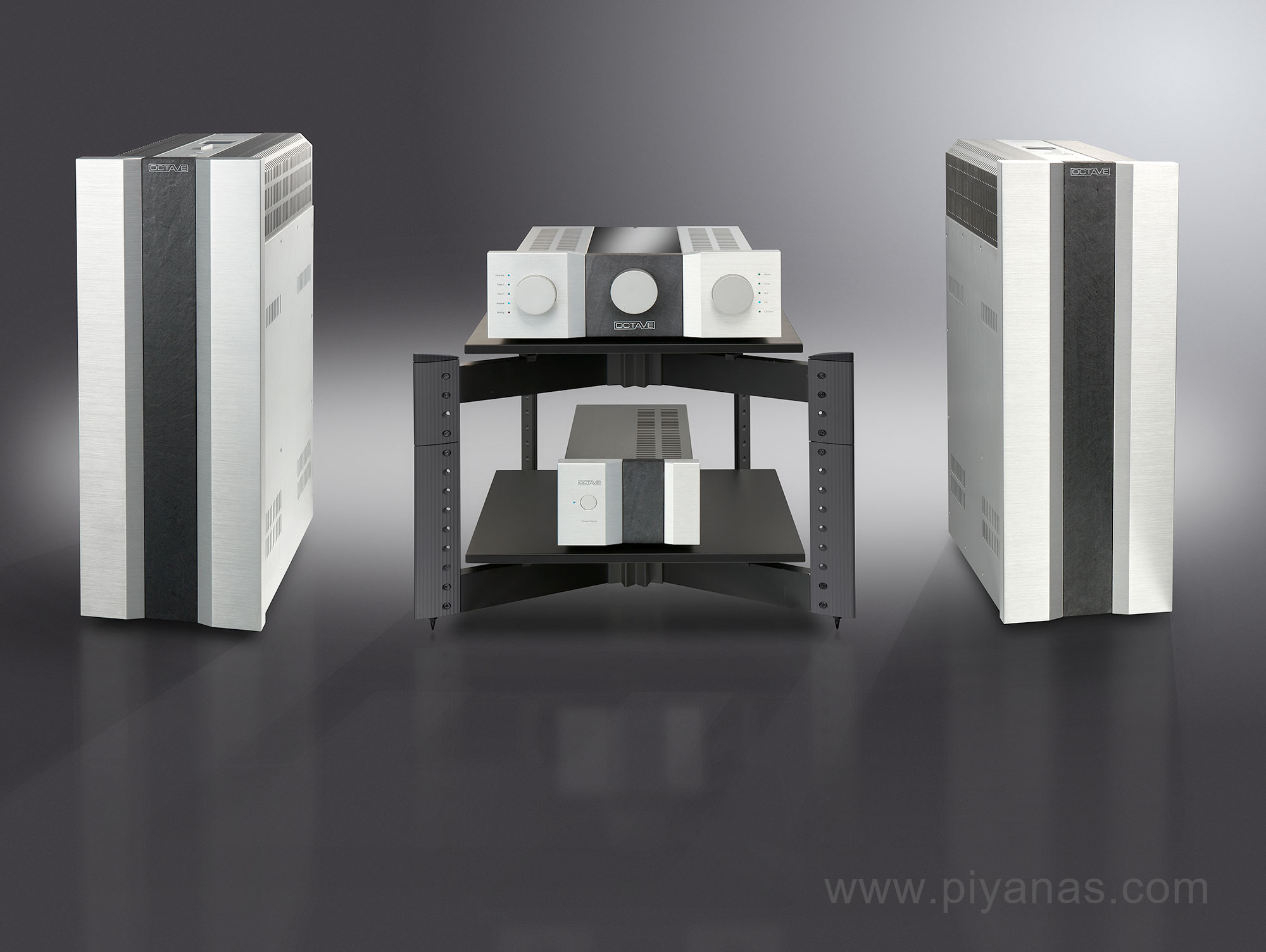

The Jubilee line Sound at its best
Curve 1: Bias optimal adjusted | Curve 2: Bias 10% misaligned | Curve 3: Bias 30% misaligned



Frequnecy Response:
The Frequency Response has between 10 Hz and 90 kHz only 0,3 dB Tolerance



Interfering Signal Spectrum related to 10 V / 1 kHz Output Level:
The FFT-Analyse recorded an extrem spectral purity from Output signals. Disturbances from mains
(normaly 50 and 100 Hz) are missing



Harmonic Distortion between 30 Hz and 20 kHz:
The behavior of the harmonical Distortion show a linear curve with a slow rise on low frequencies.
This is only possible with high spezialized Output transformers.
Power Output 250 W into 4 Ohm
Frequency Response 10 Hz - 80 kHz / ± 0,5 dB
Total Harmonic Distortion < 0,1% bei 10 Watt into 4 Ohm
Signal-to-Noise Ratio > 103 dB
Minimum Speaker Impedance 2 Ohm
Gain/Input Sensitivity + 30 dB / 1,5 V

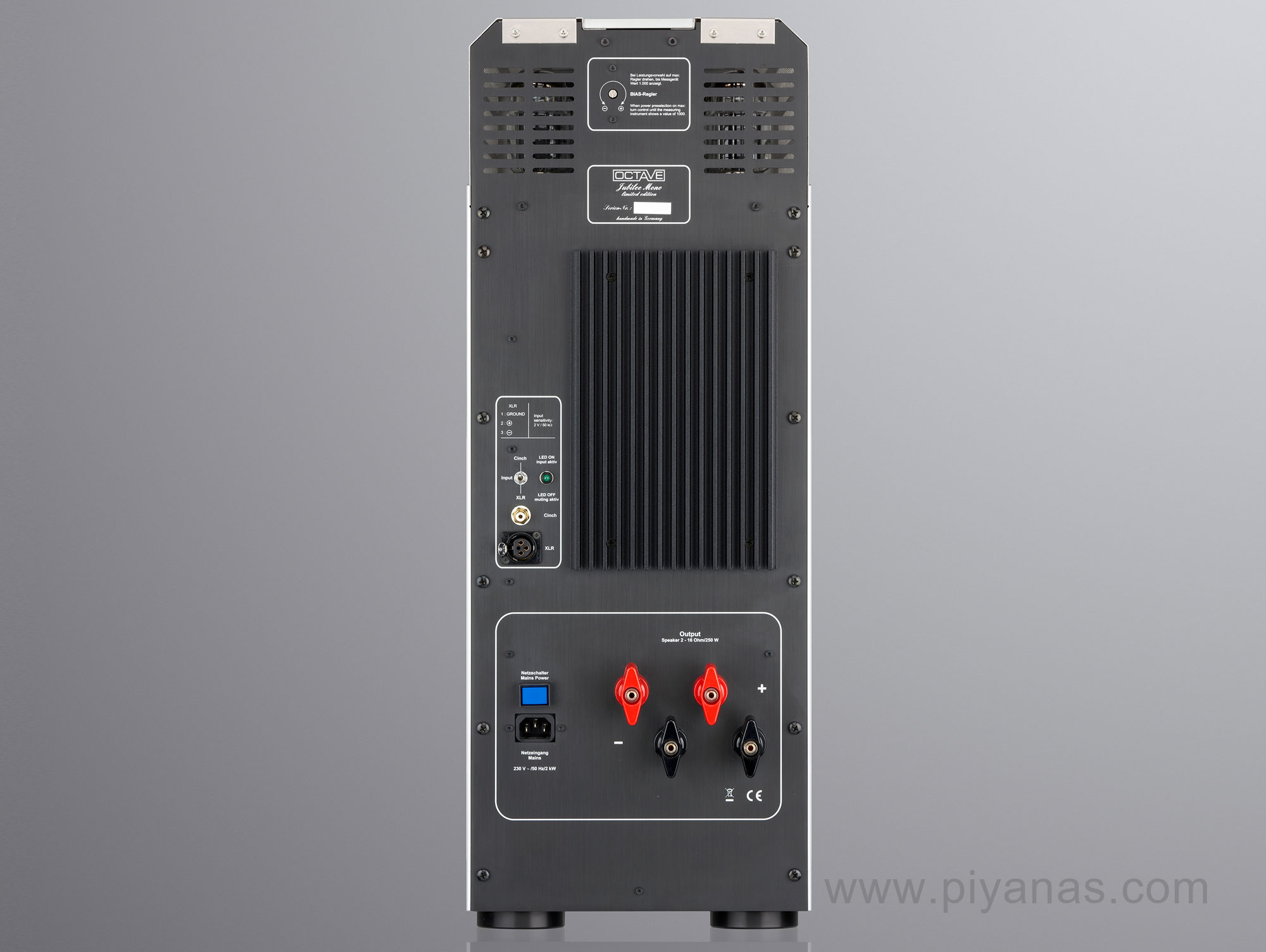

Connections 1 x Cinch
1 x XLR Input
Features ECO Mode, Bias Adjustment
General Facts
Power Consumption 320 Watt Leerlauf, 600 Watt Vollaussteuerung
Weight 65 kg je Endstufe
Standard Accessory Netzkabel, 3 Schraubendreher, Ersatzröhren KT88/6550
Dimensions  H x B x T = 707 mm x 280 mm x 484 mm
