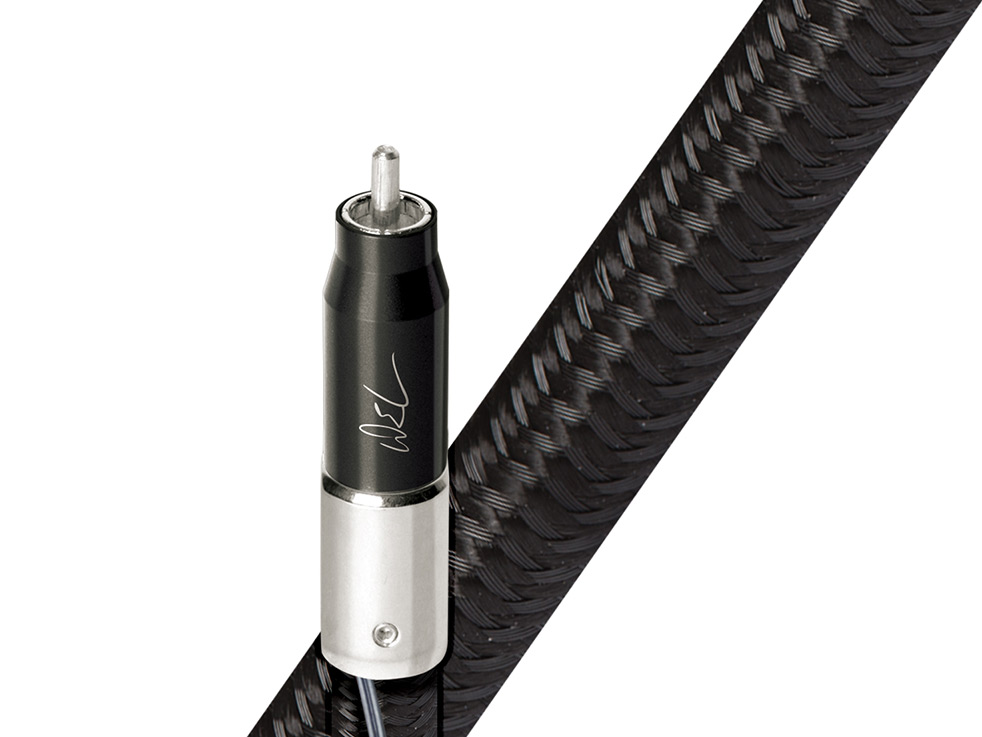

AUDIOQUEST : WEL Signature Digital (RCA) 1M.

The S/PDIF (Sony/Philips Digital InterFace), which arrived in 1983 along with the CD, is still very much a part of our world today. S/PDIF is transmitted through digital coax and A 75Ω cable is like a conduit that has to carry relatively low-frequency analog video (composite video, up to 4.2 MHz), or super-sensitive digital audio (S/PDIF, up to 24.576 MHz), or uncompressed High-Definition video (up to 750 MHz), or cable TV/broadband (CATV, up to 1 GHz).

SOLID 100% PERFECT-SURFACE SILVER CONDUCTORS (PSS):
Perfect-Surface Technology applied to extreme-purity silver provides unprecedented clarity and dynamic contrast. Solid conductors prevent strand interaction, a major source of cable distortion. Extremely high-purity Perfect-Surface Silver minimizes distortion caused by the grain boundaries which exist within any metal conductor, nearly eliminating harshness and greatly increasing clarity compared to OFHC, OCC, 8N and other coppers.

HARD-CELL FOAM INSULATION:
Hard-Cell Foam insulation is used exclusively in most of AudioQuest’s video and digital audio cables. Similar to Foamed-PE, it is nitrogen injected to create air pockets. ‘Hard’ foam is used because the stiffness of the material allows the conductors in the cable to maintain the same relationship with each other along the full length of the cable, thus ensuring that the characteristic impedance of the cable is consistent.

100% SHIELD COVERAGE (COPPER FOIL/PERFECT-SURFACE SILVER SPIRAL):
Shielding always plays an important role in any cable design, but the shield on coax interconnect plays an especially important role because it functions not only as a shield but a return path as well. Because of this, AudioQuest pays special attention to the shield’s metal quality and the fabrication techniques as both will effect the sound and the picture.

72V DIELECTRIC-BIAS SYSTEM (DBS, US Pat #s 7,126,055 & 7,872,195 B1):
All insulation slows down the signal on the conductor inside. When insulation is unbiased, it slows down parts of the signal differently, a big problem for very time-sensitive multi-octave audio. AudioQuest’s DBS creates a strong, stable electrostatic field which saturates and polarizes (organizes) the molecules of the insulation. This minimizes both energy storage in the insulation and the multiple nonlinear time-delays that occur. Sound appears from a surprisingly black background with unexpected detail and dynamic contrast. The DBS battery packs will last for years. A test button and LED allow for the occasional battery check.

CARBON-BASED 5-LAYER NOISE-DISSIPATION SYSTEM (NDS):
100% shield coverage is easy. Preventing captured RF Interference from modulating the equipment’s ground reference requires AQ’s Noise-Dissipation System. Metal and Carbon-Loaded synthetics prevent most RFI from reaching the equipment’s ground plane.

TERMINATIONS:
Custom-Machined, Direct-Silver Plated Cold-Welded Pure Copper RCA
