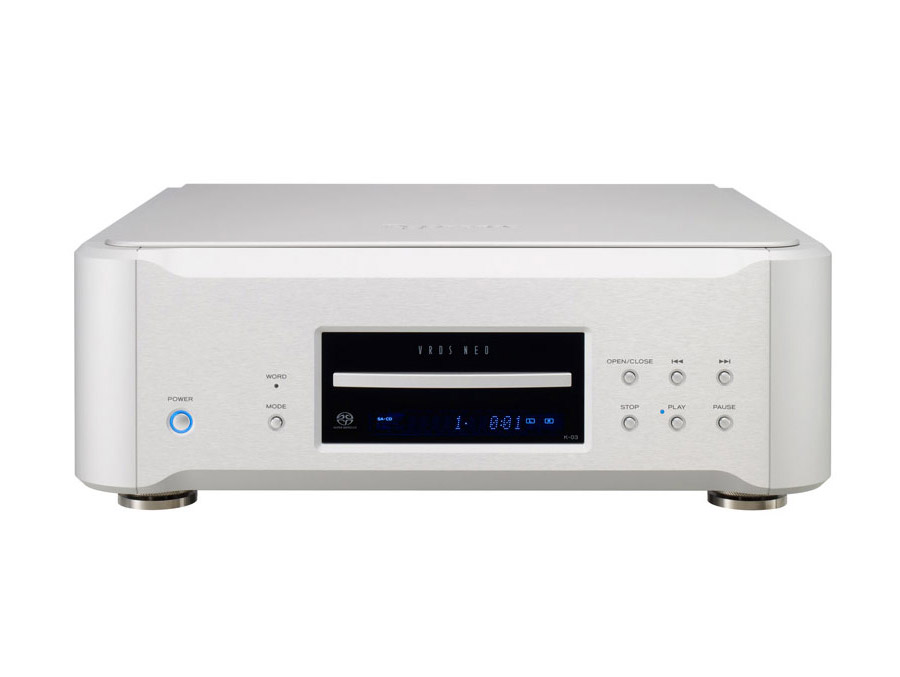

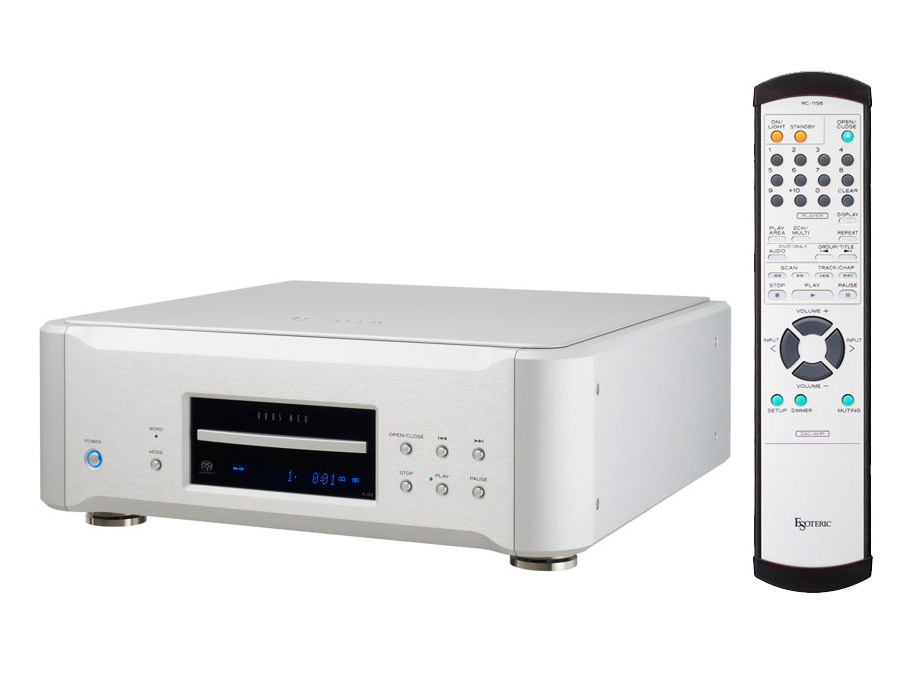

ESOTERIC K-03 (SILVER)
ESOTERIC releases the K-01, the flagship model of our all-in-one advanced D/A converter and Super Audio CD/CD player series, capitalizing on ESOTERIC's state-of-the-art technology and derived from our award winning P-01/D-01 series separates. It has been seven years since the debut of the original X-01, with its high-precision and high-rigidity VRDS-NEO SACD/CD transport mechanism. The X-01/X-03 series, which have stayed at the top of ESOTERIC's all-in-one SACD/CD player lineup, have been completely updated and make their debut as the all-new "K" series in November 2010.
The design concept of the K series is extremely clear and simple -- a 2-channel D/A converter and stereo player that gives a stress-free musical experience, without adding or removing anything from the original source material. All aspects of the design and engineering process for the K series had extremely tough requirements to further advance ESOTERIC's top technology. Design and engineering was completed applying all of ESOTERIC's know-how in mechatronics technology, state-of-the-art audio technology, and evolutionary materials including DAC implementation, for which cost was not a consideration. The K series is committed to advancing the "state of the art" for the 2 channel audio purist, for both high resolution audio files and disc based audio playback applications.
The K-03 is equipped with our new VRDS-NEO "VMK-3.5-10" mechanism, which has further advanced substantially beyond existing VRDS models, and a dual mono configuration of 32-bit monaural D/A converters with four parallel/differential DAC circuits per channel. The analog audio circuit has a separate power transformer. The on-board high-precision clocking circuit has also been advanced. Three sets of 192 kHz/24-bit digital inputs supporting the most advanced high-sampling digital sources are also built-in. USB driver software supports 192 kHz/24-bit asynchronous transmission for connecting with a PC.
The K-03 is a high performance model that follows the philosophy of the top-end all-in-one K-01 digital source, 2-channel playback device.
Compatible disc types | Super Audio CD, CD (CD-R/CD-RW compatible) | |
Analog audio output | Jacks |
|
Output impedance |
|
|
Maximum output level (1 kHz, full scale, 10 k ohms) |
|
|
Frequency response | 5 Hz to 55 kHz ( 3 dB) | |
Signal-to-noise ratio (S/N) | 115 dB | |
Total harmonic distortion | 0.0015% (1 kHz) | |
Digital audio output | Coaxial RCA jack x 1 | 0.5 Vp-p/75 ohms |
Digital audio input | Coaxial RCA terminal x 1 | (input impedance 75 ohms) |
Optical digital terminal x 1 | 24.0 to 14.5 dBm peak | |
USB port ? ? ? ?B connector | USB 2.0 / 192 kHz-24 bit async. | |
Word synchronization input format | Jack | BNC |
Input impedance | 75 ohms | |
Input level |
|
|
The K-03 can accept and synchronize to the following frequencies received from external clock devices: 44.1 kHz, 88.2 kHz, 176.4 kHz, 10 MHz (the accuracy of locking range limited within ?15 ppm) |
||
D/A Converter | K-03 | 32bit AK4399 x4 DACs / per channel |
General | Power supply |
|
Power consumption | 27 W | |
External dimensions | (W x H x D) 445 x 162 x 438 mm (17 1/4" x 6" 3/8 x 13 1/4") (including protrusions) |
|
Weight | 28 kg (61 3/4 lbs) | |
Accessories |
|
