Product Screen Motorized Screen OS Screen SEP-080HM-W1 (WF-203)
OS Screen
OS SCREEN :
SEP-080HM-W1 (WF-203)
Category : Motorized Screen
Add to wishlist     สถานะสินค้า In Stock
SEP-080HM-W1 (WF-203)
SEP-080HM-W1 (WF-203)

PRICE :
99,000 THB.
SPECIAL :
89,100 THB.
ฟรีค่าขนส่ง

Ask a question about this product
ติดต่อทีมงานทาง Line ID
สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
x
จำนวน
How to Buy

  • Overview
  • Specifications

OS SCREEN

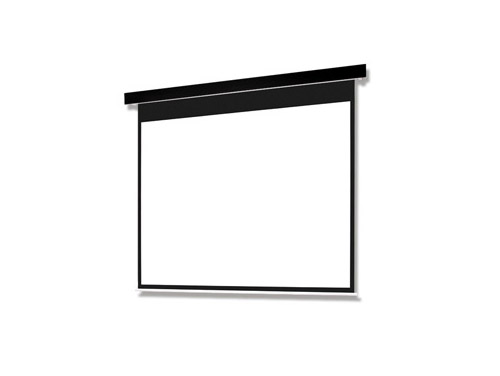

SEP-080HM-W1 (WF-203) MOTORIZED SCREEN

The existence of a screen diminishes by the super flat design.
What's new!!

Wide size line-ups!
Available from 80" to 200" by 10" steps.

Industry-first!
The front panel is detachable, and the replacement of fabrics is easy.

Easy installation!
The sliding brackets make the installation quick and easy.

Improved linearity!
The tension adjustment mechanism equipped to ensure fabric linearity.

Industry-first!
The limit (stop position) setting can be set by the remote controller and wall switch for all sizes.

Detachable PCB box!
SMaintenance is made easy, without taking off the screen.

New Design!
Symmetric casing design.

Features

  • You don't feel the depth of the screen due to the simple design that eliminates all unnecessary decorations.
  • The symmetry construction makes it easy to locate the center point. The center mark sheet is easily taken off after installation.
  • The front panel color is selectable: White or Black. Replacement to the different color panel is also possible.

  • The front panel is detachable even after the installation.
  • With the use of bigger roller, the linearity of the screen is much improved compared with the older models.
  • The newly designed rotary dumper reduces the operation noise (29% lower than the old models?
  • The tension adjustment mechanism is equipped as standard. The wrinkle can be easily adjusted by the aged deterioration of the fabric.
  • The under-pipe goes into the case and fit perfectly. Remarkable straight-forward outlook.
  • The screen sizes are available by 10? steps. Same design and wide variations.
  • A light weight aluminum hook bar is equipped according to the sizes.
  • Complied with RoHS.
  • The sliding brackets are the standard for the models up to 150?. For the models from 160? to 200?, the side brackets are the standard.The side brackets are also available as option for the models up to 150? (?S-M2?).

The sliding bracket
Up to 150

The side bracket
160 ~ 200


The side bracket S-M2
Option up to 150

Module Box type (M)

  • Modular jacks are employed for tighter connections on the module box. (Trigger cable also included.)
Selection of operating methods
Either of the followings or both are selectable.

Infra-red remote controller version (R)

  • The modular jack is newly used for the receiver.
  • For the option, the model name is S-R1

Wall switch version (W)

  • The modular jack is newly used with the relay box.
  • For the option, the model name is S-R2

The combination of using Infra-red remote and wall switch version (S)
How to read the model naming
