B&W CCM-382 (ราคาต่อข้าง)
2-way in-ceiling system
Drive Units

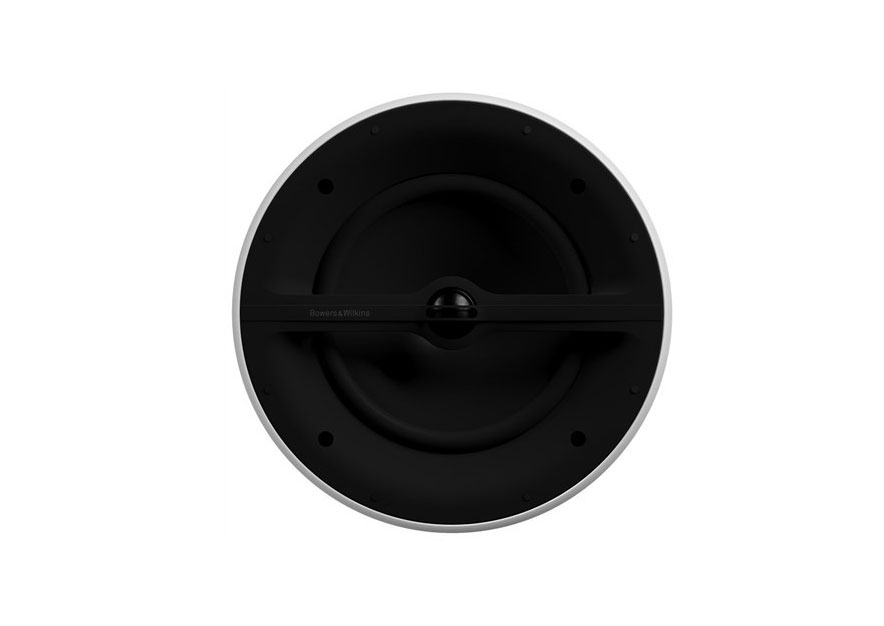

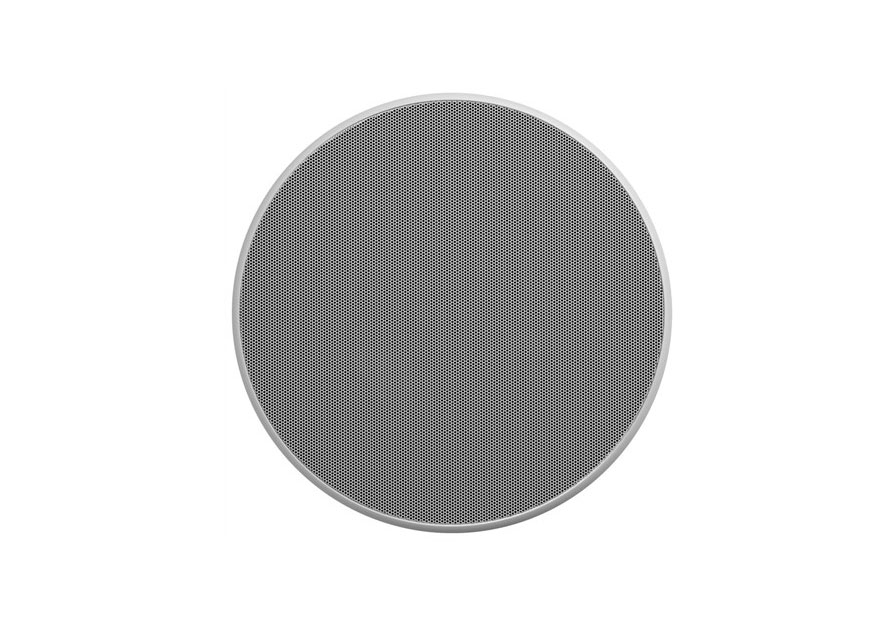

The CCM382 is a two-way in-ceiling loudspeaker, balanced for wide-angle listening. It comes with a choice of round or square baffles, and like all the models in the CI 300 Series it features an elegant minimal-width border design.
It features a 1 x 200mm (8 in) Polypropylene cone bass/midrange driver, and a 1 x 25mm (1in) soft dome tweeter.
All the models in the CI 300 Series are capable of offering great sound in high-humidity environments such as indoor swimming pools.
Specifications
Model | CCM382 |
Description | 2-way in-ceiling system |
Drive units | 1x 200mm (8in) Polypropylene cone bass/midrange 1x 25mm (1in) soft dome tweeter |
Frequency Range (-6dB) | 45Hz - 30kHz |
Sensitivity SPL (2.83V, 1m) | 90dB |
Impedance Nominal (min) | 8Ω (5.0Ω) |
Power Handling | 80W |
Pre-mount Kit | PMK C8 |
Back Box | BB 6C |
Frame Diameter | 290mm (11.4 in) |
Cut-out diameter | 253mm (9.9in) |
Depth behind surface | 85mm (3.4in) |
Protrusion | 4mm (0.2in) |
