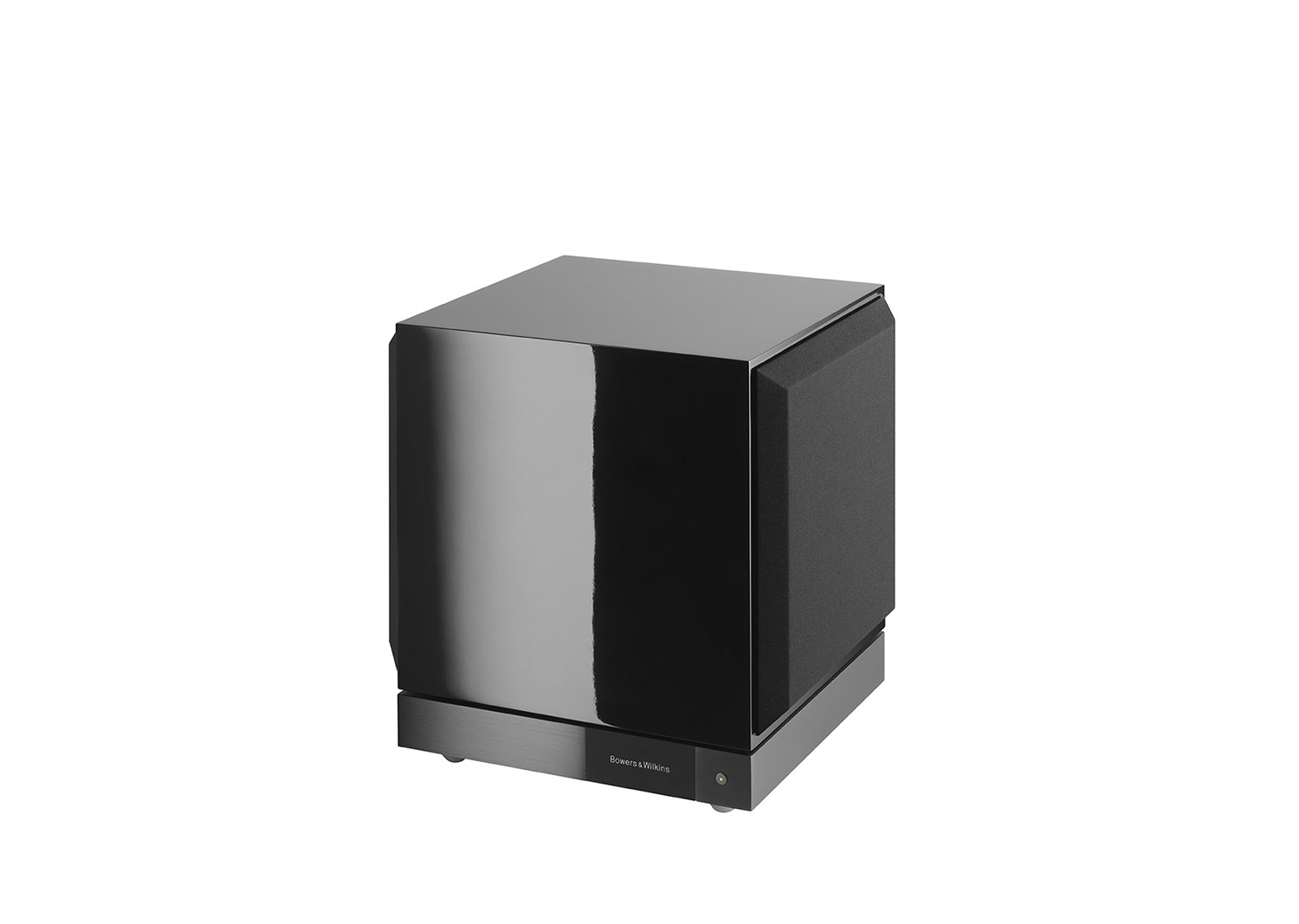

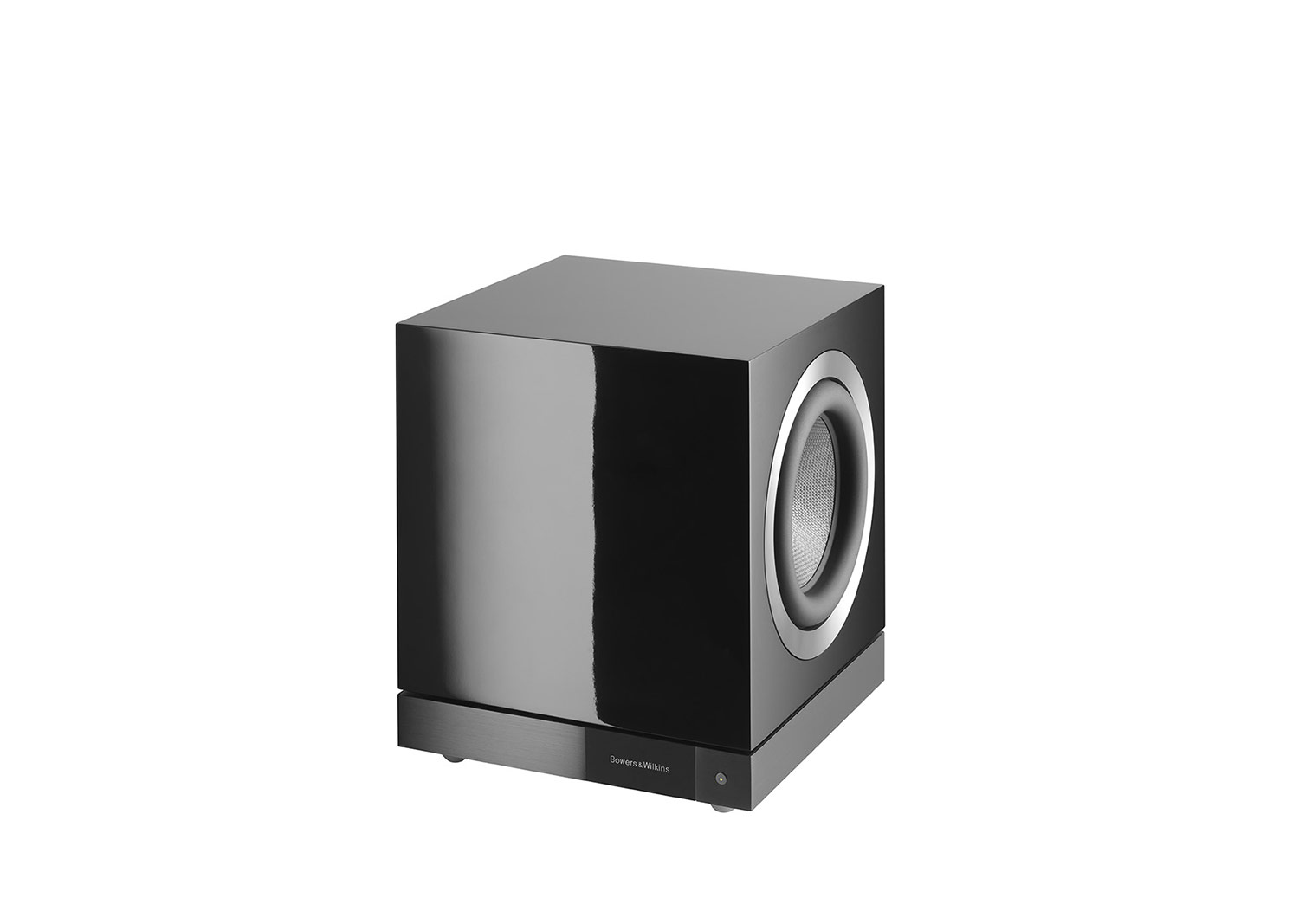

B&W DB-3D (GLOSS BLACK)
The DB3D delivers astonishing performance from a compact subwoofer. Its dual balanced 8-inch Aerofoil drivers are effortlessly powered by a 1000 Watt Class D amplifier to deliver punchy, deep bass.
Space saver
When you demand faultless bass but floor space is at a premium, there’s the DB3D. This high-performance subwoofer is capable of deliver space-defying bottom end from a highly compact, incredibly rigid cabinet.
Dedicated App
App-based set-up means the DB3D is simple to configure and use. The App includes positioning guides and can be used to set up and control both output and audio preset modes. A Room EQ system allows you to optimise the subwoofer’s performance for your room automatically. No separate microphone kit is required and the App is available for iOS and Android.
Perfect partner
The DB3D is the obvious partner for a system built using the award-winning 800 Series Diamond. It has been engineered with this in mind, and uses the same Aerofoil bass drivers. However, this incredibly capable subwoofer also works exceptionally well with a CM Series system, and provides a fantastic option for owners of this high-performance range.
Specification
Model | DB3D |
Description | DB Series Subwoofer |
Technical features | 1000w Class D Hypex amplifier 2 x 200mm (8in) Aerofoil-cone drive units in a balanced configuration Digital preamplifier with Dynamic EQ, App-based set-up and BT-LE control |
Drive units | 2 x 200mm (8in) Aerofoil-cone drive units in a balanced configuration |
Frequency range (-6dB) | 8.5Hz - 500Hz |
Frequency Response -3dB (centred on level at 100Hz) | 10Hz - 350Hz |
Max power output | 1000W |
Inputs | 2 x XLR 2 x RCA 2 x 3.5mm 12V trigger RS-232 – 9-pin D connector |
Dimensions | Height: 360mm (14.1in) Width: 320mm (12.6in) Depth: 300mm (11.8in) |
Net weight | 25kg |
Cabinet Finish (Grille Finish) | Gloss Black (with black grilles) Rosenut (with black grilles) Satin White (with grey grilles) |
