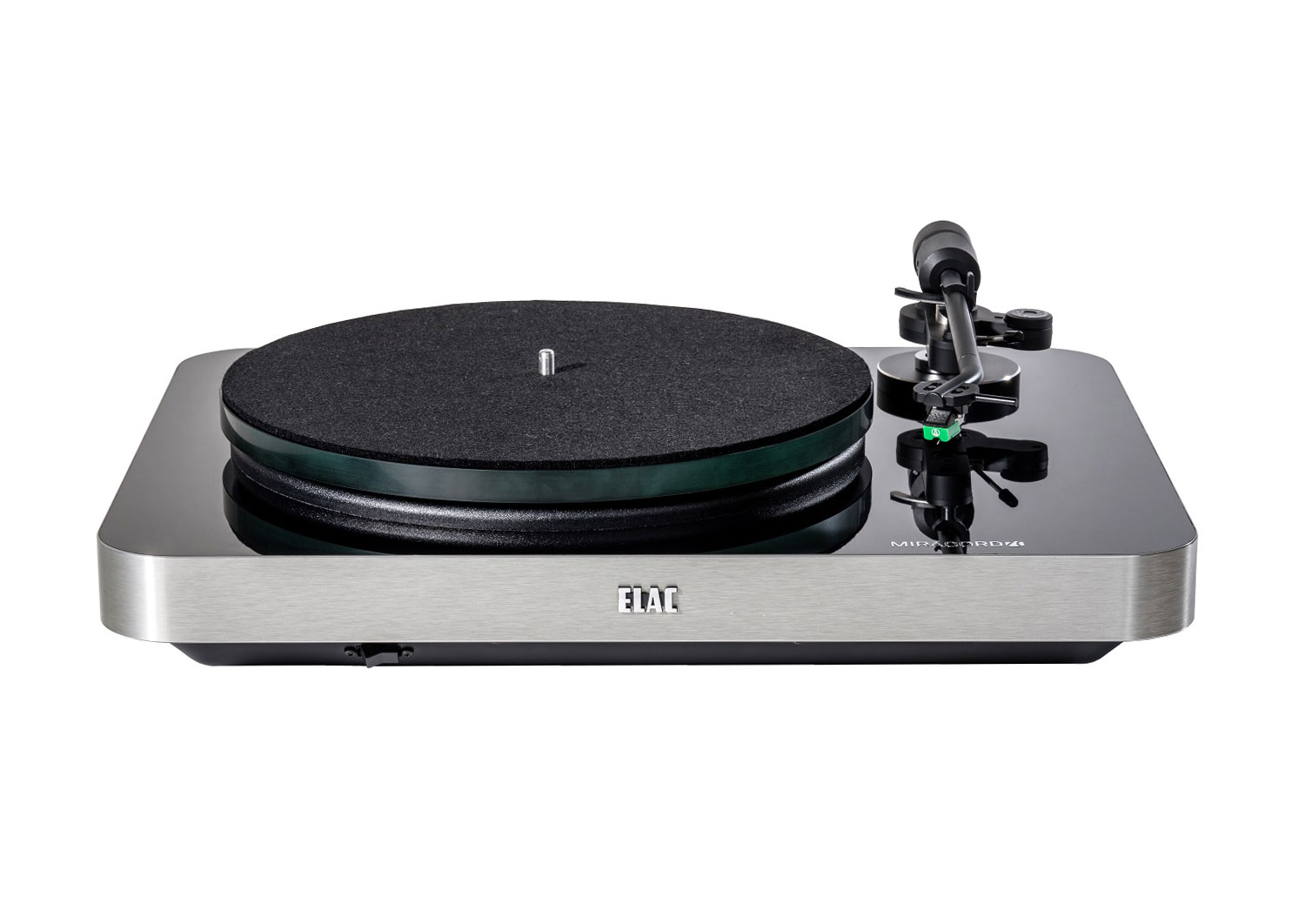

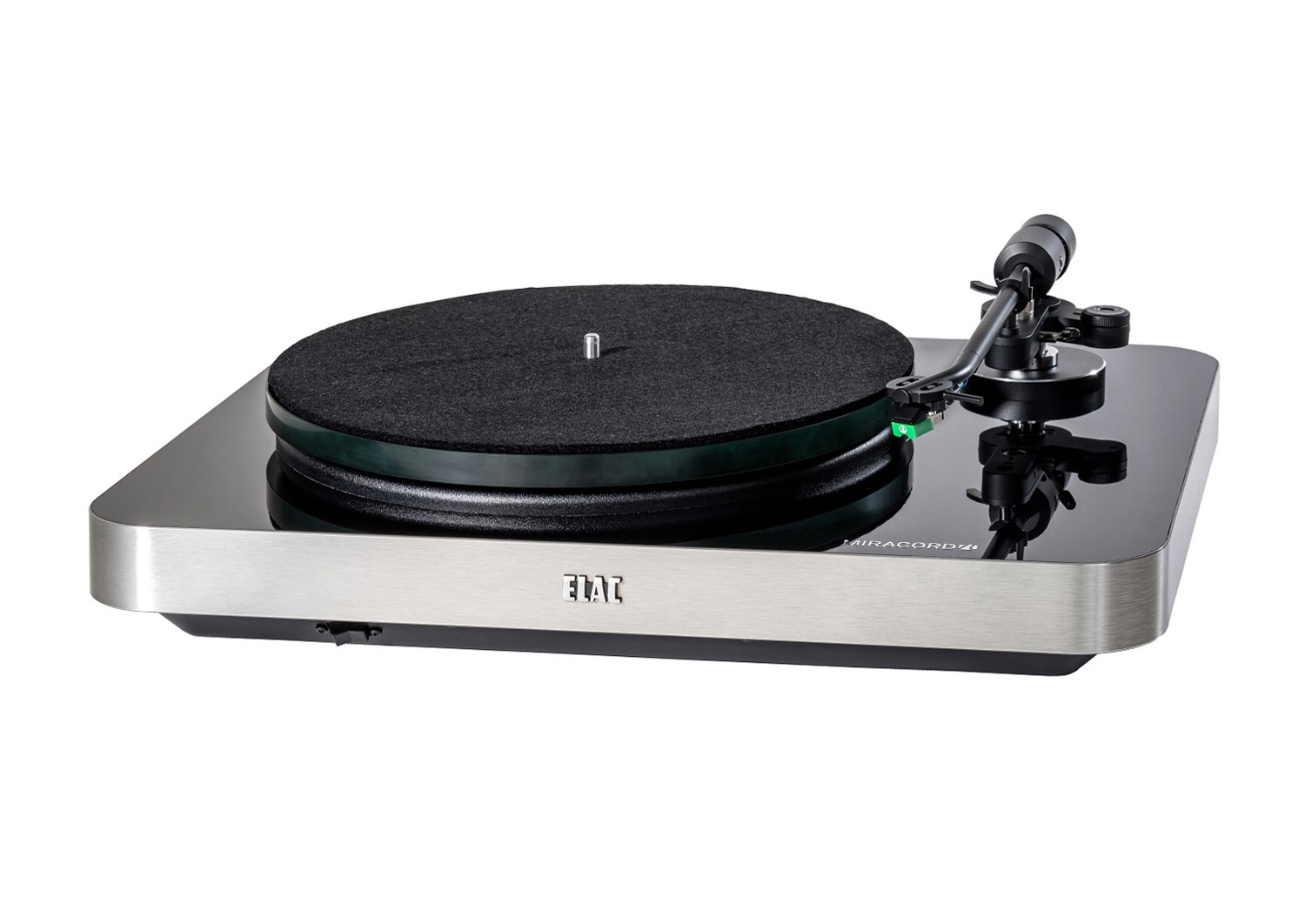

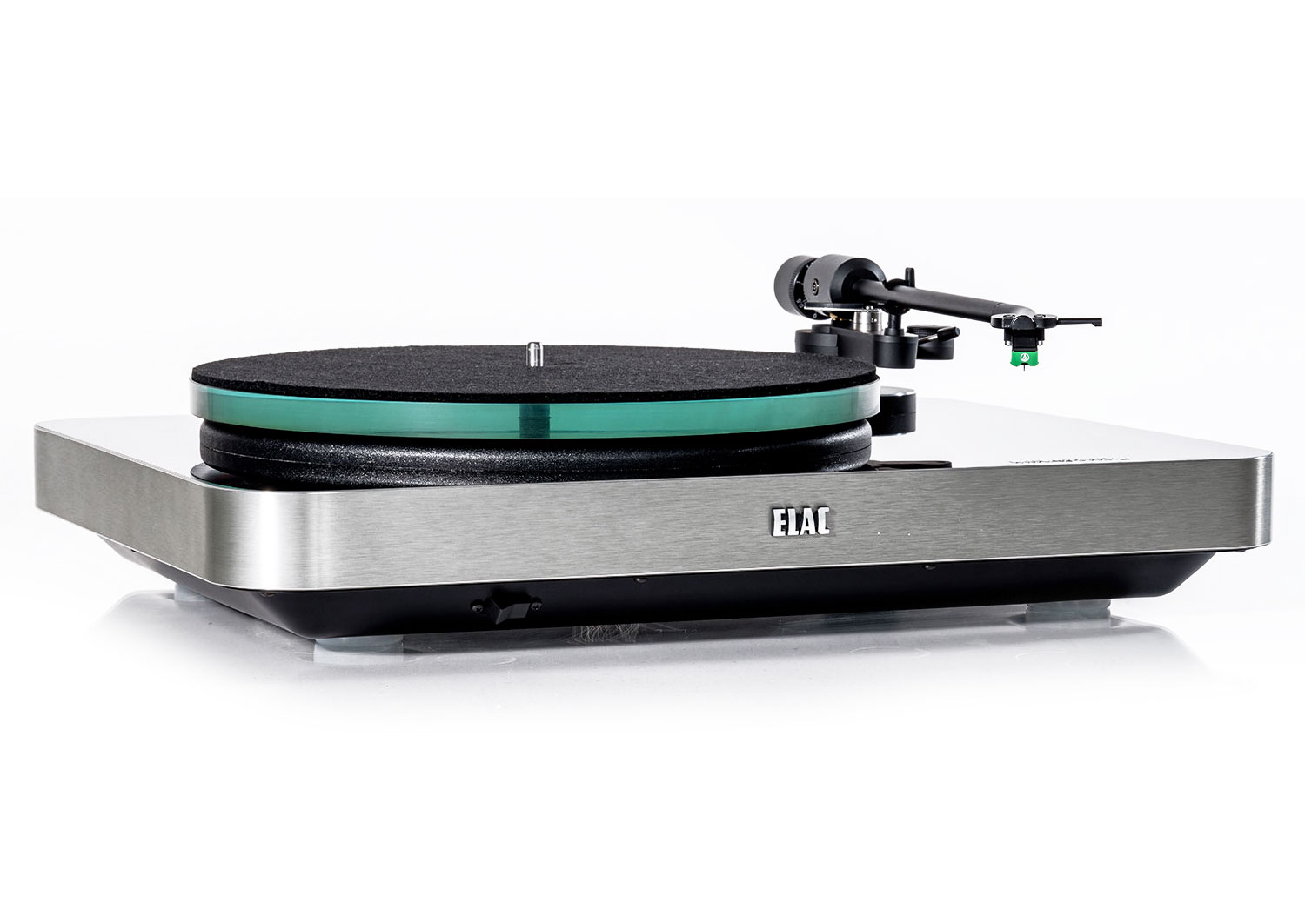

MIRACORD-70 (BLACK)
ELAC Miracord 70 – the next stage of the vinyl comeback.
The new Miracord 70 sees ELAC expand its turntable offering and embark on the next stage of its successful return to the world of vinyl.
The solid MDF plinth with a high-gloss black fi nish provides a strong foundation. A belt-driven sub-platter, powered by an extremely smooth synchronous motor by Premotec, supports the 2.6 kg platter made of glass. A black ceramic coating on the underside of the platter gives it a dark translucent appearance that accentuates its three-dimensional form. Combined with a point mounting system that uses a ceramic ball as a central element, like the one on the Miracord 90, the overall structure ensures exceptionally smooth running and outstanding immunity to external infl uences.

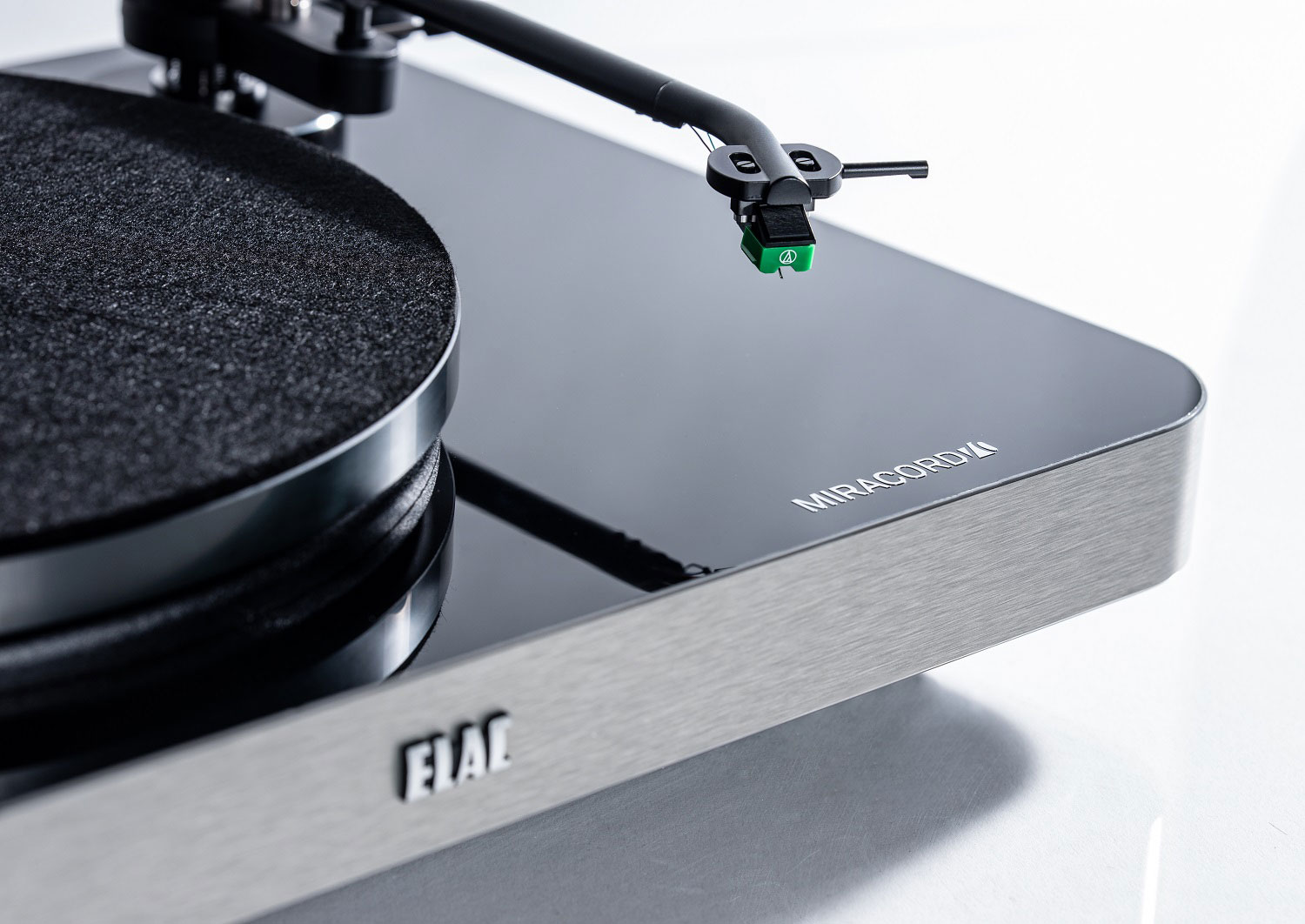

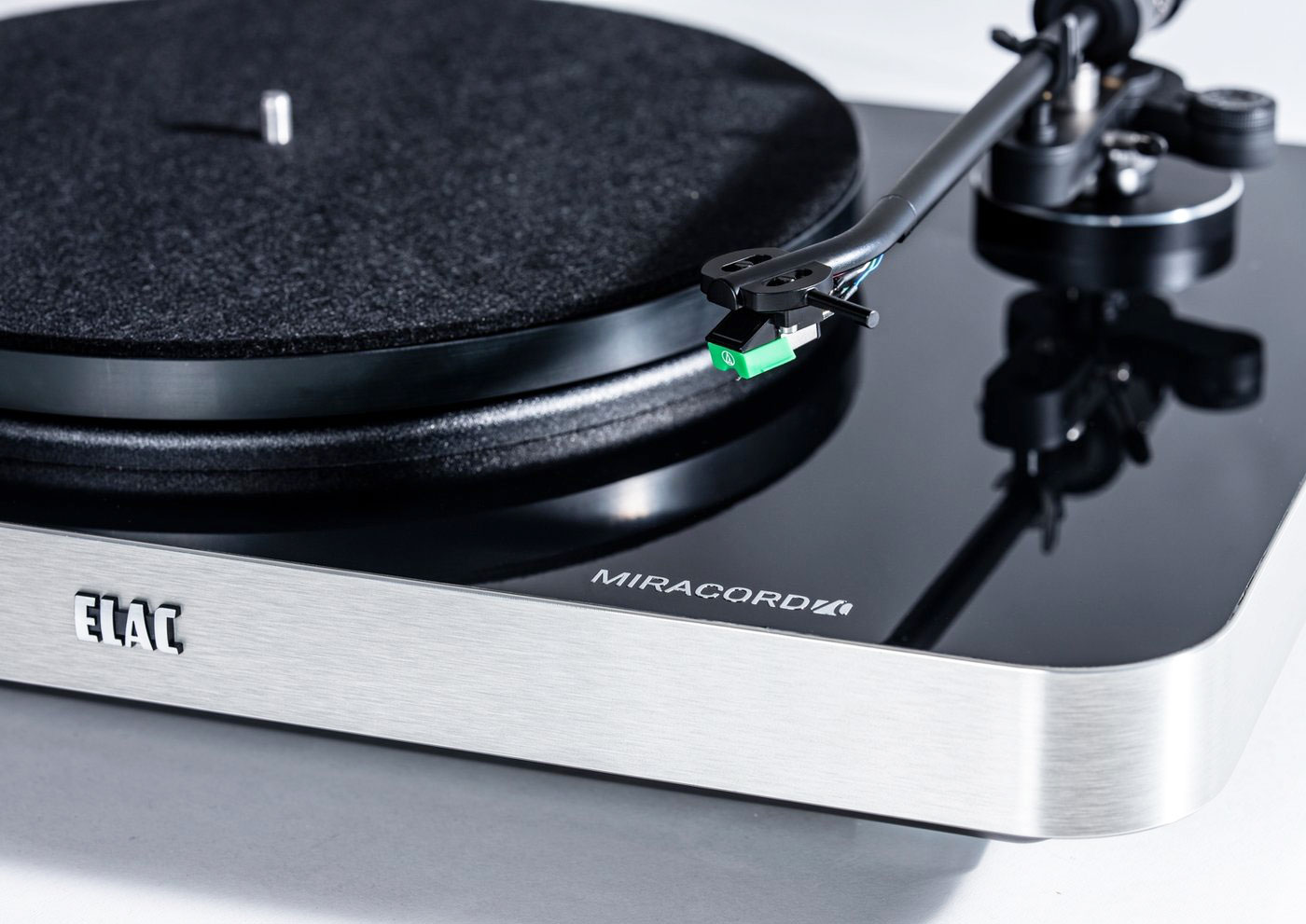

The aluminum tonearm
comes fitted with the audio-technica® AT95 MM cartridge system and delivers a sound that is full of vitality.
The belt-driven Miracord 70
employs the sub-platter principle in conjunction with a high-mass, 2.6-kg platter made of soda lime glass.
The Anti-Skating
and the entire assembly
is driven by a powerful synchronous motor, which is decoupled from the plinth to guarantee fl awless tracking and exceptionally smooth running.
Specifications
Height x Width x Depth | 140 x 465 x 365 mm |
Weight | 11 Kg |
Cartridge | AT95E by audio-technica® |
Frequancy range | 20 Hz – 20 kHz |
Tracking force | 2,0 ± 0,5 g, 20 ± 5 mN |
DC resistance | 400 Ω ± 20 % |
Coil impendance | 1 kΩ ± 20 % at 1 kHz |
Recommended Load | 47 kΩ |
Output voltage | 3,5 mV |
Channel separation | > 20 dB |
Selectable speeds | 33 – 45 U/min |

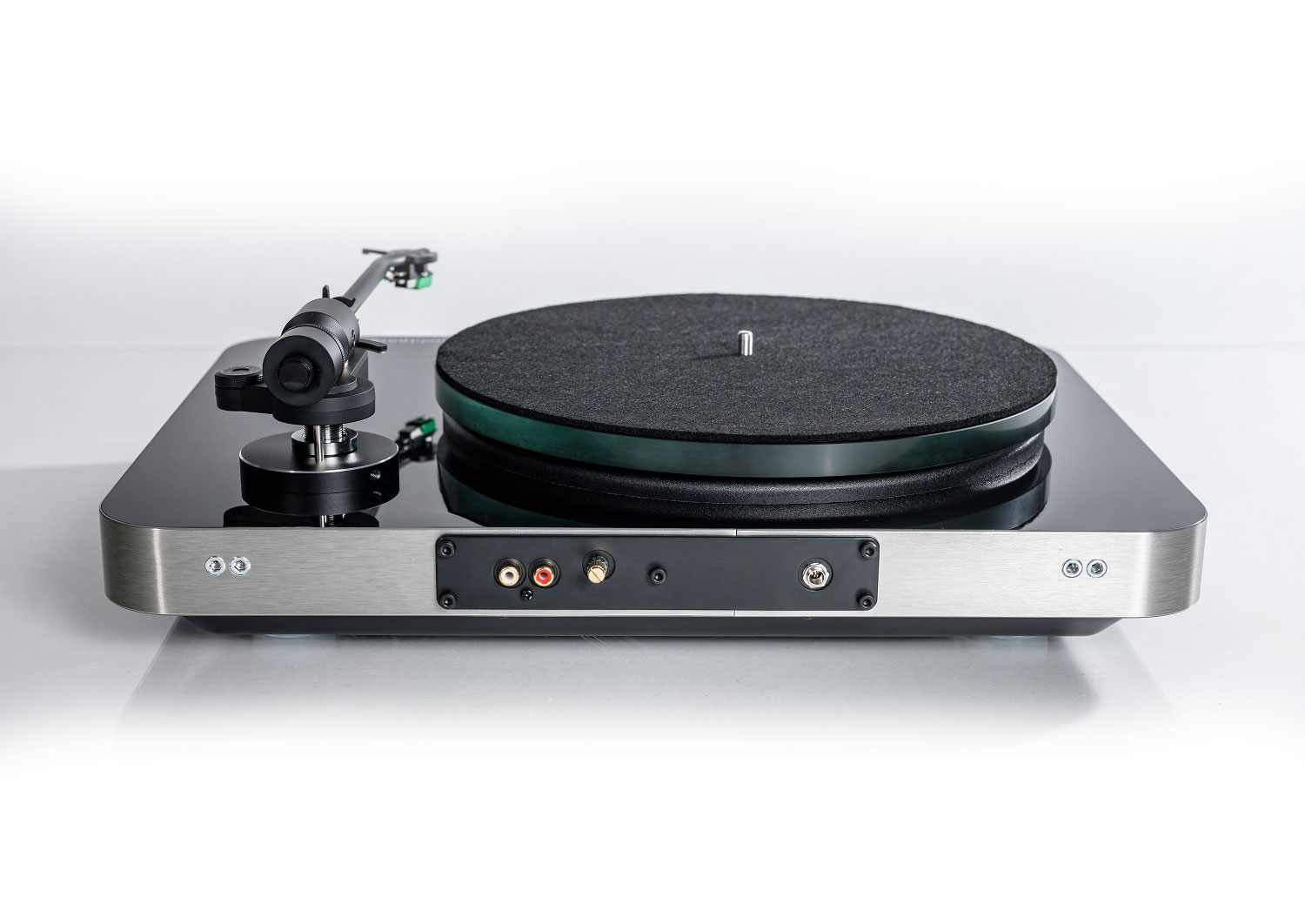

Outputs | 2 goldplated RCA connectors, goldplated ground connector |
Power supply | 24 V AC, 6 VA |
