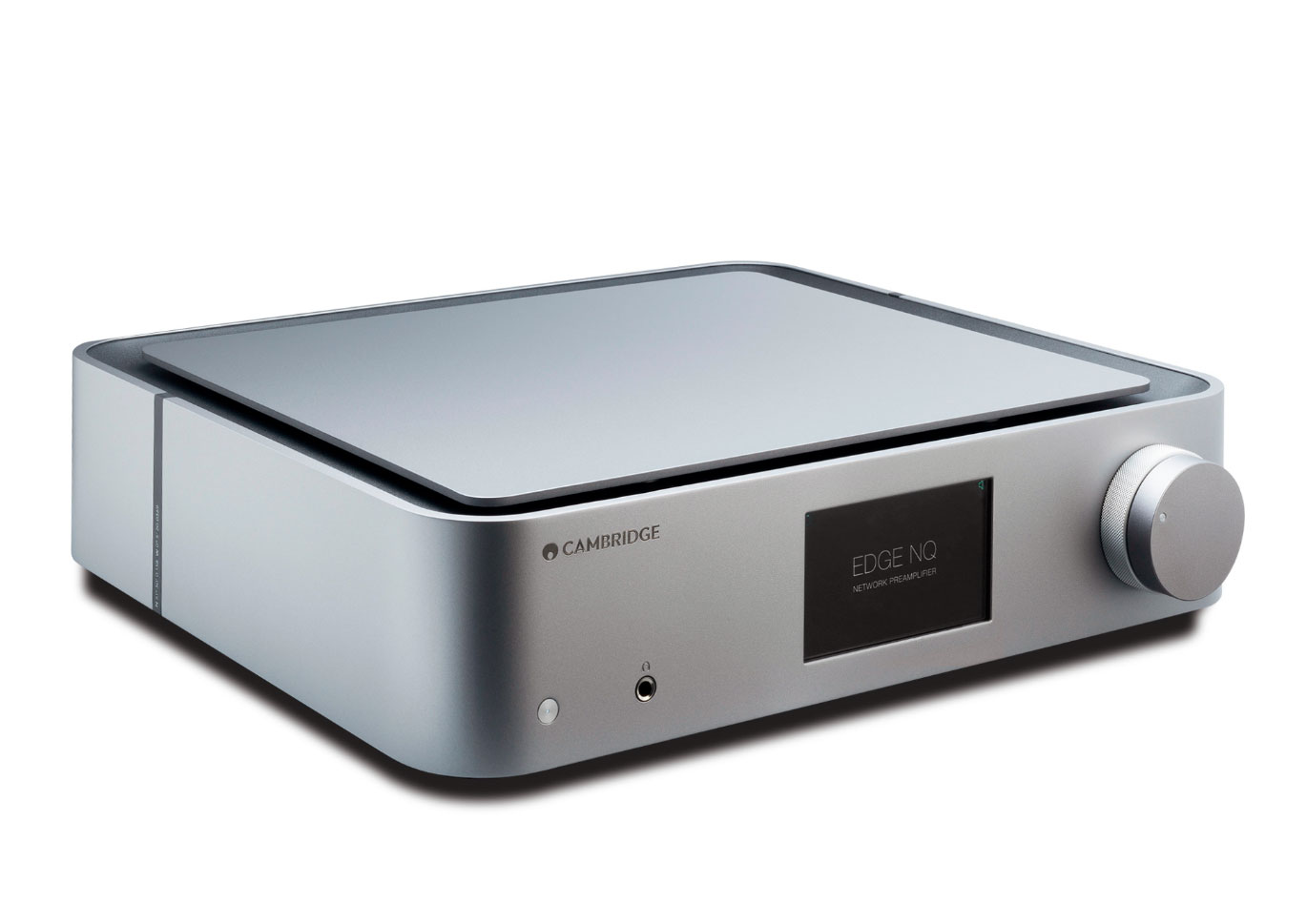

Cambridge Audio : EDGE NQ (DARK GREY)
Preamplifier with Network Player
With a revolutionary preamp circuit-board that reduces interference and an incredibly clean signal path, Edge NQ plays your favourite music with astonishing depth. Stream, plug-in and play to enjoy every note in perfect clarity.
All the sources.
Edge NQ lets you enjoy music from any source. As well as digital coaxial, HDMI, USB and S/PDIF connections, there’s also Chromecast built-in, Spotify Connect, AirPlay, Bluetooth aptX HD, Internet Radio and UPnP Playback. Wherever songs are played from, Edge NQ stays true to the character of every instrument and uncovers a musicality you’ve never heard before.
Astonishing digital detail.
With a wealth of connections including digital coaxial, ARC (Audio Return Channel), USB and S/PDIF, our engineers have ensured that all of your digital content can be enjoyed, at up to 32bit/384kHz and DSD 256. Edge NQ offers an incredibly revealing sound that has detailed tone, rhythmic drive and taut bass.
Edge NQ was designed with a unique PCB. Our engineers replaced conventional capacitors with a DC coupled topology and also added a solid state volume control. The end result is a clean signal path that’s perfectly balanced at any volume.
Award-winning streaming software.
Edge NQ boasts the very latest version of our award-winning streaming module. Designed in-house, right here in the UK, it features a new, faster chipset and support for both 24bit/192kHz and DSD128 files. The addition of Spotify Connect, AirPlay, Bluetooth aptX HD and Internet radio means you can enjoy your music whatever the source.
Edge NQ has Chromecast built-in. Just tap the cast button in your favourite app to stream music from your smartphone, tablet or laptop in stunning high definition sound, up to 24bit/96kHz.
Perfect partners.
Edge systems are designed to work in perfect synchronisation. Match the Edge NQ with our highest performing power amplifier, Edge W, to create a hi-fi system with a sound, and a look, unlike anything else.
Specifications
D/A Converter ..P
|
THD <0.0008%, 20Hz - 20kHz, 24-bit, 1Vrms output |
THD analog sources | <0.0008%, 20Hz – 20kHz, 1Vrms output |
Frequency response | 20Hz-20kHz +/- 0.1dB |
S/N ratio (ref 1V output) | >103 dB |
Crosstalk @ 1kHz
|
< -100dB |
Max preamp output | 6Vrms single ended or 6Vrms + 6Vrms balanced |
USB audio input | USB Audio Class 2.0 supporting up to 32-bit 384kHz PCM, or up to DSD256 |
USB drive input | 1 x USB 2.0 current limited to 1A, FAT32 / NTFS / HFS / HFS+ |
Bluetooth | 4.1 (Smart/BLE enabled) A2DP/AVRCP supporting SBC, AAC, aptX and aptX HD |
UPnP Connectivity | Yes - Accesible via supported app |
Chromecast built-in | Yes |
TOSLINK input | 16/24-bit 32-96kHz |
Coax S/PDIF input | 16/24-bit 32-192kHz |
Wi-Fi | IEEE 802.11 b/g or n (2.4GHz), Encryption WEP, WPA, WPA2 |
Ethernet | IEEE 802.3, 10 Base-T or 100 Base-T |
Chromecast built-in | Hi-res wireless connectivity that's compatible with hundreds of Android and iOS apps. Chromecast built-in is a trademark of Google LLC |
Max power consumption | 100W |
Standby power consumption | <0.5W |
Dimensions | 120 x 460 x 405mm (4.7 x 18.1 x 15.9”) |
Weight | 10.2kg (22.4lbs) |
In the box ..S | Edge NQ Pre-amplifier and Network Player; 1.5M Power Lead; Edge Remote Control; 3 x AAA Batteries; Bluetooth Antenna; Wi-Fi Dongle; Edge Link Cable; Edge NQ User Manual |
