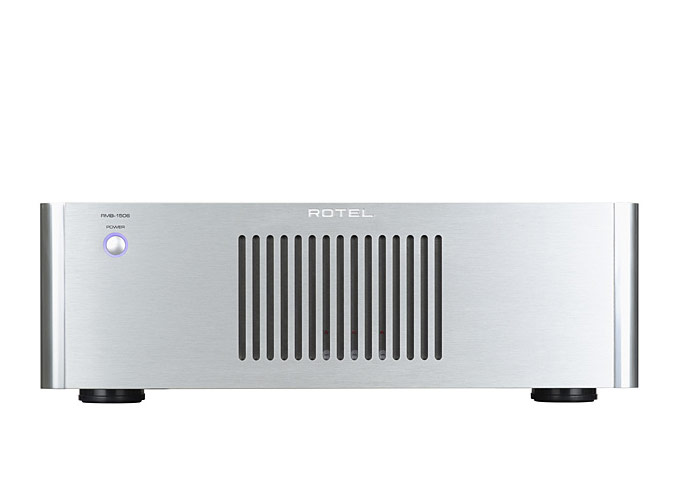

Rotel RMB 1506 (SILVER)
Multichannel Amplifiers 50W x 6
Featuring 6 x 50 watts per channel, the RMB-1506 is a rugged, sophisticated, multichannel amplifier for those with a limited number of zones to fill with music. The RMB-1506 is perfect for less elaborate multizone audio systems and can be mated with our surround receiver or our preamp/processors to add music throughout three additional living areas or “zones” of your home. A buffered link output allows you to link additional amplifiers for larger multizone applications.

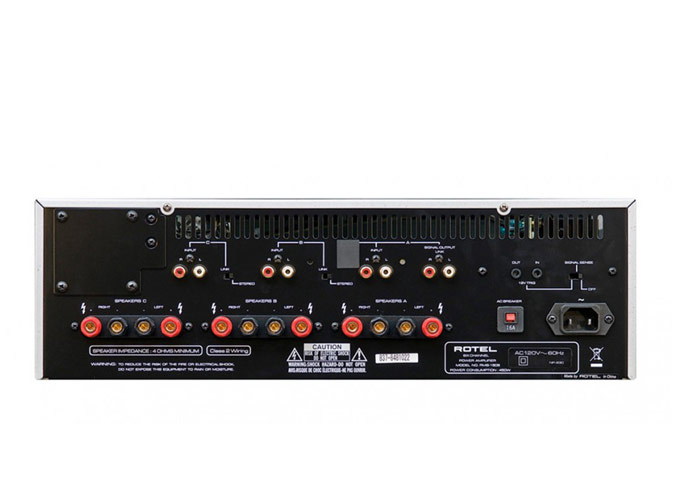

As with all Rotel custom amplifiers it includes the most wanted custom installation features such as front panel attenuation control, input linking, 12-volt trigger, buffered link output, five-way binding posts and an IEC detachable power cord.
Continuous Power Output |
50W/Ch (All channels driven, 8Ω)
80W/Ch (All channels driven, 4Ω) |
Total Harmonic Distortion (THD) |
(20Hz–20kHz) <0.03%
|
Frequency Response
|
10Hz - 100kHz ±1dB
|
S/N Ratio (IHF "A" Weighted)
|
115dB |
Gain | 26db |
Intermodulation Distortion
|
(60Hz:7kHz, 4:1) <0.03%
|
Damping Factor
|
>200 |
Speaker Impedance
|
4Ω minimum |
Input Sensitivity
|
1V |
Input Impedance
|
20kΩ |
Dimensions (W × H × D)
|
431 × 144 × 424mm
17" × 5.7" × 16.7" |
Front Panel Height
|
3U / 132.6mm (5.25") |
Power Requirements
|
220V, 60Hz
|
Power Consumption
|
450W
|
Standby Power Consumption
|
2.6W
|
Net Weight
|
15.3kg (34lbs.)
|
BTU Rating (4Ω, 1/8th power)
|
1683 BTU/h
|
Front Panel Height
|
1680 BTU/h
|
Weight (net)
|
38.1kg, 84 lb
|
