MYTEK Brooklyn bridge (Silver)
STREAMER / DAC / PREAMP

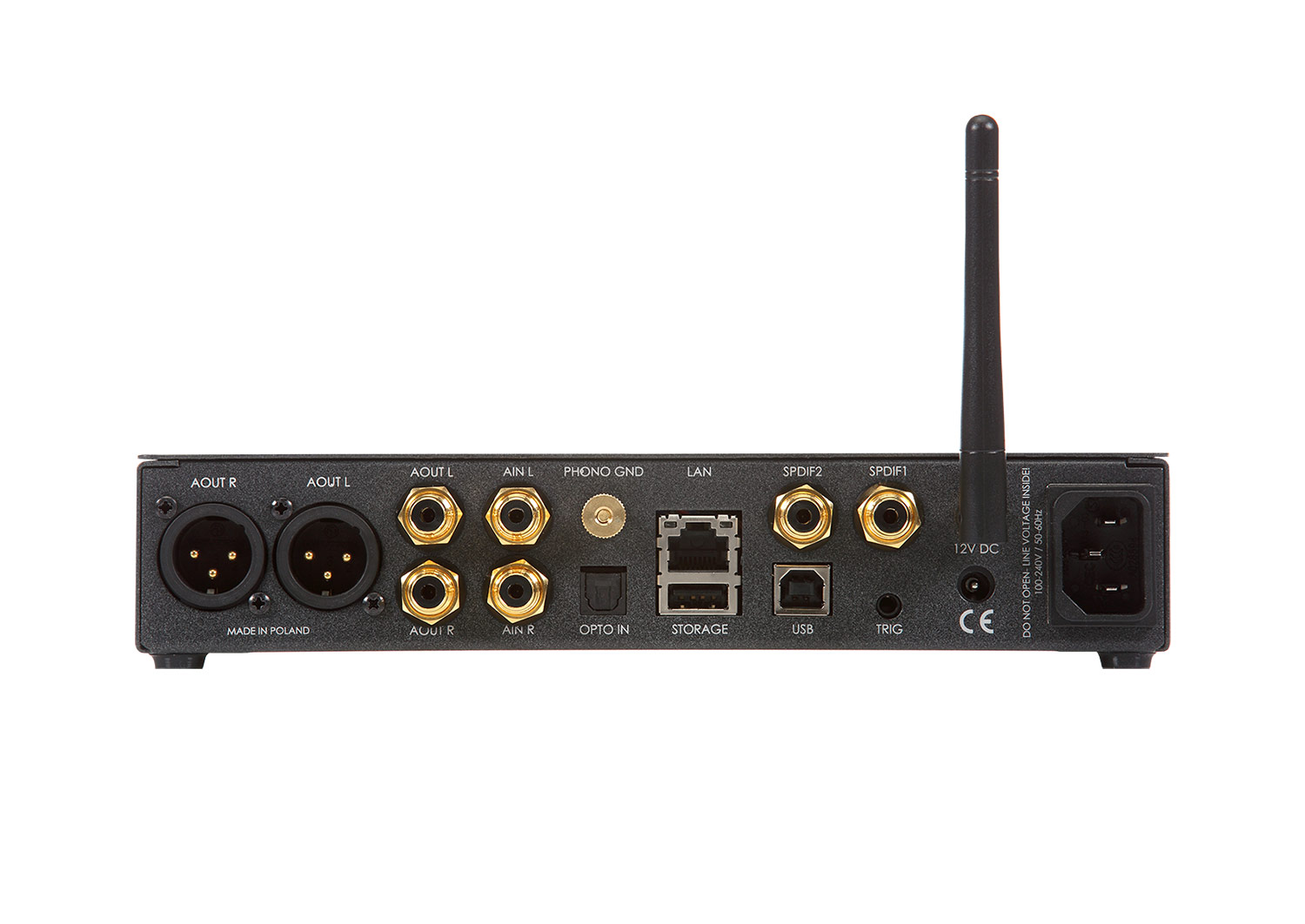

Brooklyn Bridge is identical to Brooklyn DAC+ in terms of audio circuits and performance but has the addition of a built-in Network Streamer. AES/EBU digital input is replaced with an ethernet network connector, a WiFi antena and a USB port for external music hard drive. Just add a tablet (ipad or android) for complete music system to stream Tidal MQA, Qobuz Hi-Res or other streaming services or play local files connected to Brooklyn Bridge USB port. Roon requires additional Roon Core. Like in the Brooklyn DAC+ there is line and phono analog preamplifier and a reference headphone amplifier.

CONVERSION: up to 384k, 32bit PCM, native DSD up to DSD256, DXD, 130dB DR, ES9028PRO chipset

MQA HI-RES DECODER: built in certified hardware MQA™ decoder, full unfold to original sample rate

NETWORK INPUTS: Ethernet CAT5 (PCM up to 24/192k, DSD64 , WiFi (PCM up to 24/192k, DSD64)

DIGITAL INPUTS: USB2 Class2 (OSX, Linux driverless, all formats up to 384k), 2x S/PDIF (PCM up to 24/384k, up to DSD128 DOP), Toslink (up to 24/176k, DSD64 DoP)

CLOCK: “Mytek Femtoclock Generator™” 0.82ps internal jitter.

ANALOG OUTPUTS: RCA, balanced XLR, simultaneous, 75 Ohm impedance

HEADPHONE OUTPUTS: Reference High Current,
High transient Headphone Amp, 500mA, 6 Watts, dual headphone jacks, designed to drive hard to
drive headphones.

BUILT-IN ATTENUATOR: Choice of 1dB step analog attenuator, separate for main out and head-phones,
1dB step digital 32 bit attenuator and purist relay bypass.

BUILT-IN ANALOG PREAMP: Line level input or Phono M/M, M/C input, relay controlled.

AUDIO INTERFACE FUNCTION: All digital inputs can be routed into computer via USB2. Allows connection
of external digital sources such as CD Players and digitizing ADCs.

REMOTE: Included, universal remote capable
