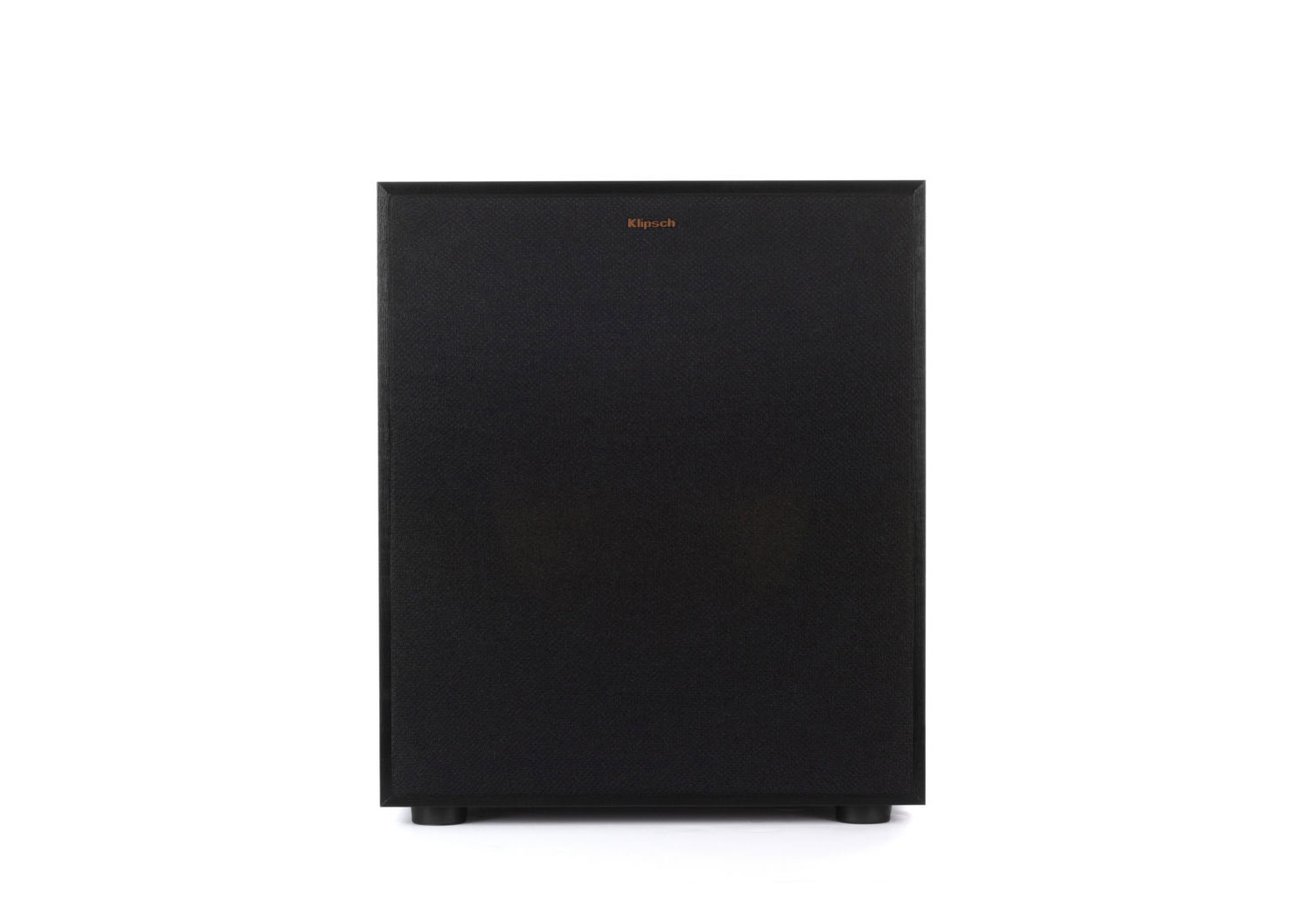

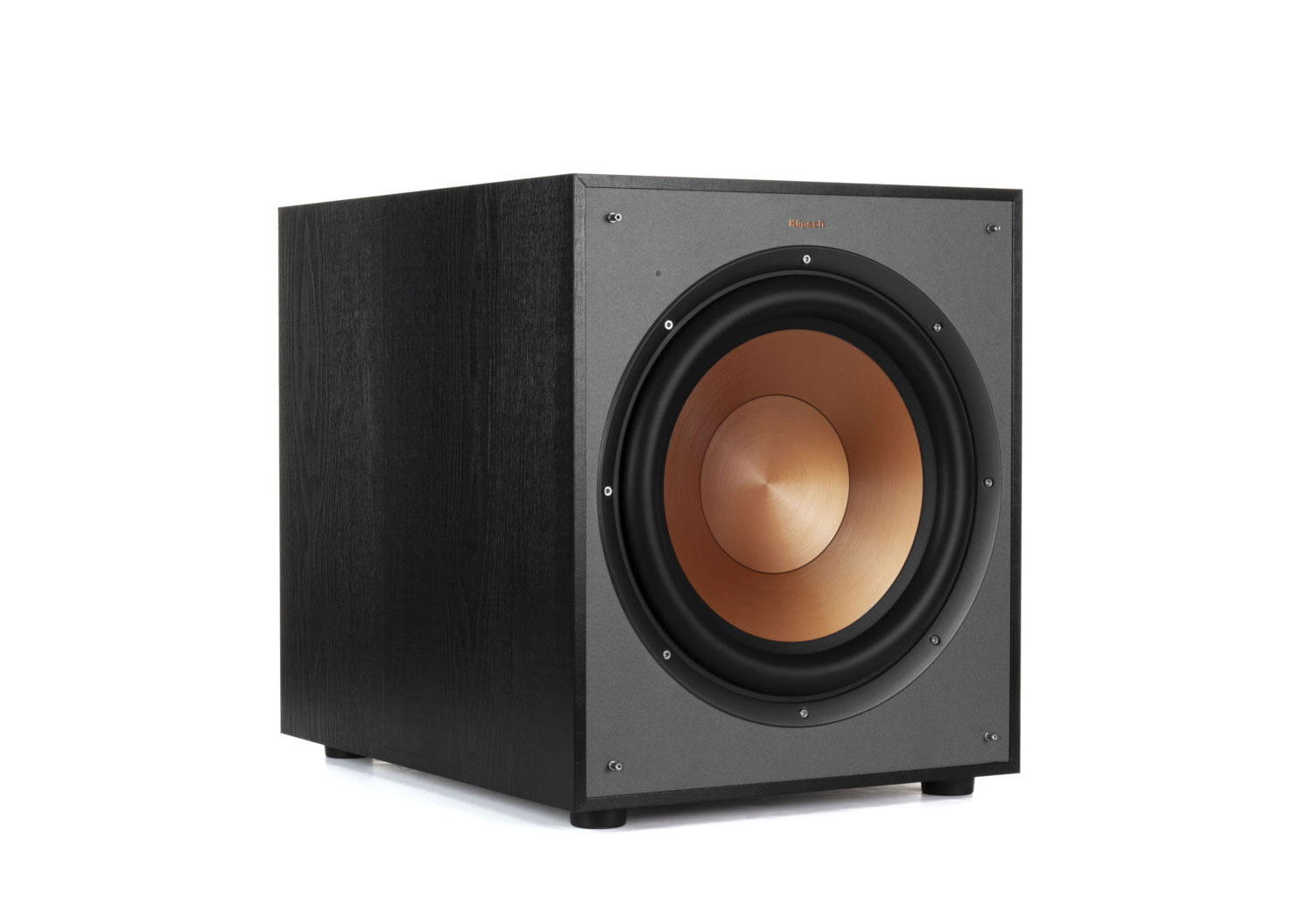

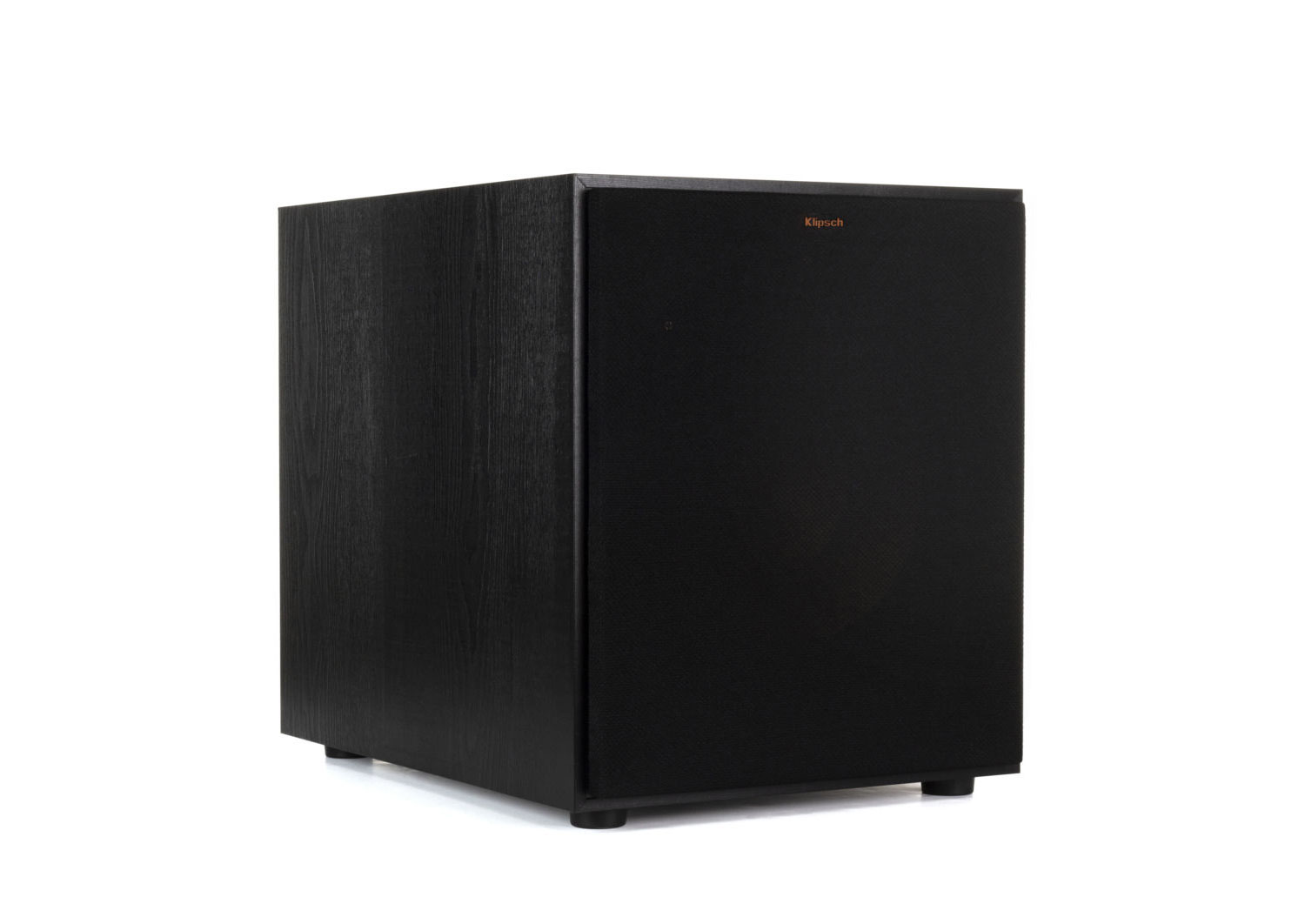

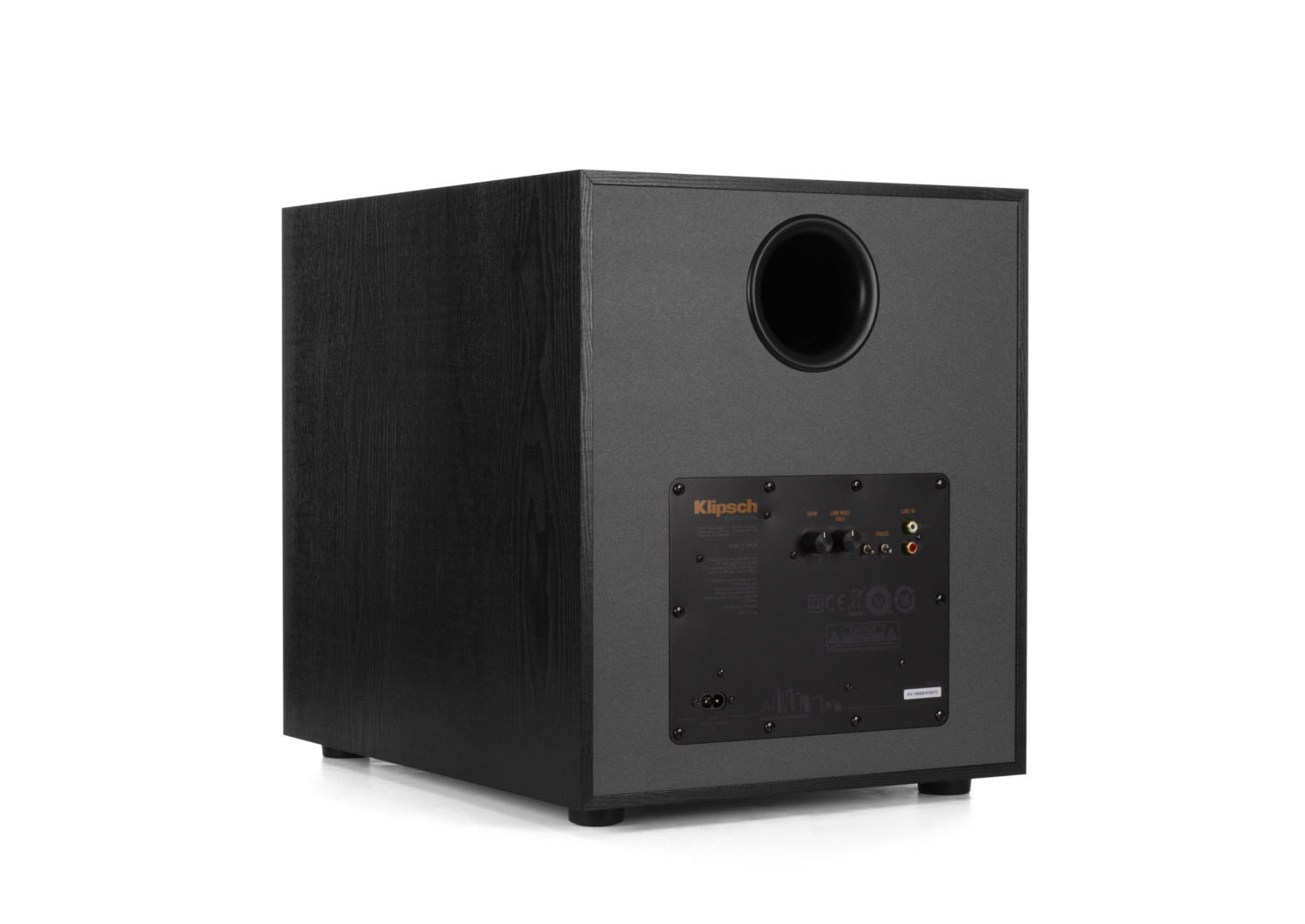

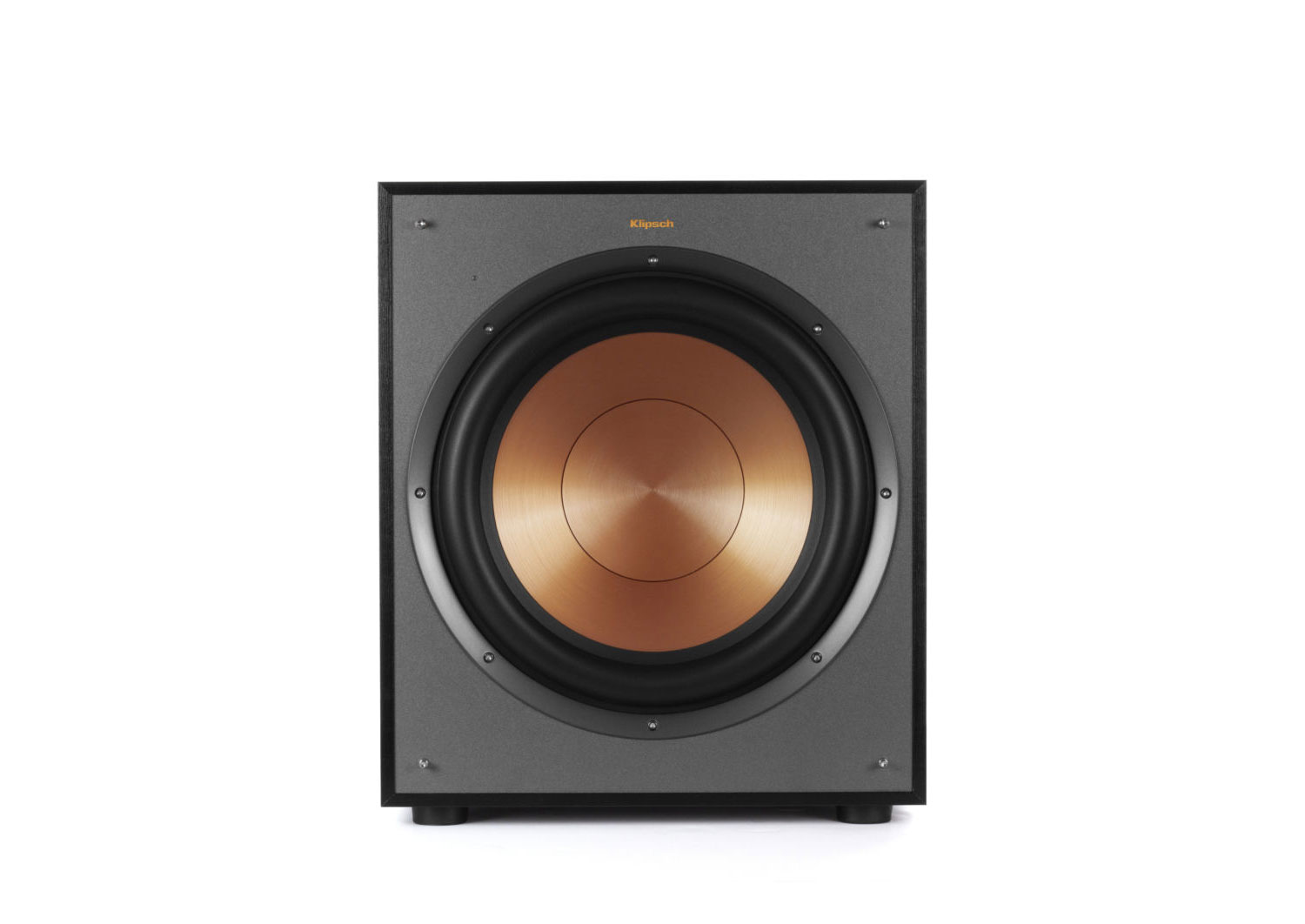

KLIPSCH R-120SW (BLACK)
The Klipsch R-120SW subwoofer is designed to deliver awe-inspiring bass for your movies and music. A 400 Watt all-digital amplifier powering a front-firing spun-copper IMG woofer produces a clean, deep bass response for your home audio system.
Features:
Spun Copper IMG Woofers
Injection Molded Graphite (IMG) woofer cones are exceptionally light while being extremely rigid – providing remarkable low frequency response, with minimal cone breakup and distortion. When paired with the Tractrix Horn-Loaded LTS Tweeter, it provides speaker efficiency highest in its class.
All-Digital Amplifier
The built-in, all-digital amplifier of the R-120SW subwoofer delivers ample power with high efficiency and true-to-source accuracy reproduction - thus providing maximum output, detail, and power that fills your home.
CUSTOMIZED BASS
The R-120SW subwoofer gain, low pass crossover and phase controls ensure the low-frequency tones blend with other speakers and establish the ideal level of bass for your room.
Line level/LFE RCA inputs provide maximum compatibility with standard home theater receivers.
HIGH QUALITY CABINET DESIGN
Reinforced MDF construction reduces cabinet vibration for less audible coloration and improved sonic accuracy - giving you the ultimate listening experience that's built to last.
Sleek Design
Exposed fasteners, low profile magnetic grilles and a scratch-resistant, textured wood grain vinyl give the R-120SW subwoofer a polished, modern appearance that perfectly accents our entire Reference series speakers.
FREQUENCY RESPONSE
|
29Hz - 120Hz +/- 3dB
|
MAXIMUM ACOUSTIC OUTPUT
|
116 dB
|
AMPLIFIER
|
All Digital
|
AMPLIFIER POWER (CONT/PEAK) | 200W/400W |
AMPLIFIER FEATURES
|
Volume, Low-pass, 0/180 phase, Auto Power On
|
DRIVER COMPONENTS
|
12” high excursion spun-copper IMG woofer
|
ENCLOSURE MATERIAL
|
MDF
|
ENCLOSURE TYPE | Bass-Reflex via rear-firing port |
INPUTS
|
Line level/LFE RCA jacks
|
HEIGHT
|
16.5” (419 mm)
|
WIDTH
|
14” (356 mm)
|
DEPTH
|
19.2” ( 488mm)
|
WEIGHT
|
31 lbs (14.1 kg)
|
