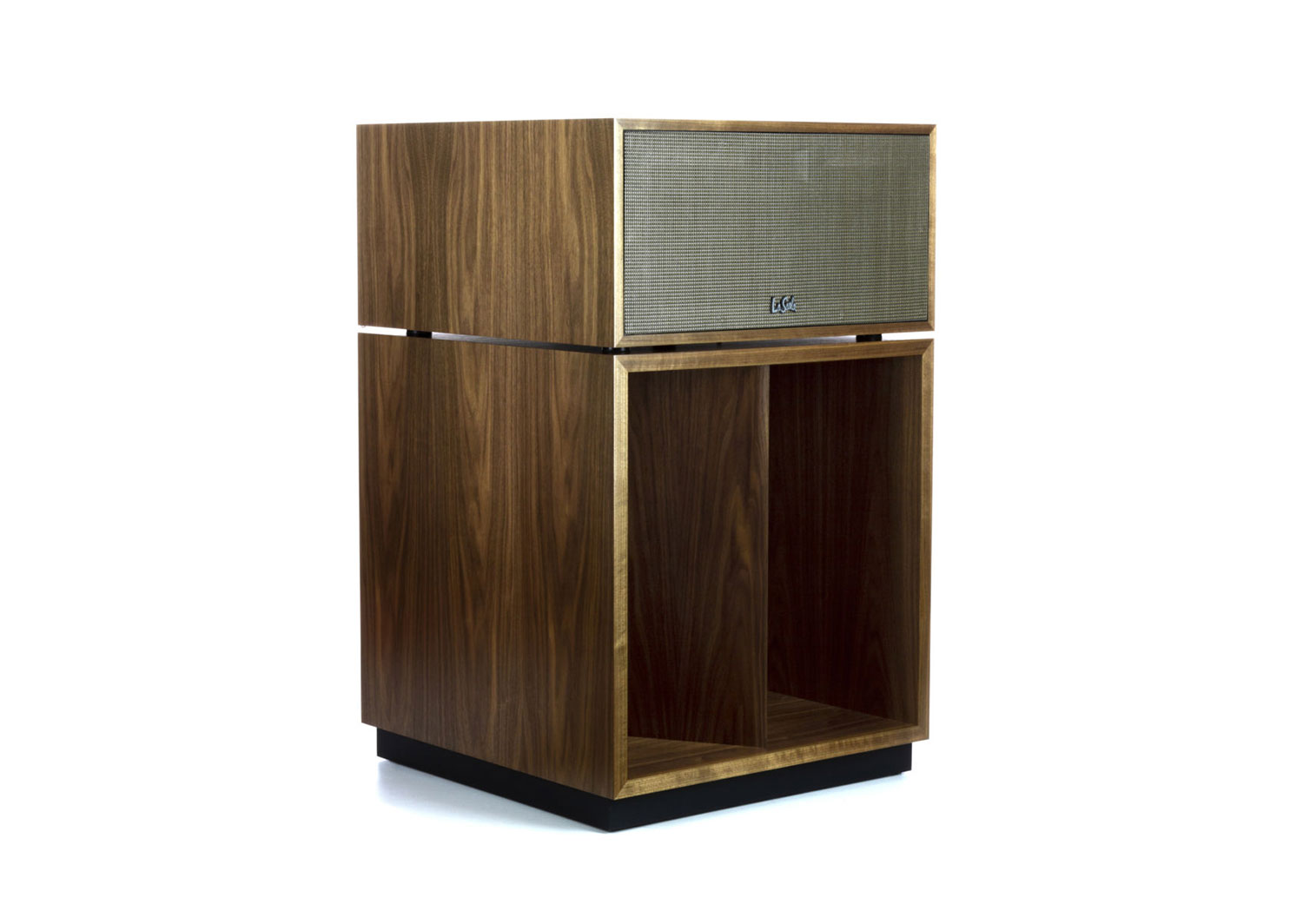

KLIPSCH La Scala AL5 (Walnut)
3-WAY FULLY HORN-LOADED LOUDSPEAKER
Features:
THE MOST VERSATILE KLIPSCH CREATION
Originally designed for professional use, the Klipsch La Scala has proven itself as an outstanding choice for the audiophile as well. The La Scala brings the most subtle musical details to life, always delivering the legendary Klipsch sound with clarity and ease. On a single watt, it generates 105 decibels of sound pressure, which means that the La Scala will delight the listener even while using the most modest amplifier power.
DESIGNED AND MADE IN THE USA
USING DOMESTIC AND IMPORTED COMPONENTS
The La Scala loudspeaker is built to rigid Klipsch standards — the toughest in the industry! Remember great sound? We do, too. The Klipsch La Scala II enclosure is still made in the USA, by proud craftsmen in Hope, Arkansas. Just like Paul W. Klipsch intended.
The La Scala features a neodymium tweeter with a 1” polyimide diaphragm and copper clad aluminum voice coil. This lightweight diaphragm assembly and high strength magnet structure creates the tweeter’s high 105dB sensitivity and makes it the most efficient consumer tweeter in the market. When coupled to a 90° x 40° Tractrix® horn, the tweeter sets new levels of performance for dynamic range and output.
MIDRANGE
According to Paul W. Klipsch, “the midrange is where we live” and is one of the most critical parts in any loudspeaker design. The La Scala’s midrange utilizes a 2” compression driver mated to a high efficiency exponential horn that maximizes the system’s power and performance. As a result, less distortion is produced by the amplifier and by the loudspeaker. That means clarity, accuracy and remarkable tonal definition.
BI-AMP INPUT PANEL AND BINDING POSTS
The La Scala’s premium, aluminum input panel accommodates large, high-quality speaker cables. Strong, versatile and quality binding posts provide the capability for bi-wiring or bi-amping. The quality continues with AudioQuest Type 4 with Star-Quad Geometry internal wiring featuring carbon-loaded insulation, nitrogen-injected PE and solid long-grain copper conductors.
FREQUENCY RESPONSE(+/- 4 dB)
|
51Hz – 20kHz
|
SENSITIVITY
|
105dB @ 2.83V / 1m
|
POWER HANDLING (CONT/PEAK)
|
100W / 400W
|
MAXIMUM SPL | 121dB |
NOMINAL IMPEDANCE
|
8 ohms compatible
|
CROSSOVER FREQUENCY
|
HF: 4500Hz
MF: 450Hz |
TWEETER | K-771 1" (2.54cm) Light-Weight Polyimide Diaphragm Compression Driver Mated to a 90° x 40° Tractrix Horn |
HIGH FREQUENCY HORN
|
Tractrix
|
MIDRANGE | K-55-X 2” (5.08cm) Phenolic diaphragm compression driver |
MID-FREQUENCY HORN | Exponential |
WOOFER | K-33-E 15” (38.1cm) Fiber-composite cone with a folded horn |
ENCLOSURE MATERIAL
|
Birch plywood and MDF
|
ENCLOSURE TYPE | Fully horn-loaded |
HEIGHT INCHES (MM) | 40” (101.6 cm) |
WIDTH INCHES (MM)
|
24 1/4” (61.59 cm)
|
DEPTH INCHES (MM)
|
25 5/16” (64.29 cm)
|
PRODUCT WEIGHT LBS (KG)
|
201 lbs (91 kg)
|
FINISHES
|
Natural Cherry, Satin Black Ash and American Walnut
|
GRILLE CLOTH
|
Silver Metallic
|
