MSB The Premier Powerbase
(Power Supply)

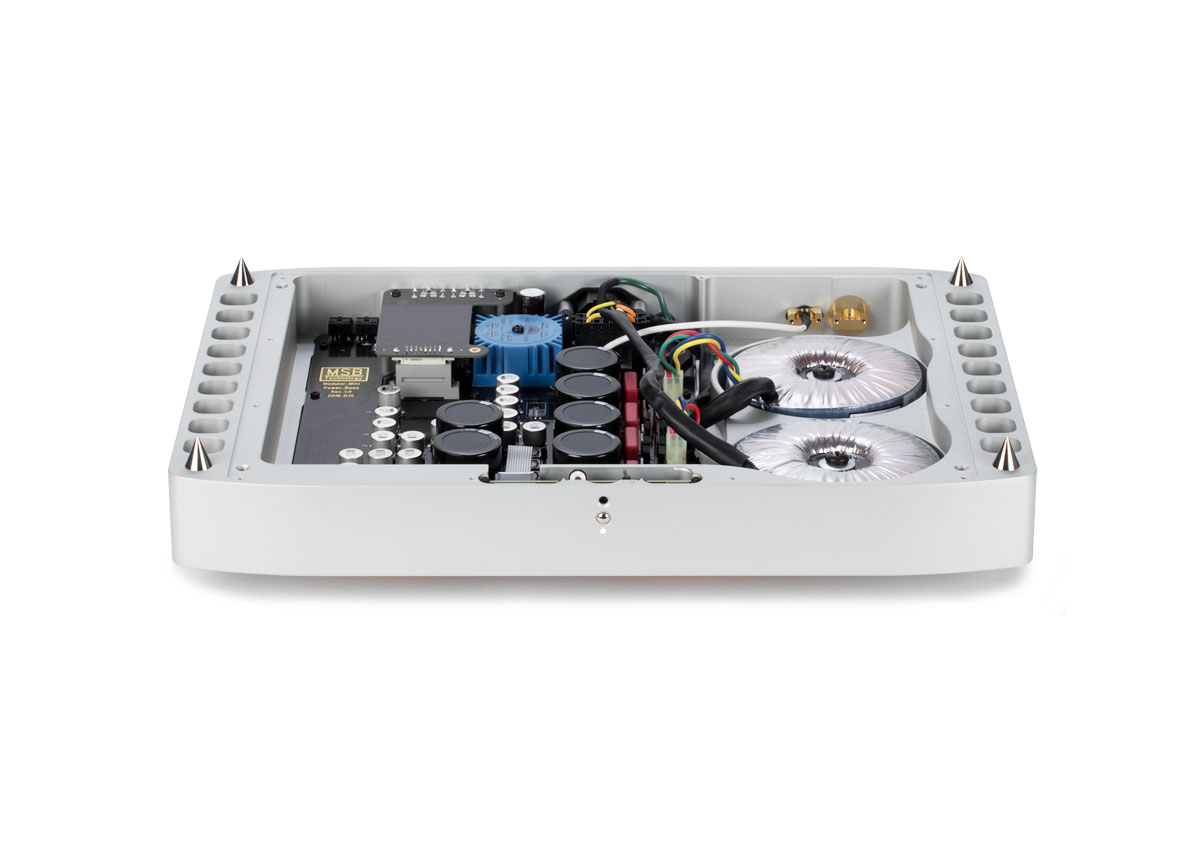

Built to accommodate modular components, the Premier Powerbase is highly adaptive, offering two dual-link power connectors, supplying four isolated power supplies. Make it your own—with the addition of dual low-noise shielded transformers, optimized power filtering, enhanced grounding and high-performance regulators, your DAC will be unrivaled in its performance.
Completely modular
Paired with performance increases, our modular design ethos increases flexibility for future updates and product support, guaranteeing a long-term product investment. As you pursue higher levels of playback, an MSB upgrade path is always available to help drive your own desire for innovation. Whether it’s a software update or a leading-edge modular component, we’re here to help the most valued aspect of MSB—our customers.

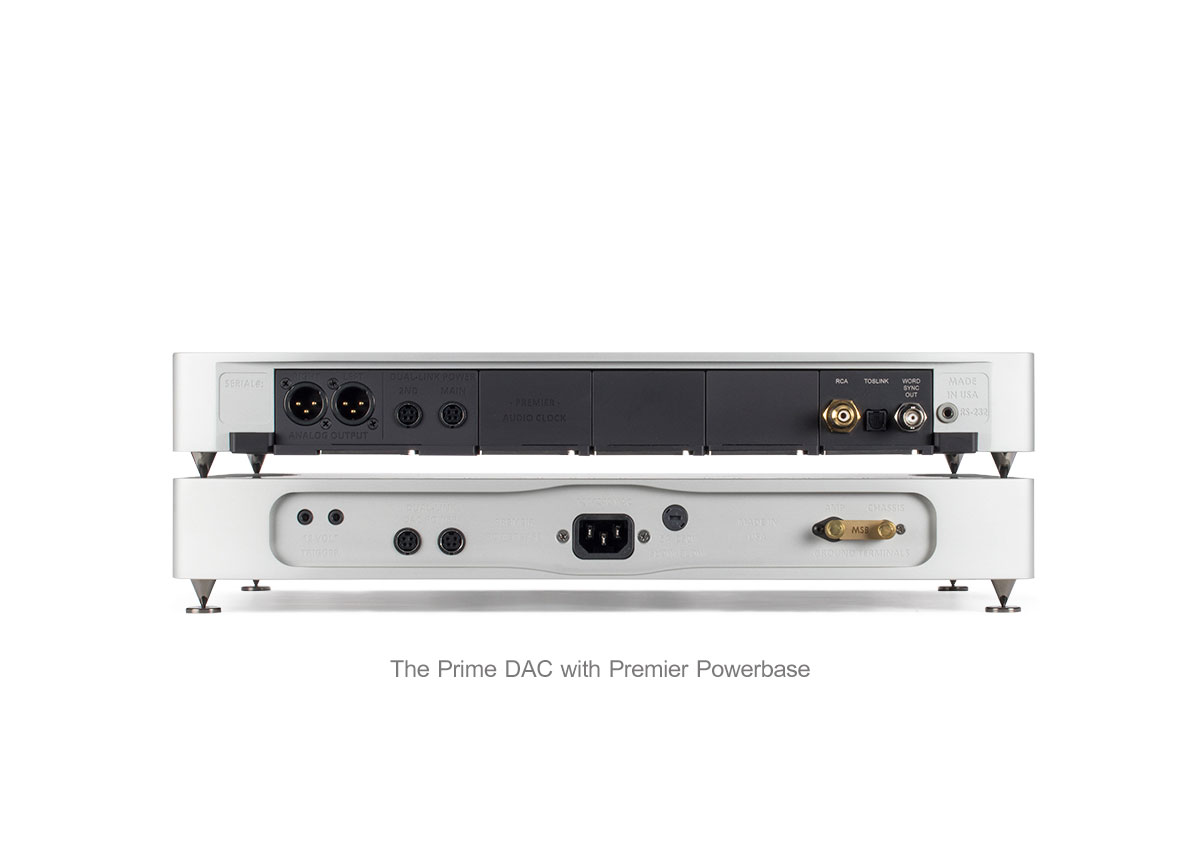

The Premier Powerbase
Technical Specifications
AC Voltage | 100V (Fixed) 120/240V (Auto switching) |
Power Consumption | 45 Watts with fully configured Premier DAC |
Chassis Dimensions |
|
Width: | 17 in (432 mm) |
Depth: | 12 in (305 mm) |
Chassis Height (Without Feet): | 2 in (51 mm) |
Stack height: | 2.65 in (68 mm) |
Weight: | 18 lbs (8.2 kg) |
Shipping Dimensions |
|
Width: | 22 in (558.8 mm) |
Depth: | 18 in (457.2 mm) |
Height: | 7 in (177.8 mm) |
Weight: | 27 lbs (12.3 kg) |
Included Accessories | Grounding cable IEC power cord 2X Dual-link power cable 4X Spiked feet 4X Plastic foot inserts |
