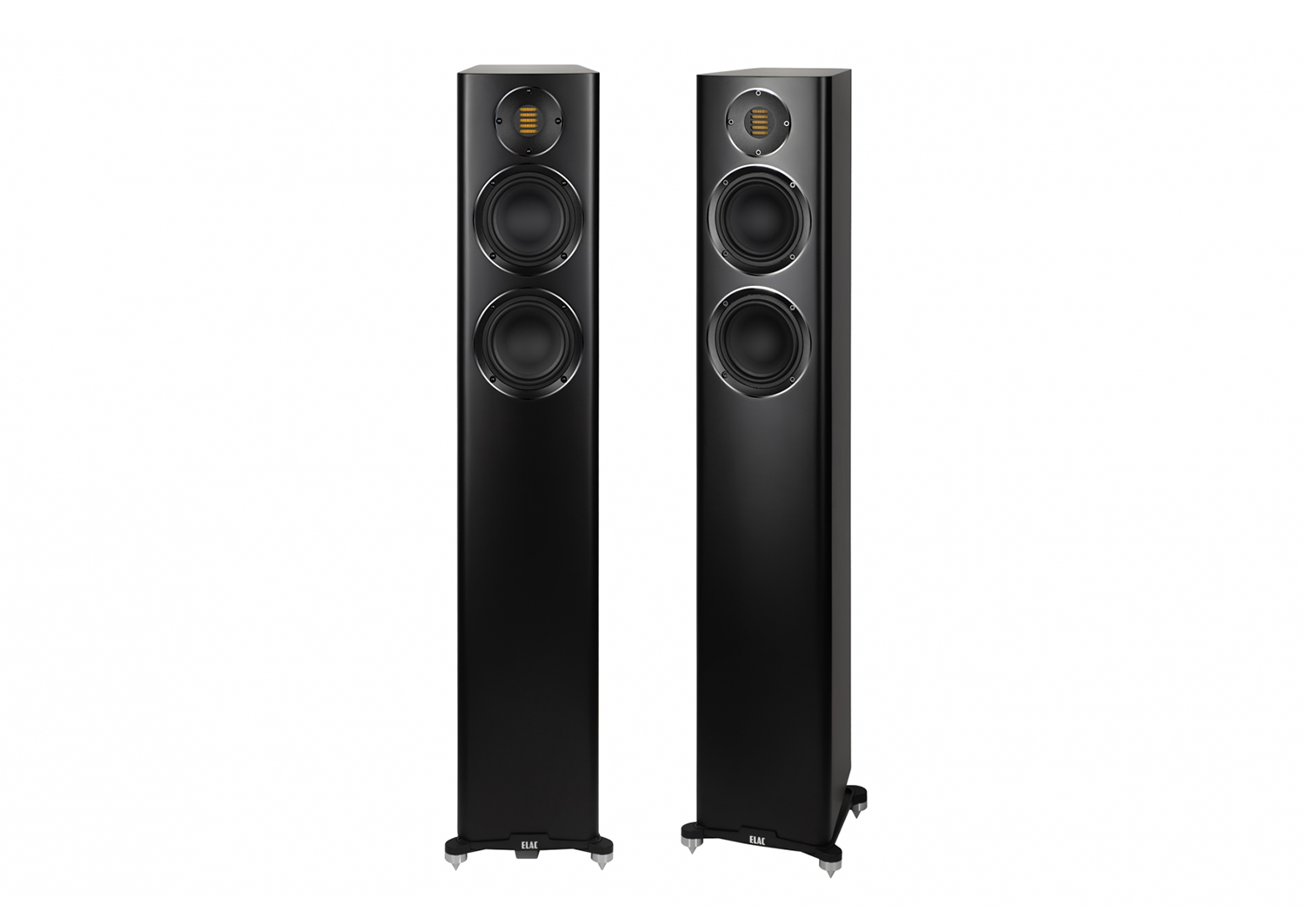

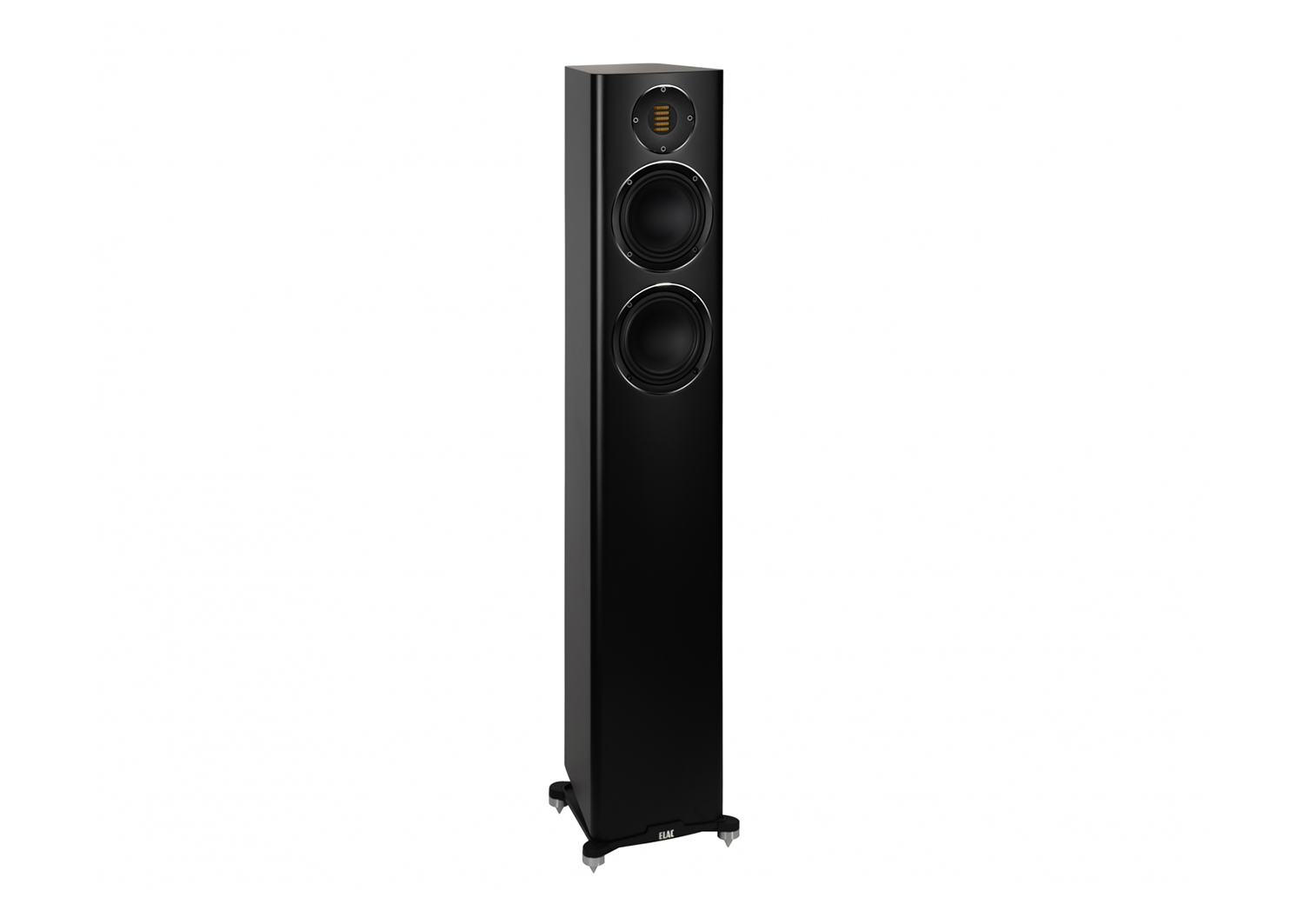

Elac Carina FS-247.4 (Satin Black)

Elac Carina 247.4 speakers are the latest floorstanding model from the value-centered Carina speaker line featuring a JET folded Carina ribbon tweeter and designed by Andrew Jones.

Jones has already created numerous high end audio designs but these have soared to even greater levels under the ELAC brand.

Developed from the renowned award winning 240 series.

Building upon its performance, Carina continues ELAC’s tradition of utilizing the JET tweeter, chosen for its amazing clarity, dynamics and attack. To match this capability, a new in-house developed proprietary compound curvature aluminum coned woofer is seamlessly blended via a sophisticated
multi-element xover to produce an organic life like sound experience. Fresh looks, fresh sound; the new Carina is destined to further enhance ELACs class leading reputation.

A New Classic.

Simple yet striking looks. Breathtaking sound. The new Carina series matches fresh visual elegance with remarkable sound to bring you what promises to be a new classic in ELACs lineup.

JET Folded Air-Motion-Transformer

Delivering true high-definition sound, ELAC’s JET tweeters enthrall with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a wider frequency range. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.

Compound Curvature Aluminum Woofer

To match the capabilities of the JET tweeter and guarantee a seamless transition from the woofer to the JET tweeter, the compound curvature cone has been developed to control the cone breakup and move it well beyond the operating range of the woofer. A large diameter voice coil and over-sized vented pole piece magnet combine to give remarkable bass dynamics and a rich powerful performance.

Downward Firing Port

For a more flexible speaker placement and to minimize ventilation noise, the bass reflex port on the Carina series is directed to the floor, exiting the bottom of the speaker cabinet in a down-firing configuration.

Specifications

• Type: 2-1/2 way Vented box
• Woofer: 2 x Aluminum cone 5-1/4″
• Tweeter: JET folded ribbon
• Crossover frequency: 250Hz / 2.5kHz
• Frequency range (IEC 268-5): 34Hz – 30kHz
• Sensitivity: 87dB/2.83V/1m
• Recommended amplifier power: 30 to 250 wpc
• Peak power handling: 120W
• Nominal | Minimum impedance: 6 Ohm / 4.8 Ohm
• Finishes: Satin Black, Satin White
• Accessories included: Binding post straps, outrigger feet, spikes and discs
