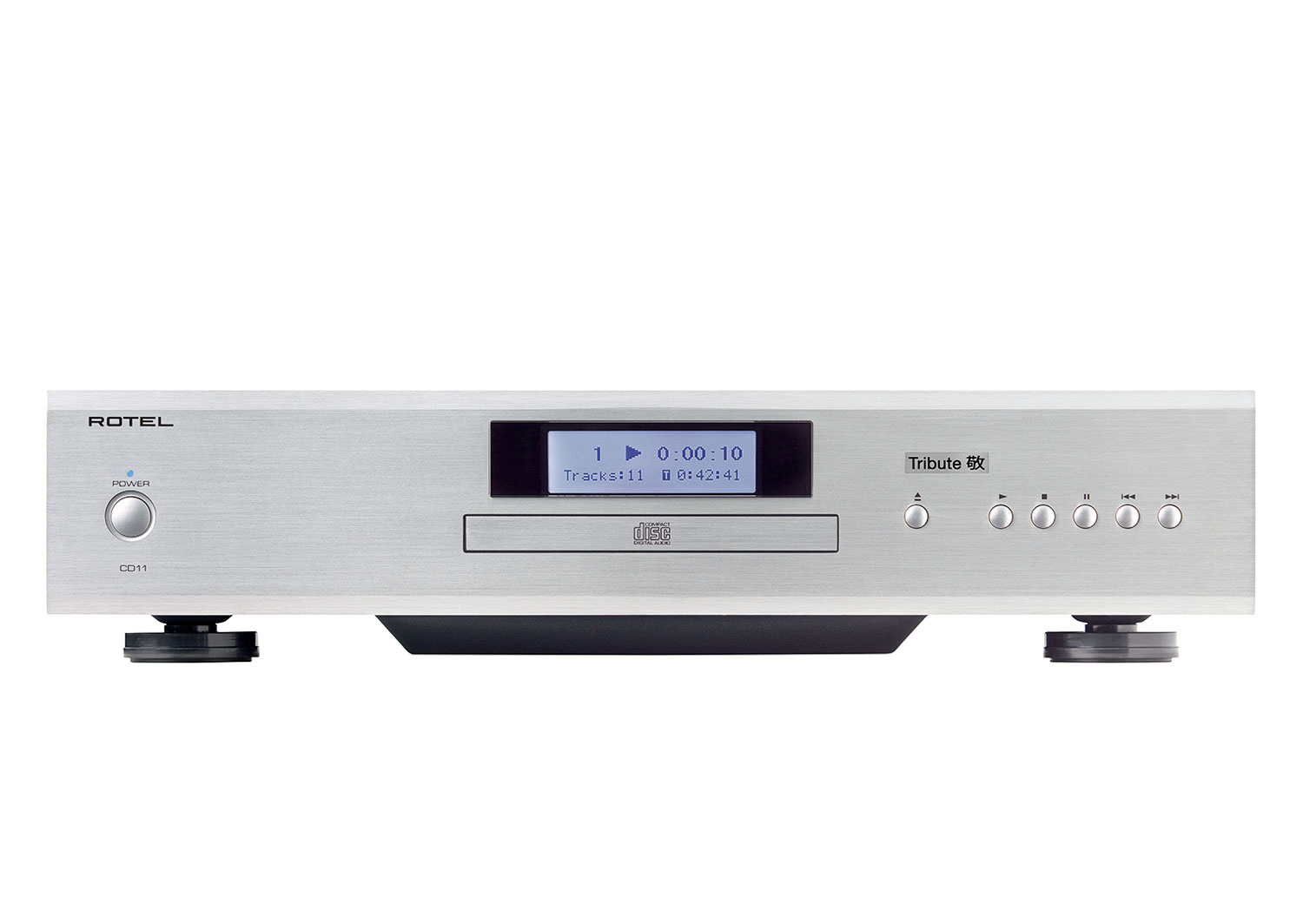

Rotel : CD-11 Tribute (Silver)
STEREO CD PLAYER
CD11 Tribute
Rotel has been designing and manufacturing CD players since the RCD-855 was launched in 1989 and has never looked back since.
Thus, the opportunity of engaging with audio legend Ken Ishiwata to create an even higher performance model of the successful CD11 was eagerly accepted by the Rotel design teams. With over 40 years of audio engineering experience Ken’s collaboration with Rotel created something truly special – the CD11 Tribute edition.
The CD11 Tribute includes critical changes to the power supply, DAC circuits and precise selection of components in the audio signal path delivering an increased sense of space, improved accuracy, detail, and genuineness of the audio.

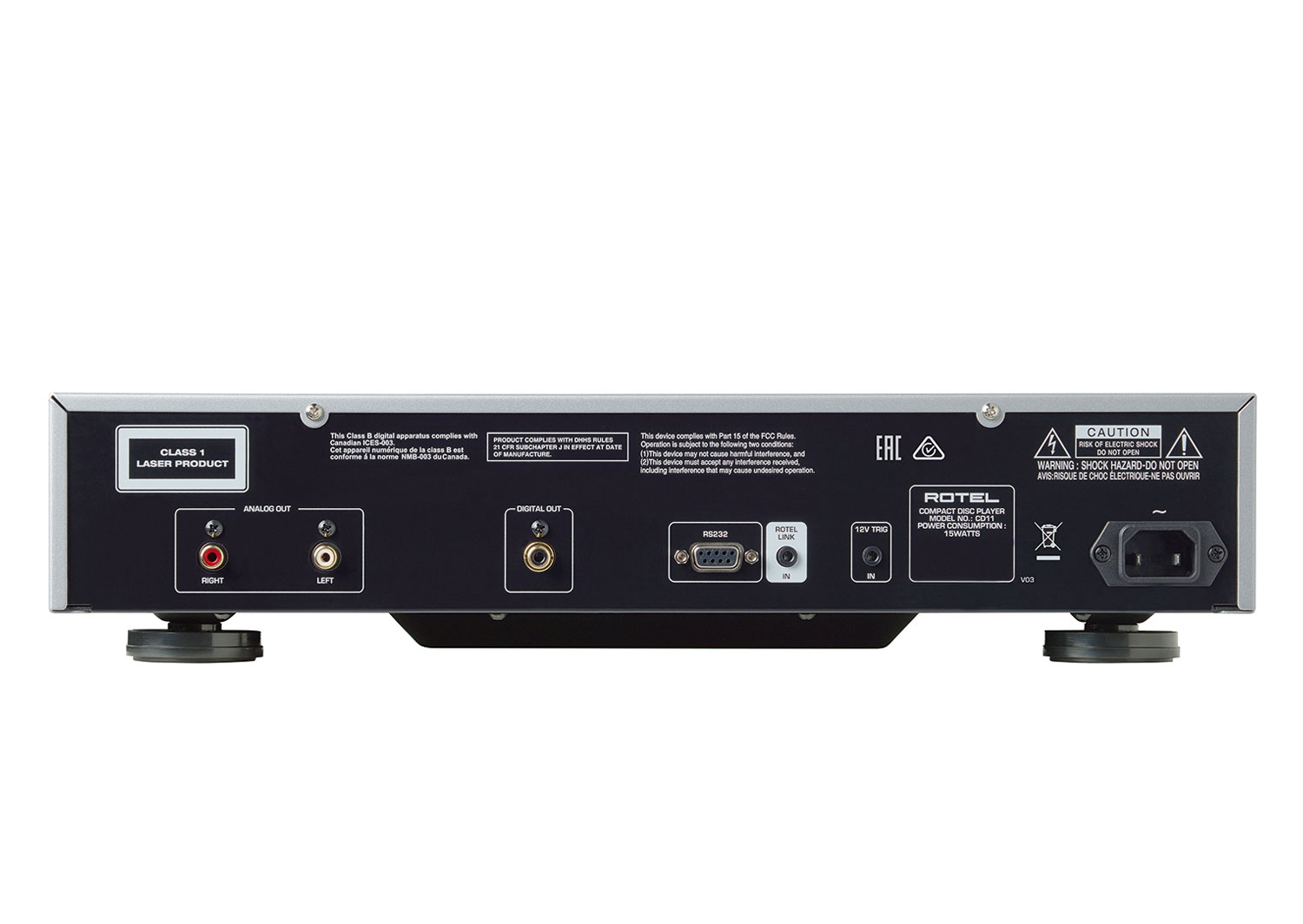

Supporting RCA analog and coaxial digital outputs, front panel display and a remote control, the CD11 Tribute continues the proud tradition of Rotel and is reflective of the legacy of Ken and his tireless efforts delivering audio products preforming well beyond their price point.
Specifications
Total Harmonic Distortion + Noise
|
0.005% @ 1k Hz |
Intermodulation Distortion | 0.005% @ 1k Hz |
Frequency Response (± 0.5 db)
|
20-20,000 Hz |
Channel Balance
|
± 0.5 dB |
Phase Linearity
|
± 0.5 degree |
Channel Separation
|
> 115 dB @ 10k Hz |
Signal to Noise Ratio (“A” weighting)
|
> 125 dB |
Dynamic Range
|
> 99 dB |
Digital to Analog Converters | Texas Instruments |
Analog Output Impedance
|
470 Ohms |
Digital Output
|
0.5 Volt, Peak to Peak |
Load Impedance
|
75 Ohms |
Power Requirements (AC)
Europe USA |
230 V, 50 Hz 120 V, 60 Hz |
Power Consumption
|
15 watts |
Standby Power Consumption
|
< 0.5 watts |
BTU | 40 BTU/h |
Dimensions (W x H x D) | 430 x 98 x 314 mm 17" x 3 7/8" x 12 3/8" |
Front Panel Height | 80 mm, 3 1/8" |
Weight (net) | 5.8 kg, 12.7 lb |
