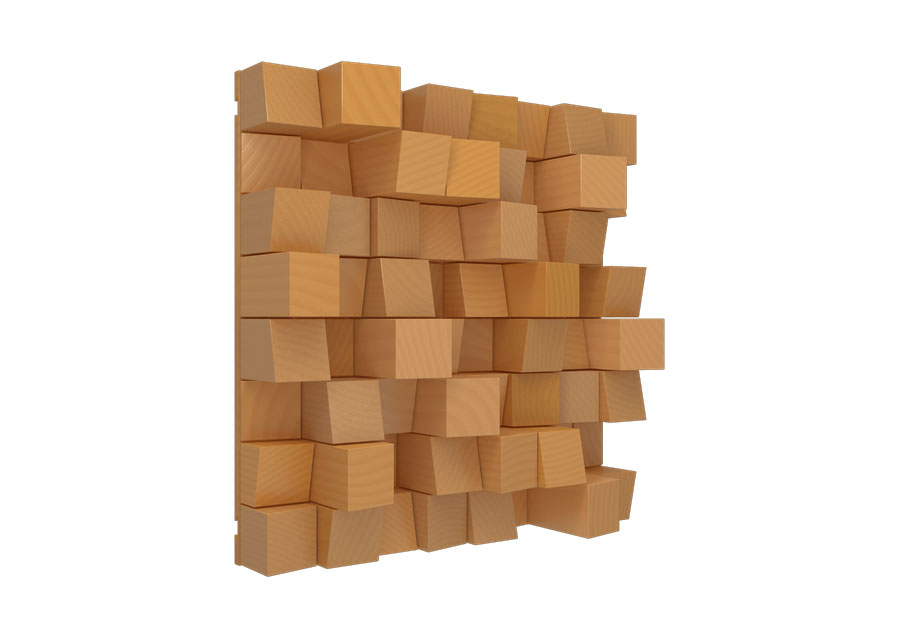

Vicoustic - Multifuser Wood 64 MKII (Natural Wood)
Two-dimensional diffuser

Made from solid wood, the Multifuser collection is perfect for use in venues such as concert halls, hi-fi rooms and recording studios, where effective diffusion is often required, without too much absorption occurring at the same time. With its striking angled surface, the two-dimensional diffuser is based on a QRD sequence combined with changing reflection techniques (a result of the angled surface). The panel itself is made in two parts. Each part can be rotated in different directions so that a uniform, omni-directional scattering of sound is achieved, with particularly effective diffusion of mid and low frequencies. Multifuser Wood 64 works between 310Hz and 8kHz and Multifuser Wood 36 works between 470Hz and 10kHz. As well as its acoustic efficiency, the panel’s attractive appearance makes it suitable for use in a range of settings. Available in Light Brown, Black, White and two new colours: Metallic Coper and Metallic Gold.


Main Info

Dimensions: 595 x 595 x 143mm
Scratch Resistance: N/A
Washable: N/A
Raw Material: Solid Wood

Performance
Functionality: Diffusion
Absorption Frequency Range: N/A
NRC: N/A

Fire Rate
Europe: Euroclass E
USA: Class B (ASTM-E84)

Packaging Information
Units/Box: 1
Box Dimensions: 625 x 330 x 190mm
Box Gross Weight:19.6kg

Installation
Accessories: VicFix J Profile (included)

PI_Multifuser Wood MKII
Multifuser 64_2019_V1
