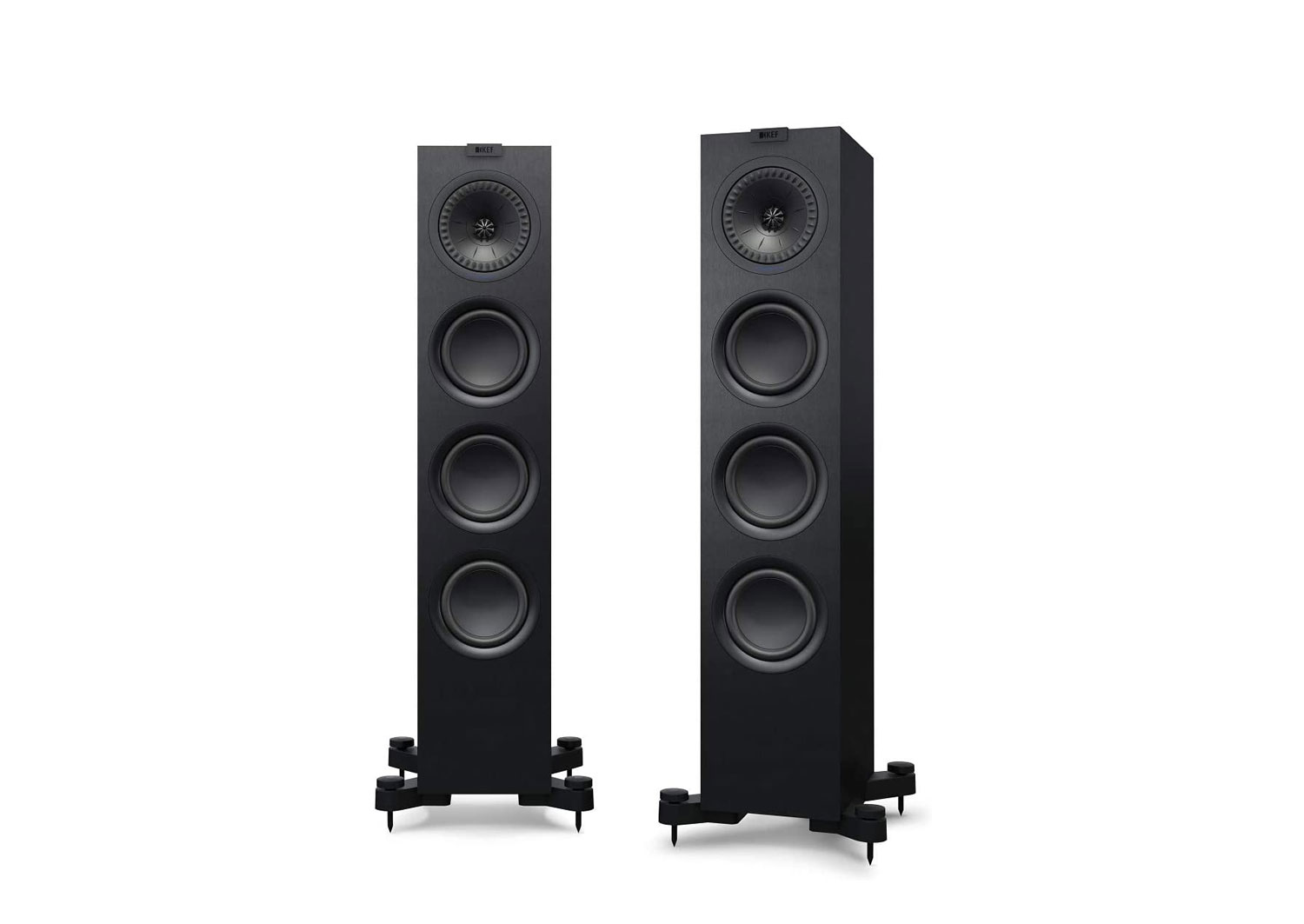

KEF : Q-550 (Black)

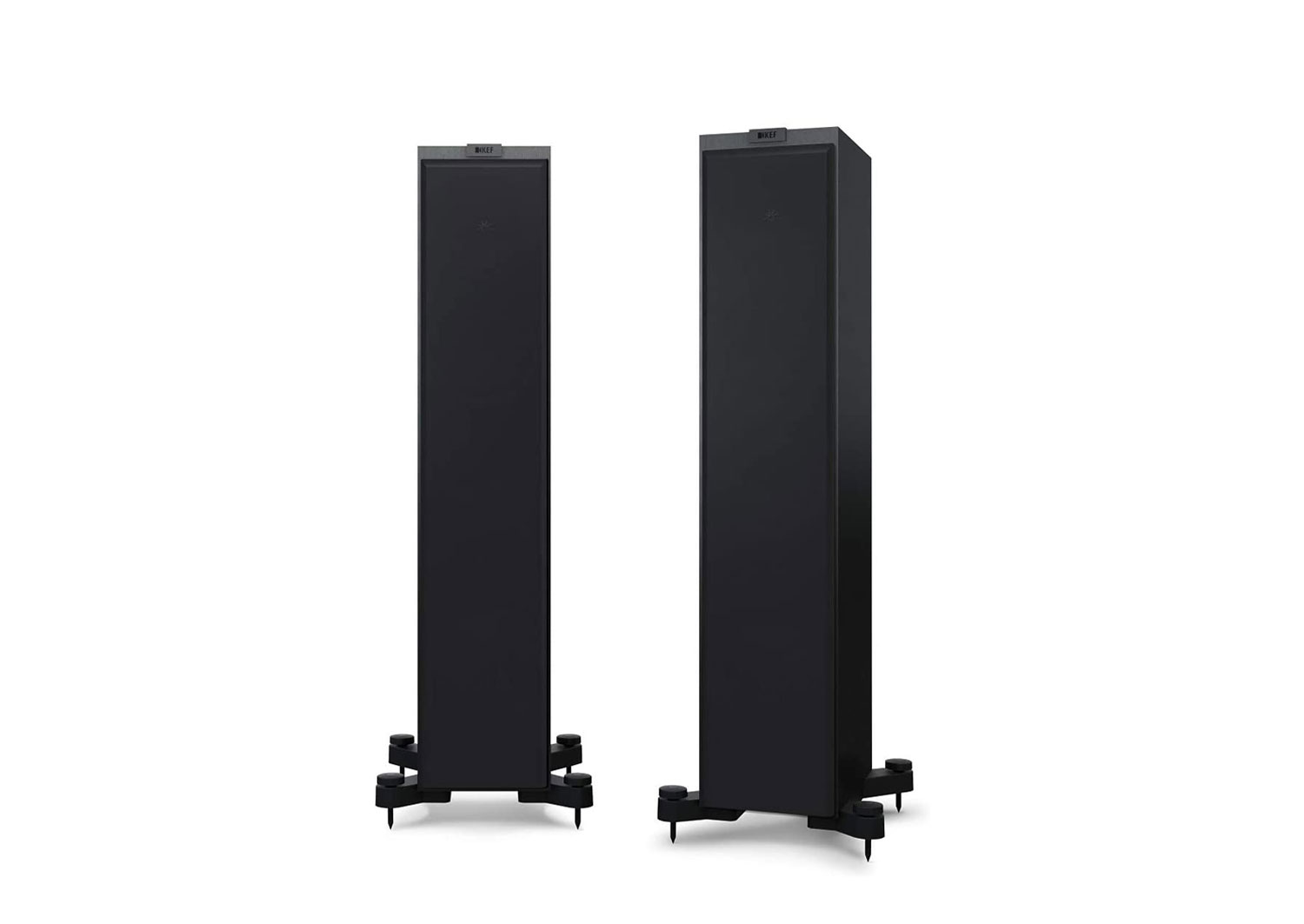

ราคาพร้อมหน้ากาก (Grille Included)

Compact 2.5-way floorstander

The Q550 2.5-way is far more capable than its compact size might suggest, delivering wide bandwidth and full scale with ease.

With the KEF signature Uni-Q driver, a 130mm (5.25 inch) aluminium bass driver and two matching ABRs the Q550 delivers phenomenal audiophile performance with clarity and power.

TECHNOLOGY

"Sit anywhere" Uni-Q sound

The Uni-Q driver array places the tweeter in the centre of the midrange and bass cone, bringing the acoustic ideal of a single point source closer than ever. The result, enhanced by KEF's 'tangerine' waveguide over the tweeter, is a more accurate three-dimensional sound that's dispersed evenly throughout the room.

Tweaking the tweeter

With the addition of the damped tweeter loading tube providing a gentle termination of sound produced from the back of the tweeter, lower treble performance is improved dramatically and a new low-distortion inductor on the crossover provides cleaner bass.

A word about drums and bass

The Q Series reproduces the nuances of bass instruments with ease. With a larger roll surround and new suspension KEF drivers produce cleaner bass at high volumes.

A new cone structure improves midrange clarity and an enhanced Auxiliary Bass Radiator (ABR) with a new surround and rear suspension enhances bass quality.

New system design

Putting the Uni-Q driver in its own sealed cabinet reduces the load on the cone and increases clarity and detail while delivering cleaner bass. Midrange clarity is enhanced by driver improvements that mean the DC blocking capacitor to be eliminated from the crossover, allowing a more natural roll-off between drivers.

Specifications

WEIGHT
14.5kg (32 lbs)

DIMENSION (H X W X D)
873 x 180 x 278 mm
926 x 299 x 310 mm (with Plinth)

DESIGN
2.5-way bass reflex

UNIT MEASUREMENT
Pair

SENSITIVITY
87dB (2.83V/1m)

FREQUENCY RANGE FREE FIELD

45Hz (-6dB)

FREQUENCY RESPONSE
58Hz-28kHz (±3dB)

MAXIMUM OUTPUT
110dB

AMPLIFIER REQUIREMENTS
15-130W

NOMINAL IMPEDANCE
8 Ohms (min.3.5 Ohms)

DRIVE UNITS
130mm (5.25in.) aluminium Uni-Q
25mm (1in.)vented aluminium dome HF
130mm (5.25in.) aluminium LF
2 x 130mm (5.25in.)aluminium ABR

CROSSOVER FREQUENCIES
2.5kHz
