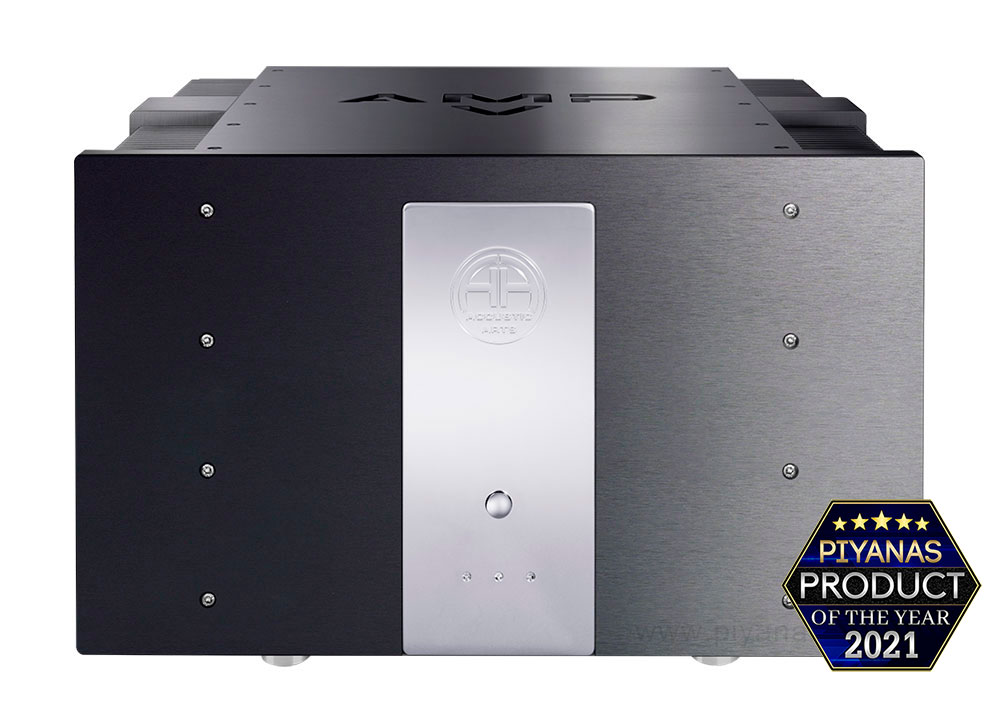

Accustic Arts AMP V (Black)
Our statement in terms of audiophile power amplifiers



AMP V highlights

• Extremely powerful dual-mono high-power amplifier with completely isolated power supply for each amplifier channel
• 40 selected MOS-FET output transistors of highest quality
• 2 magnetically shielded and encapsulated toroidal core transformer of premium quality for highest output reserves
• Gold-plated contact surfaces (components) improve the contact resistance of the AMP V
• Optimum smoothing thanks to more than 220,000 µF power supply capacity; premium quality capacitors (“Made in Germany”)
• Very high damping factor for perfect speaker control
• Professional protective circuit against clipping, HF oscillations and too high DC offset
• Integrated switch-on current limitation for highest operational safety

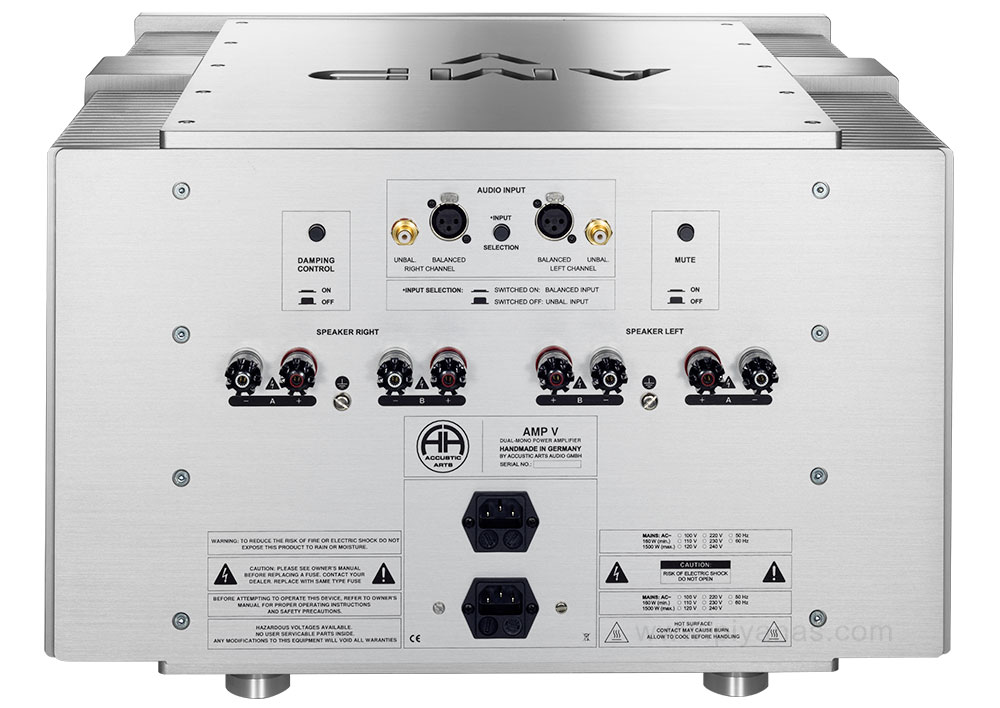

• Balanced Input (XLR) and unbalanced input (RCA) – the inputs are switchable
• All used components and parts are selected and of highest quality
• Very high quality, gold-plated bi-wiring/bi-amping speaker terminal

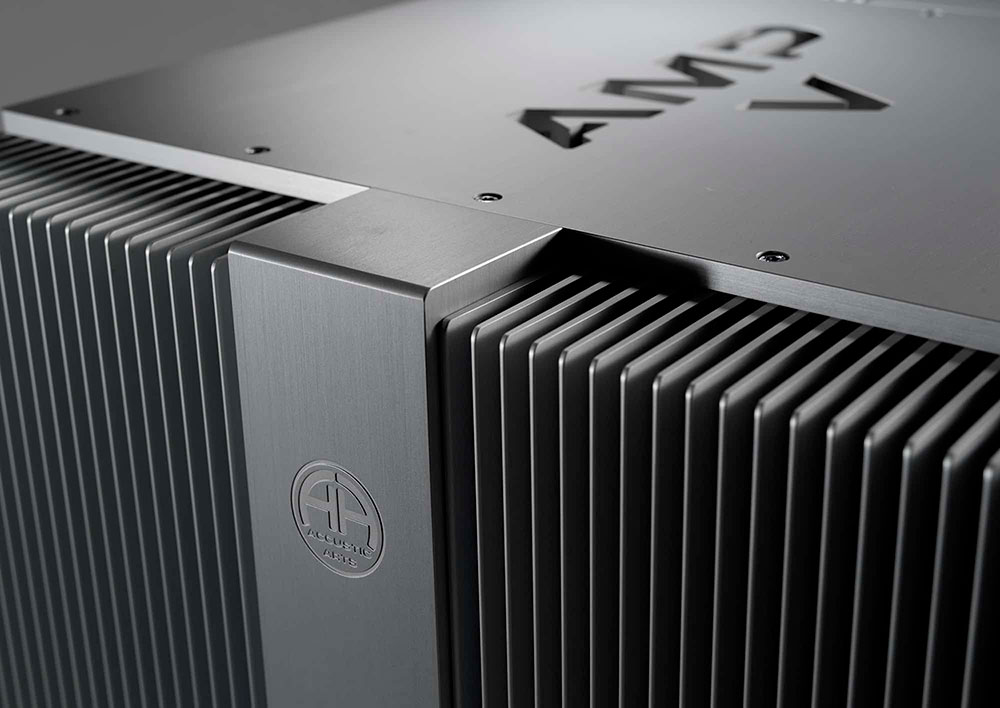

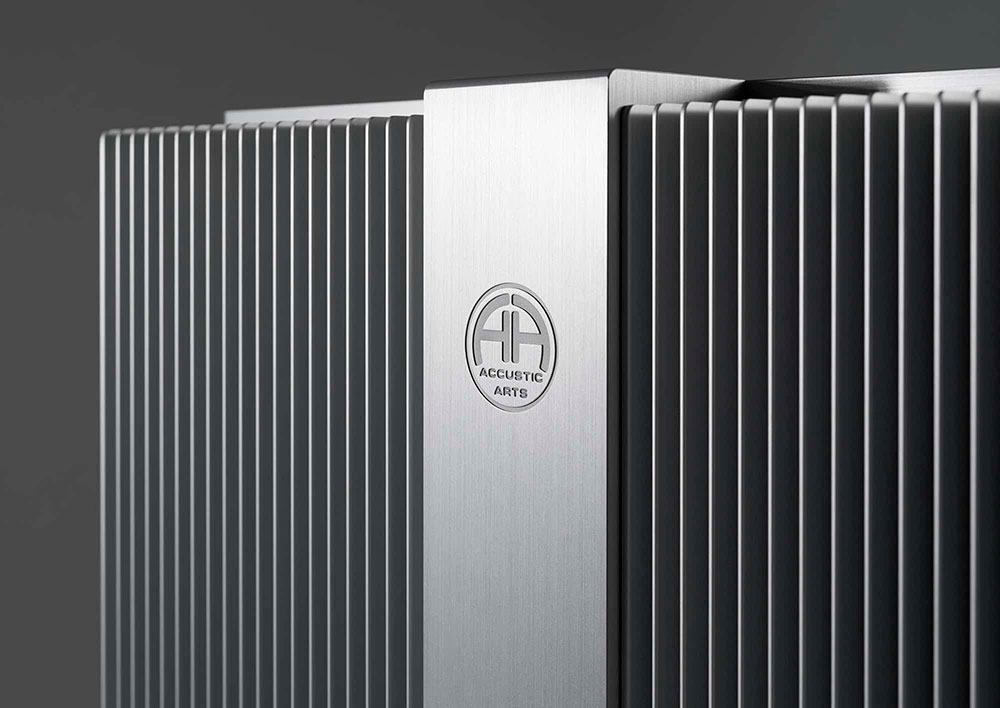

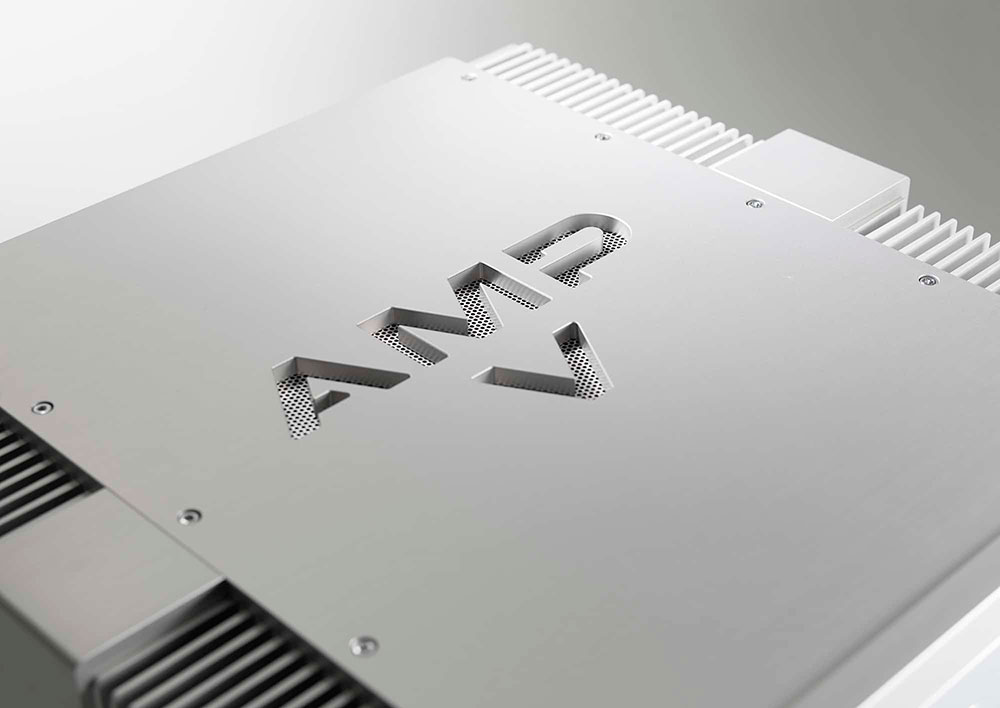

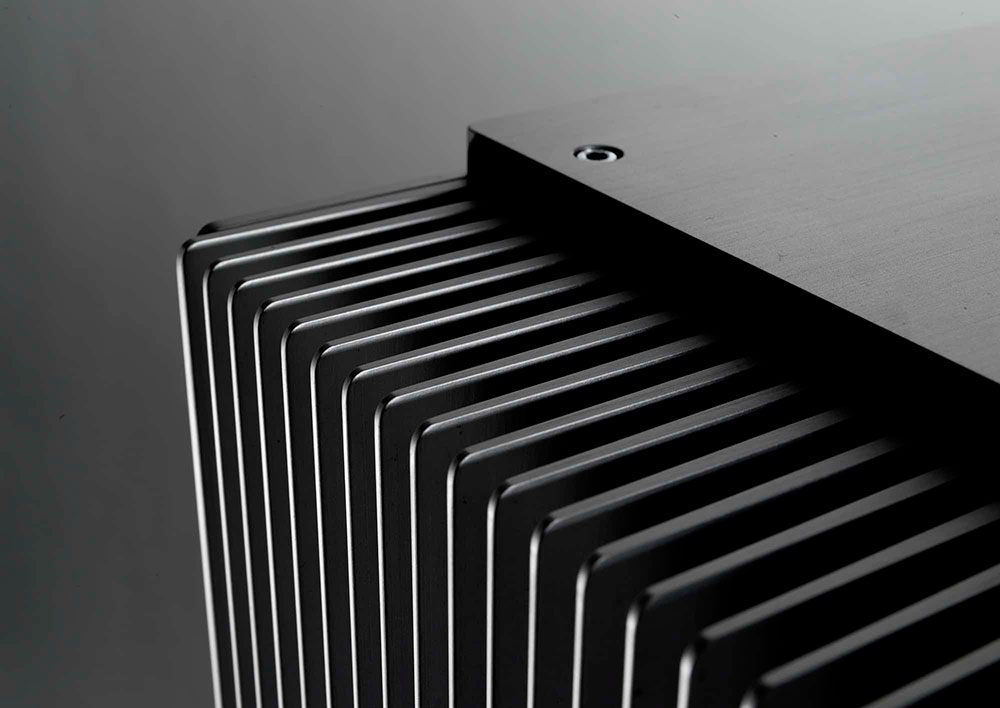

• Extremely stable, massive and resonance optimized housing, fully made of aluminium; inlay made of massive brass, polished and chromed
• ACCUSTIC ARTS® AMP V is “Handmade in Germany”

Voltage gain:
30.0 dB

Power consumption without load:
approx. 230 watts

Power supply capacity:
approx. 220,000 µF

Input impedance:
balanced (XLR): 2 x 16 kΩ
unbalanced (RCA): 15 kΩ

Rated power output (THD+N = 1%):
> 2 x 1,500 watts on 2 Ω
> 2 x 1,360 watts on 4 Ω
> 2 x 900 watts on 8 Ω

Signal-to-noise-ratio:
-96 dBA (ref. 6,325 V)

Distortion factor (THD+N):
0,002 % on 4 Ω load at 1 kHz und 10 watts

Dimensions (H x W x D):
328 x 530 x 545 mm / 12.9 x 20.9 x 21.5 inches

Weight:
approx. 80 kg / 176 lbs
+ 22 kg / 48.5 lbs flight case
