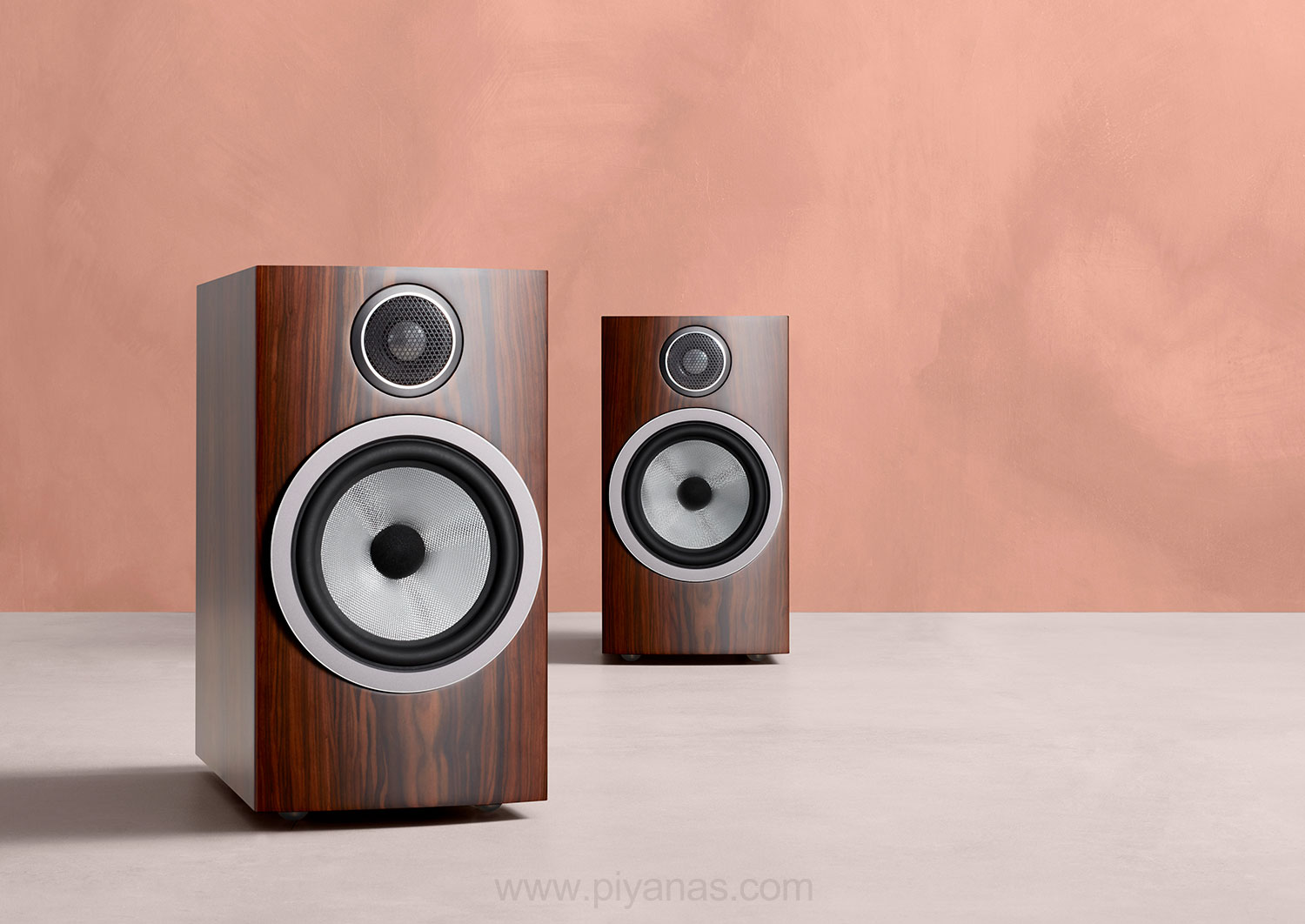

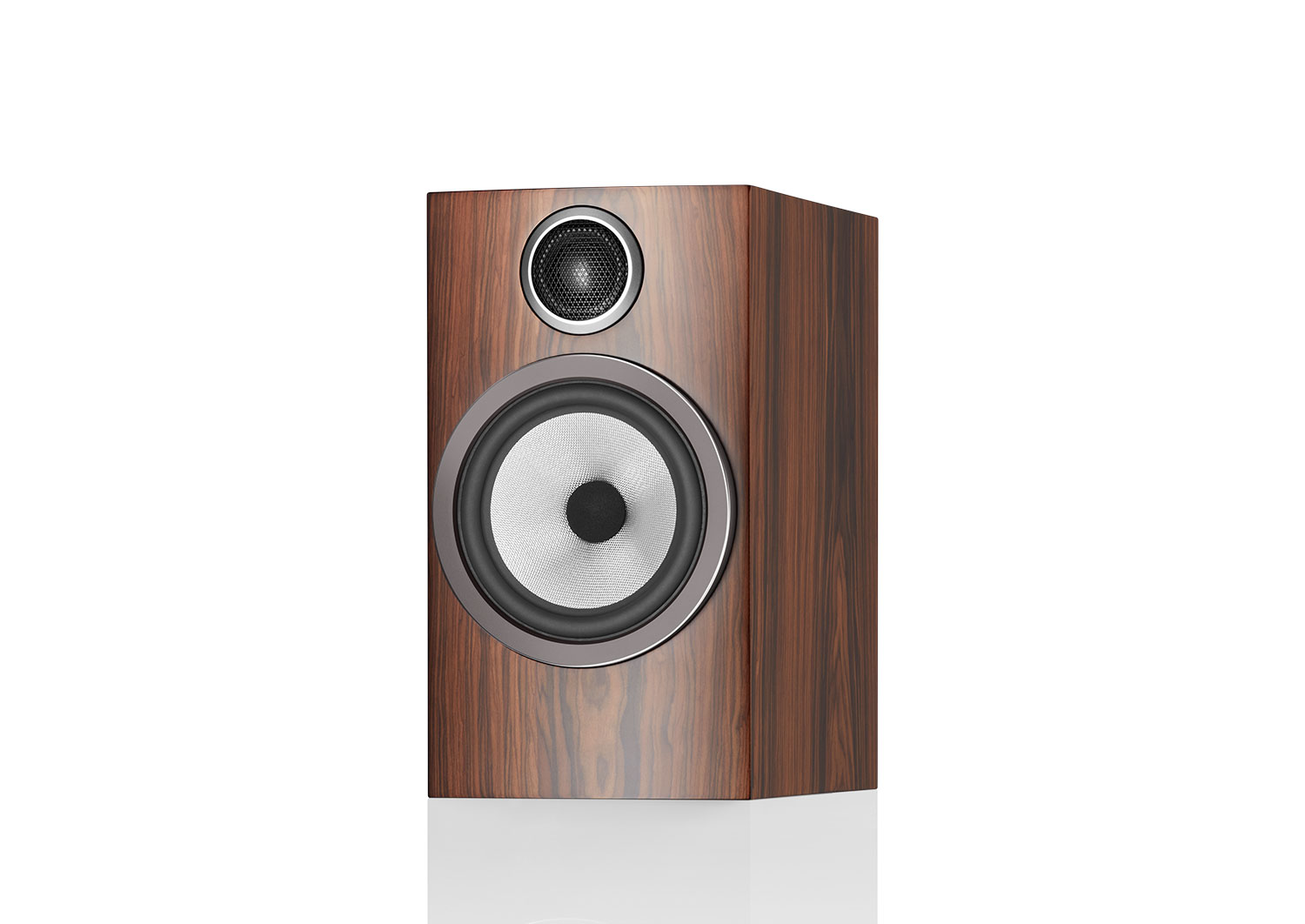

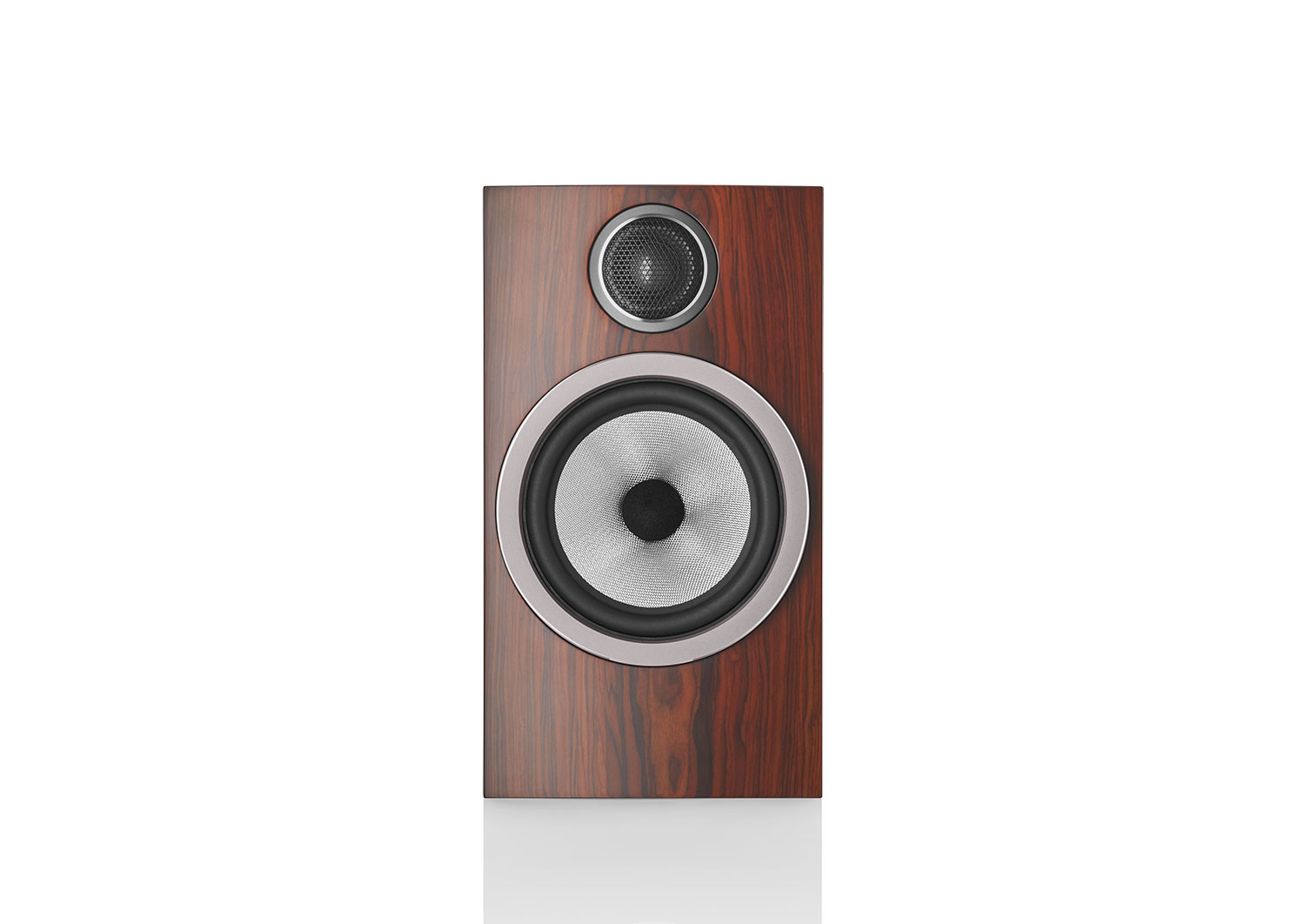

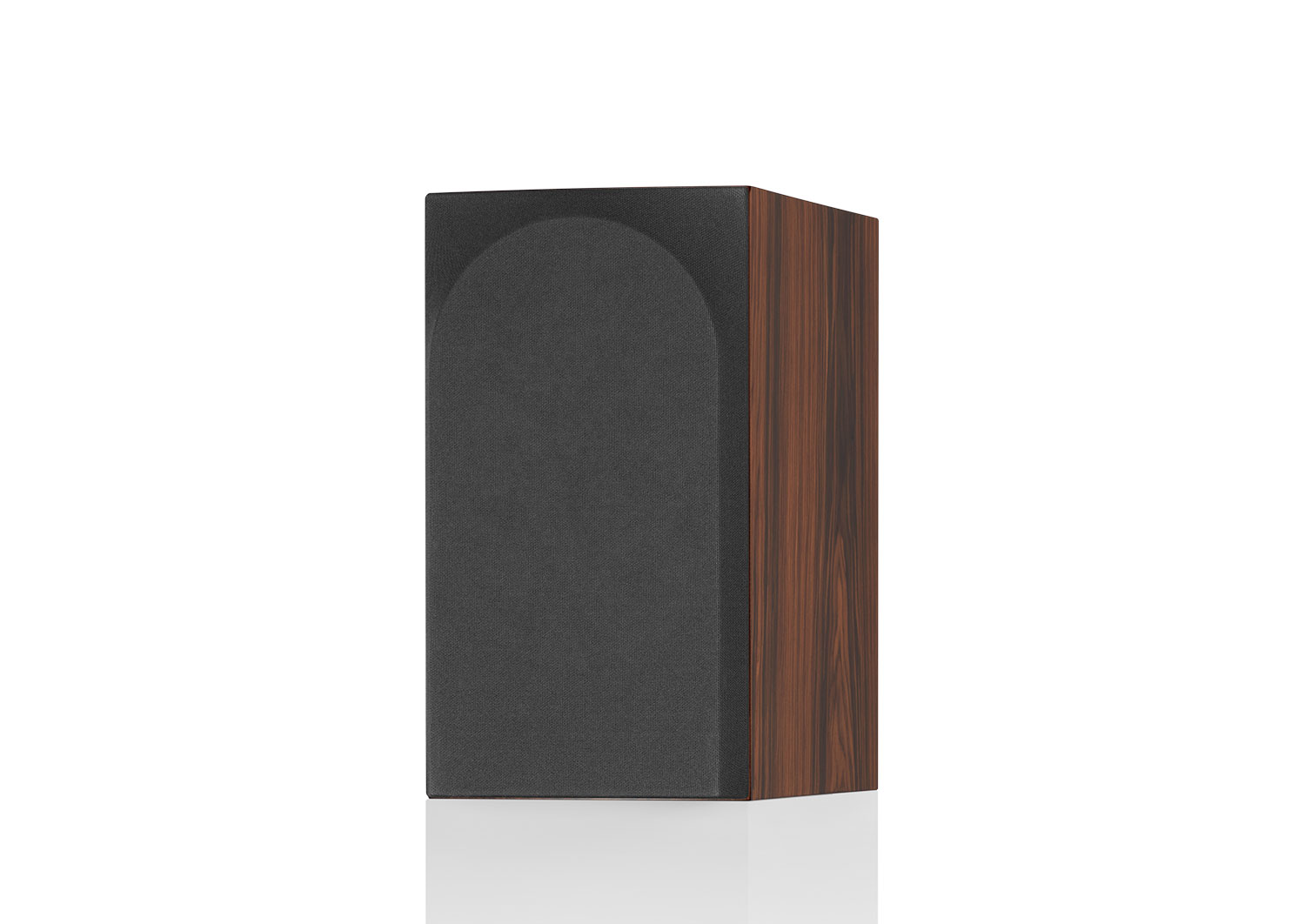

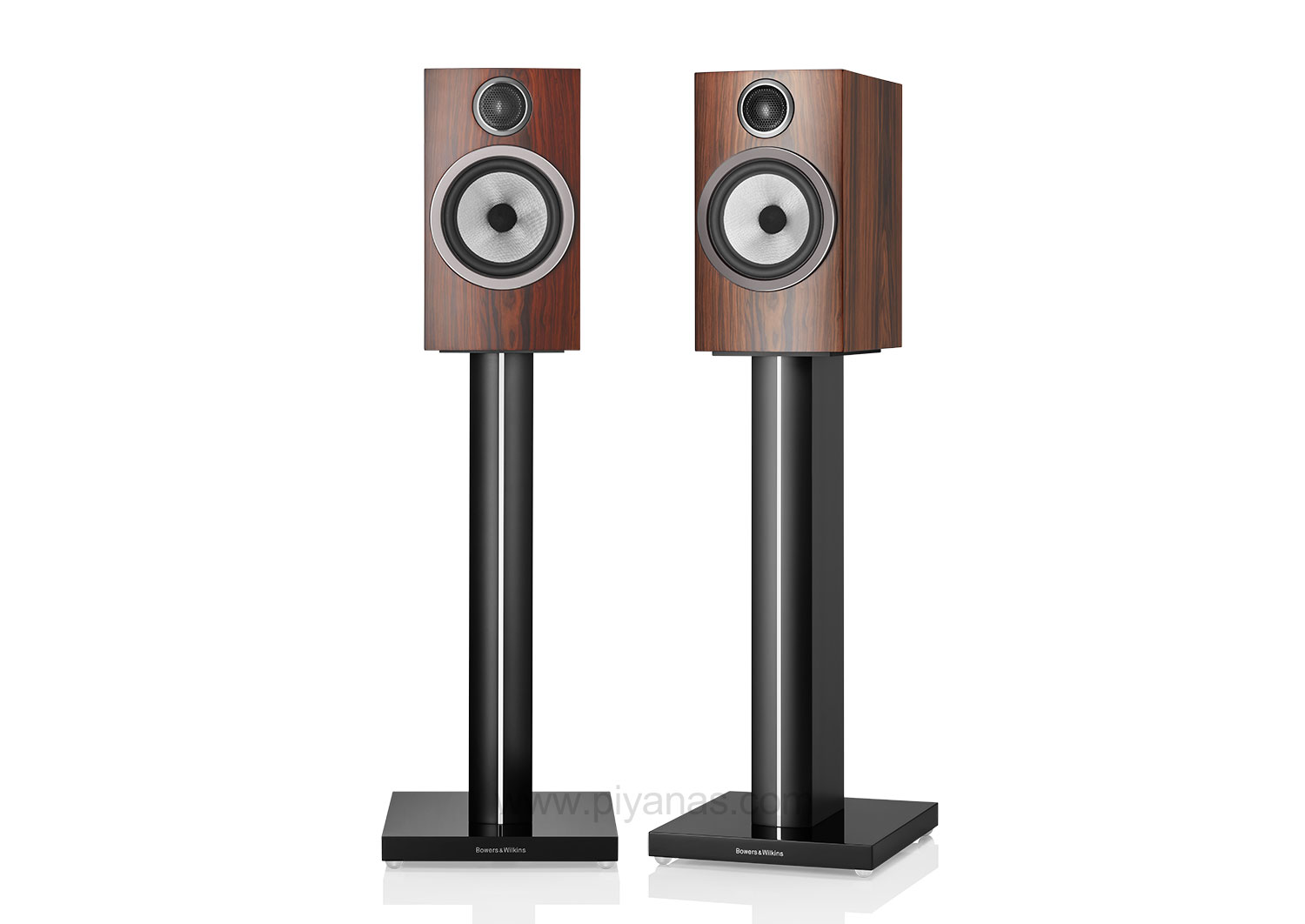

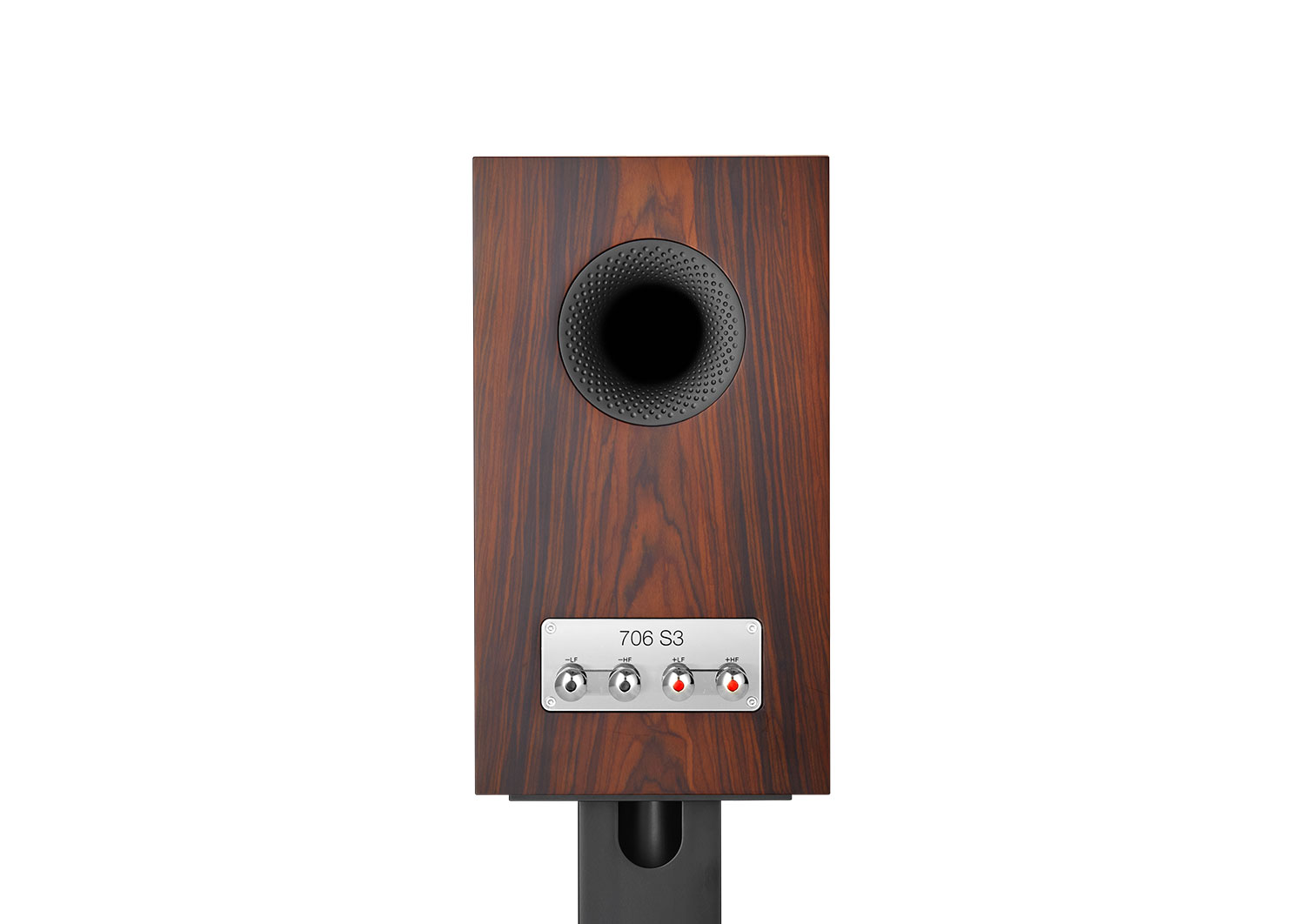

B&W 706S3 (Mocha)
Stand-mount speaker
Thanks to 706 S3’s decoupled Carbon Dome tweeter and carefully upgraded crossover, it provides exceptional detail and insight into your music, while its substantial 165mm (6.5in) Continuum Cone bass/midrange drive unit provides ample scale and extension for use in larger spaces.
Life-sized acoustics
The powerful 706 S3 is the ideal stand-mount loudspeaker for delivering exceptional sound in larger spaces.
Sharper detail
Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.
Truly amazing sound
Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.
Inspired by greatness
The new curved cabinet baffle and individual drive unit pods are inspired by the 800 Series Diamond, and greatly reduce cabinet coloration, ensuring a cleaner, more immersive sound.
Specifications
Dimensions | Height: 345 mm cabinet only Width: 192 mm cabinet only Depth: 297 mm cabinet only 334 mm including grille and terminals |
Net weight | 8.42kg |
Technical features | Decoupled Carbon Dome tweeter Continuum™ cone bass / midrange Flowport |
Description | 2-way vented-box system |
Frequency range | 45Hz and 33kHz |
Sensitivity | 88dB spl (2.83Vrms, 1m) |
Nominal impedance | 8Ω (minimum 3.7Ω) |
Max recommended cable impedance | 0.1Ω |
Drive units | 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency 1x ø165mm (6.5 in) Continuum cone bass / midrange |
Frequency response | 50Hz - 28kHz ±3dB |
Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 100Hz - 22kHz <0.5% 150Hz - 20kHz |
Recommended amplifier power | 30W - 120W into 8Ω on unclipped programme |
