in akustik Referenz LS-204 Singlewire BFA (3.0M)

• Micro AIR Technology
• AIR dielectric
• Concentric Copper wire construction
• 4-fold multicore architecture
• Single Wire & Single BiWire
• Available as BFA, Cable lug or Easy-Plug variant

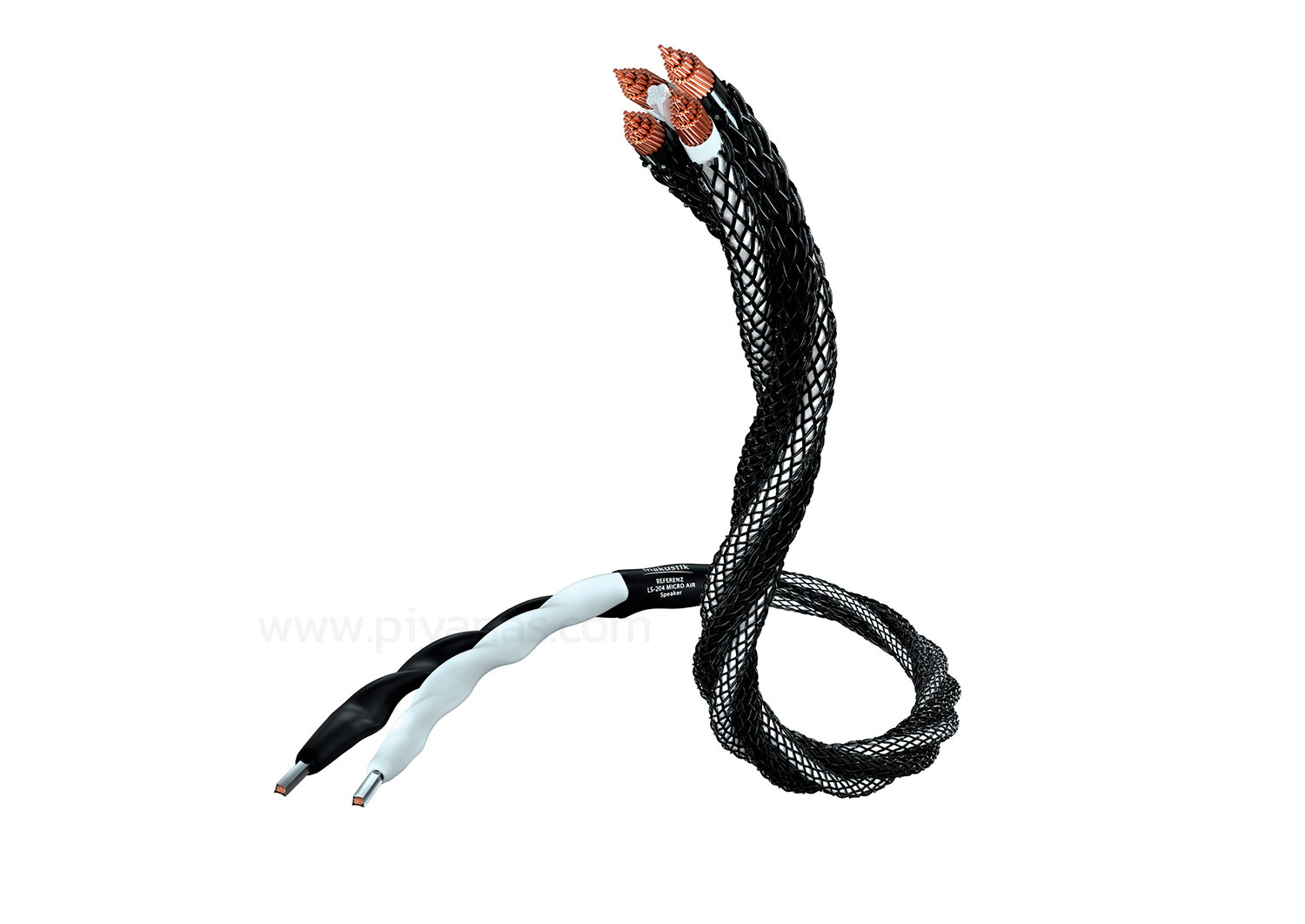

Like the flagship model, the LS-204 is also based on MICRO AIR technology. The difference lies in the multicore architecture. Compared to the XL version, the LS-204 has four instead of six concentric copper wires. This impressively agile cable was primarily developed for slim floor-standing speakers with smaller bass drivers. The REFERENCE LS-204 MICRO AIR is available as Single-Wire and Single-BiWire version with BFA Bananas or cable lugs or as Easy-Plug version.

Micro AIR Technoloy

The laws of nature cannot be switched off. They need to be used skilfully. Every cable has so-called parasitic effects due to these laws of nature. Among other things, this includes the capacitance – i.e. the fact that a cable, like a battery, stores energy temporarily and releases it again with a delay. This effect strongly influences the transmission of audio signals and is undesirable. Cable capacitance is a physical phenomenon and its size depends on various factors. One essential factor is the insulation material, the so-called dielectric, which can increase the capacity many times over. Air on the other hand does not do this and is therefore the ideal insulator. Part of the insulation of the MICRO AIR technology is its complex, diamond-shaped structure. The chambers created by this design increase the distance between the conductors and increase the air content in the insulation. In this way, irritating capacities are reduced and the transmission characteristics for the sensitive audio signals are optimised.

Concentric Copper

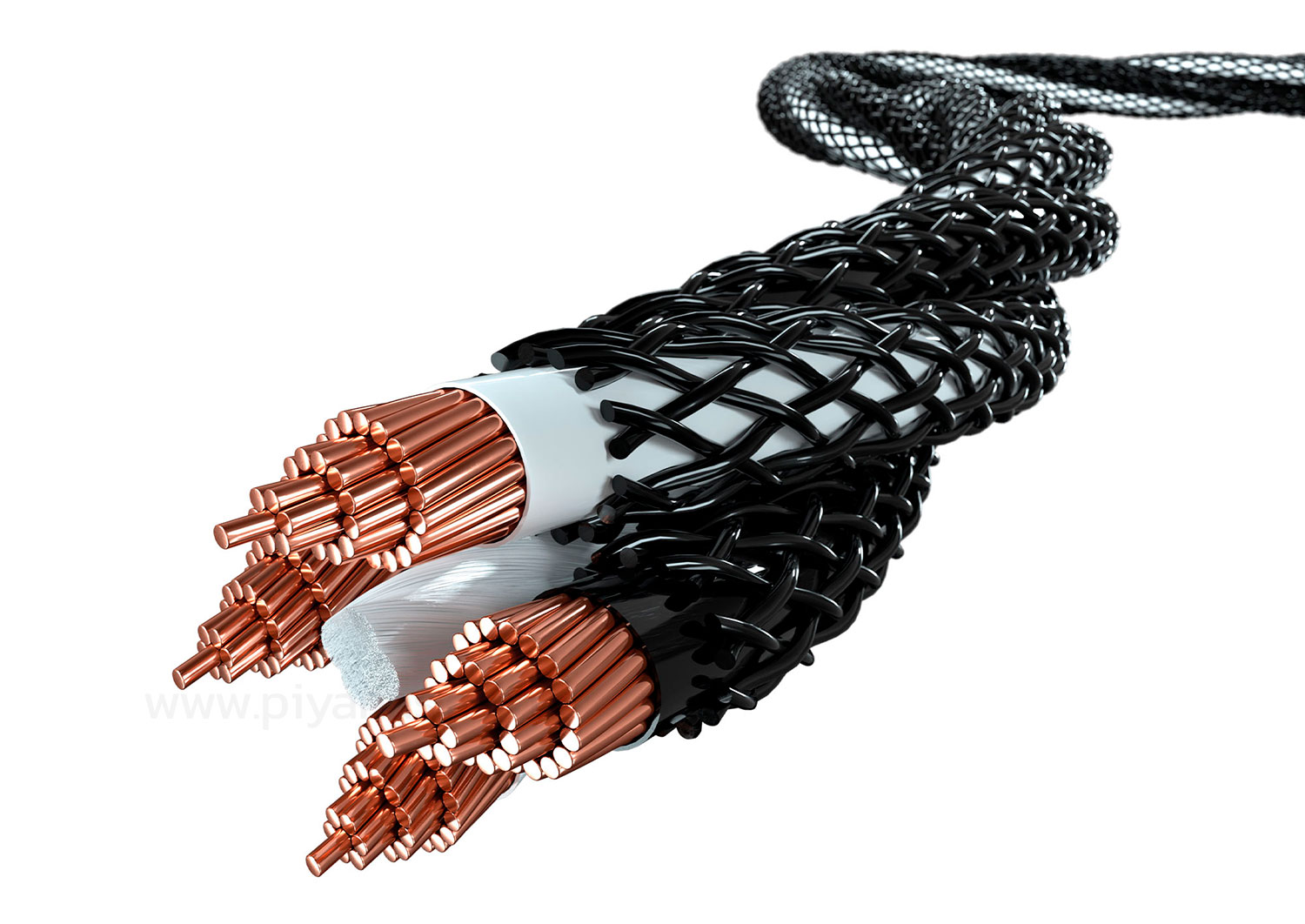

By contrast to conventional conductor structures, in which the arrangement of the individual wires in a cable is chaotic, the wires in the concentric copper wires are arranged in accordance with an exactly defined scheme in which they are precisely ordered in several layers. This design reduces irregular contact points between the wires, which harmonises the signal flow and minimises transit time differences. Impulses can be played back exactly while retaining the spatial information of the music. A thin layer of polyethylene protects the highly pure copper from oxygen and therefore against oxidation.

"Moody" beasts

A loudspeaker cable must transport energy and information in equal measure. Loudspeakers can also be moody little beasts, with a very dynamic electrical life of their own. They behave differently for every tone and volume and have to be constantly kept in check by the amplifier. This means the signal on a loudspeaker cable is a jumble of tiny to huge levels, alternating current and voltage of different frequencies and phase lengths. To faithfully transmit the extremely fine details that define sound and space and lend emotion to the music, the cable has to metaphorically keep the speaker on as tight a leash as possible to the amplifier. These beasts can be tamed by applying physical laws, using the right materials, and an appropriate cable architecture.

The connections

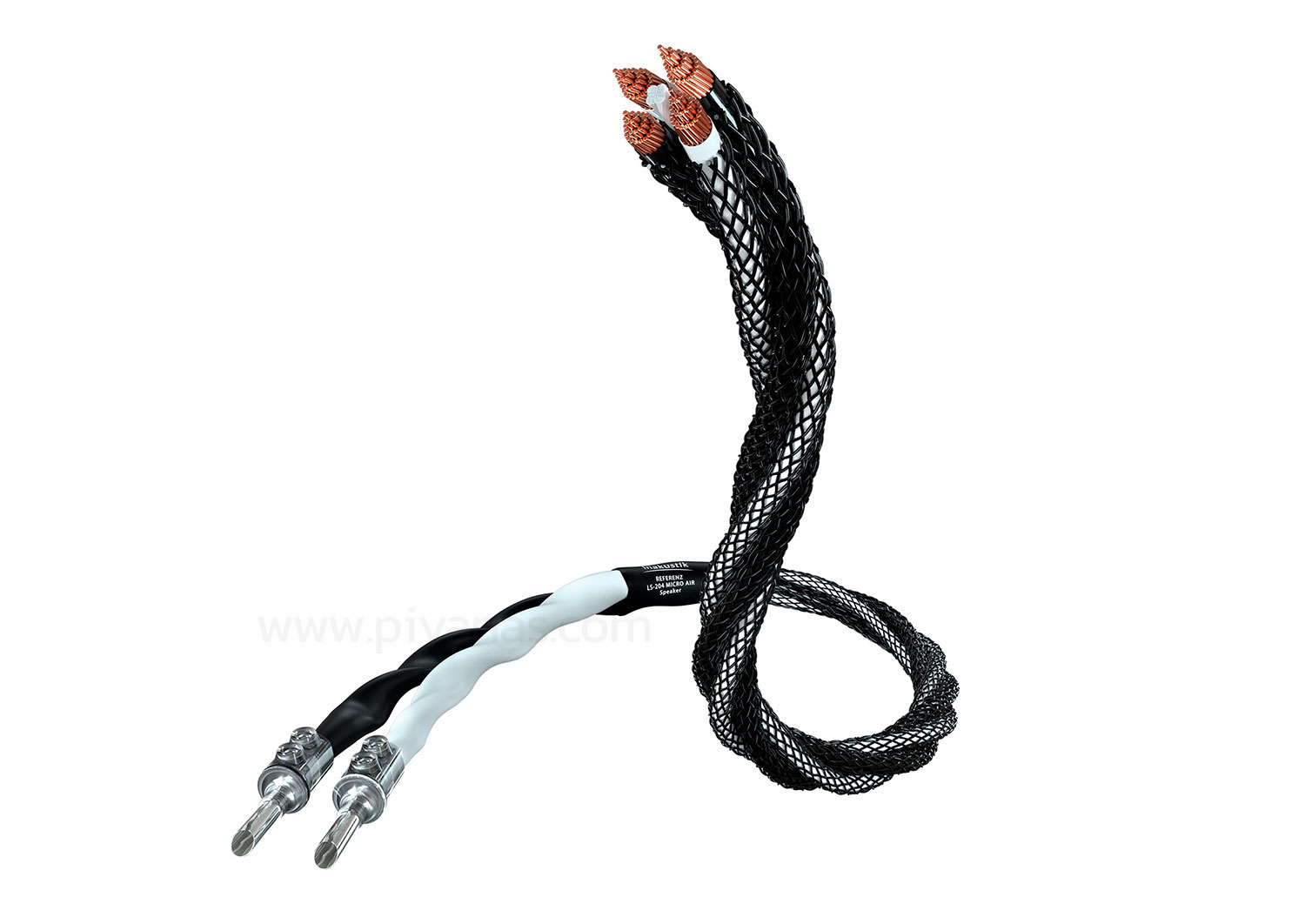

The REFERENCE LS-204 MICRO AIR is available with BFA Bananas or with cable lugs or as Easy- Plug version. The surfaces of the BFA Bananas and the cable lugs are finished with a rhodium coating and are therefore extremely durable. The contact surfaces and the screw connection of the cable lugs are manufactured from a single piece, thereby avoiding contact resistance. The contact surface, which has slits on the side, changes to a concave shape when the device terminal connections are tightened, thus preventing the cable lugs from sliding out.
