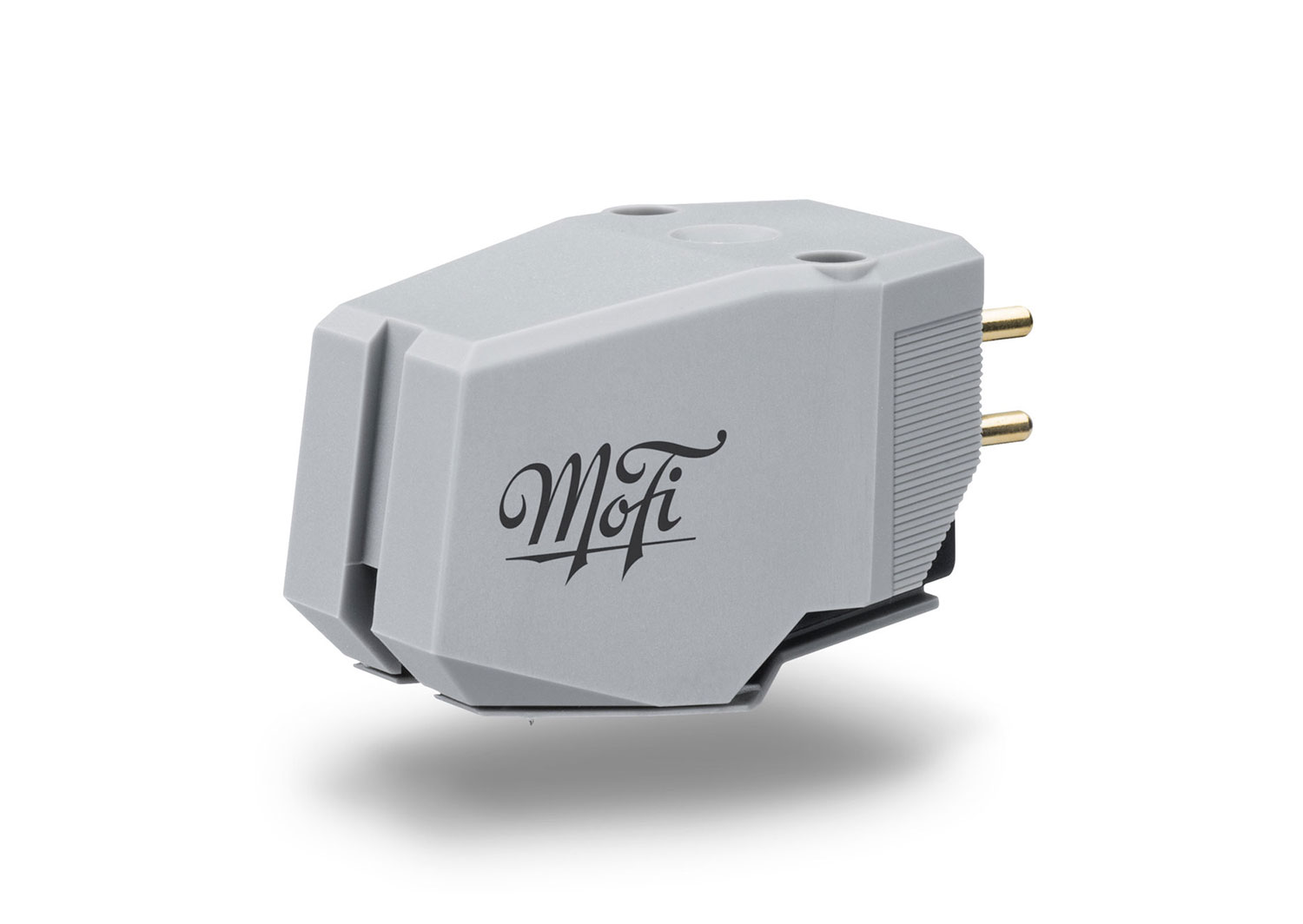

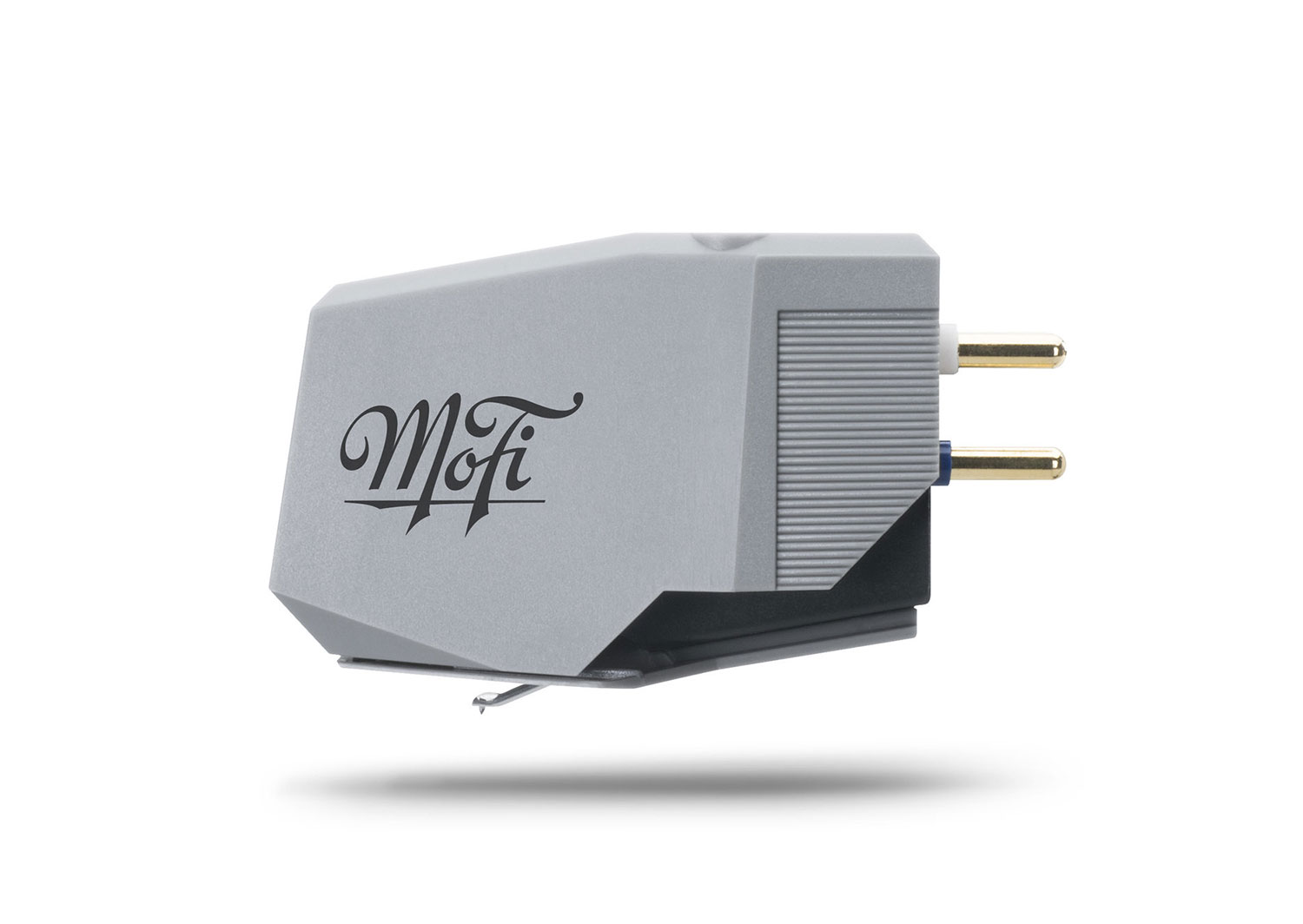

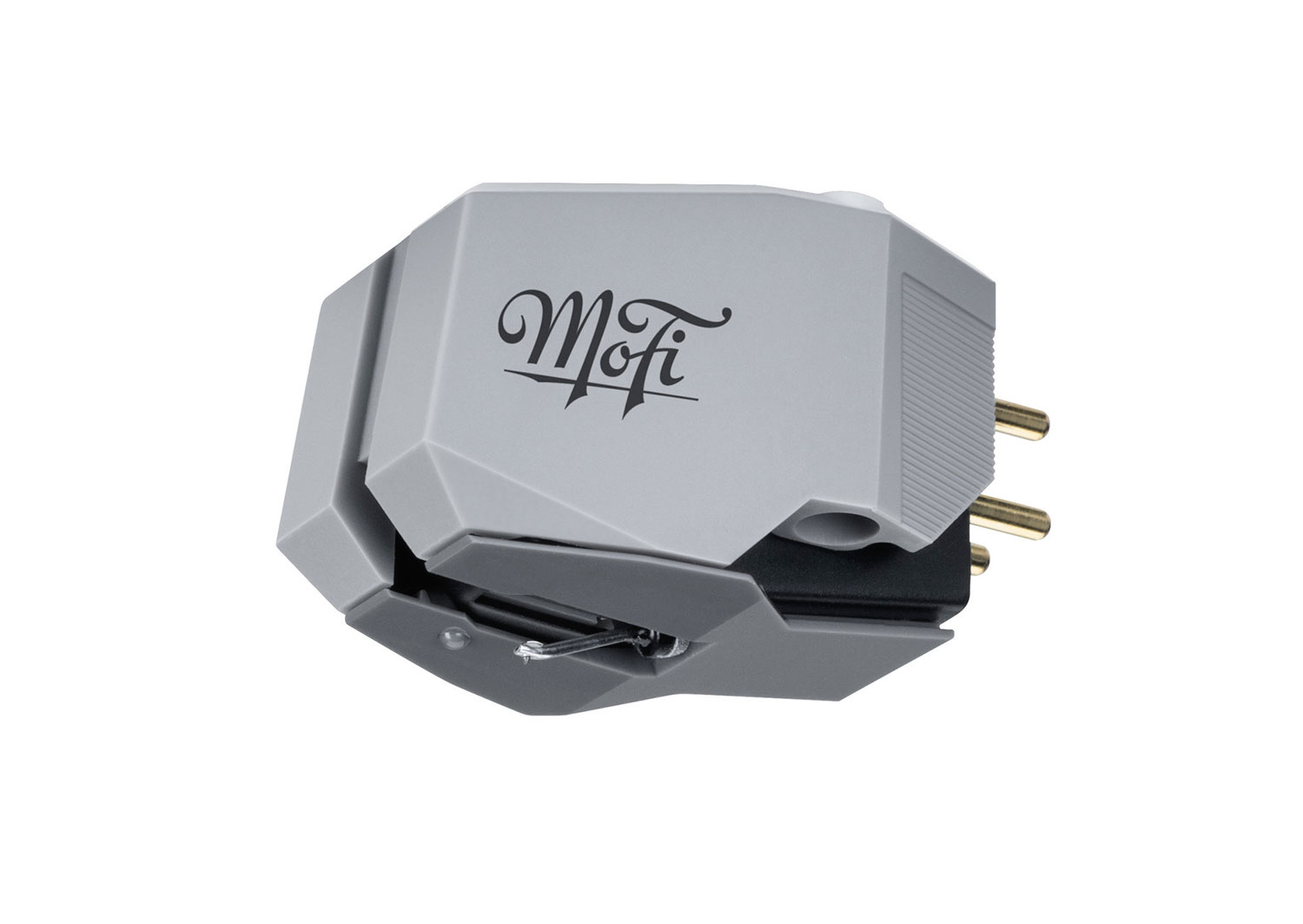

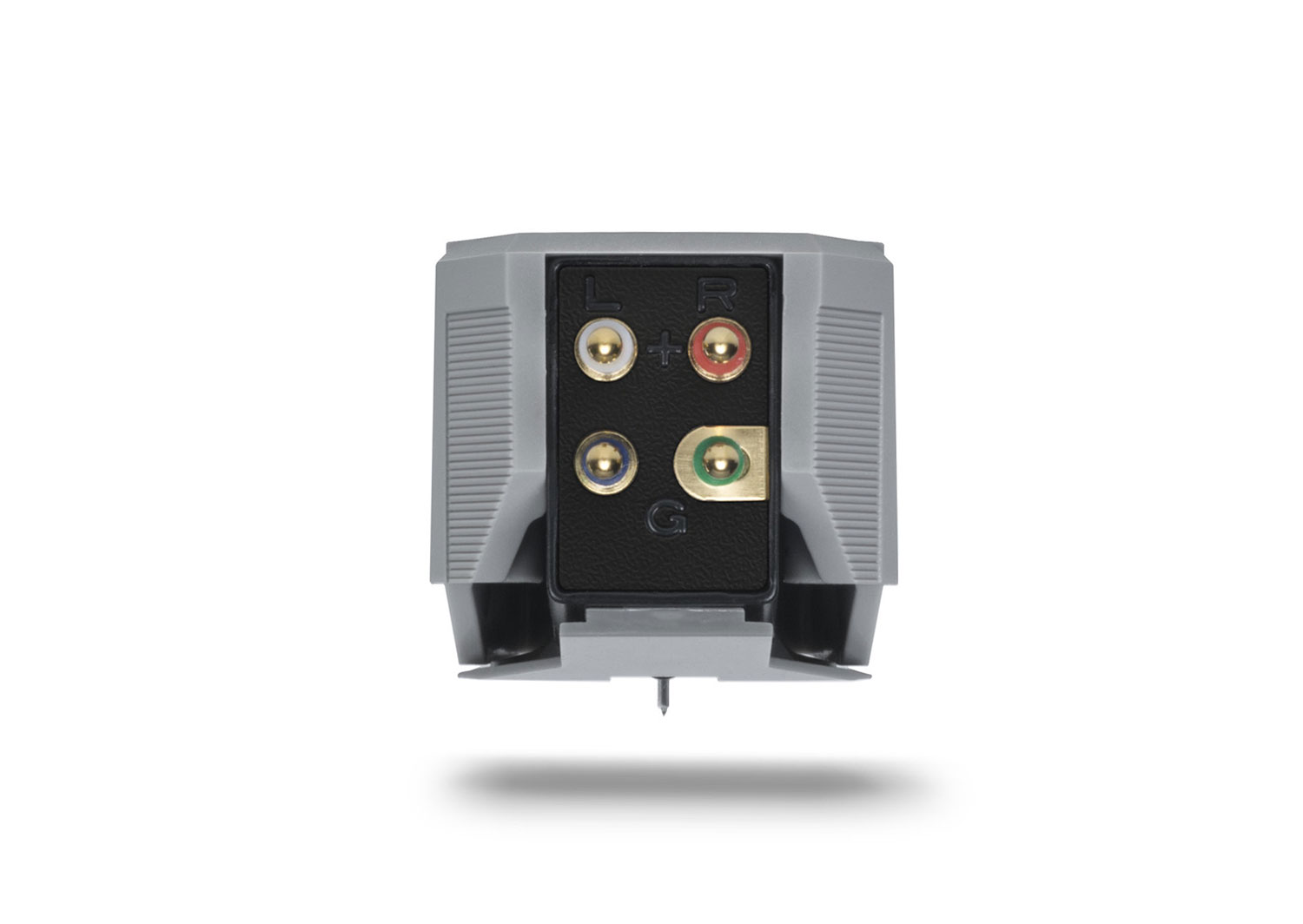

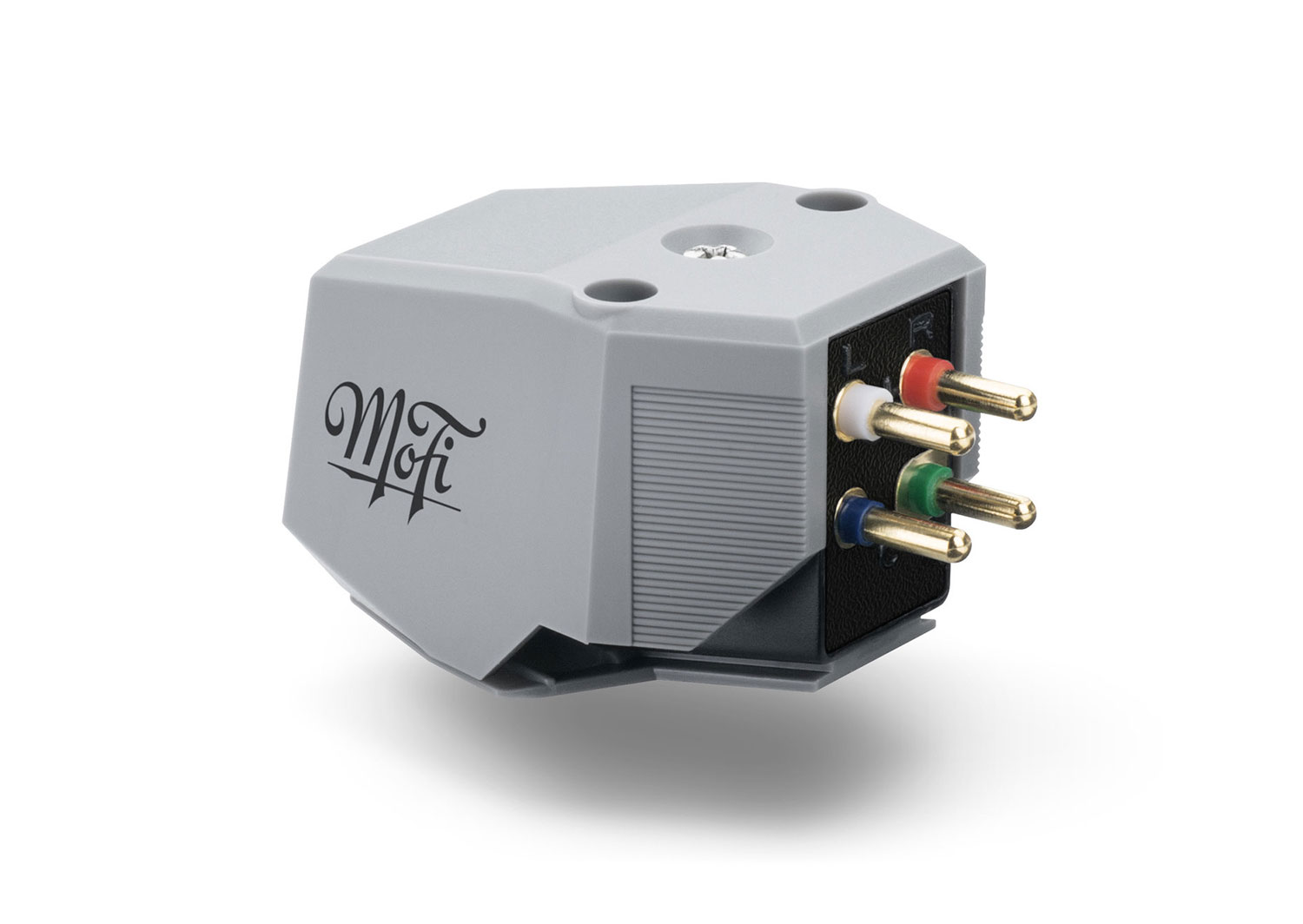

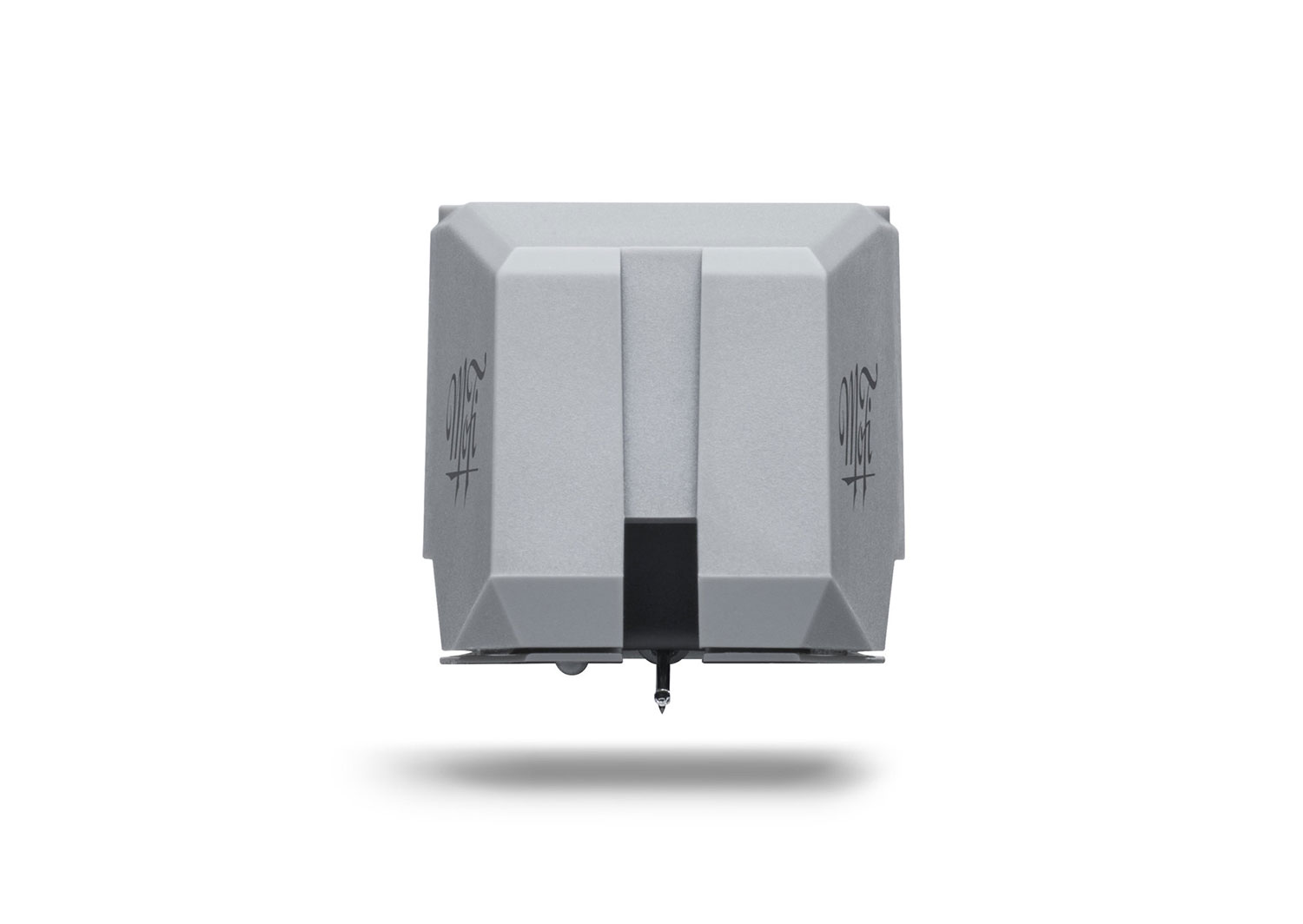

Mobile Fidelity
Studio Tracker (MM)
Phono Cartridge


Features

• V-Twin dual-magnet generator
• Elliptical stylus
• Polymer body
• 3.5mV output

MoFi cartridges are designed by looking back at where a record starts: On a lacquer cutting lathe like the model used at Mobile Fidelity Sound Lab. StudioTracker features a V-Twin dual-magnet generator that mirrors the layout of the cutting head that originally made a record’s grooves.

V-TWIN DUAL-MAGNET GENERATOR

Employing two low-mass, powerful magnets aligned in a V formation parallel with the stereo record grooves, StudioTracker accurately extracts precious details from your LPs.

ELLIPTICAL DIAMOND STYLUS

With a polymer body and elliptical stylus, StudioTracker offers surprising bang-for-your-buck value and a rich sound distinguished with a smooth, slightly forgiving top end.

Specifications

Type
Dual Magnet (MM) Stereo

Stylus
Elliptical

Output Voltage
3.5mV

Frequency Response
20–20,000Hz

Weight
6.4g

Tracking Force
1.8–2.2g

Impedance
47kOhm

Capacitance
100pF

Compliance
Static compliance : 35 x 10e-6/dyne
Dynamic compliance : 8 x 10e-6/dyne
