Product Line Conditioner-Stabilizer Clef Streambridge X
Clef
CLEF :
STREAMBRIDGE X
Category : Line Conditioner-Stabilizer
Add to wishlist     สถานะสินค้า In Stock
Streambridge X
Streambridge X
Streambridge X

PRICE :
21,900 THB.
SPECIAL :
19,710 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน ตัว

  • Overview

Clef Powerbridge
Streambridge X
Audio Network Switch

Technology

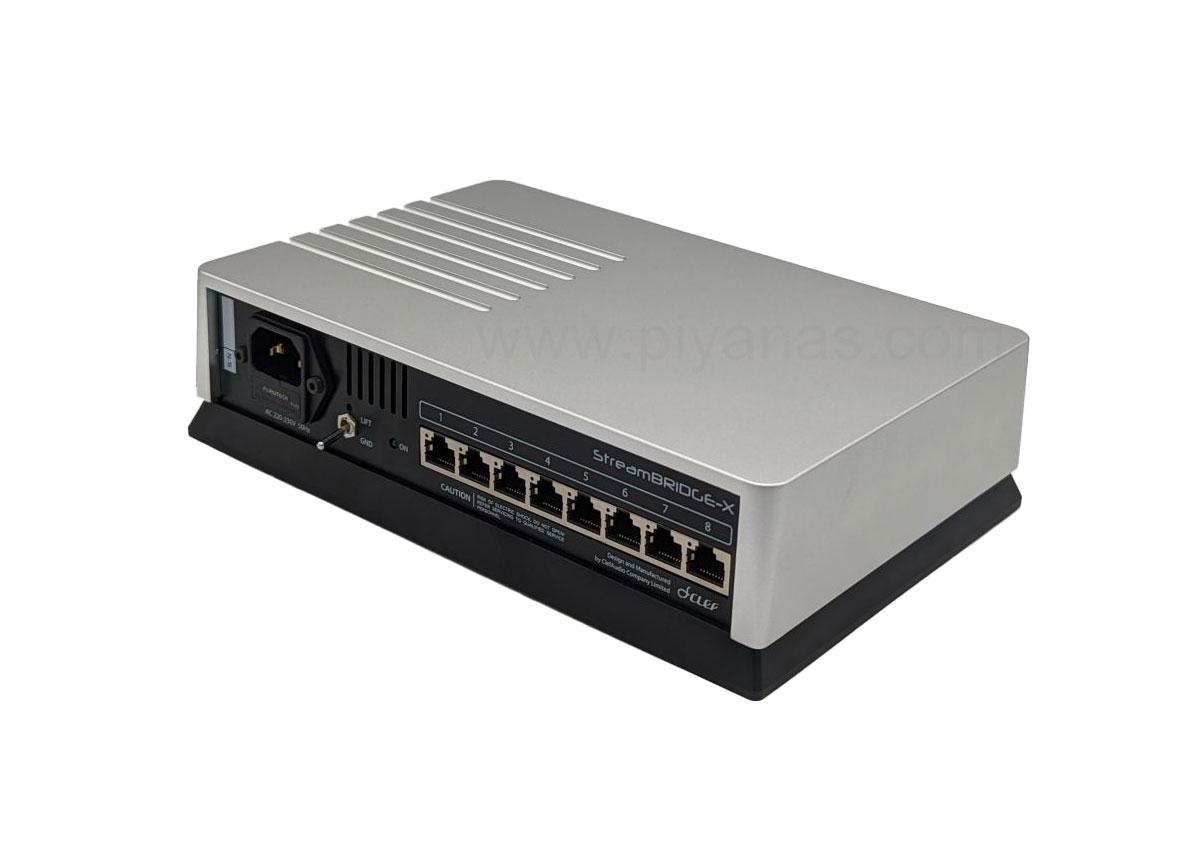

1. Power Indicator
Illuminate in BLUE when AC input is supplied to StreamBRIDGE-X.

2.AC Input
Plug the supplied power cord into this connector and plug
the other end into electrical outlet. This connector is the high qualityFurutech IEC connector which is optimized for contact resistance,EMI/RFI rejectionandgrounding.

3.Ground Mode Switch
Select LAN Ports Ground or Ground Lift connection. Select the position
that offers the best sound/video performance on your system.

4.Power Indicator LED
Show status of network controlled board.

5.LAN Ports
Plug LAN Cable from Router IN and OUT to your audio gear. All ports arethe same, you can plug into any port 1 to 8.


Technical Specification

  • Type: 8-port Gigabit Network Switch10/100/1000 Mbps.
  • Clock: OCXO with Low Noise Power Supply.
  • Clock Stability: + 10 ppb over -20ºC to + 70ºC
  • Power Supply: Ultra Liner Power Supply.
  • Power Consumption: 10 Watts.
  • AC Requirements: 220-230V / 50Hz
  • Dimension (w x h x d): 244 x 63 x 160 mm.
  • Weight: 3.1Kgs,3.6Kgs with Packing
