Anthem MRX-1140 8K
11.2-channel home theater receiver with Dolby Atmos®

Anthem's MRX A/V Receivers are about maximising audio performance that previously has been unobtainable at their respective price points. Building on the feature set of our previous models, we've added the newest version of ARC Genesis, a redesigned and more accurate calibration microphone, Anthem's Web User Interface, integrated streaming support, object-oriented audio codecs with support for up to 15.2 channels and the clean power delivery Anthem is known for with up to 140 watts per channel.

The MRX 540, 740 and 1140 are a great way to bring premium audio to any home theater or media room. Seamlessly integrate your smart TV or projector with 7 dedicated 8K HDMI inputs that support 8K/60Hz or 4K/120Hz pass-through and 2 dedicated outputs with eARC. With MRX, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity.

Advanced 8K HDMI Platform
with e-ARC Support

Feel the power of every frame with the MRX Series and its advanced 8K HDMI 2.1 Platform with HDCP 2.3. Showcasing 7 dedicated 8K inputs which support 8K/60Hz or 4K/120Hz pass-through and 3 dedicated outputs with Enhanced Audio Return Channel, you can enjoy 8K quality video from all of your 8K source devices in amazing clarity. Also featuring the latest HDMI technology and specification, the MRX 540, 740 and 1140 allow you to take your home entertainment to the next level with HDR10+, Dynamic HDR10+, ALLM and VRR support. The possibilities are limitless; unlock the true potential of your media with the industry’s most flexible and feature-rich HDMI platform.

Design

At Anthem, we have one simple goal – to design, engineer and manufacture audio/video products that deliver premium performance and convenience at a reasonable price. We do this by spending thousands of hours selecting and testing components, carefully designing our own circuit topologies, and backing them with robust power supplies that ensure maximum long-term quality and reliability. We achieve this with our team at the Paradigm/Anthem Research Center and their decades of combined experience.

Anthem Remote App

Gain unprecedented command over your network-enabled Anthem A/V Receiver, Processor or Pre-amplifier.

The Anthem Remote App uses a Wifi connection to simplify the configuration of supported Anthem devices. App-based controls include volume level, muting, input selection, power, listening modes, bass, treble, level trims, menu navigation, and Anthem Room Correction (ARC) control.

ARC Genesis

ARC Genesis is the newest software that works with many ARC enabled Anthem or Paradigm product. New features include support for both Mac and Windows; new target curve adjustment options including deep bass and high frequencies; improved algorithms and much more.

ARC Genesis is backwards compatible with many Anthem and Paradigm products that are ARC or PBK enabled. For a complete list, please visit AnthemARC.com. This third generation of Anthem Room Correction software represents a significant leap forward in room correction with the most comprehensive set of features yet. ARC Genesis transforms the audio performance of compatible speakers or electronics while retaining the unique character of any room. Proprietary Digital Signal Processing (DSP) software works in tandem with a calibrated microphone (provided with many ARC and PBK enabled products) to provide astonishing improvements to the sound you hear.

Specifications

Power and processing:

• 11-channel amplifier
• 5 channels rated at 140 watts (Class AB)
• 6 channels rated at 60 watts (Class D)
• Dolby® and DTS® surround sound decoding
• Dolby Atmos® and DTS:X processing for use with in-ceiling or "height" speakers for more enveloping home theater sound
• DTS® Virtual:X™ creates three-dimensional effects without height speakers
• IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources
• ARC Genesis speaker calibration system helps fine-tune your system to best match your room's acoustics
• requires installation of free ARC Genesis software on a Mac or PC prior to calibration
• audiophile-grade 32-bit/768kHz DAC (digital to analog converter)
• toroidal power supply ensures low-noise, high-performance picture and sound

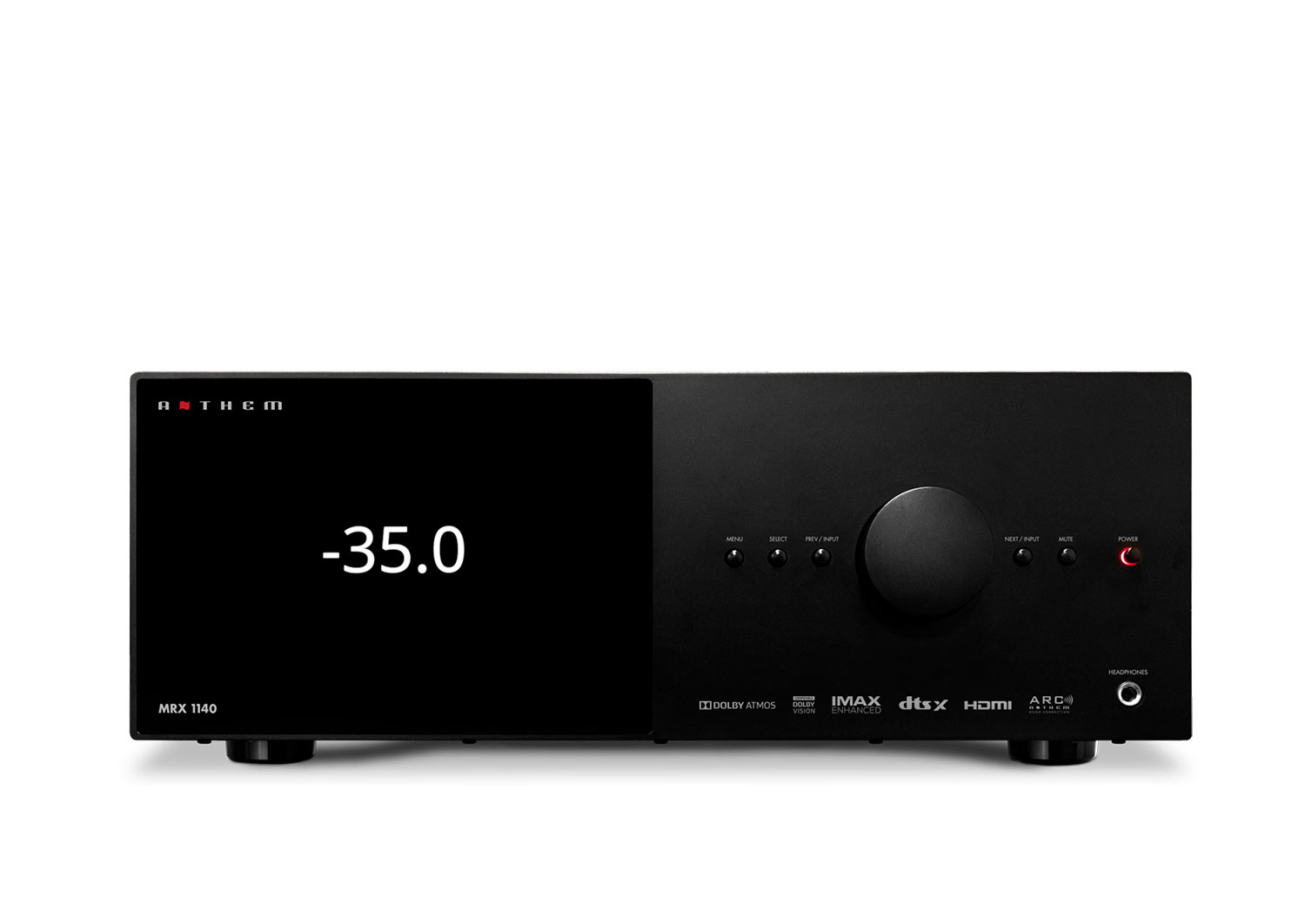

• large front-panel display gives you easy-to-read status updates at a glance

Digital and streaming music options:

• built-in Bluetooth for wireless music listening with smartphones, tablets, and compatible computers
• built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services
• free future firmware update will include support for Spotify® and Roon
• Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music®
• Google Chromecast for wireless music streaming from compatible devices

Multi-room audio/video:

• dual-room/dual-source output
• amp assign function lets you use the surround back speaker outputs in different configurations (bi-amp the front speakers or power Zone 2)
• using powered 2nd-room output allows 9.2-channel sound in main room
• Zone 2 stereo preamp outputs for use with an optional external amplifier
• Zone 2 HDMI output

HDMI features:

• HDMI 2.1 audio/video switching: 7 in, 3 out
• all HDMI connections support 4K/120Hz and 8K/60Hz
• HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs
• HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content
• supports HDR10, HDR10+, Dolby Vision®, and HLG (Hybrid Log Gamma)
• supports Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM)
• supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
• eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV

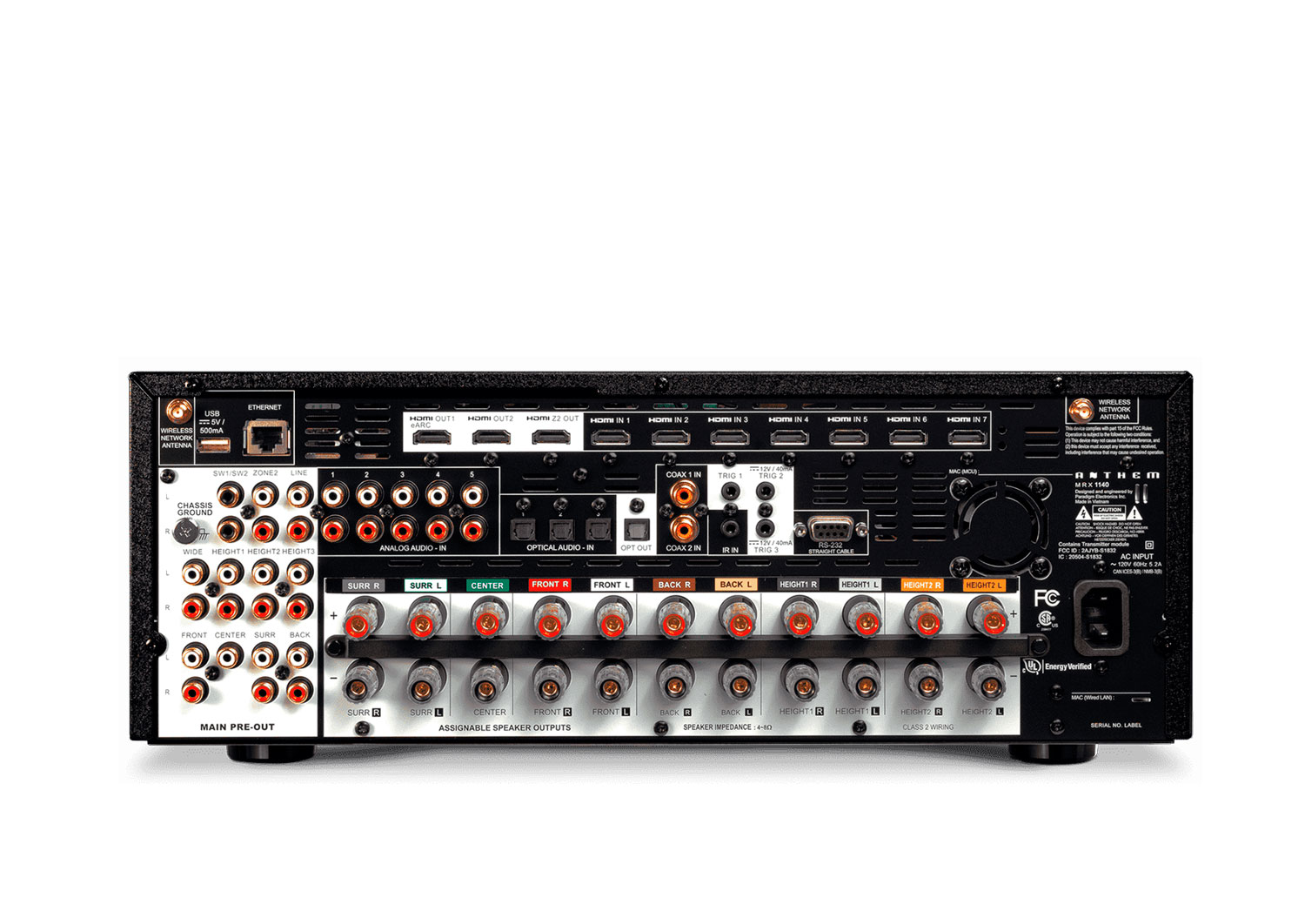

Other connections:

• digital audio inputs: 3 Toslink optical, 2 coaxial
• 5 analog stereo RCA audio inputs
• 15.2-channel RCA preamp outputs
• includes 2 discrete subwoofer outputs that can be calibrated independently
• outputs for 11 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Height1 L/R, Height2 L/R)
• full-sized front-panel headphone jack

Warranty and other info:

• intuitive browser-based control interface
• easily turn zones on and off, adjust settings, switch up speaker configurations, and more
• supports smartphones, tablets, and computer browsers
• free Anthem Remote app lets you use your phone as a Wi-Fi remote (currently available as public beta)
• support for IP-based third-party remote control systems
• 17"W x 6"H x 14-1/2"D
• weight: 33.6 lbs.
