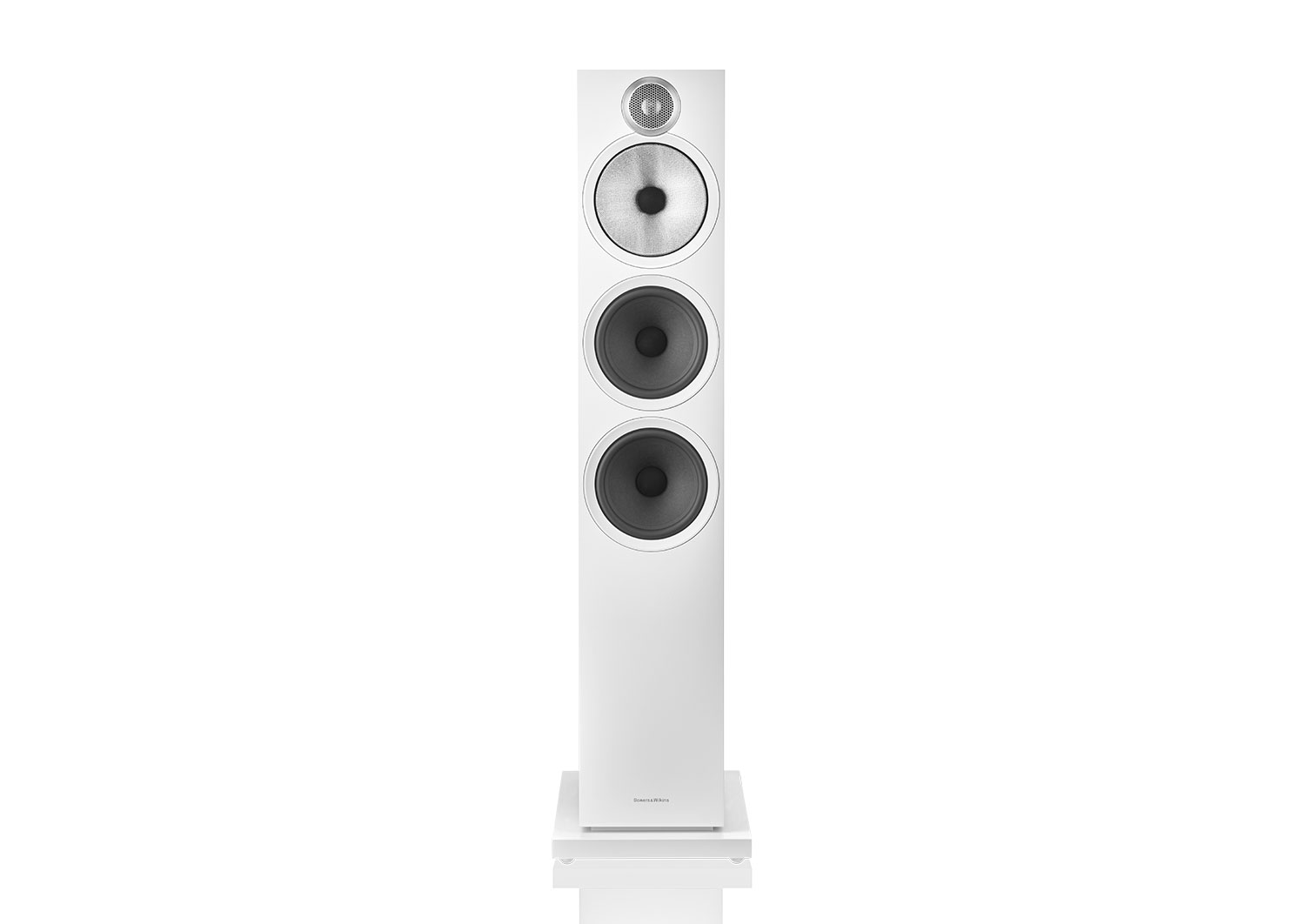

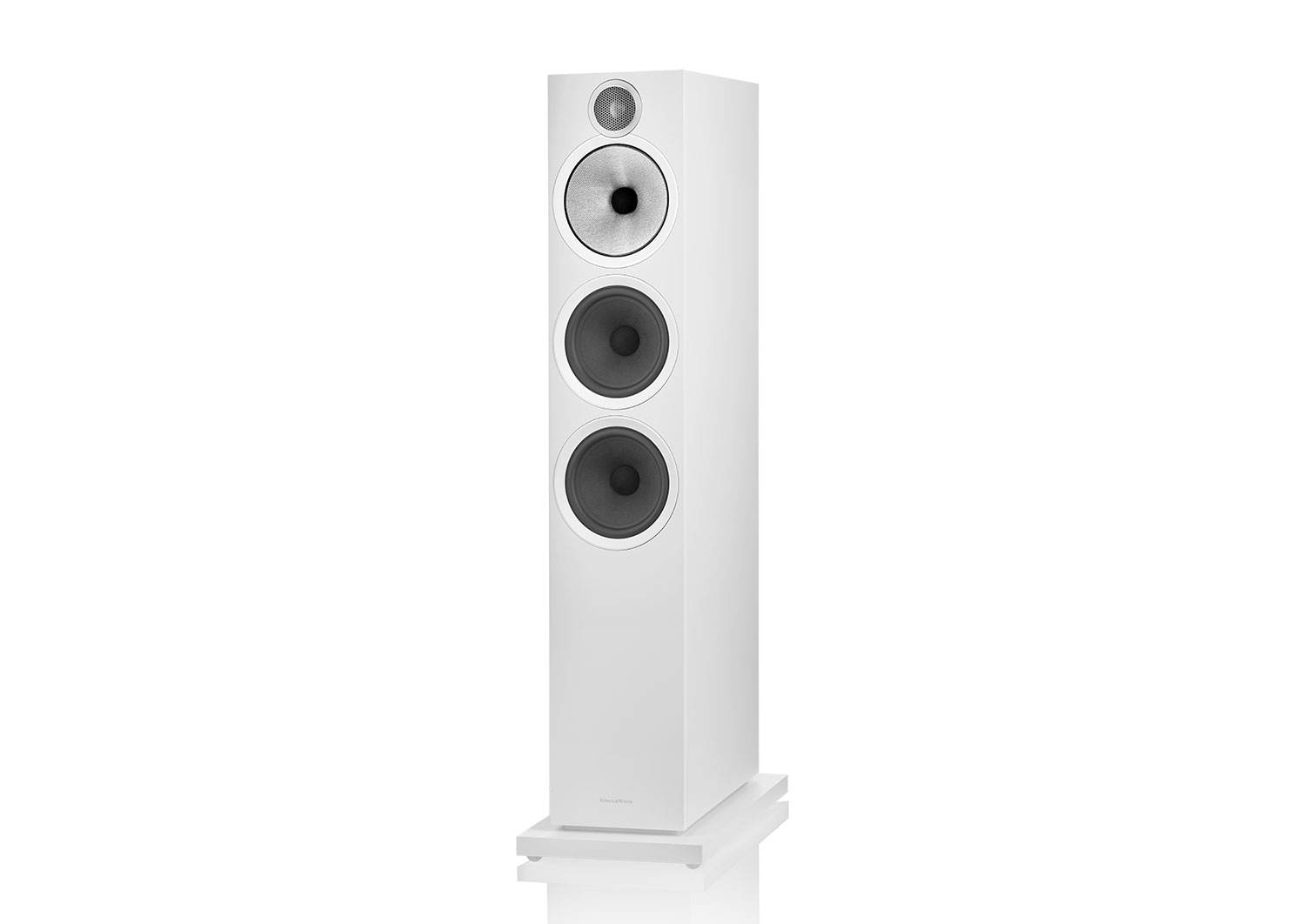

B&W 603 S3 (White)
The 603 S3 is the largest loudspeaker in the 600 Series and is ideal for larger rooms and home theaters. It combines our new Titanium Dome™ tweeter with the accuracy and transparency of our acclaimed Continuum™ cone FST™ midrange driver.
A celebration of sound
Room-filling scale and authority come courtesy of two bass drivers, while improved terminals and enhanced drive unit positioning make 603 S3 the most sophisticated affordable tower speaker we've ever made.
Layered, beautiful details
The new 603 S3 introduces our all-new Titanium Dome tweeter, which combines exceptional resolution and insight with smooth, refined high-frequency reproduction. The result? An accurate and immersive insight into your favorite music.
Truly amazing sound

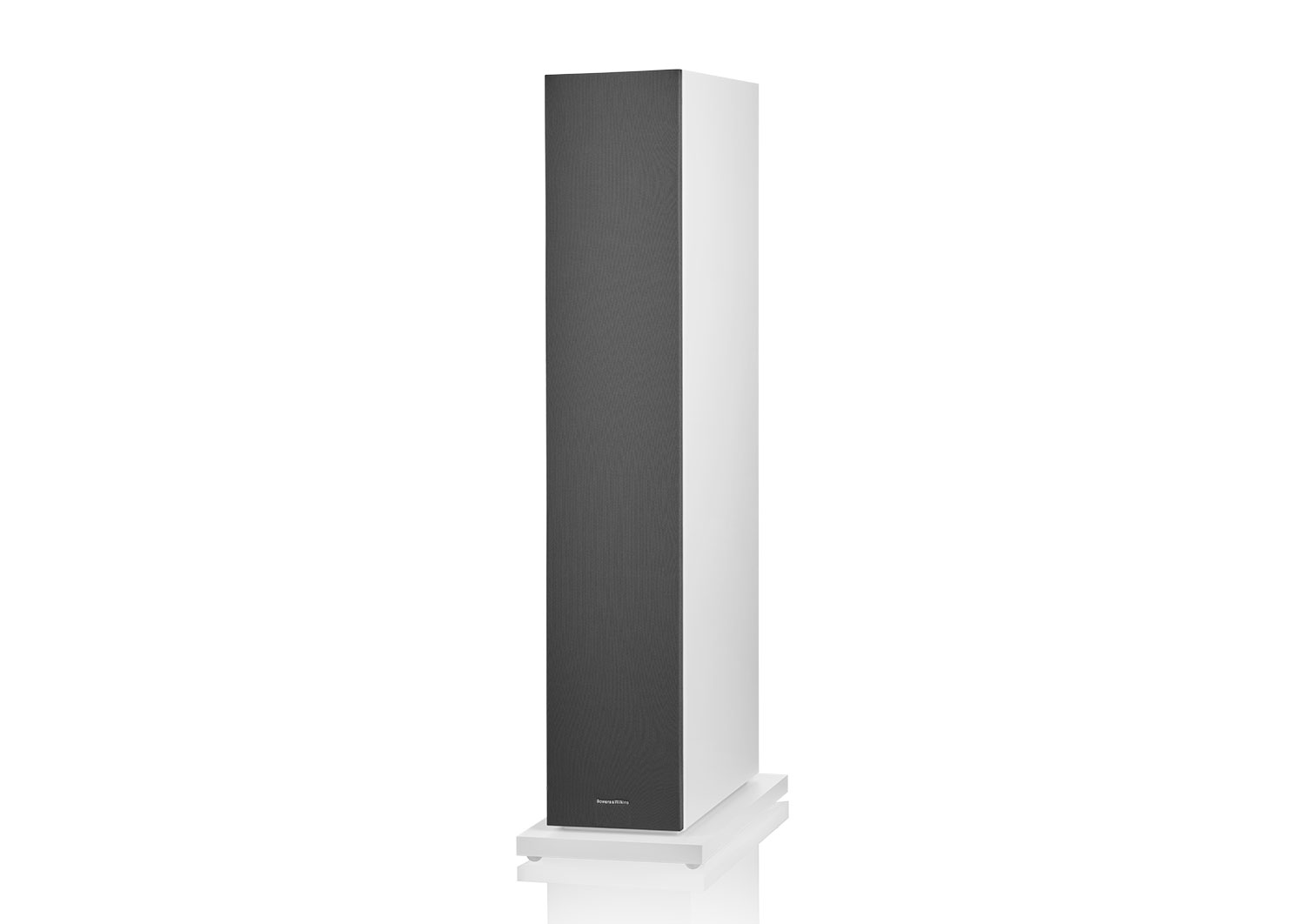

603 S3 introduces our new and even more acoustically transparent tweeter grille mesh, first developed for our revered Signature models. Alongside the new Titanium Dome tweeter, the resolution and realism is exceptional.
Precision and transparency
Thanks to its composite construction, the Continuum cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. With 603 S3, experience a more open, neutral performance that delivers voices and instruments with precision and transparency.

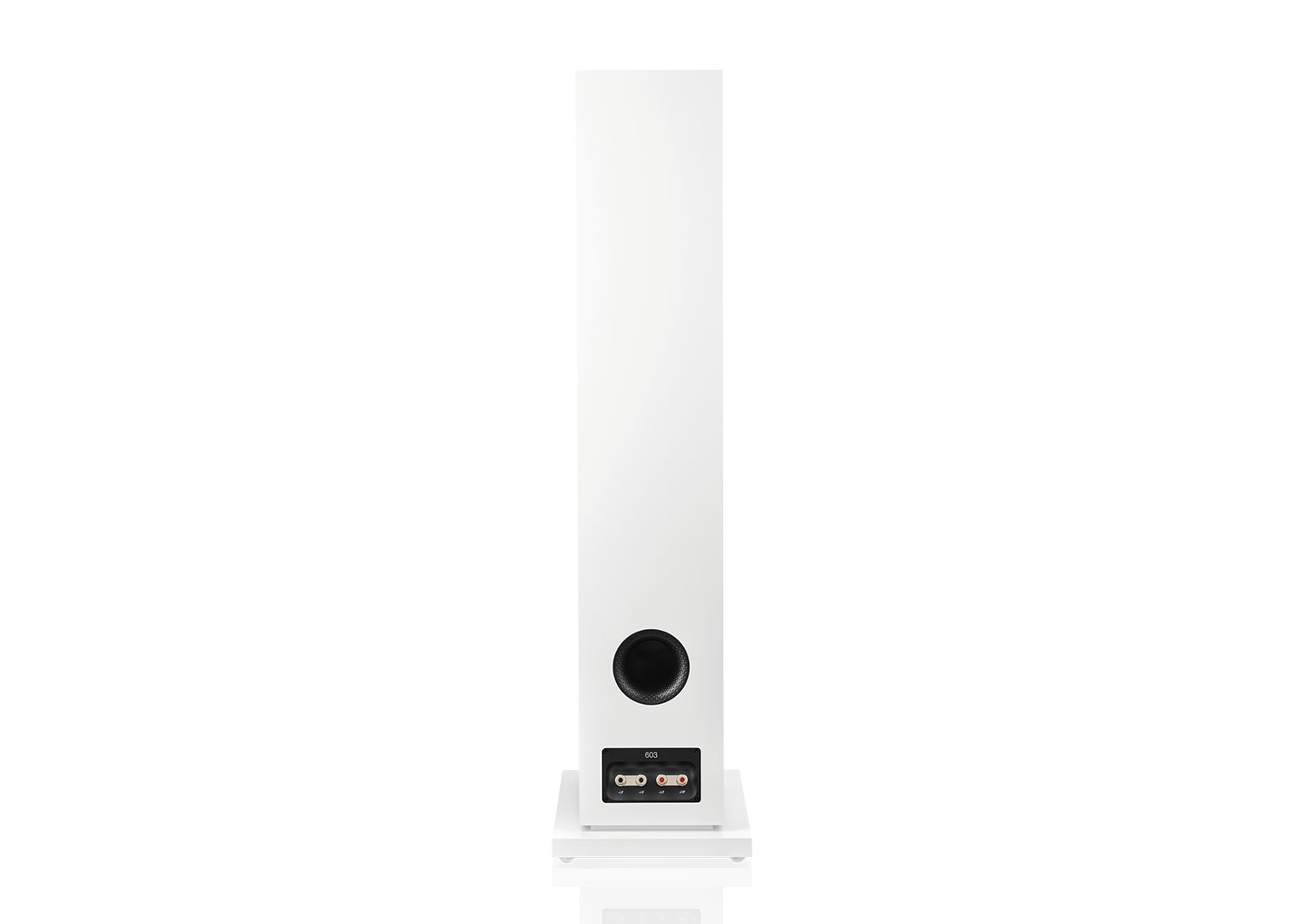

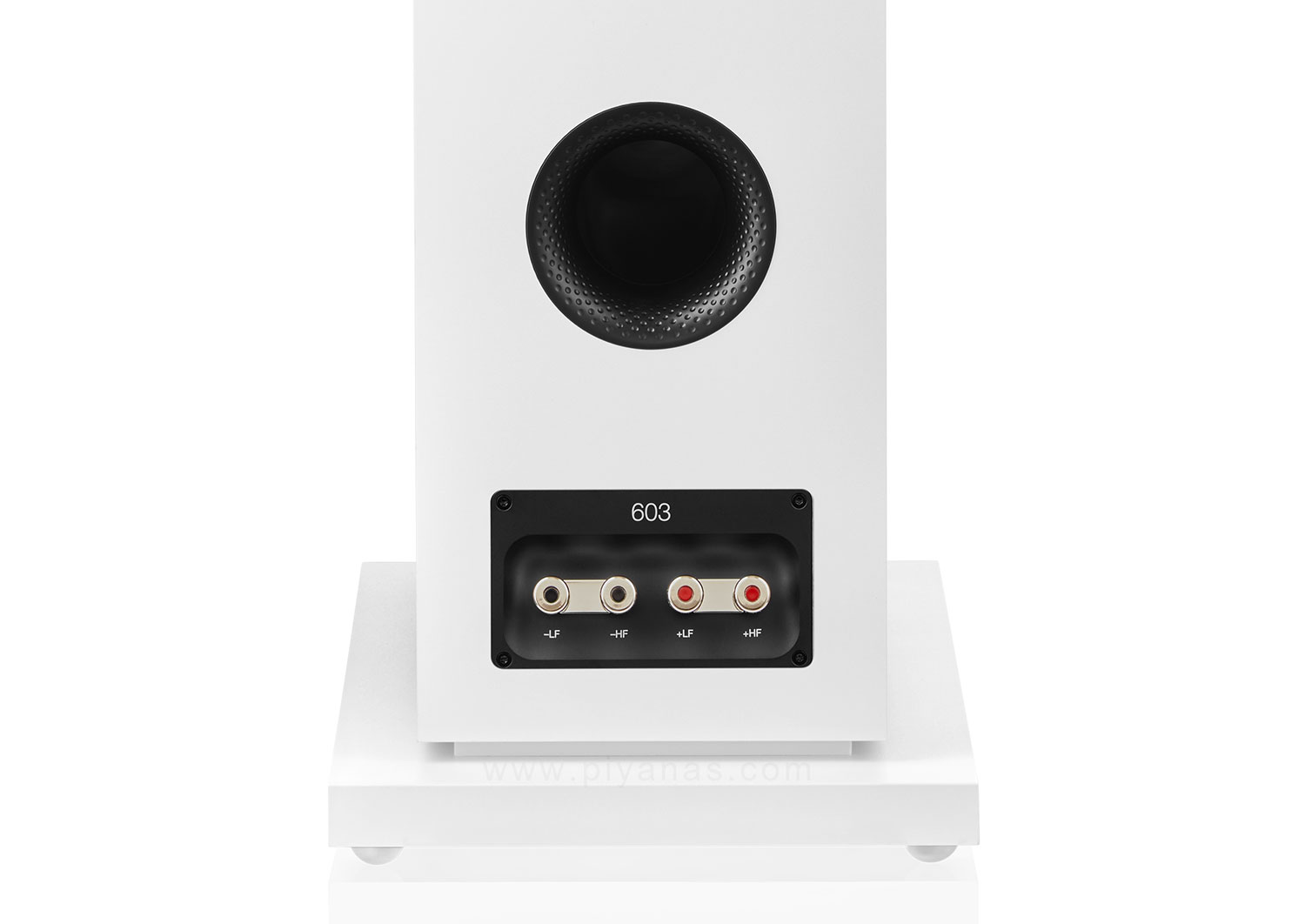

Upgraded speaker terminals
Derived from the speaker terminals recently introduced in our 700 Series range, the speaker terminals on the new 603 S3 feature an improved layout and a cleaner signal path between your amplifier and your loudspeakers.
Specifications
Technical features | Decoupled Double Dome Titanium tweeter Continuum™ cone FST™ midrange Paper bass cones Flowport™ |
Description | 3-way vented-box system |
Drive units | 1x ø25mm (1 in) Titanium Dome high-frequency 1x ø150mm (6 in) Continuum cone FST midrange 2x ø165mm (6.5 in) Paper bass cone |
Frequency range | -6dB 29Hz - 33kHz |
Frequency response (+/-3dB from reference axis) | 46Hz - 28kHz ±3dB |
Sensitivity (on axis at 2.83Vrms at 1m) | 90dB |
Harmonic distortion | 2nd and 3rd harmonics (90dB, 1m on axis) <1% 100Hz - 22kHz <0.5% 350Hz - 12kHz |
Nominal impedance | 8Ω (minimum 3.0Ω) |
Reccomended amplifier power | 30W - 200W into 8Ω on unclipped programme |
Max recommended cable impedance | 0.1Ω |
Dimensions | Height: 985 mm (38.8 in) cabinet only 1,020 mm (40.2 in) including plinth Width: 190 mm (7.5 in) cabinet only 260 mm (10.2 in) including plinth Depth: 340 mm (13.4 in) cabinet only 368 mm (14.5 in) including grille and terminals 402 mm (15.8 in) including plinth |
Net weight | 27.5kg (60.6 lb) |
