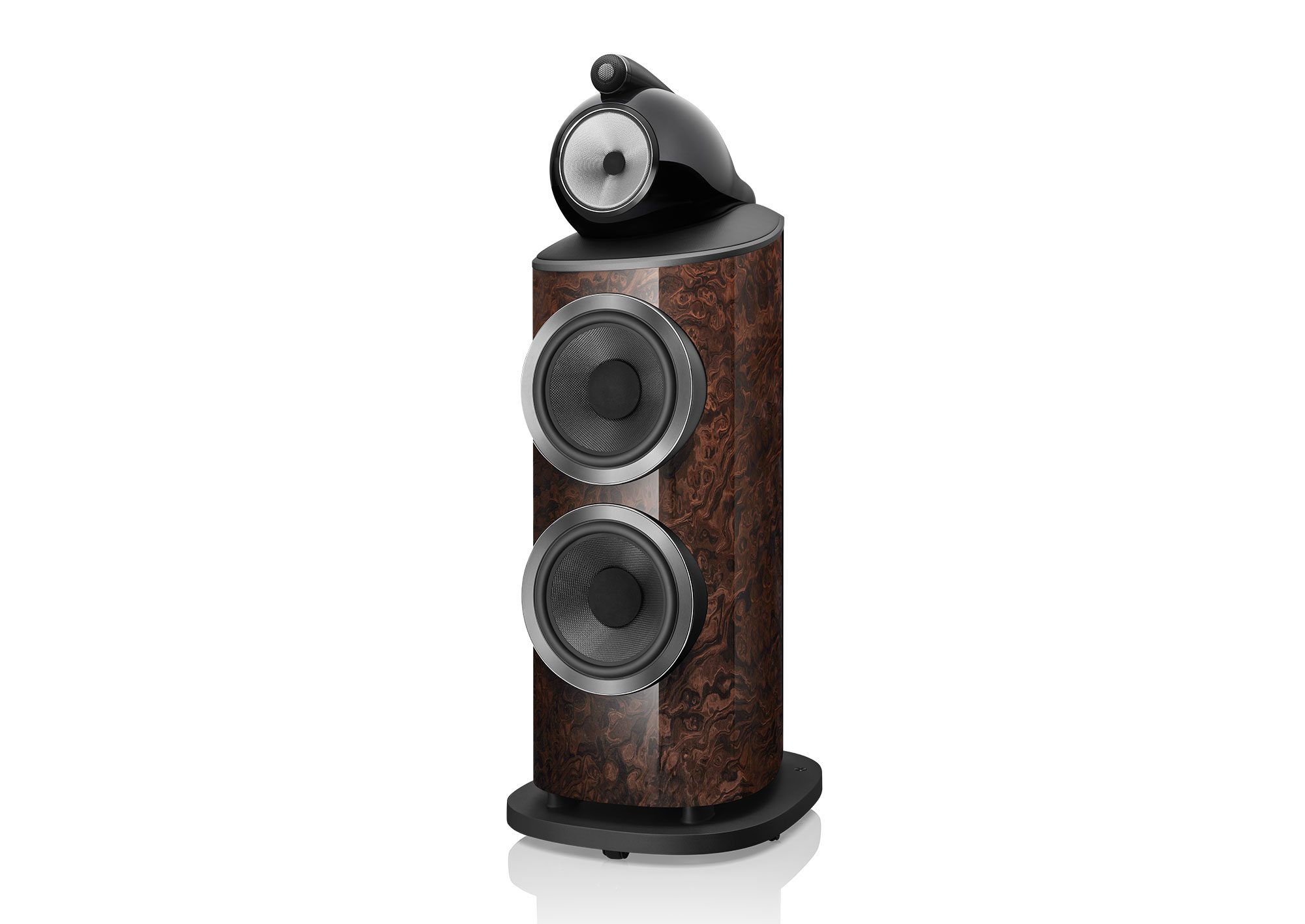

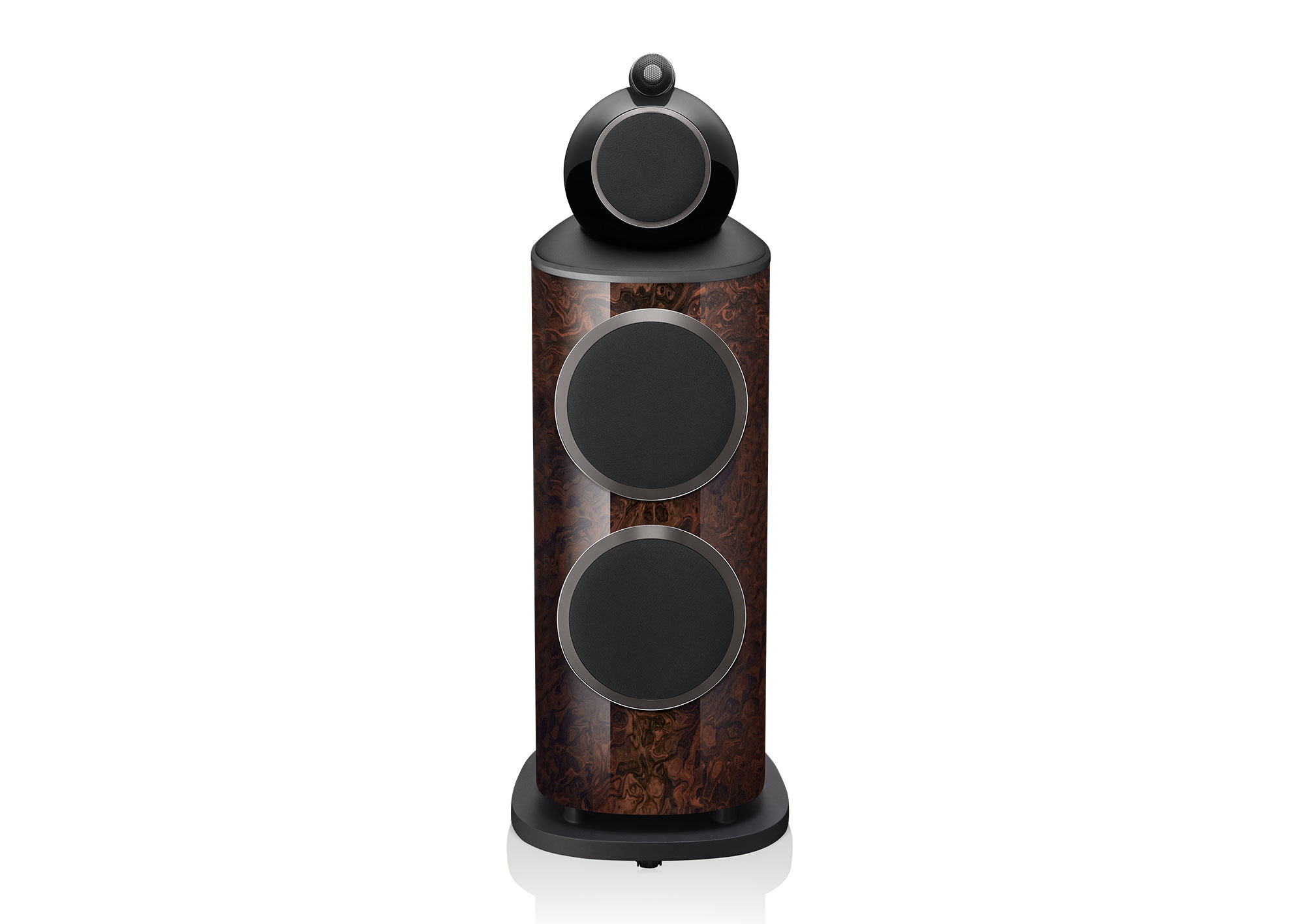

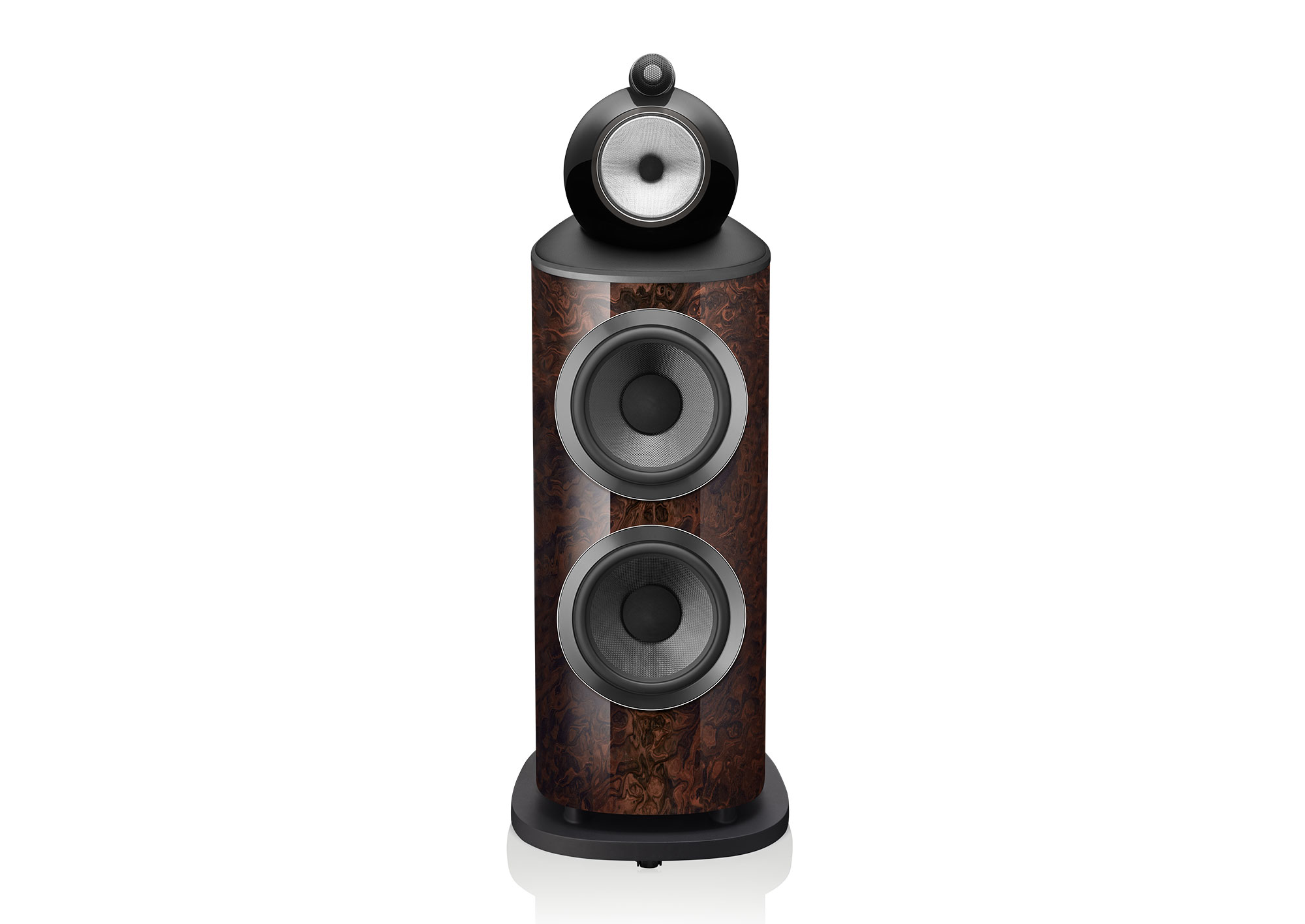

B&W 801 D4 Signature (California Burl Gloss)
Floor-standing speaker
The 801 D4 Signature tower speaker features optimized technologies, including that all-important Diamond Dome tweeter and Solid Body Tweeter-on-Top, an all-new tweeter grille, and upgraded crossover.
Optimized for perfection
The 801 D4 Signature is an optimized version of our most advanced loudspeaker. It features meticulously evolved technology, carefully crafted design, and unique finishes that culminate in the pinnacle of performance. This is Bowers & Wilkins' flagship loudspeaker perfected.
Diamond Dome tweeter
One of our most significant accomplishments over the past two decades, the ultra-stiff, supremely accurate Diamond Dome tweeter is the perfect combination of low mass, exceptional stiffness, and outstanding accuracy. Fifteen years after we introduced it, we haven't found a better tweeter dome technology.
Solid Body Tweeter
Our Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system and an all-new design of tweeter grille, producing an even more free and open sound with high frequencies.
Upgraded crossover

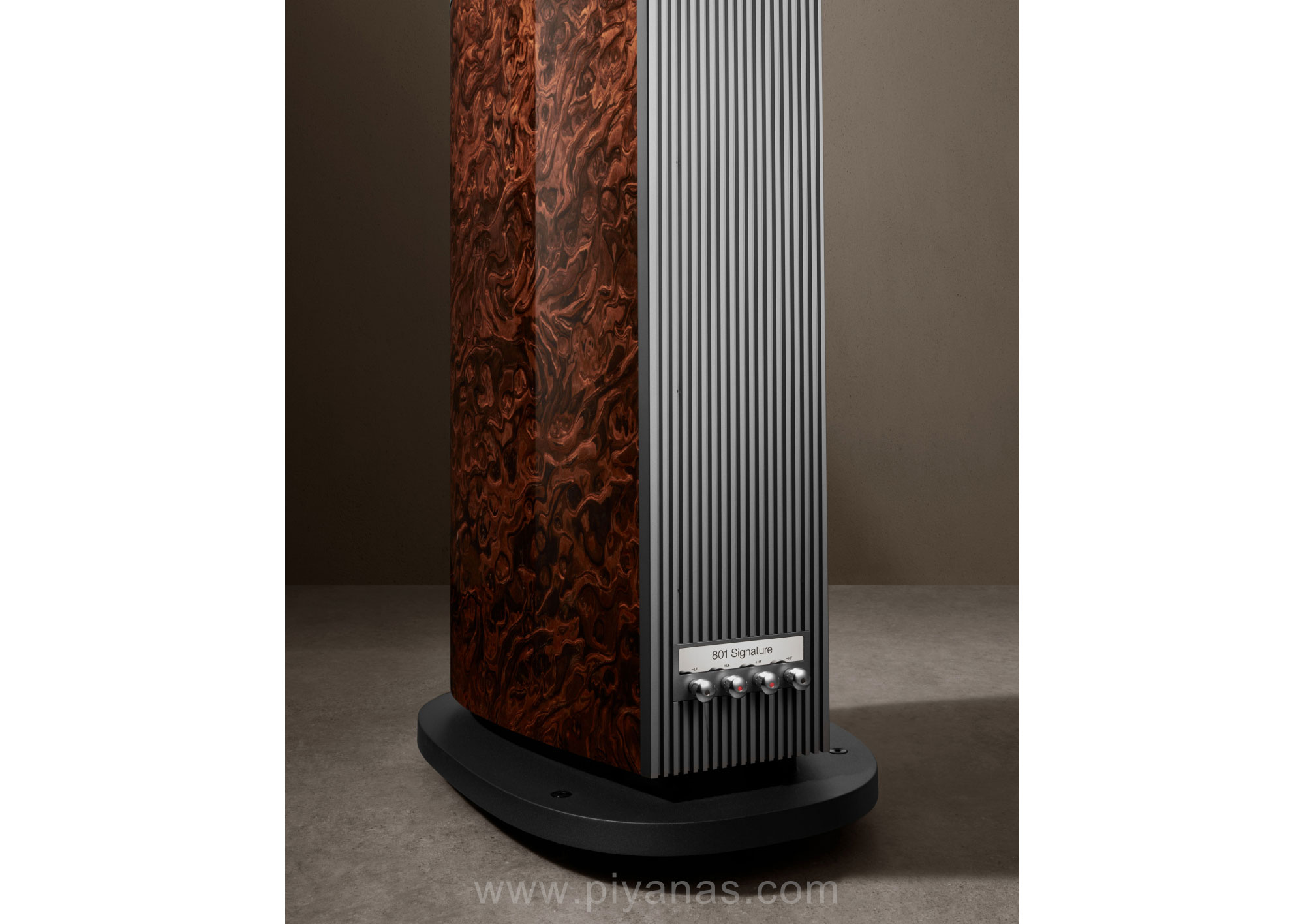

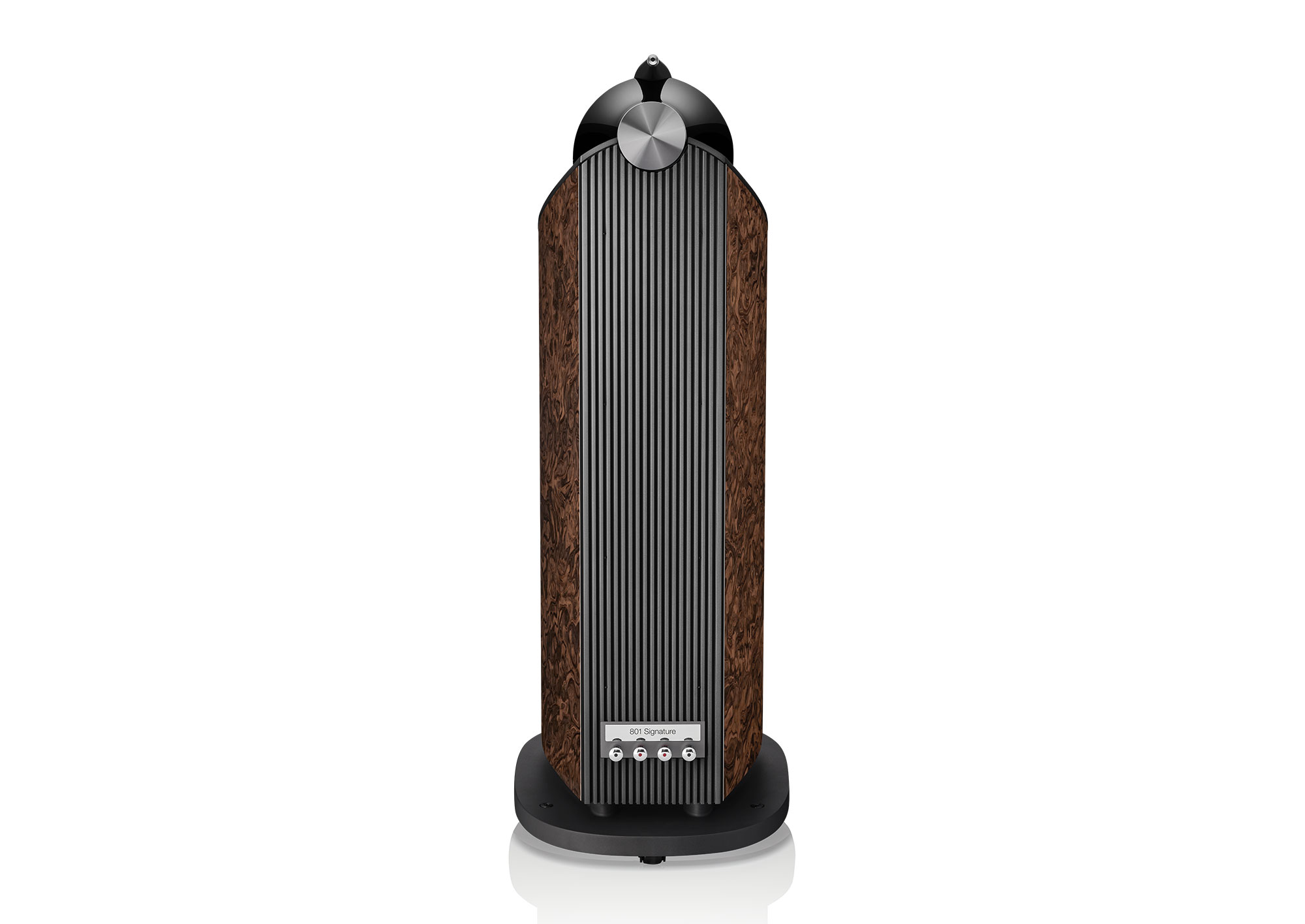

Our 801 D4 Signature uses upgraded rear-mounted crossover designs mounted on stiff aluminum spines. This isolates the sensitive capacitors from the unwanted effects of air pressure within the enclosure and makes for a very effective heatsink to ensure optimum performance when in use.

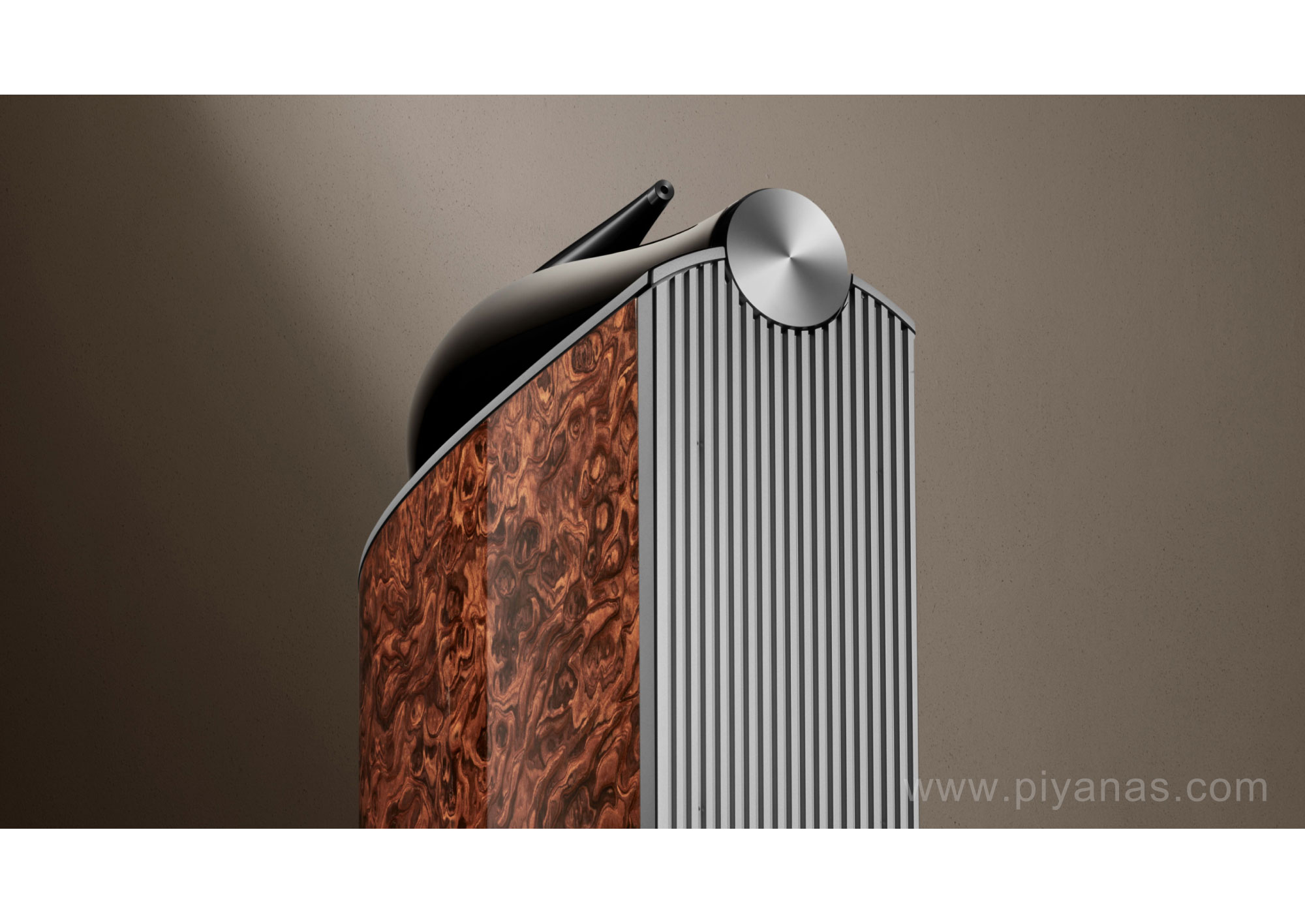

Aluminum top-plate
Every new 800 Series Signature model has a significantly upgraded cabinet design with an all-new, optimized aluminum top section for even greater stiffness. The same design also provides a perfect mounting point for Leather by Connolly cabinet detailing, with luxurious full-grain blue leather for our Midnight Blue Metallic models and full-grain black leather for our California Burl Gloss models.
Technical specifications
Technical features | Diamond tweeter Solid Body Tweeter-on-Top Continuum™ cone FST™ midrange Anti-Resonance plug Biomimetic Suspension Turbine Head Matrix™ Aerofoil™ Profile bass cones Flowport™" |
Description | 3-way vented-box system |
Drive units | 1x ø25mm (1in) Diamond Dome high-frequency 1x ø150mm (6in) Continuum™ cone FST™ midrange 2x ø250mm (10in) Aerofoil™ Profile bass |
Frequency range | -6dB 13Hz - 35kHz |
Frequency response | 15Hz to 28kHz (+/-3dB from reference axis) |
Sensitivity | 90dB (on axis at 2.83Vrms at 1m) |
Harmonic distortion | 2nd and 3rd harmonics (90dB,1m on axis) <1% 30Hz – 20kHz <0.3% 100Hz – 20kHz |
Nominal impedance (min) | 8Ω (minimum 3.0Ω) |
Recommended amplifier power | 50W – 1000W into 8Ω on unclipped programme |
Max. recommended cable impedance | 0.1Ω |
Dimensions | Height: 1221mm (48.1in) Width: 451mm (17.8 in) Depth: 600mm (23.6 in) |
Net weight | 100.60kg (221.8 lb) |
Cabinet | California Burl Gloss Midnight Blue Metalli |

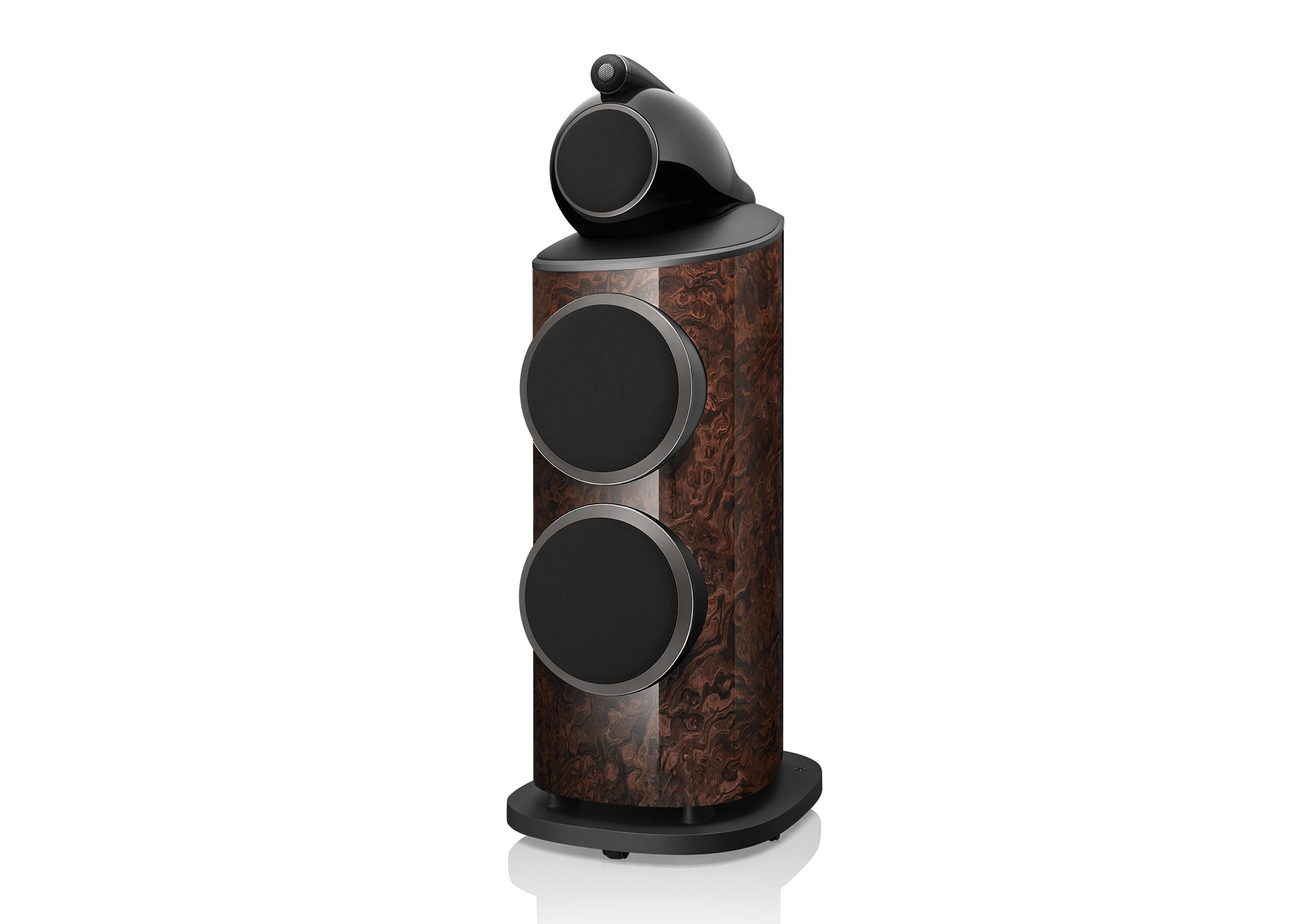

Grille | Black Black |
