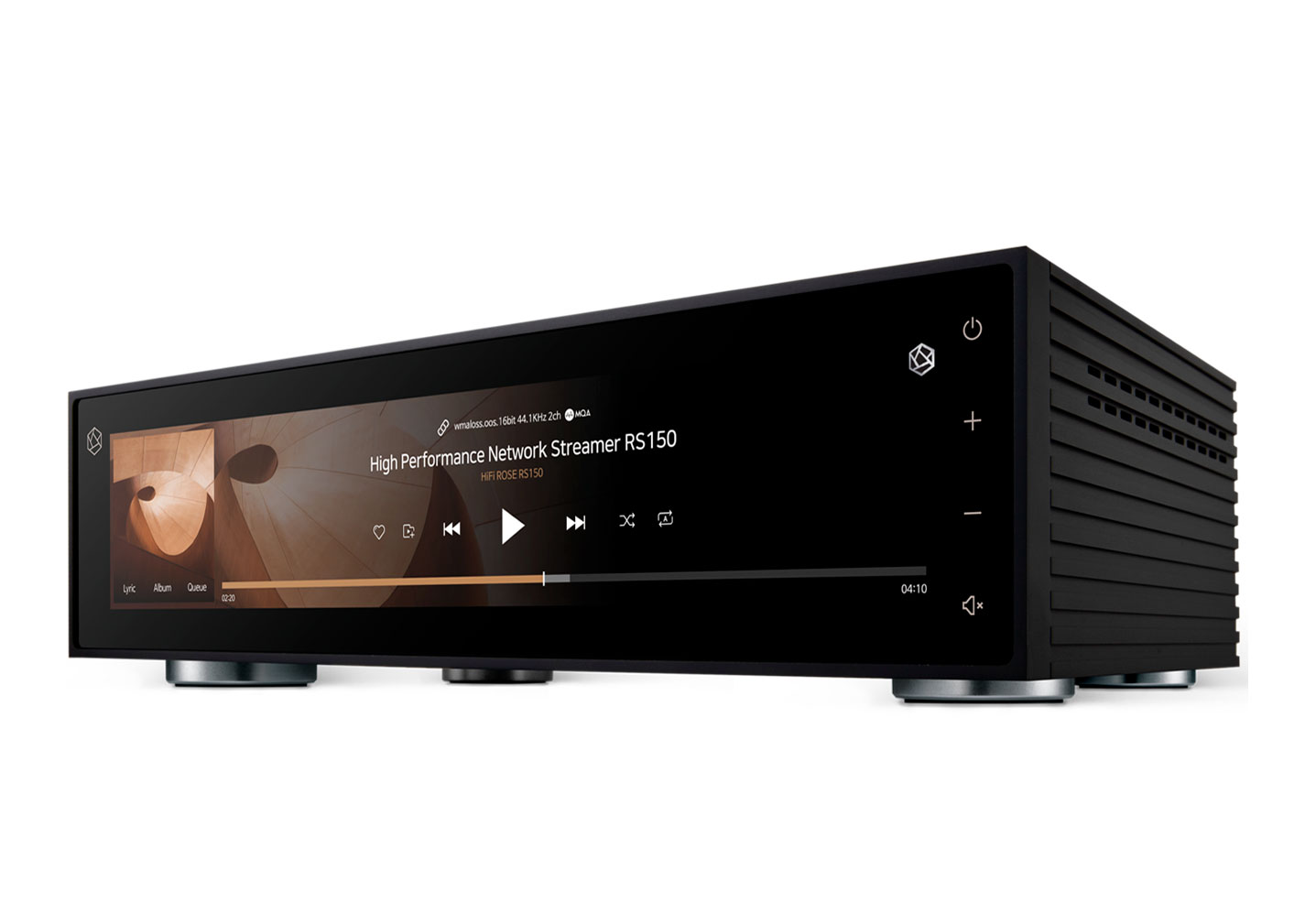

Hifi Rose RS-150B (Black)
High Performance Network Streamer
RS150 is High-Performance Network Streamer provides
various multimedia services with high-quality sound and ultra-high-resolution video.
Pure Sound
State-of-the-art DAC Setting
Integrated with Asahi Kasei's flagship DAC chip AK4499EQ, the RS150 offers low noise, low distortion, ultra-high-resolution sound and analog rich density with proprietary processing supporting PCM 32bit / 768KHz and Native DSD512 (22.5792Mhz).
Analog Acoustic Sensitivities
Delivers the musical inspiration from high-quality sound by the tuning of Acoustic engineers with thirty years of experience. Clearly expresses the full range, from grand, and rich bass to delicate, and elegant highs.
Linear Power System and Ideal Circuit system
Linear power supply minimizes noise inflow significantly.Ideal circuit system eliminates electrical noise, and creates dramatically improved sound quality without distortion.
Highly Precise Femto Clock
The highly precise Femto clock delivers superb stereoscopic, and distortion-free sound with quiet and clear background imaging.
Case milled from Solid block of
High Purity Aluminum
The high-purity aluminum integrated into one piece to maximize thermal efficiency. By minimizing parts in the assembly area, vibrations that can affect sound qualities are greatly reduced, creating a profound and ideal sense of space.
MQA Certified
RS150 supports MQA full decoder technology. MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download.
Ultra HD 4K Video Support
Watch Local or RoseTube video files in Ultra HD 4K quality on a large display with an HDMI connection. Feel the magnificent and vivid touch of the Opera House at home now.
Advanced Control

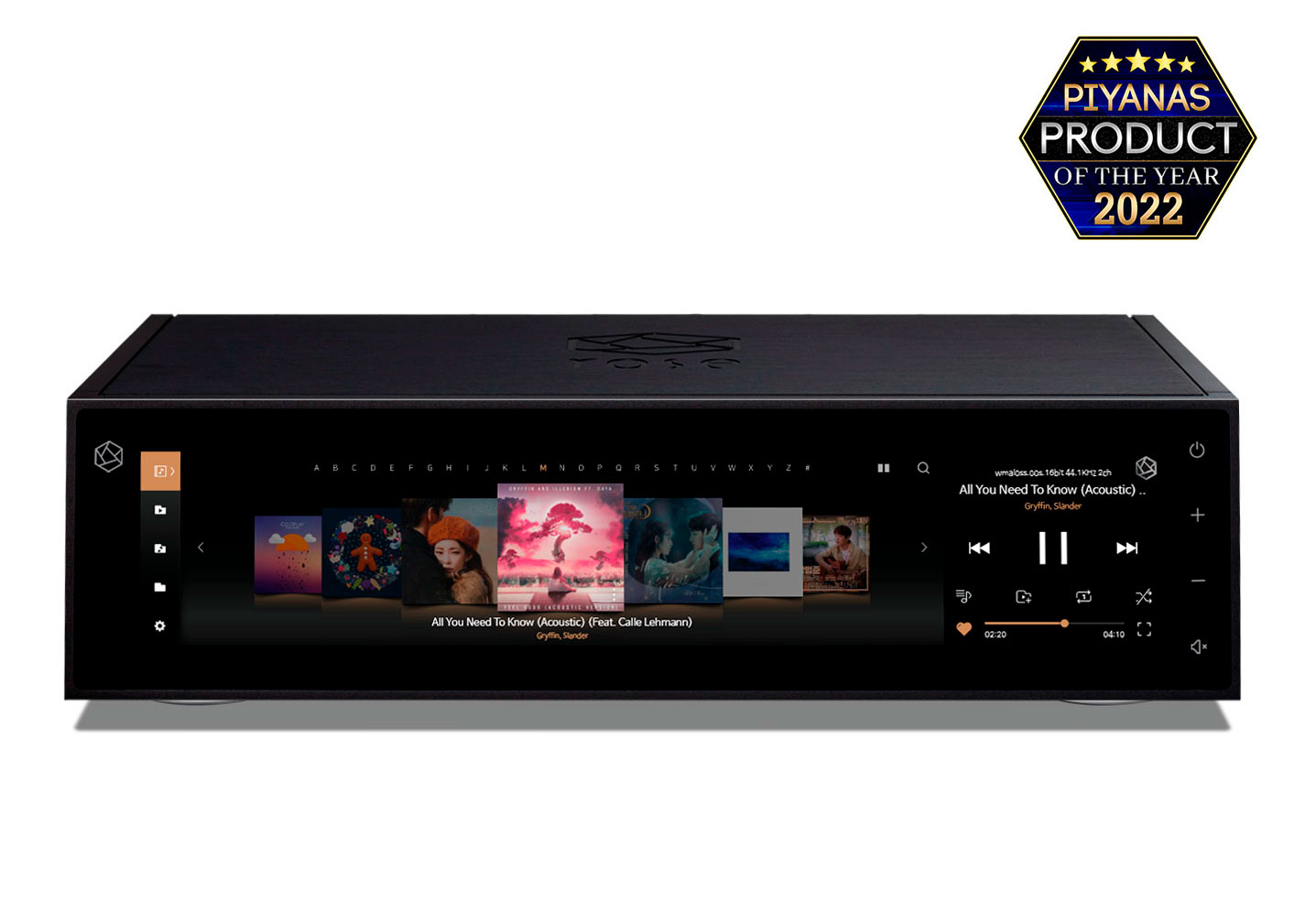

14.9-Inch-Wide Touch Screen
Intuitive, and convenient interface through high-resolution IPS Multi-Touch panel. The front display can play album art and music videos in a wide viewing angle.
ROSE Connect Application
This intuitive and dedicated application allows users to play all music and videos from local and network sources.
Bluetooth Remote Controller
With a Bluetooth remote controller, control the device with ease.
Innovative ROSE OS
HiFi Rose OS system provides an innovative musical experience. Stream and play ultra-high-quality music, 4K high-definition video, ad-free YouTube, Podcasts, various radio stations from around the world, CD playback/Ripping, and more.
Music / Video
Play music and video files on a local storage device (USB / MicroSD / SSD). Also, you can build your home network library with a NAS connection. It is possible to categorize your music in numerous ways.
TIDAL
Built-in Tidal App for high-performance streaming service. Easily integrate all existing features, such as sign-in, playlist, and playback.
Roon Ready
Roon is an incredibly rich and engaging way to browse and organize your music. It runs on most Mac, Windows, and Linux PCs, or on other products which include Roon Core. Being Roon Ready means that HiFi rose network players transparently discover and connect to Roon without any configuration, and bit-perfect audio is delivered from Roon to your network player. Together, Roon and HiFi rose deliver the power, flexibility, and performance of networked audio, with the easiest setup and highest reliability available. Learn more about Roon partner programs.
CD
By connecting an external CD-Rom Drive via USB, spontaneous CD playback is possible. You can extract music files stored on a CD and save them to SSD, USB, or MicroSD.
Radio / Rose Podcast
Listen to more than 990 Internet radio stations from around the world. Register and listen to your favorite channel. It also offers podcast channels, provided by iTunes.
Rose Store
You can simply update these applications to the latest version from the RoseStore App.
Spotify Connect
Spotify Connect allows you to play and wirelessly control Spotify music on your ROSE OS over a network. With the Spotify Connect function, you can enjoy a variety of music with hi-fi sound quality on your ROSE device.
Qobuz
Enjoy music streaming with Qobuz's various functions. Support for hi-res audio (24 bit/192 kHz) means you can enjoy high-resolution music.
Connect Anything
Wired/Wireless Connection
Seamless streaming over the network is possible. It supports Airplay and DLNA functions and can connected to smartphones, computers and tablet PCs via Wi-Fi / Giga Ethernet / Bluetooth communication.
Build a home media library
Designed to contain enough storage in consideration of listening to HiFi music sources, RS150 can recognize up to 4TB of SSD, 10TB of external HDD, and 400GB of MicroSD. Also, it supports connection with NAS. Experience high-quality music without worrying about drive capacity from now on.

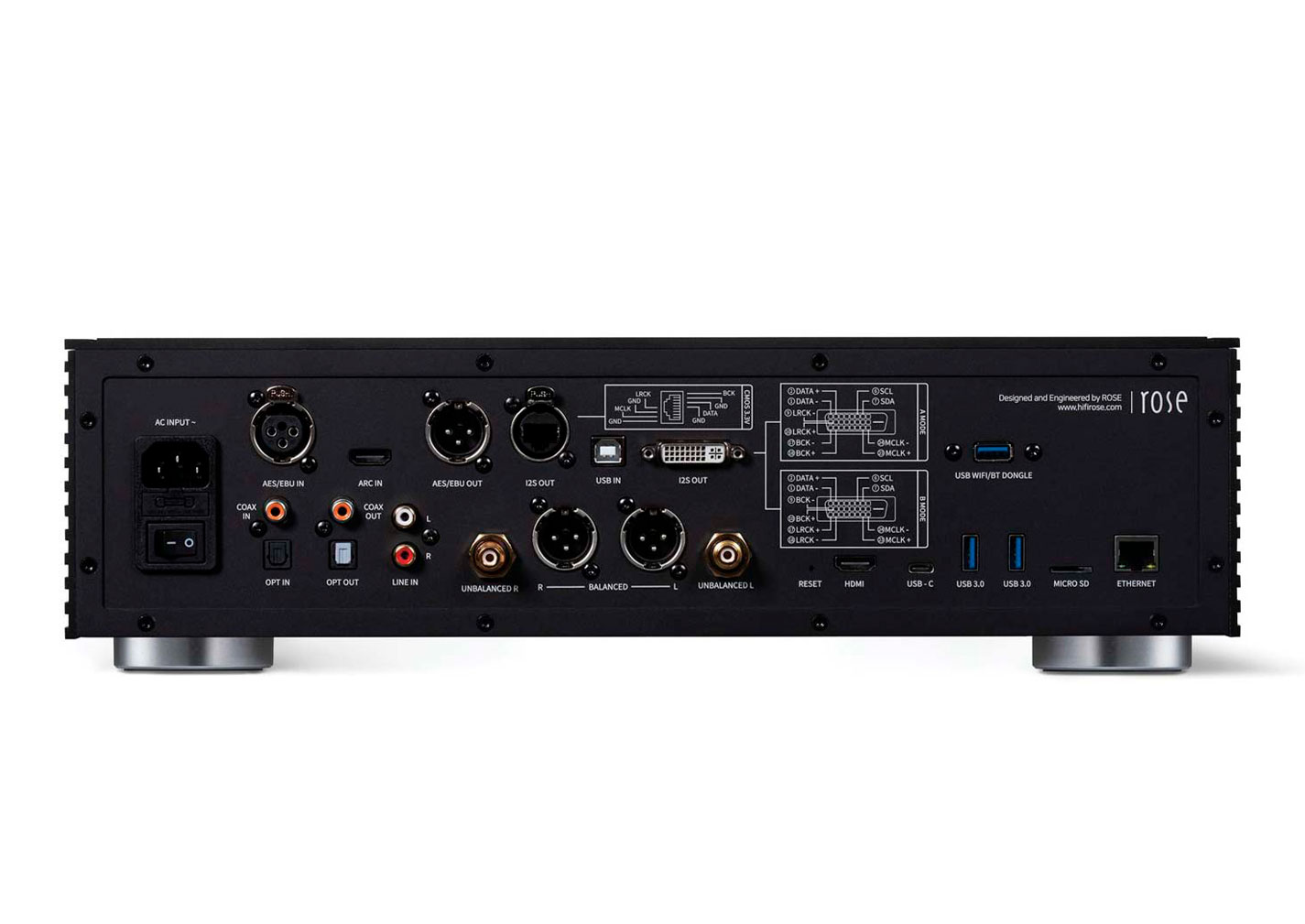

High Performance Input / Output Terminal
Compatible with multiple devices via several kinds of terminals. Supporting a variety of input and output terminals, RS150 completes the ultimate connectivity.
Specifications
OS | Rose OS Ver 1.22.4 (based on Customized Android 7.1) |
Design | |
Size | 430(W) x 316(D) x 123(H) mm |
Weight | 13 kg |
Body | Milled from Solid Block of High Purity Aluminum, Minimizing Vibrations and Noise. |
Display | 14.9-inch-Wide HD IPS Touch Screen LCD |
CPU | Hexa Core CPU Dual-core Cortex-A72 up to 1.8GHz Quad-core Cortex-A53 up to 1.4GHz |
GPU | Mali-T864 GPU, OpenGL ES 1.1/2.0/3.0/3.1, OenVG1.1, OpenCL, DX11 |
MEMORY | LPDDR3 4GByte |
RS 150B | |
DAC Chip | ESS Technology, SABRE ES9038PRO |
Output level | 6.5Vrms (Balanced), 2.2Vrms (Unbalanced) |
THD | 0.0002%(Balanced,1KHz 6.5Vrms), 0.0003%(Unbalanced,1KHz 2.2Vrms) |
THD + N | 0.0003%(Balanced, 1KHz 6.5Vrms), 0.0004%(Unbalanced,1KHz 2.2Vrms) |
IMD | -103dB (Balanced), -103dB (Unbalanced), SMPTE 4:1, 60Hz:7kHz |
Signal to Noise Ratio | 121dB (Balanced),118dB (Unbalanced), A-wt |
Dynamic Range | Max 132 dB (CCITT filter) |
Stereo Crosstalk | Max -138dB, 20-20kHz |
Output Frequency Response | 20Hz to 40,000(+/-0.5dB) |
Output Impedance | 50Ω |
Network connection | |
Network | Wired : Ethernet 10/100/1000 BASE-T Wireless : External USB type WiFi Dongle supported |
Bluetooth | BT : External USB type BT WiFi Dongle supported. ( A2DP Sink, AVRCP v1.3 ) * A few types of WiFi, BT dongle is not supported. |
Audio service | |
Streaming | Airplay / DLNA / Roon Ready / MQA Full Decoder |
Music service | TIDAL / Internet Radio / Podcast |
Input, Output | |
Audio input | Optical x 1, COAX x 1, Line-IN x 1, AES/EBU x 1, HDMI ARC x 1, USB DAC x 1 |
Audio output | Optical x 1, COAX x 1, Pre-OUT (Balanced x 1, Unbalanced x 1), I2S-DVI x 1,I2S-RJ45 x 1, AES/EBU x 1 |
Video output | HDMI 2.0x 1 ( up to 3840 x 2160 / 60Hz ) |
Media connection | File system : SMBv1, SMBv2 /FTP / WebDav / NTFS / eXfat / FAT32 Storage interface : USB3.0 x 2, MicroSD x 1, SSD x 1 |
Supported codec | |
Audio | WAV, FLAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A PCM : 8KHz~384KHz(8/16/24/32bit per Sample) Native DSD: DSD64(2.8MHz)/DSD128(5.6MHz)/DSD256(11.2MHz)/ DSD512(22.5792Mhz) |
Video | ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC H.264/AVC, Base/Main/High/High10 profile@level5.1 up to 4Kx2K@30fps H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier up to 4Kx2K@60fps |
Power | Input Voltage : AC100-230V 50/60Hz Input Power : 55W Fuse : T3.0AL/250V |
Update | SW update via internet, USB OTA, ROSE Store |
Remote control | |
Remote controller | Bluetooth Remote controller |
Remote App | ROSE Connect (Android, iOS) / Google PlayStore, App Store |
Accessory | Power cord x 1, Bluetooth Remote controller x 1 (AAA battery x 2), Simple Guide x 1, SSD screw x 4, Bluetooth/WiFi dongle x 1 (sold separately) |
