OS Screen

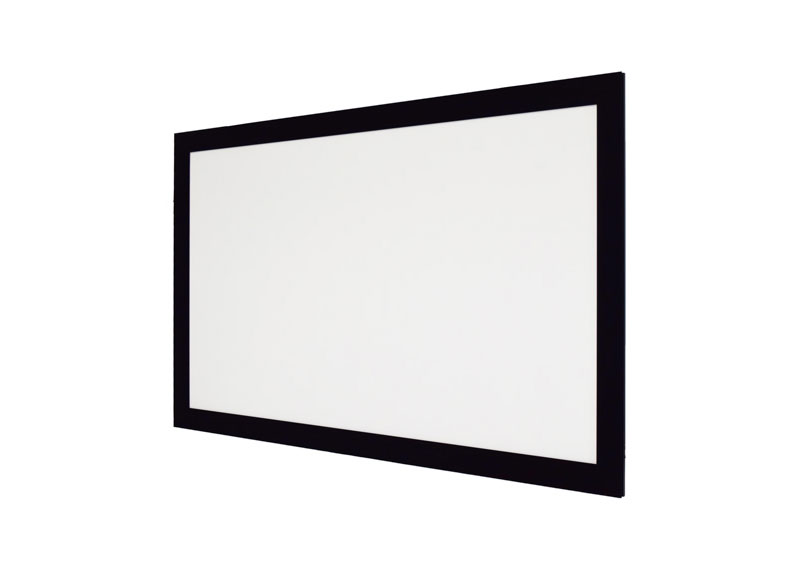

PX-100H-A-WF302 (100")
Pure Mat Iii Cinema : 4K High Quality And Reflecting "Pure" Image Screen
Characteristics
- Fabrics: Pure Mat III Cinema is a special fabric screen which weaves simultaneously, so-called special double weave.
- Downsize the thickness of conventional pure mat yarns by half to reduce the weave texture of the random fabric surface to 1/4 that realizes the reproducibility of a very soft and mild projection and excellent focus feeling.
- Higher diffusivity: 3° gain of 1.00, ideal diffusivity which can also be a perfect diffusion.
- The WF302 screen is appropriate to the 4K perfect diffusion. The diffusive screen reflects image of the same quality in all forward direction regardless of the viewer's position.

About Mechanism
Standard Size
Diagonal
Size
(inch) |
Model |
Image size
W x H(mm) |
Length
A(mm) |
Height
T(mm) |
Depth
B(mm) |
80 |
PX-080H-A |
1771 x 996 |
1975 |
1211 |
42 |
90 |
PX-090H-A |
1992 x 1121 |
2196 |
1336 |
100 |
PX-100H-A |
2214 x 1245 |
2418 |
1460 |
110 |
PX-110H-A |
2435 x 1370 |
2418 |
1460 |
120 |
PX-120H-A |
2656 x 1494 |
2860 |
1709 |
130 |
PX-120H-A |
2878 x 1619 |
3082 |
1834 |
140 |
PX-140H-A |
3099 x 1743 |
3303 |
1958 |
150 |
PX-150H-A |
3321 x 1868 |
3525 |
2083 |
