EP-090HM-x1x-WF801(90")

WF-PRO : 4K QUALITY AND PASSED JAPANESE FLAME RETARDANT STANDARD

Medical, Design, Computer Graphics and other projection fields in which emphasizing quality.

Characteristics
“WF-Pro” combines “PVC-free” and “Flame Retardant” that are environmentally friendly !

• WF professional uses fabric base and topcoat technology to deliver truly 4K high-definition images in a uniform and beautiful manner.
• The white topcoat definitely reproduces the original image.
• The random woven fabric makes smooth surface and moiré-free.
• WF801 is diffusive type screen.
• Since diffusive type screen reflects the same quality image in any directions, it provides the same quality image to all viewers at any position.

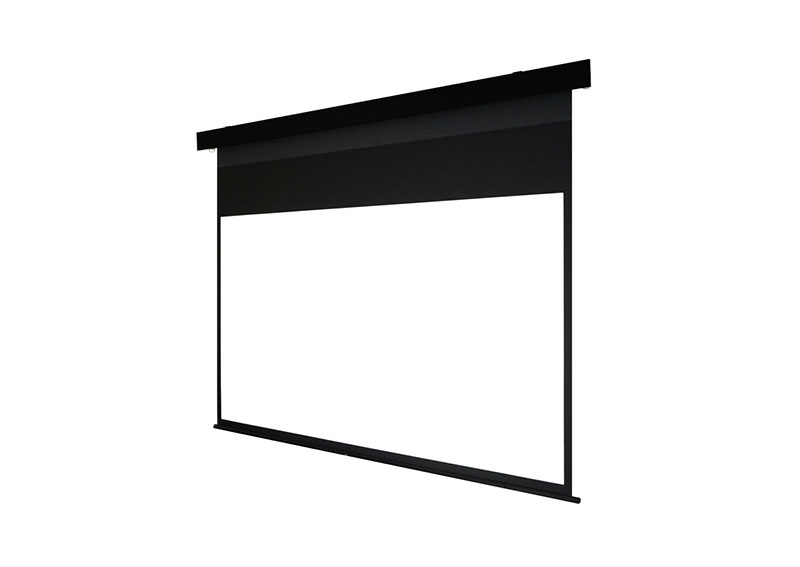

Electric projection screen that combines the best fabric for home theater use.

Characteristics

• The simple panel design matches your interiors!
• Easy to know the center position as the case and fabric are symmetric design.
• Sliding bracket and side bracket are standard accessories.
• The front panel is detachable and exchangeable even after installation.
• Two choices of panel color black or white.

About Mechanism


Panel color is luxurious black.
Mounting brackets are equipped with sliding and side bracket as standard.

• Center positioning is easy by symmetry structure. The center mark is provided and improved workability. Circuit box is externally attached to the main body. The maintenance work is easy after the installation of screen.
• Limit adjustment (stop position) of the all screen size can be done easily by remote controller and wall switch.
• The output of screen actuating signal is available by tally output terminal.
• (Tally output is ON/OFF signal only but UP/DOWN is not available)

Points of attention at the ordering

Pull out the screen all the way to the bottom of the STOP label. If stopped halfway collapse of flatness and wrinkles may occur. The total height of the drawing and specification is the height when it is pulled out to the STOP label.
Please decide the height of the screen to suit your room space(ceiling height) when placing an order. We provide the cutting of upper black board in free of charge. Please specify at the time of purchase.

*The numbers of(T),(B) and (C) above indicate when sliding bracket is used and the numbers below indicate when sliding bracket is
