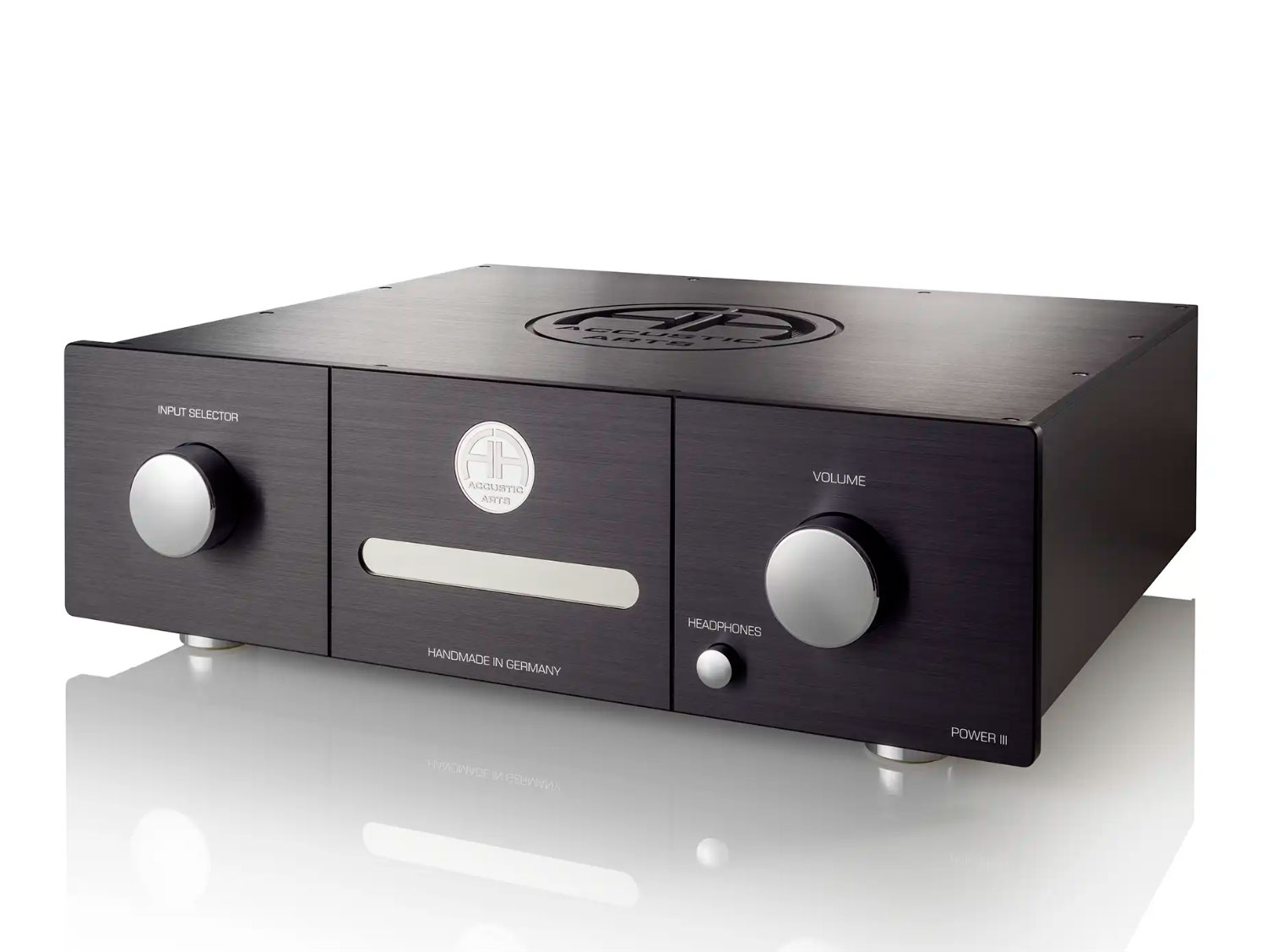

ACCUSTIC ARTS Power III (Silver)
Audiophile integrated stereo power amplifier with included headphones amplifier
POWER III highlights
- Audiophile integrated stereo power amplifier for highest demands with D/A converter and optional phono input
- 12 selected Bipolar output transistors of highest quality
- Encapsulated 600 VA toroidal core transformer of premium quality for stable power supply; separate windings for preamp section and for power amp section
- Double mono design for best sound quality and superior performance
- Integrated, switchable headphones amplifier of premium quality
- Very good smoothing thanks to more than 80,000 µF power supply capacity
- High damping factor for high output reserves
- Integrated protective circuit switches ascents off when clipping, HF oscillations, too high temperature or too high DC offset occurs
- Constant low operating temperature due to generously dimensioned heat sink

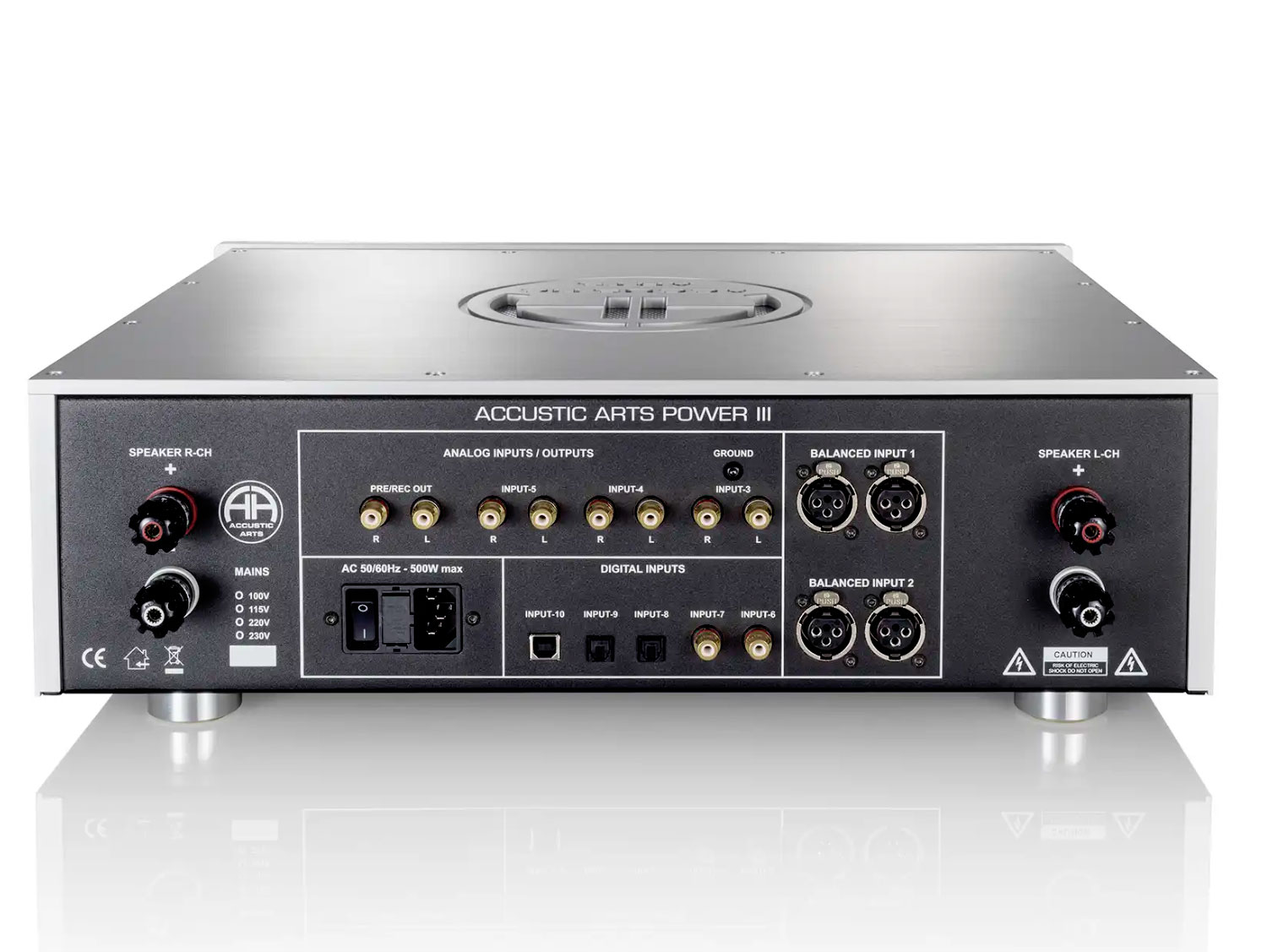

- 2 x balanced high level inputs (XLR)
- 3 x unbalanced high level inputs (RCA/Chinch), can be configured as high-level input or “SURROUND-BYPASS” or phono input (input “3”)
- 5 digital inputs; 2 x S/P-DIF; coaxial 192 kHz / 24 Bit, 2 x optical S/P-DIF 96kHz / 24Bit, USB DSD 512 (32Bit/384 kHz for PCM)
- 1 x unbalanced pre-output (RCA/Chinch), configurable as RECORD output or preamp output
- Separate level adjustment for each input
- Premium quality, gold-plated speaker terminals
- Premium quality, long-term stable relays
- Highly accurate microprocessor-controlled volume control
- Full metal housing for optimum shielding
- Front panel made of brushed aluminum; turning knobs/push buttons made of massive and chromed brass
- ACCUSTIC ARTS® remote control RC II
- ACCUSTIC ARTS® POWER III is “Handmade in Germany”
Specifications
Inputs:
2 x balanced high level inputs (XLR) 3 x unbalanced high level inputs (RCA/Chinch); 1 x unbal. Input (RCA/Cinch) either as high level input, alternatively as “SURROUND-BYPASS or as phono input (input “3”) 5 x digital inputs; 2 x S/P-DIF; coaxial 192 Khz / 24 Bit, 2 x optical S/P-DIF 96kHz 24Bit, USB: DSD 512 (32 Bit / 384 kHz for PCM)
Headphones output:
1 x metal female jack 6.3 mm; > 25 Ω
Outputs:
1 x unbalanced pre-output (RCA); 47 Ω
Signal difference left/right:
< 0.2 dB (from 0 dB to -20 dB)
Input resistance:
balanced: 2 x 50 kΩ
unbalanced: 50 kΩ
Total transformer power:
max. 600 VA (watts)
Power supply capacity:
more than 80,000 µF
Rated power output (at THD+N = 0.1 %) at 10 watts power output
2 x 510 watts on 2 Ω
2 x 370 watts on 4 Ω
2 x 230 watts on 8 Ω
Rise time / fall time:
34,7 µs with 4 Ω load
Signal to noise ratio:
-97 dBA (ref. 6.325 V) – A weighted
Distortion (THD+N):
< 0,01
Damping factor:
> 200
Crosstalk:
< -80 dB with 1 kHz
Power consumption:
approx. 60 watts (without load)
Dimensions (H x W x D)
145 x 482 x 430 mm / 5.7 x 19 x 17 inches
Weight:
approx. 23.0 kg / 50.7 lbs
