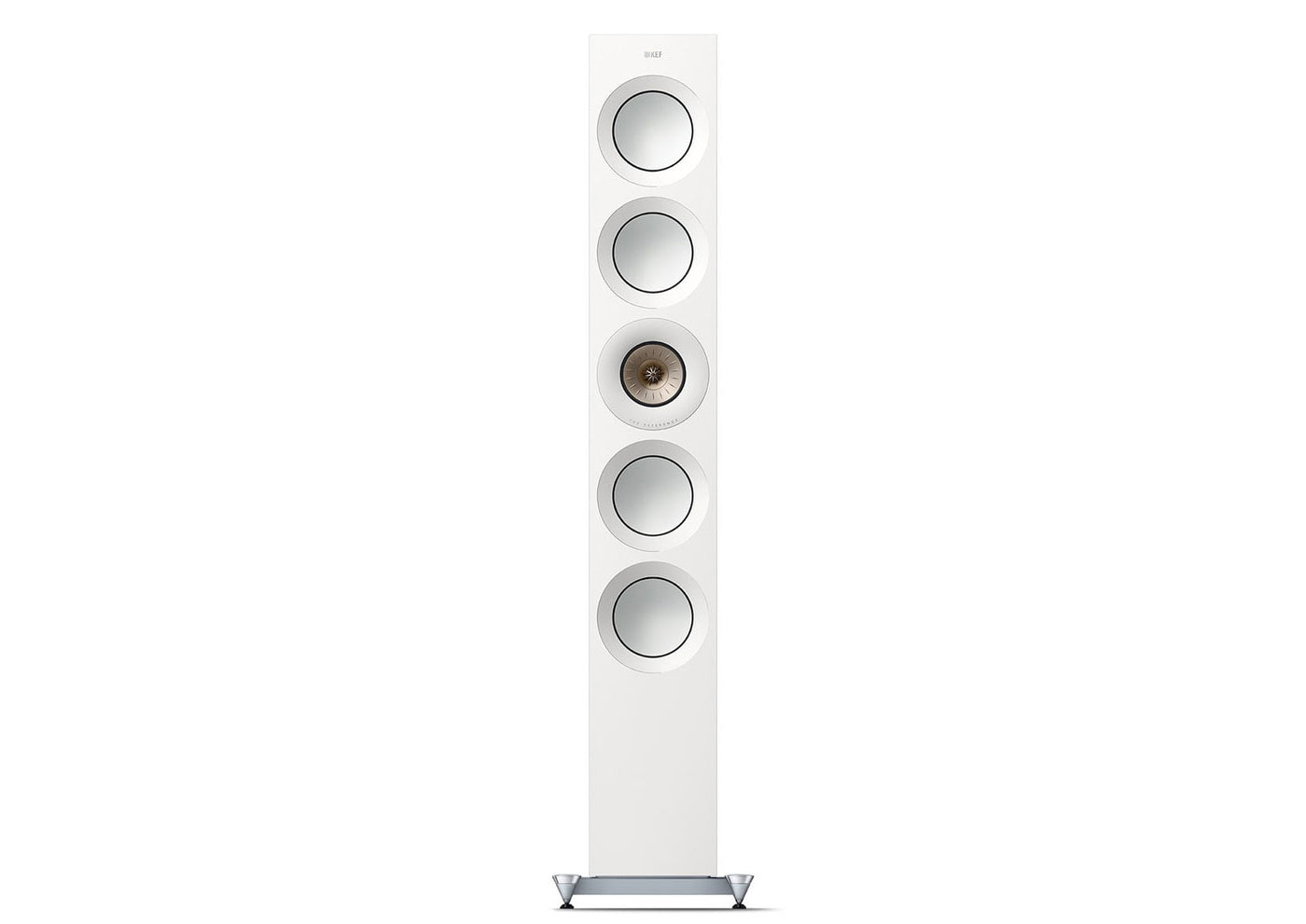

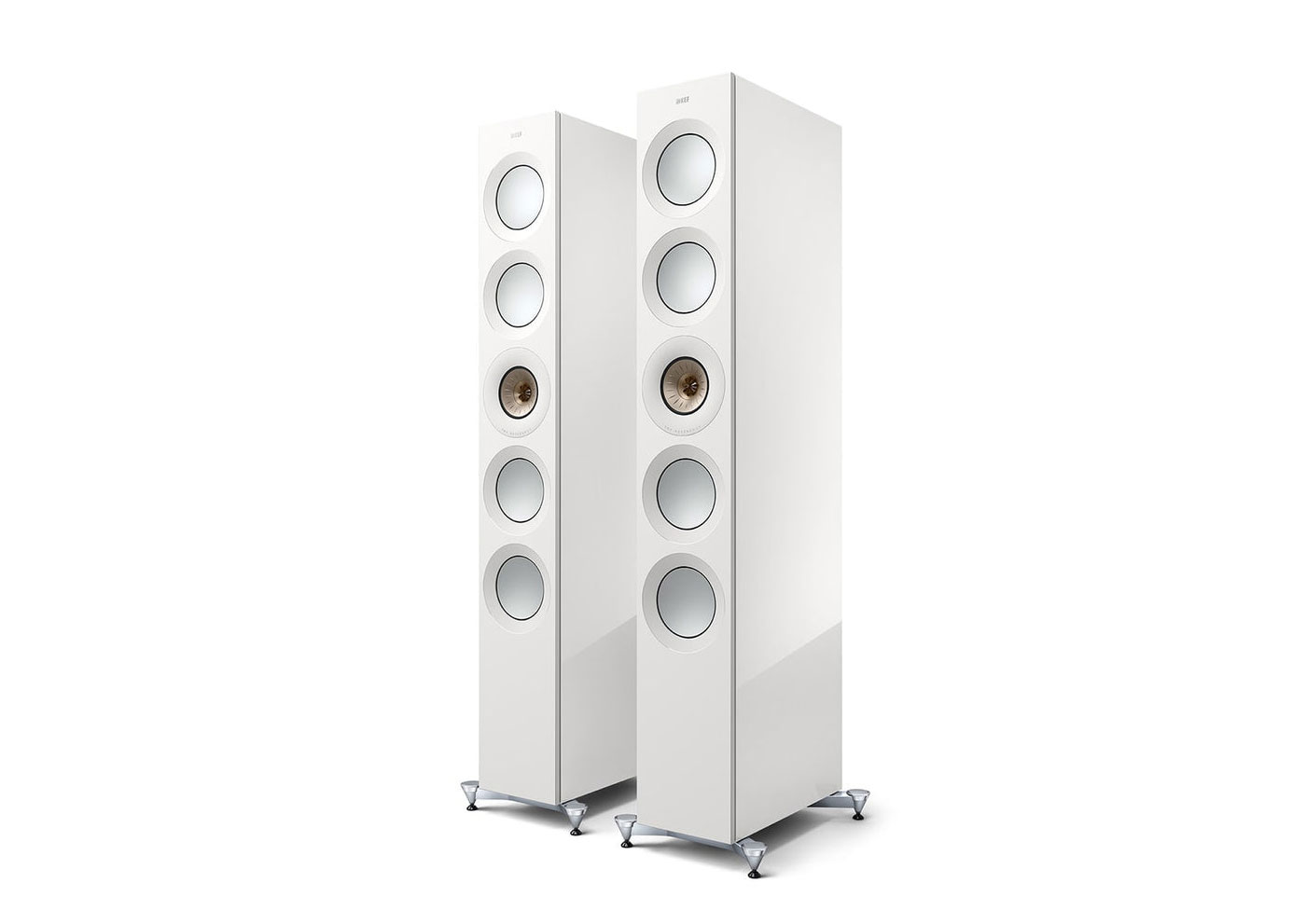

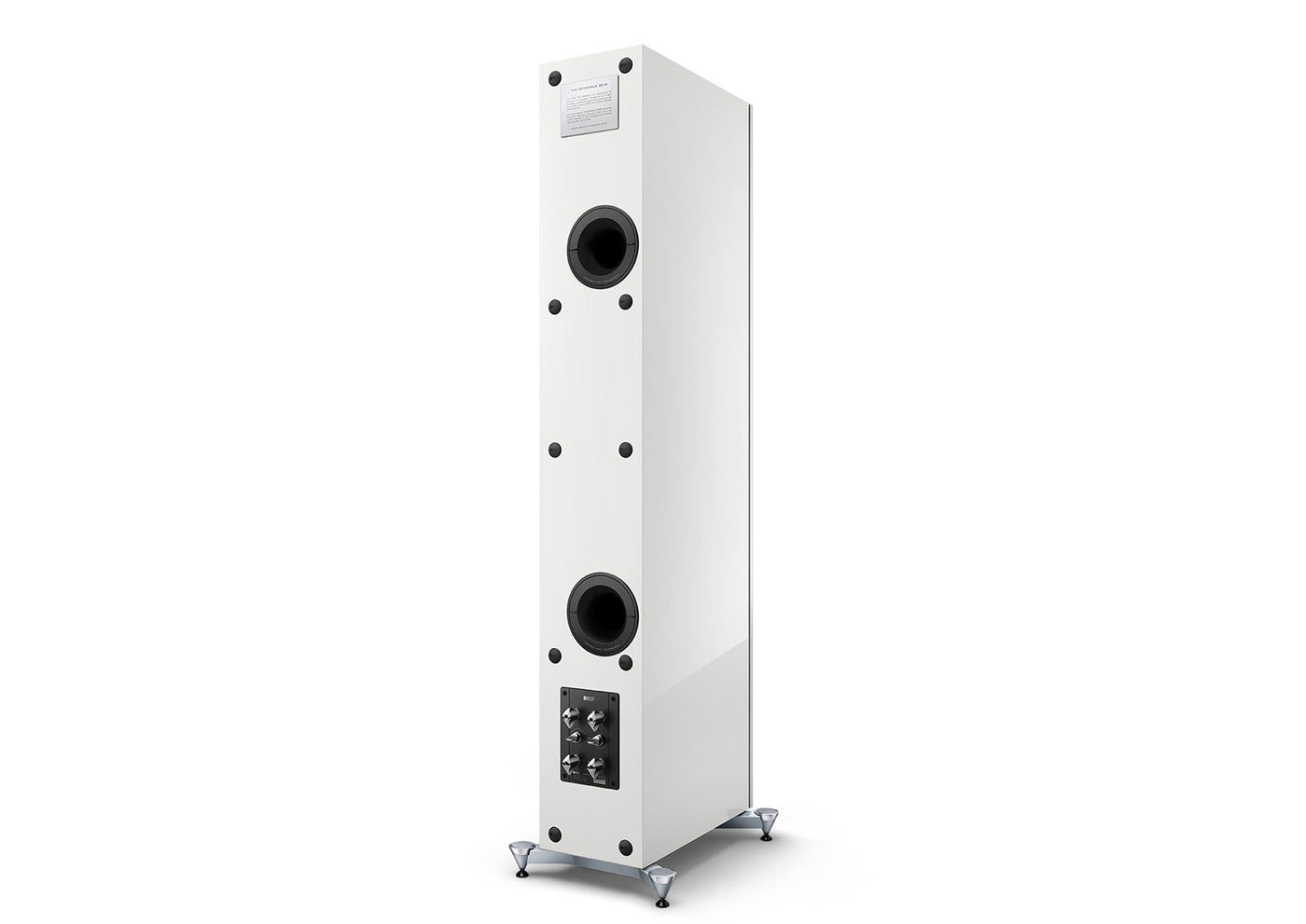

KEF Reference 5 Meta
(High Gloss White/ Champagne)
The benchmark of HiFi speakers
The flagship of The Reference Series is the model that all other high-performance loudspeakers compare themselves against. Now with the extraordinarily capable 12th generation Uni-Q® driver array with MAT™, Reference 5 Meta exemplifies the passion for innovation that underpins KEF’s design philosophy.
The benchmark of benchmarks
Since 1973, The Reference has continually set the benchmark for loudspeakers and sound reproduction. Pioneering the use of digital technologies to achieve the highest audio accuracy, every pair can be matched within 0.5dB to the laboratory-maintained reference standard.
Always innovating
Since the first Reference speaker, KEF engineers have continued to innovate using what is possible with The Reference. Ground-breaking in its first incarnation, each subsequent iteration of The Reference has added to the world’s knowledge of the science of acoustics.
Designed, engineered and handcrafted in UK
Since 1961, we have been creating remarkable award-winning loudspeakers at our UK home in Maidstone, Kent. As our flagship HiFi speakers, The Reference is still being designed, engineered, and handcrafted in Maidstone today.
Specifications
Design |
Three-way bass reflex
|
Drive Units | Uni-Q driver array: HF: 25 mm (1 in.) aluminium dome with MAT MF: 125 mm (5 in.) aluminium cone Bass units: LF: 4 x 165 mm (6.5 in.) aluminium cone |
Frequency Range (-6dB) |
Short port: 35Hz - 45kHz
Long port: 32Hz - 45kHz |
Typical in-room Bass Response (-6dB) | 25Hz |
Frequency Response (±3dB) |
40Hz – 35kHz
|
Crossover frequency
|
450 Hz, 2.1 kHz
|
Amplifier requirements
|
50 - 400W
|
Sensitivity (2.83V/1m)
|
88dB
|
Harmonic distortion 2nd & 3rd harmonics (90dB, 1m)
|
<0.5% 40Hz – 100kHz <0.2% 200Hz – 2kHz <0.1% 2kHz - 20kHz |
Maximum output (peak sound pressure level at 1m with pink noise)
|
116dB
|
Nominal Impedance |
4 Ω (min. 3.2 Ω)
|
Weight |
60.2 kg (132.7 lbs.)
|
Dimensions (H x W x D) with terminal |
1350 x 205 x 462 mm(53.1 x 8.1 x 18.2 in.)
|
Dimension (H x W x D) with terminal with Plinth |
1402 x 323 x 467 mm(55.2 x 12.7 x 18.4 in.)
|
