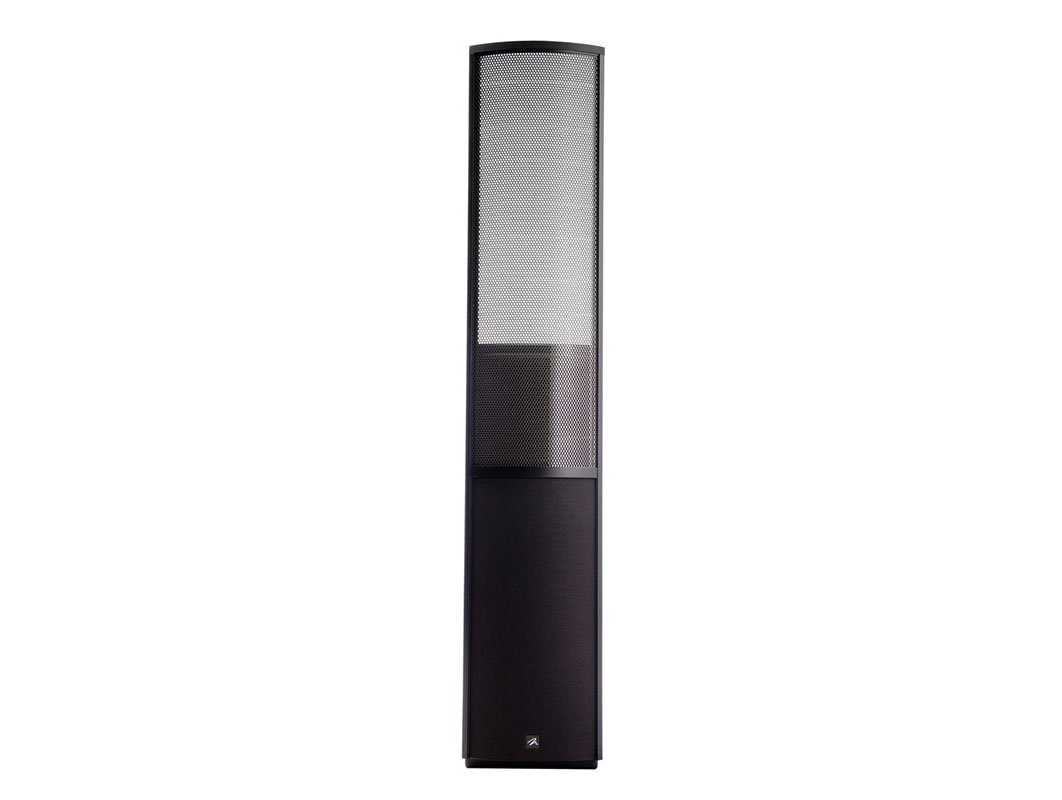

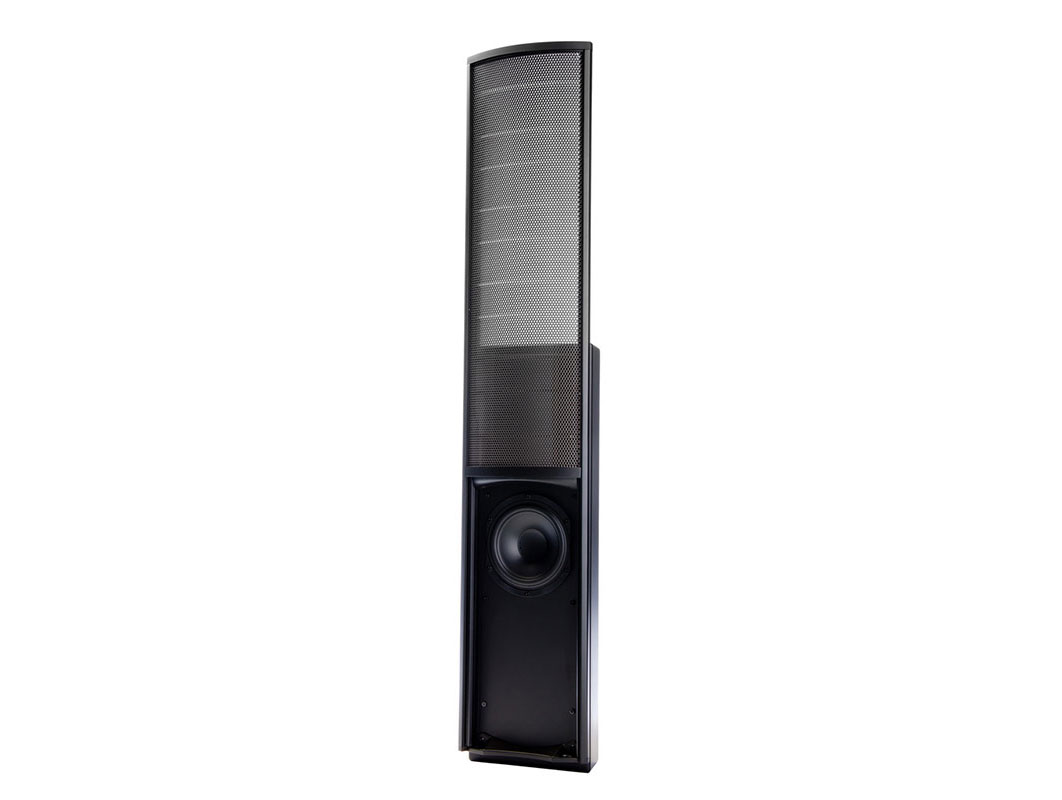

Martin Logan : EFX (High Gloss Black)
Surround Yourself with EFX
MartinLogan is proud to introduce the slim, on-wall EFX™ hybrid electrostatic loudspeaker, featuring XStat™ technology, dramatically reducing cabinet size, yet establishing new standards for efficiency, dynamics and precision.
CLS™ XStat™ Transducer
Housed within a radical, ultra-ridged extruded aluminum AirFrame™, the EFX's new CLS XStat transducer builds upon the legacy of MartinLogan's electrostatic heritage with the incorporation of advanced vacuum bonding and MicroPerf stat panels, providing even greater efficiency and precision.

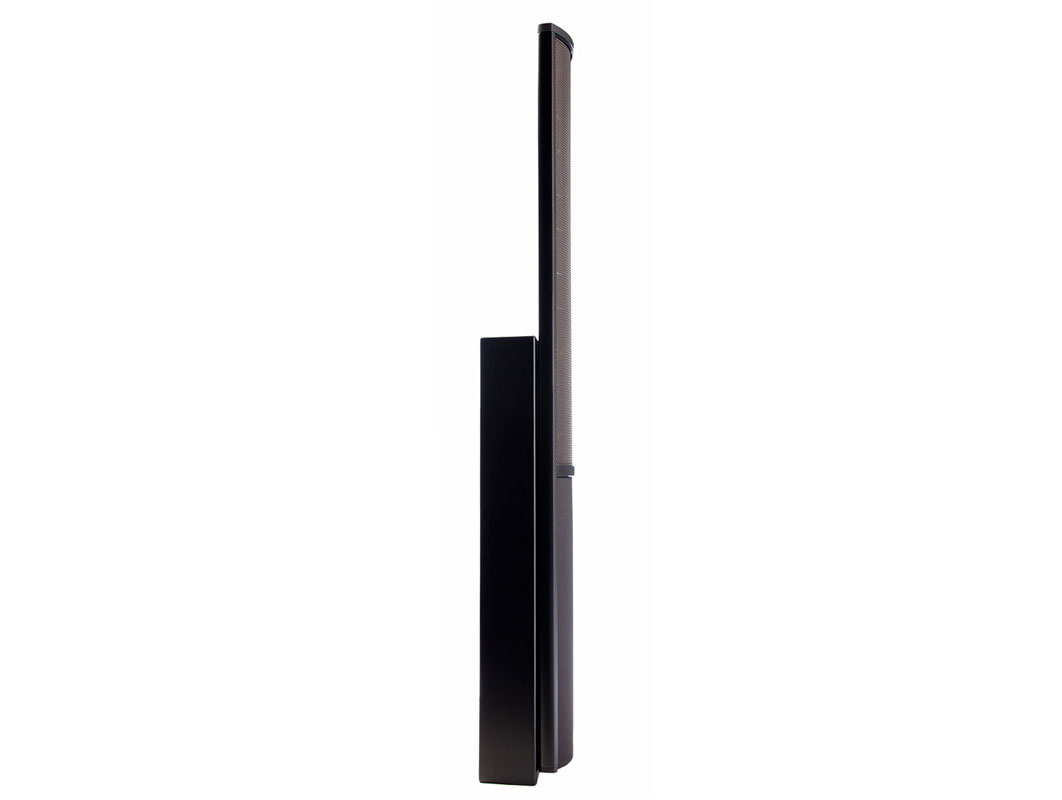

Slim On-Wall Profile
If you won't settle for anything but electrostats next to your new flatscreen TV, the EFX is the perfect solution at just 6.5-inches deep. Free up precious floorspace by mounting EFX to your wall with the included wall brackets. The EFX is also the ultimate high-performance home theater surround speaker and complements MartinLogan's entire line of electrostatic loudspeakers. EFX rotates with the pivoting wall bracket to easily focus your surround sound experience.
Advanced Vojtko Filtering
Proprietary Vojtko filtering technology is utilized for EFX's electrostatic transducer. This audiophile quality network, derived from the CLX, is carefully hand-built using precision point-to-point wiring, polypropylene capacitors, massive air-core coils, and a custom wound E-I core transformer—flawlessly preserving micro-acoustic subtleties while effortlessly handling the broadest range of dynamics contained within even the most demanding sonic source.

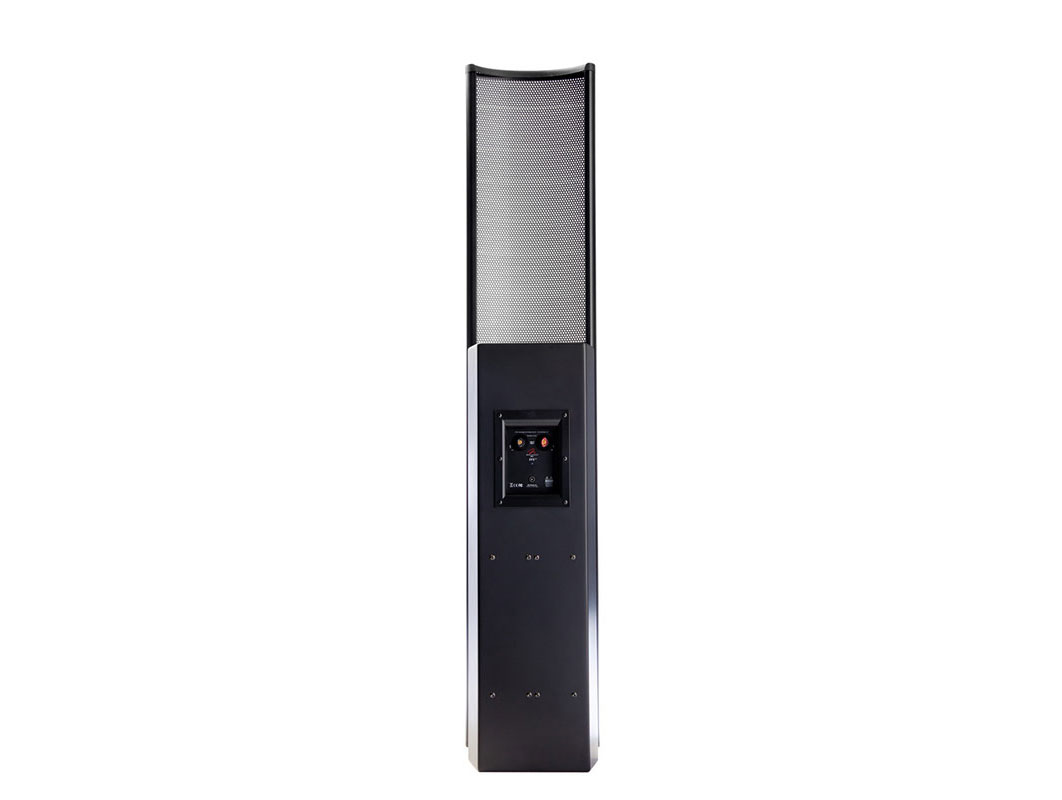

Custom 5-Way Binding Posts and Low-Voltage Power Supply
MartinLogan's proprietary tool-less binding posts simplify cable connection and management. EFX features custom 5-way binding posts and provide the ultimate level of flexibility for connection and setup. To further simplify setup and cable management, the EFX features a low-voltage DC power supply eliminates the need for a traditional, heavy IEC power cord.
requency Response | 68–22,000 Hz ±3dB |
Horizontal Dispersion | 30° |
Vertical Dispersion | 28" (71cm) line source |
High Frequency Transducer | XStat™ CLS™ electrostaic transducer |
» Panel Dimensions | 28" × 8.6" (71.1 × 21.8cm) |
» Radiating Area | 241 in2 (1,550 cm2) |
Low Frequency Transducer | 6.5" (16.5cm) high excursion, fiber cone with extended throw drive assembly; bass reflex |
Sensitivity | 90 dB/2.83 volts/meter |
Impedance | 6 Ohms, 1.3 @ 20kHz. Compatible with 4, 6, or 8 Ohm rated amplifiers. |
Recommended Amplifier Power | 20‒300 watts per channel |
Crossover Frequency | 530Hz |
Components | Custom-wound E-I core transformer, air core coils, metal film capacitors |
Inputs | Custom 5-way binding posts |
Power Draw | Max: 2W each Standby: <1W each |
Weight | 24.5 lbs. (11.1 kg) |
Dimensions | 48.8" × 9.4" × 6.5" (123.9cm × 23.8cm × 16.5cm) |
Theos | EFX | ElectroMotion ESL | |
Frequency Response | 43–23,000 Hz ±3dB | 68–22,000 Hz ±3dB | 42–22,000 Hz ±3dB |
Crossover Frequency | 425Hz | 530Hz | 500Hz |
High Frequency Transducer | XStat™ CLS™ electrostatic transducer | XStat™ CLS™ electrostaic transducer | XStat™ CLS™ electrostaic transducer |
» Panel Dimensions | 44" x 9.2" (112cm x 23cm) |
28" x 8.6" (71cm x 22cm) |
34" x 8.6" (86cm x 22cm) |
» Radiating Area | 405 in2 (2,612 cm2) |
241 in2 (1,554 cm2) |
292 in2 (1,886 cm2) |
Low Frequency Transducer | 8" (20.3cm) cast basket, high excursion, aluminum cone with extended throw drive assembly, non-resonance asymmetrical chamber format, down-firing bass reflex port. | 6.5" (16.5cm) high excursion, fiber cone with extended throw drive assembly; bass reflex | 8" (20.3cm) high excursion, high-rigidity paper cone with extended throw drive assembly, non-resonance asymmetrical chamber format; bass reflex |
» Amplifier | — | — | — |
Audio Controls | — | — | — |
Weight | 43lbs. (19.5kg) each | 24.5lbs. (11.1kg) each | 35.5lbs. (16.1kg) each |
Overall Dimensions (HxWxD) |
59.3 x 10.7 x 18.8 (150.7cm x 27.3cm x 47.8cm) | 48.8 x 9.4 x 6.5 (123.9cm x 23.8cm x 16.5cm) | 52.1 x 9 x 16.3 (132.3cm x 22.9cm x 41.4cm) |
