Product Integrated Amp HiFi Rose RA-280 (Silver)
HiFi Rose
HIFI ROSE :
RA-280 (SILVER)
Category : Integrated Amp
Add to wishlist     สถานะสินค้า In Stock
RA-280 (Silver)
RA-280 (Silver)
RA-280 (Silver)
RA-280 (Silver)
RA-280 (Silver)
RA-280 (Silver)
RA-280 (Silver)
RA-280 (Silver)

PRICE :
134,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน เครื่อง

  • Overview
  • Specifications

Hifi Rose RA-280 (Silver)
Integrated Amplifier


Top-notch Master Integrated Amplifier RA280

The RA280 is an integrated amplifier that inherits the innovative technologies used in RA180. Enjoy pure natural sound as close to the original sound as you can get with the RA280: a near-perfect sound that transcends the boundaries between digital and analog technologies with excellent linearity achieved through strong power damping and short dead time. The RA280 offers a special listening experience that lets you feel the true essence of music.


The RA280 is an integrated amplifier that inherits the innovative technologies used in HiFi Rose RA180.

Enjoy pure natural sound as close to the original sound as you can get with the RA280: a near-perfect sound that transcends the boundaries between digital and analogue technologies with excellent linearity achieved through strong power damping and short dead time.

The HiFi Rose RA280 offers a special listening experience that lets you feel the true essence of music.


https://www.piyanas.com/staff-p2/images/20240405/FsU40yc1_0x0.gif

Class AD Amplifier with Next-Generation GaN FET

HiFi ROSE’s RA280 is equipped with Class AD amplifier technology using GaN(gallium nitride) FET, providing sound quality that exceeds the limitations of regular class D amplifiers.

This innovative technology offers the efficiency and power characteristics of class D amplifiers, but reduces power consumption and delivers detailed sound quality through high-power amplification.

Additionally, linear output is achieved using the GaN FET, providing the same smooth and natural sound quality as an analog amplifier.


https://www.piyanas.com/staff-p2/images/20240405/lakjXwrb_0x0.jpg

High-Efficiency Power Supply

The HiFi Rose RA280 is equipped with a power supply circuit independently developed by HiFi ROSE that uses silicon carbide FET instead of silicon FET, providing both efficiency and stability.

Since the silicon Carbide FET features higher power efficiency and lower heat generation compared to conventional silicon FETs, the RA280 is able to maintain stable high output while minimising heat generation to deliver the best sound quality.

By adopting a 2.5kW PFC circuit and a super-capacitor, it provides excellent performance even under load, ensuring stability and reliability.


Phono Amplifier that Supports Moving Magnet

HiFi Rose RA280’s phono amp supports moving magnet cartridge input with a simple switch selection.

This amplifies very weak audio signals without coloration, providing the best sound quality.

Utilising HiFi ROSE’s high-precision compensation circuit, it delivers audio signals close to the original sound and perfectly implements essential functions for high-quality music playback.

You can activate this feature by simply selecting a switch, allowing you to enjoy richer, more vivid sound.


Two Completely Separated Mono Amplifier Modules

The RA280 is designed with two separate amplifier modules that operate like a mono amplifier, supporting 250W (4Ω and 8Ω) for the left and right amplifiers respectively, offering 500W output on a stereo channel.

Two-stage analogue filter technology designed by HiFi ROSE is applied for the best sound quality, improving frequency response characteristics, dramatically reducing noise caused by switching of class D amplifiers, and providing clean and articulate sound quality.

This technology allows you to experience evolved sound with an analogue feel.


Balance Control for Bass and Treble

The default output trend of the RA280 is flat and equipped with a tone control function, allowing for ±15dB adjustment of bass(100Hz) and treble(10kHz).

The tone control circuit is equipped with a high-fidelity active EQ(OP-AMP: 12dB Slope) instead of passive(CR), with a gentle 6dB slope.


Specifications

https://www.piyanas.com/staff-p2/images/20240405/jffLJab3_0x0.jpg

Amplifier Output
4 Ohms 200W x 4ch (800W)
8 Ohms 200W x 4ch (880W)
BTL Mode On 400W x 2ch (400W)
Input Sensitivity
Balanced Input 2000mV
Unbalanced (Line 1, 2, 3) Input 1000mV
Phono (MC/MM) Input 5mV / 0.5mV
Impedance Input
Balanced Input 44k Ohms
Unbalanced (Line 1, 2, 3) Input 47k Ohms
Phono (MM/MC) Input 47k Ohms
Bandwidth (0dBr +- 3dB / 8 Ohm)
Speaker Output 10Hz - 90kHz
H/F Speaker Output 10Hz - 90kHz
Frequency Response (1W, 0 +- 1dB / 8 Ohm)
Speaker Output 10Hz - 90kHz
H/F Speaker Output 10Hz - 90kHz
THD Measure
Balanced and Unbalanced (Line 1, 2, 3) Input 0.005% (50W)
Damping Factor
Speaker and H/F Speaker Output >150
Signal to Noise Ratio (S/N)
BTL / Balanced, Unbalanced / Phono MM, MC 107dB / 105dB / 80dB (MM), 60dB (MC)
Impedance Output
Speaker Output 53m Ohm
Subsonic Filter with On/Off Switch
-3dB 50Hz
Tone Control with On/Off Switch
Bass (100Hz) / Treble (10kHz) +- 15dB
X-Over with On/Off Switch
HPF (-3dB) 600Hz - 6kHz
Phono
Turnover Flat
300Hz (+7.7dB @100Hz)
400Hz (+11.7dB @100Hz)
500Hz (+13dB @ 100Hz)
700Hz (+14.5db @ 100hz)
Roll-Off Flat
1.6kHz (-16dB @ 10kHz)
2.1kHz (-13.7dB @ 10kHz)
3.18kHz (-11dB @ 10kHz
3.4kHz (-8dB @ 10kHz)
6.36kHz (-5dB @ 10kHz)
Design
Size 430mm x 350mm x 110mm
Weight 16.7kg
Body High Purity Aluminium
Power
Power SMPS (800W)
Voltage AC100-230v, 50 / 60Hz

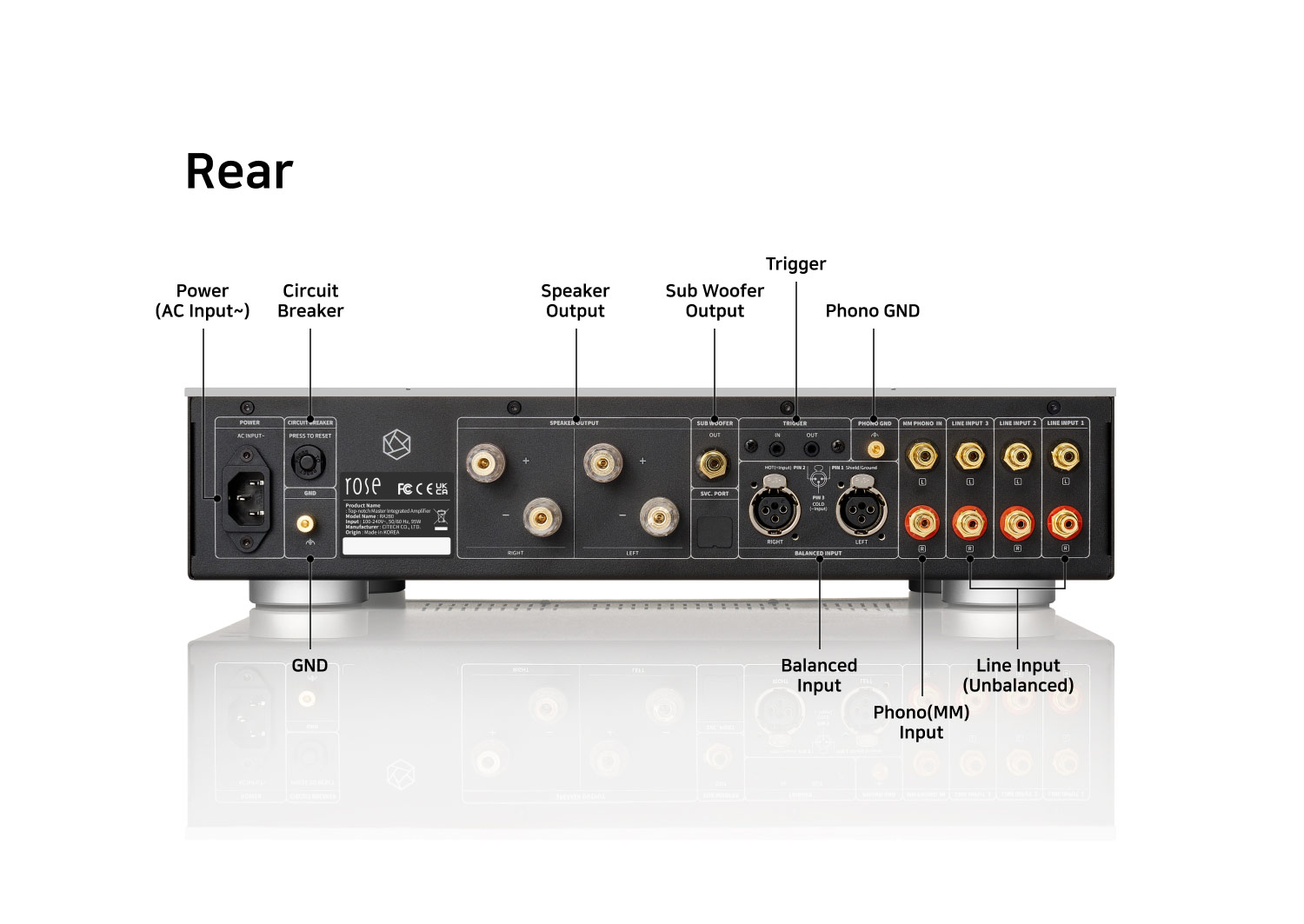

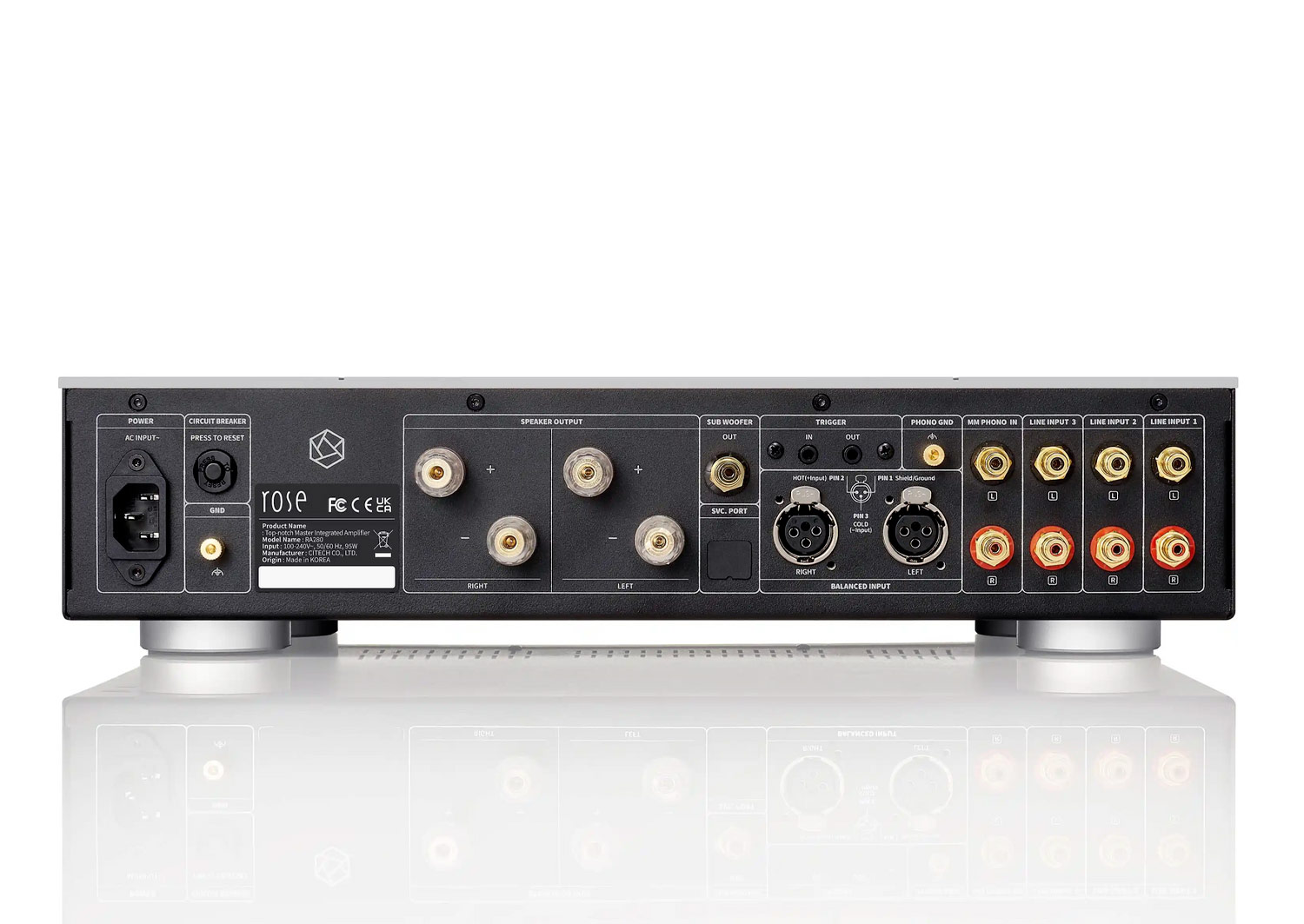

Audio In / Out on Rear
Trigger Trigger Voltage Can be turned On: 3.3v - 12v

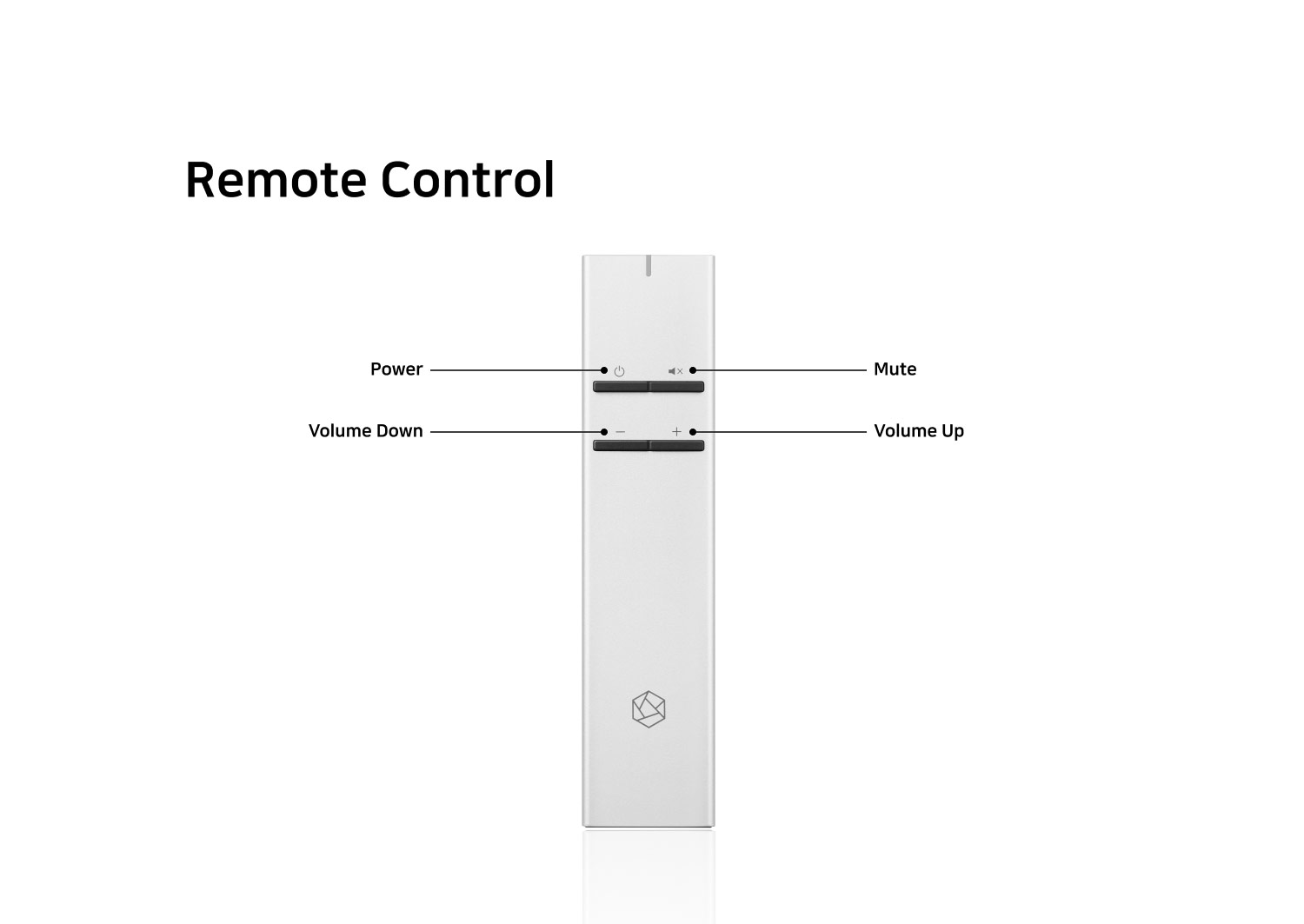

Remote Control
IR Input 38kHz Infrared Ray (Within 10m of operating distance)
