REGA Elex MK4



Key Features

• 72 W per channel into 8 Ω / 90 W into 6 Ω
• High quality moving magnet phono stage
• High performance Rega DAC circuit for digital inputs
• 2 x Digital inputs - 1 x optical and 1 x Co-Axial
• Headphone output
• 4 Line level inputs
• New custom design case
• Thermal Cut-Out
• Lifetime warranty against manufacture defects

The Elex MK4 is a high performance stereo integrated amplifier designed to deliver the purest musical performance. Housed in a brand new case to match the rest of the Rega range, the MK4 builds on previous Rega designs using our multi-award winning class A/B power amplifier circuit which delivers an impressive 72W per channel into 8Ω loads (90W into 6Ω). New rear connectivity options are available with the Elex MK4 now including a Rega DAC circuit with two digital inputs and a high quality headphone output conveniently located on the front panel.

Bringing your music to life

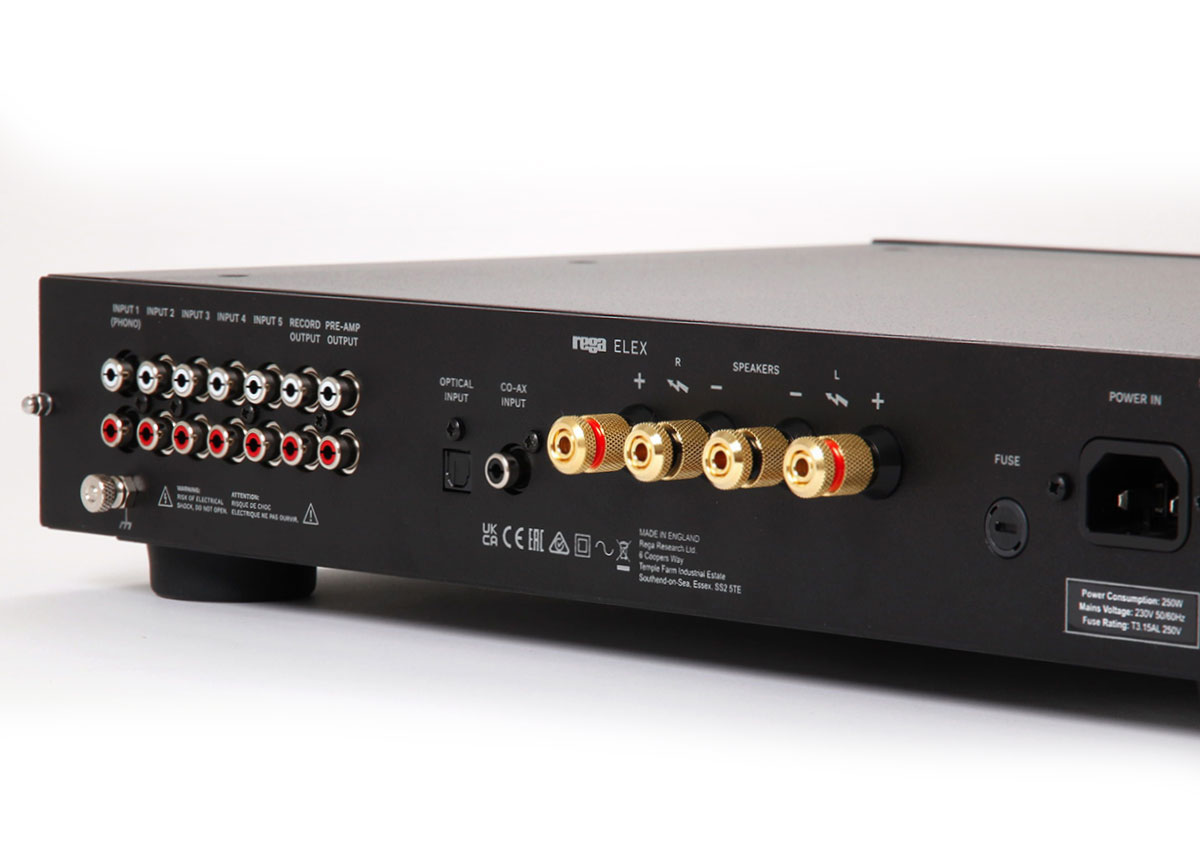

The Elex MK4 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wider range of connectivity options. In addition to the line level, digital inputs and a high quality moving magnet phono stage,  you will also find Pre-out and Record Out functionality alongside a headphone output. Special attention has been paid to the selection of key audio components. Discrete circuitry, high quality relays, polypropylene capacitors and Sanken output transistors are used throughout the design.

Specifications

Power Amplifier Output (at rated 230/115 V Supply voltage)

72 W into 8 Ω
90 W into 6 Ω

Dimensions (W × H × D)

432 x 82 x 340 (D includes loudspeaker terminals)

Weight

11 Kg

Supported Sampling Rates

32, 44.1, 48, 88.2, 96, 176.4, 192kHz

Supported Bit Depths

16 to 24 bit

Power Consumption

250 W at 1dB below clip into 8Ω

Output Sensitivity (at rated inputs)

Record Output 164mV
Pre-amplifier Output 625mV
