REGA Elicit MK5




Key Features​

• 105 W per channel into 8 Ω
• High quality moving magnet phono stage
• 2 x Digital inputs - 1 x optical and 1 x Co-Axial
• High performance Rega DAC circuit for digital inputs
• 4 Line level inputs
• Headphone output
• Direct Input
• Record input
• New advanced pre-amplifier

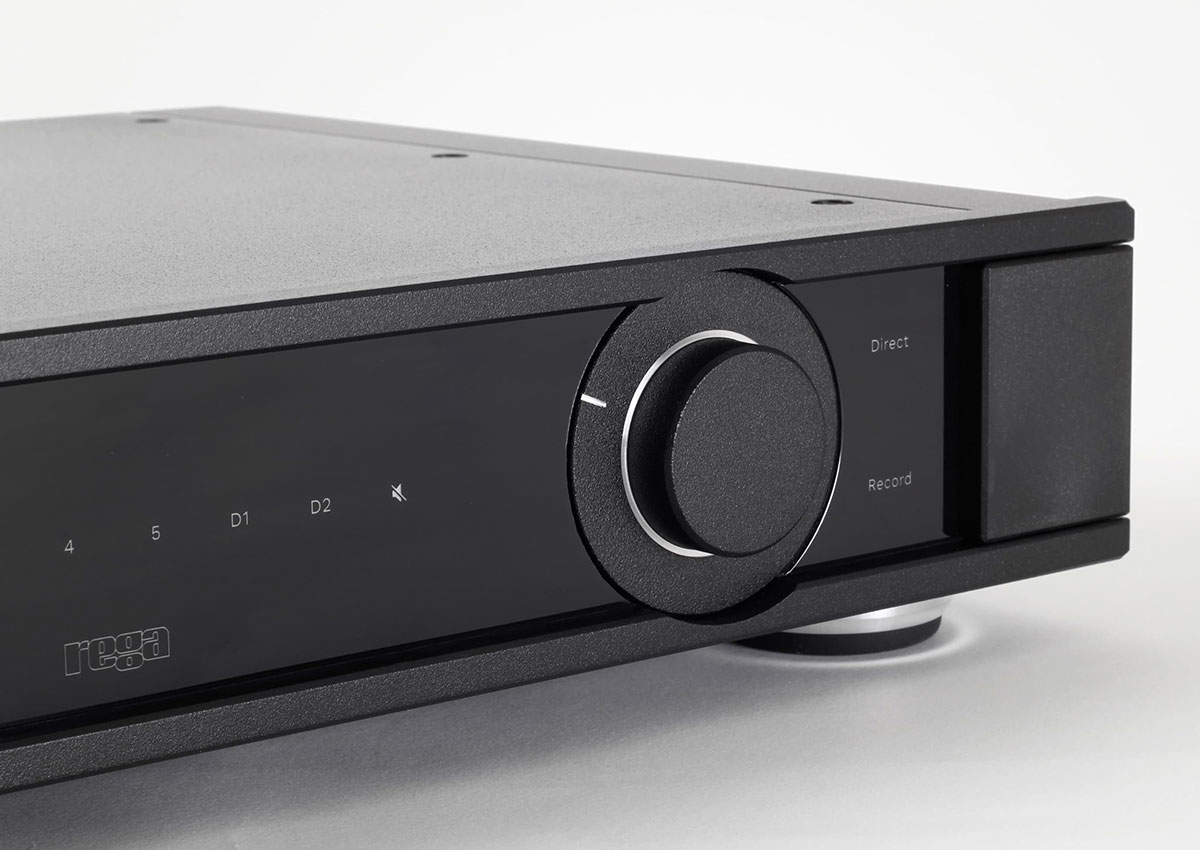

• Alps volume potentiometer
• Thermal Cut-Out
• Lifetime warranty against manufacture defects

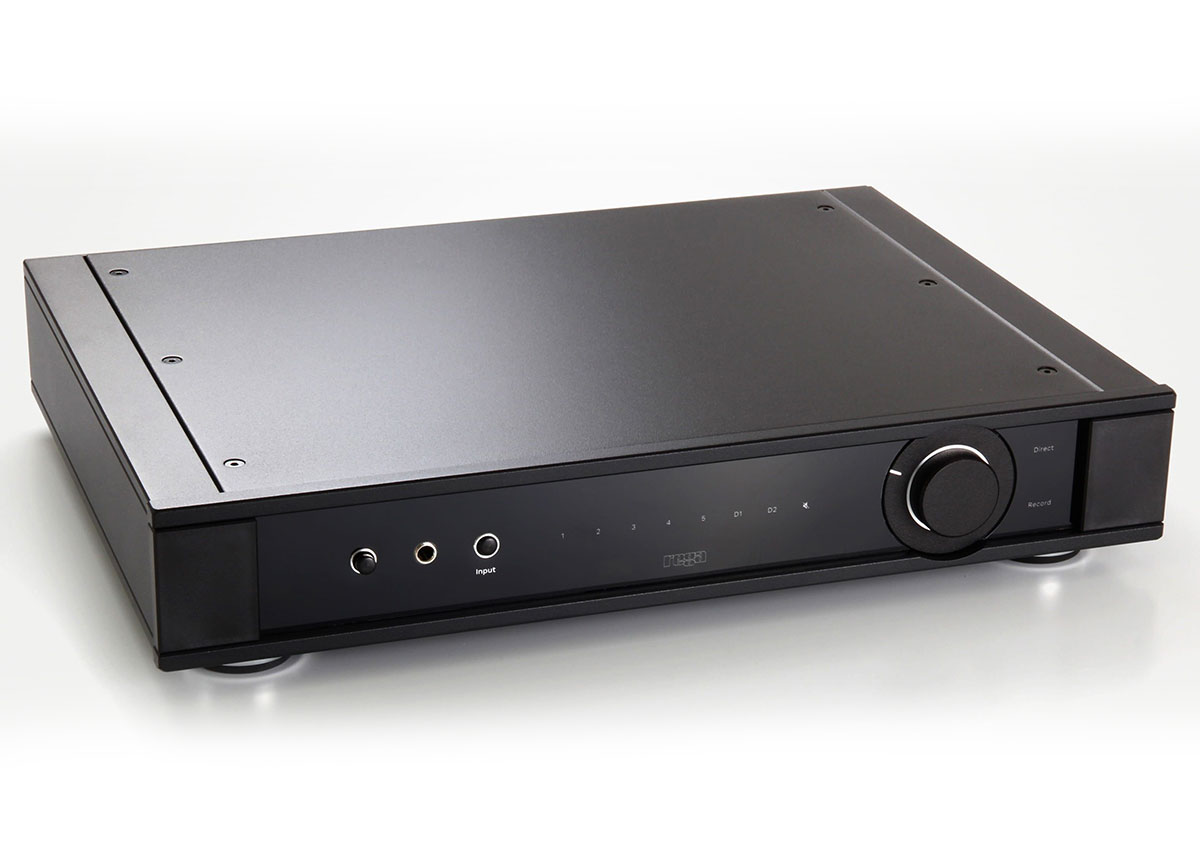

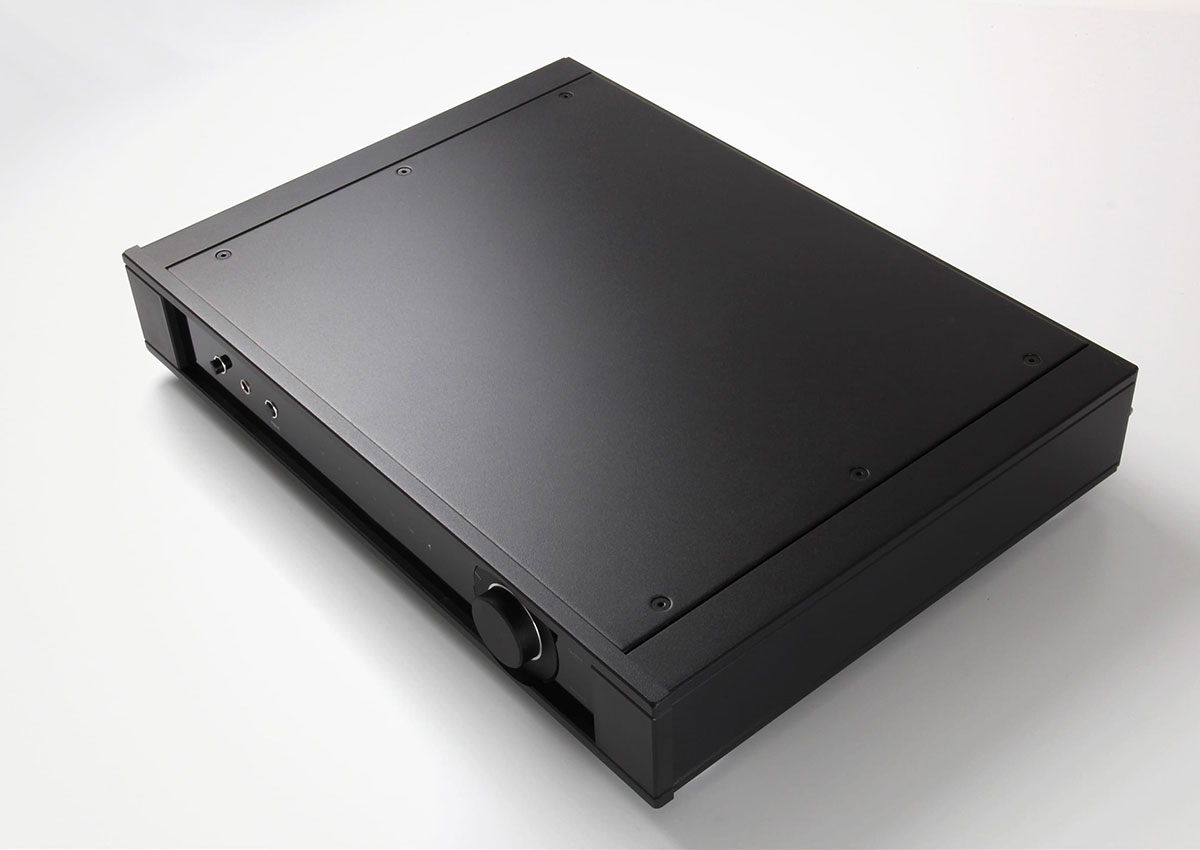

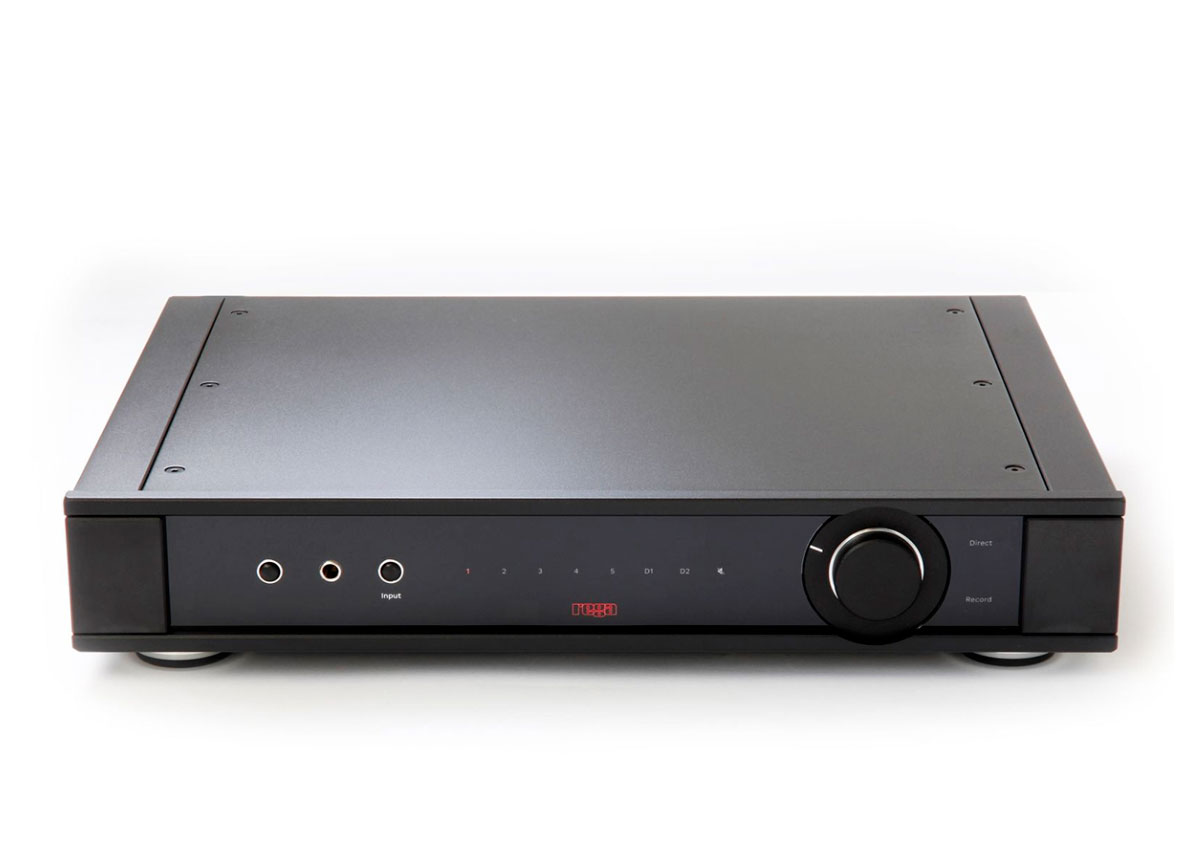

The all new Elicit MK5 stereo integrated amplifier is designed and built to the highest standard. Housed in our latest custom case to match the rest of the Rega range, the new MK5 builds on previous Rega designs by using our multi-award-winning Class A/B power amplifier circuit to deliver a powerful 105 W per channel into 8 Ω loads (127 W into 6 Ω). Our engineers have designed a new Rega DAC circuit offering digital connectivity and greater integration with a variety of other products. We have taken great care to incorporate a high quality MM phono stage and the headphone output has been configured such that the speaker switching is performed by the output mute relay to avoid obstructing the signal path.

The heart of your music

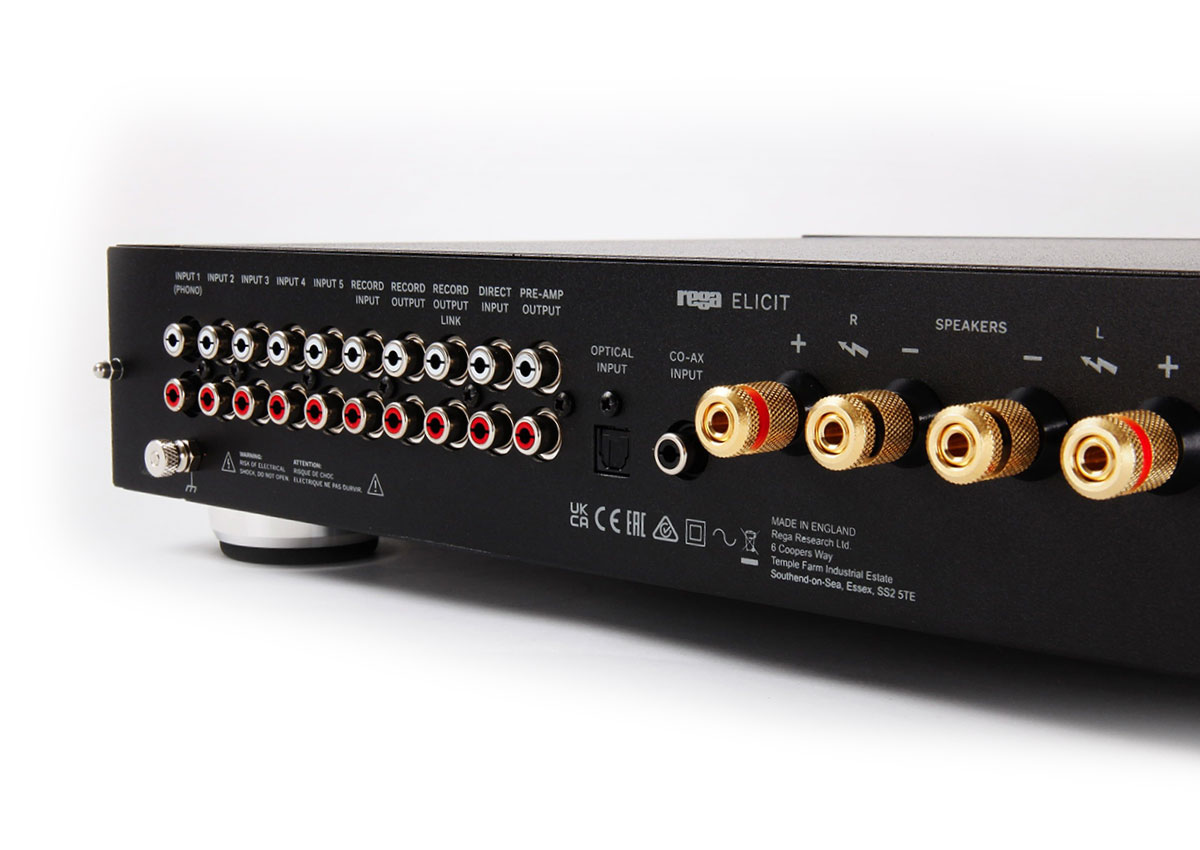

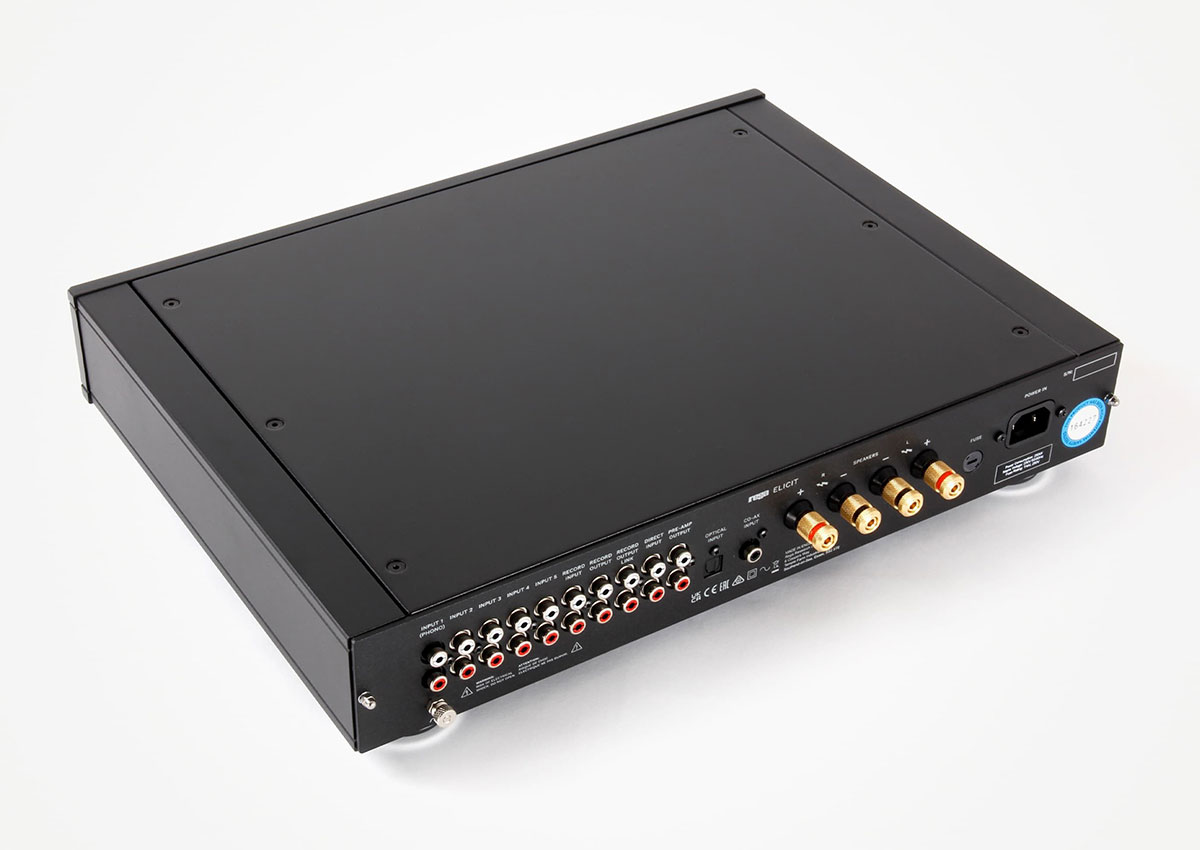

The new Elicit MK5 calls on decades of electronic design experience. It is a complex blend of three of our most successful products which promises to deliver big on sound, power, features and style. The Elicit MK5 is capable of driving difficult loudspeakers with ease and will integrate perfectly into any audio system by offering a wide range of connectivity options. In addition to line, digital, and a high-quality moving magnet (MM) phono input, you will also find pre-out, Direct in, Record loop functionality and the high-performance headphone output.

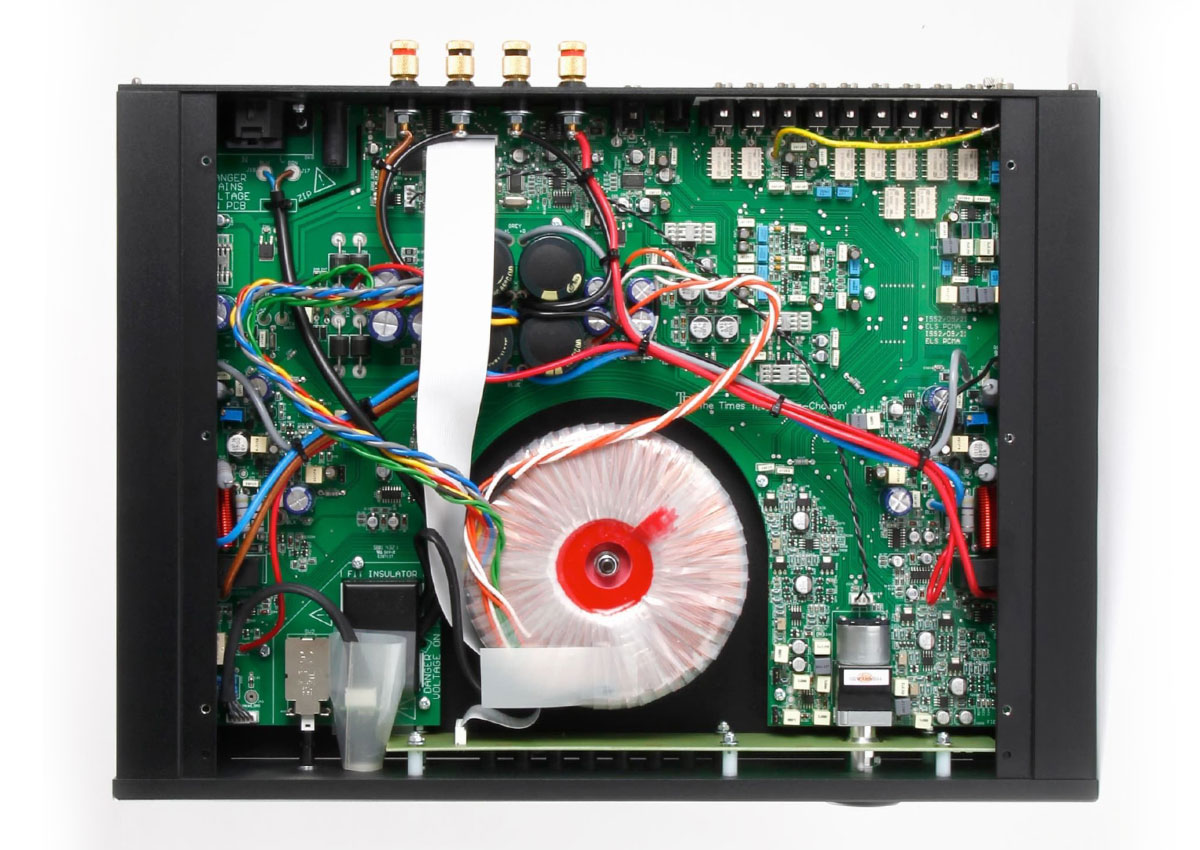

The Elicit MK5 now shares other design features taken directly from the highly acclaimed Aethos amplifier. You will find the same discrete FET based pre-amplifier circuit, plus an Alps volume potentiometer has been introduced to further improve sonic and technical performance. As you would expect, special attention has been paid to the selection of key audio components. Discrete circuitry, high-quality relays, polypropylene capacitors, and Sanken output transistors are used throughout the design.

The galvanically/optically isolated digital inputs utilise a Wolfson S/PDIF receiver IC to provide exceptional detail and clarity from any connected source. Output is provided by a Wolfson DAC and Rega designed discrete line-driver circuit. The new Elicit MK5 calls upon decades of award-winning experience in amplifier and digital circuit design which culminates in a perfectly engineered balance of reliability, connectivity and above all, accurate music reproduction.

Specifications

Power Outputs at rated 230/115 V Supply voltage
105 W per channel into 8 Ω
127 W per channel into 6 Ω
162 w per channel into 4 Ω

Dimensions (W × H × D)
432 x 82 x 340 (D includes loudspeaker terminals)

Weight
12.5Kg

Supported Sampling Rates kHz
32, 44.1, 48, 88.2, 96, 176.4, 192kHz

Supported Bit Depths
16 to 24 bit
