Product Speaker Floor Standing Speakers Elac Vela FS-409.2 (Walnut Highgloss)
Elac
ELAC :
VELA FS-409.2 (WALNUT HIGHGLOSS)
Category : Floor Standing Speakers
Add to wishlist     สถานะสินค้า In Stock
Vela FS-409.2 (Walnut Highgloss)
Vela FS-409.2 (Walnut Highgloss)
Vela FS-409.2 (Walnut Highgloss)

PRICE :
315,900 THB.
SPECIAL :
259,900 THB.
ฟรีค่าขนส่ง

สอบถามสินค้า 02-103-1289,02-040-4229 เพิ่มเติม...
จำนวน คู่ (Pair)

  • Overview

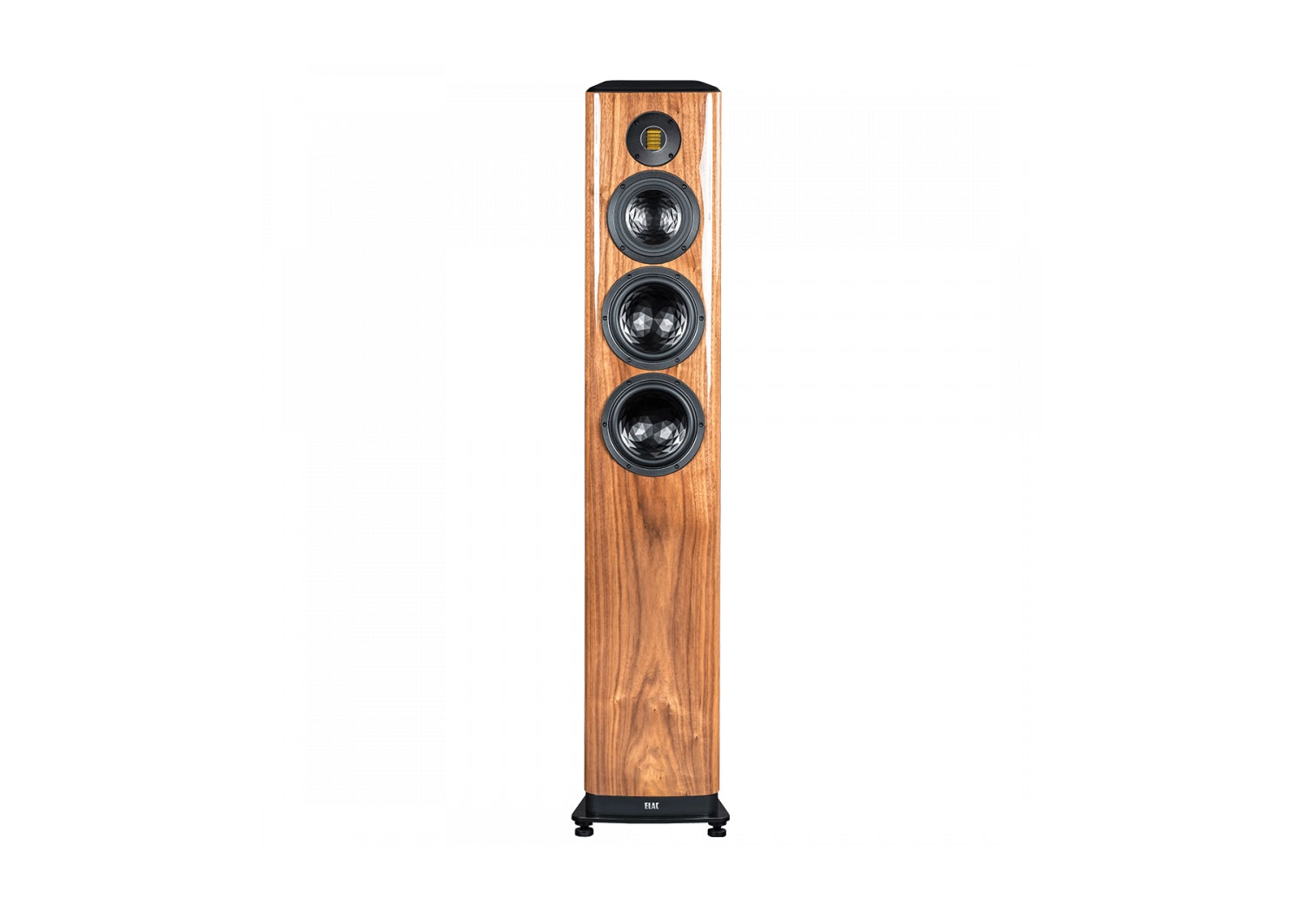

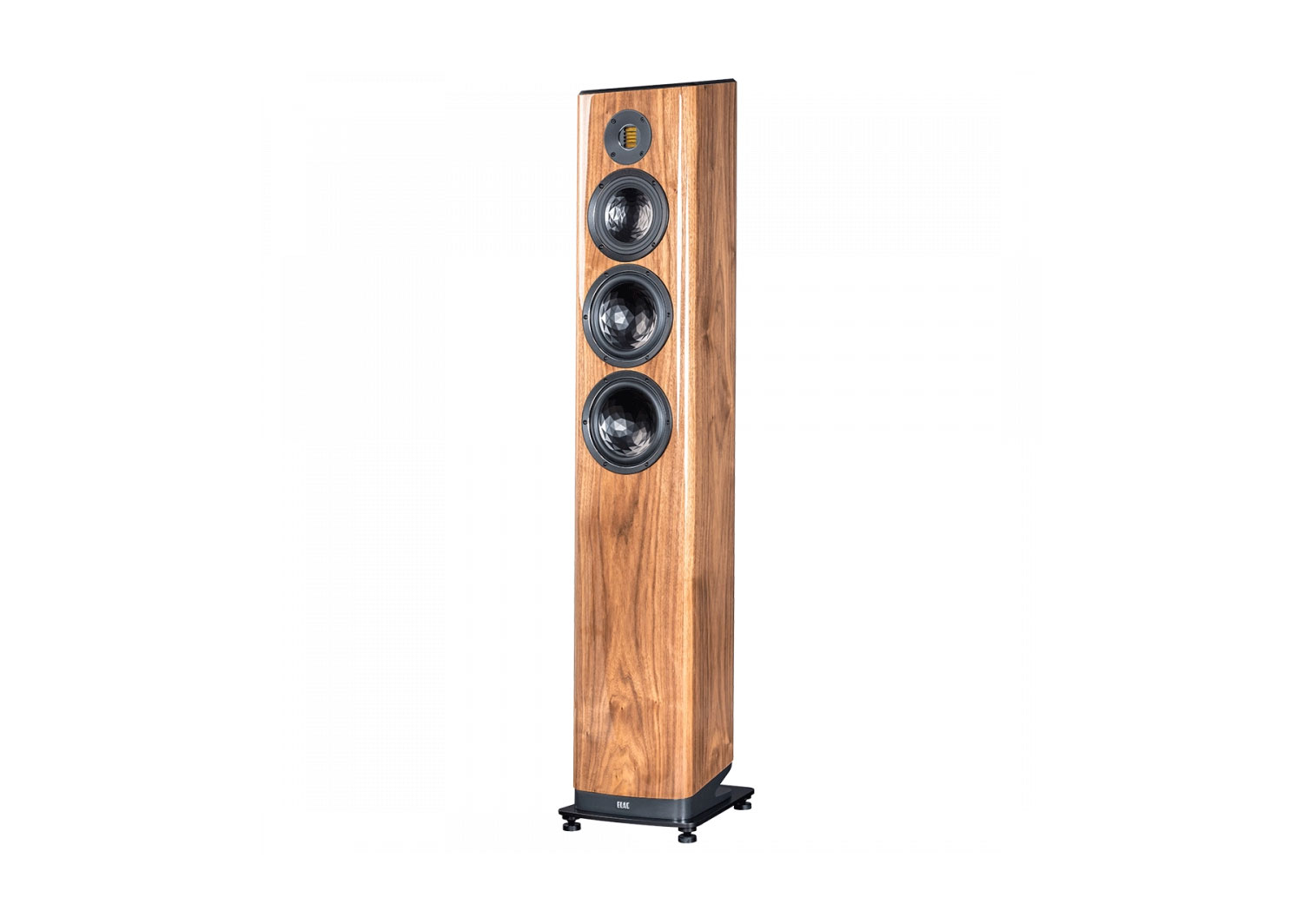

Elac Vela FS-409.2 (Walnut Highgloss)
7" 3.5-Way Floorstanding Speaker with Jet 6 Tweeter

The new VELA line is a striking illustration of how design and function can be harmonized. Decorative aluminum elements transform the technical components of the loudspeakers into visual highlights. Sight and sound combined into a duality of delight.

The most striking acoustic innovation is the JET 6 tweeter. A hallmark of ELAC for over three decades, the current version offers fast, detailed and refined performance.

Combined with a newly developed Crystal Membrane woofer with custom designed cast chassis, the new Vela series further solidifies ELACs commitment to excellence in audio.


Meet VELA - A combination of technologies refined over 95 years of ELAC Acoustic engineering and design. High-gloss lacquered and wooden veneered cabinets with a visually stunning trapezoid shape that improves acoustics while making a profound visual impact. The VELA builds on the highly successful and high-performing Series 400 while improving stereo definition and multi-channel audio in modern furnishings.But the advantages are distinct. Combining a newly designed cabinet in combination with the crystal aluminum-sandwich woofer—and ELAC's inimitable JET 6 tweeter—this speaker is bound to make an impact.


JET 6 TWEETER

Engineered and designed in Kiel, Germany, the JET 6 Air Motion Transformer tweeter offers a wide frequency response (Up to 50kHz), low distortion, and remarkable clarity in reproducing the high-frequency spectrum, contributing to a more immersive and detailed audio experience for listeners.


DOWNWARD FIRING PORT

The bass reflex port on the Solano series is designed to exit downward from the bottom of the speaker cabinet, allowing for greater flexibility in speaker placement and reducing ventilation noise.


ALUMINUM SANDWICH WOOFER

This specialized construction brings forth a myriad of benefits, starting with its rigidity and lightweight nature. By leveraging the inherent qualities of aluminum, these woofers effectively minimize unwanted resonances and distortions, ensuring a remarkably clear and accurate sound reproduction.




Meet VELA

Built upon 95 Years Acoustic Design and Engineering

  • Crystal membrane woofer with extended frequency range
  • Jet 6 tweeter offering wide dynamic range
  • Bi-wiring configuration to enhance midrange
  • Die cast bottom plate with integrated double flanged down-firing bass reflex port
  • Convex baffle shape reducing reflections



The inimitable JET tweeter

JET 6

ELAC’s JET 6 tweeter is used throughout our loudspeaker range. This high-frequency driver enthralls with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a distinctly wider frequency range than conventional dome tweeters. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.
Designed and manufactured in Kiel, Germany.




JET Technology

ELAC's Air Motion Tweeter

  • Air Motion Transformer principle
  • Linear Frequency response > 50 kHz
  • Extended lower frequency range
  • Efficiency 92 dB / W / m
  • Improved signal accuracy
  • Ultra fast transient response - detail resolution



AS-XR Technology

Crystal Membrane

  • Aluminum Sandwich Membrane with Extended frequency range
  • The The eye-catching surface of the crystal membrane is more than just an attractive design feature.
  • Increased stiffness through crystal shape of aluminum cone
  • Extended frequency range (XR), smooth roll-off
  • Excellent large signal behaviour
  • Minimized VAS, (lot of bass out of small cabinets)

Specifications

Type 3 ½-Way, Bass Reflex
Woofers 2 × 180 mm Ø, AS-XR Cone
Mid-Woofer 1 × 150 mm Ø, AS-XR Cone
Tweeter JET 6
Magnetic Shielding No
Crossover Frequency 140 Hz | 360 Hz | 2700 Hz
Frequency Range (IEC 268-5) 28 - 50,000 Hz
Sensitivity 89 dB at 2.83 V/m
Suitable for amplifiers from 4Ω - 8Ω
Recommended Amplifier Power 40 - 450 W/channel
Nominal | Peak Power Handling 200 W | 280 W
Nominal | Minimum Impedance 4Ω | 3.4Ω at 105 Hz
Finishes Black High Gloss, White High Gloss, Walnut High Gloss
Height x Width x Depth 1307 x 276 x 332 mm | 51.5 x 10.9 x 13 inches
Weight 32.1 kg | 70.1 lbs.
