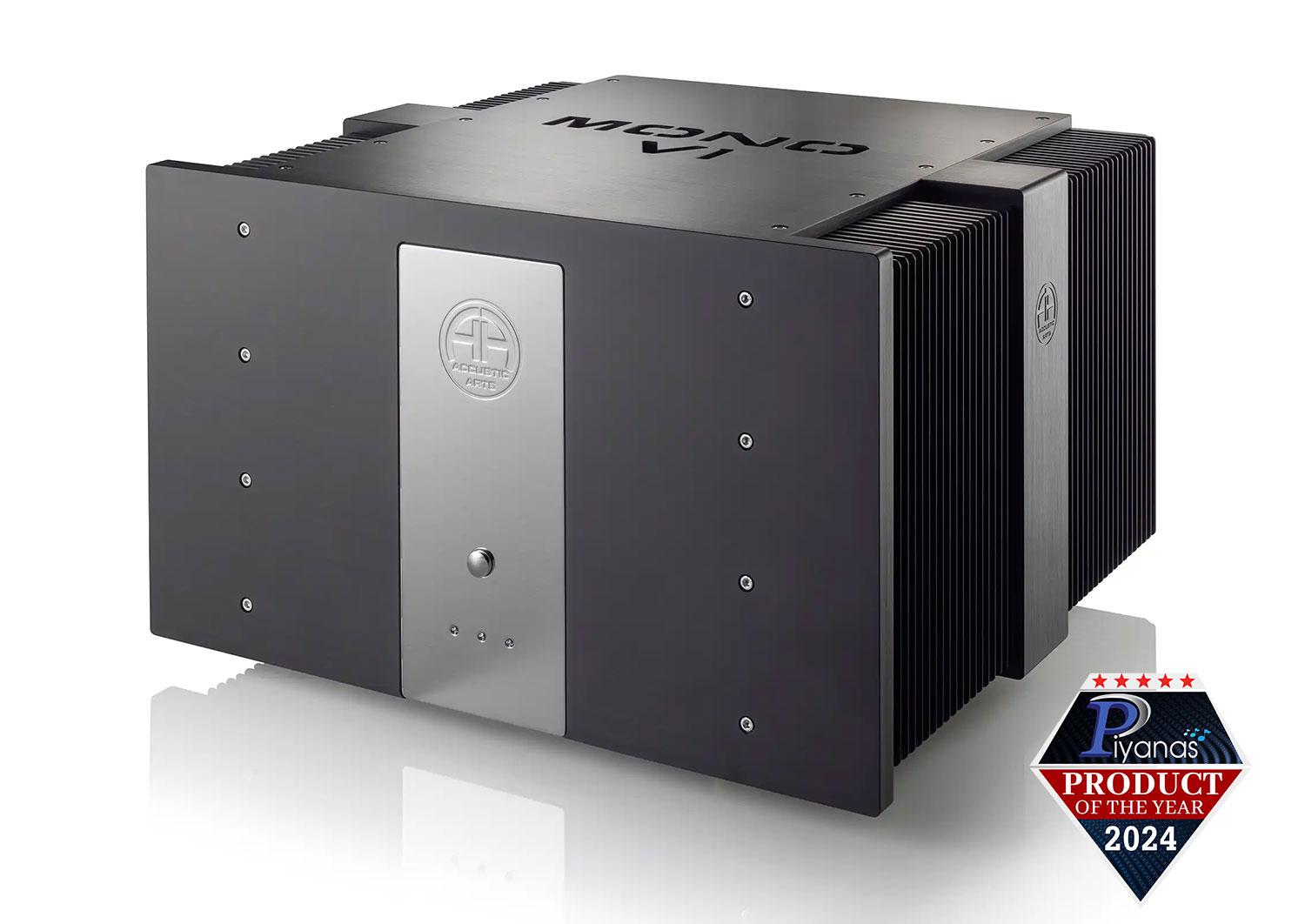

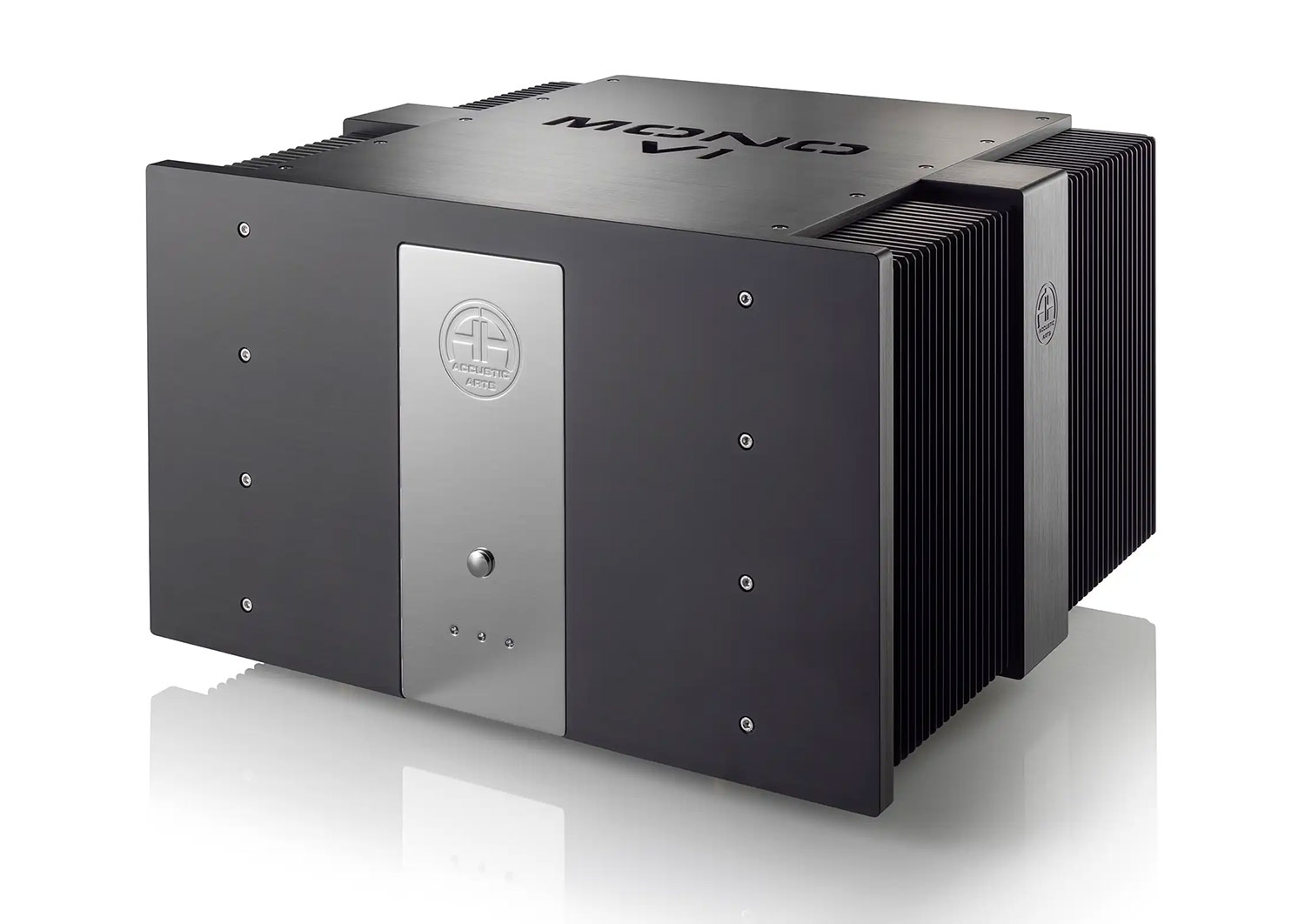

Accustic Arts MONO VI (Black)
Our statement in terms of audiophile mono power amplifier
MONO IV highlights
- In response to numerous customer requests for more power, we have once again increased the output power of our reference power amplifier
- Extremely powerful mono power amplifier; reference class
- 20 selected MOS-FET output transistors of finest quality
- Magnetically shielded and encapsulated toroidal core transformers of premium quality for highest output reserves
- Gold-plated contact surfaces (components) improve the contact resistance of the MONO VI
- Optimum smoothing thanks to more than 110,000 µF power supply capacity; premium quality capacitors (“Made in Germany”)
- Very high damping factor for perfect speaker control
- ACCUSTIC ARTS® damping factor linearization (switchable)
- Integrated protective circuit against clipping, HF oscillations,
- overtemperature and too high DC offset
- Integrated switch-on current limitation for highest operational safety

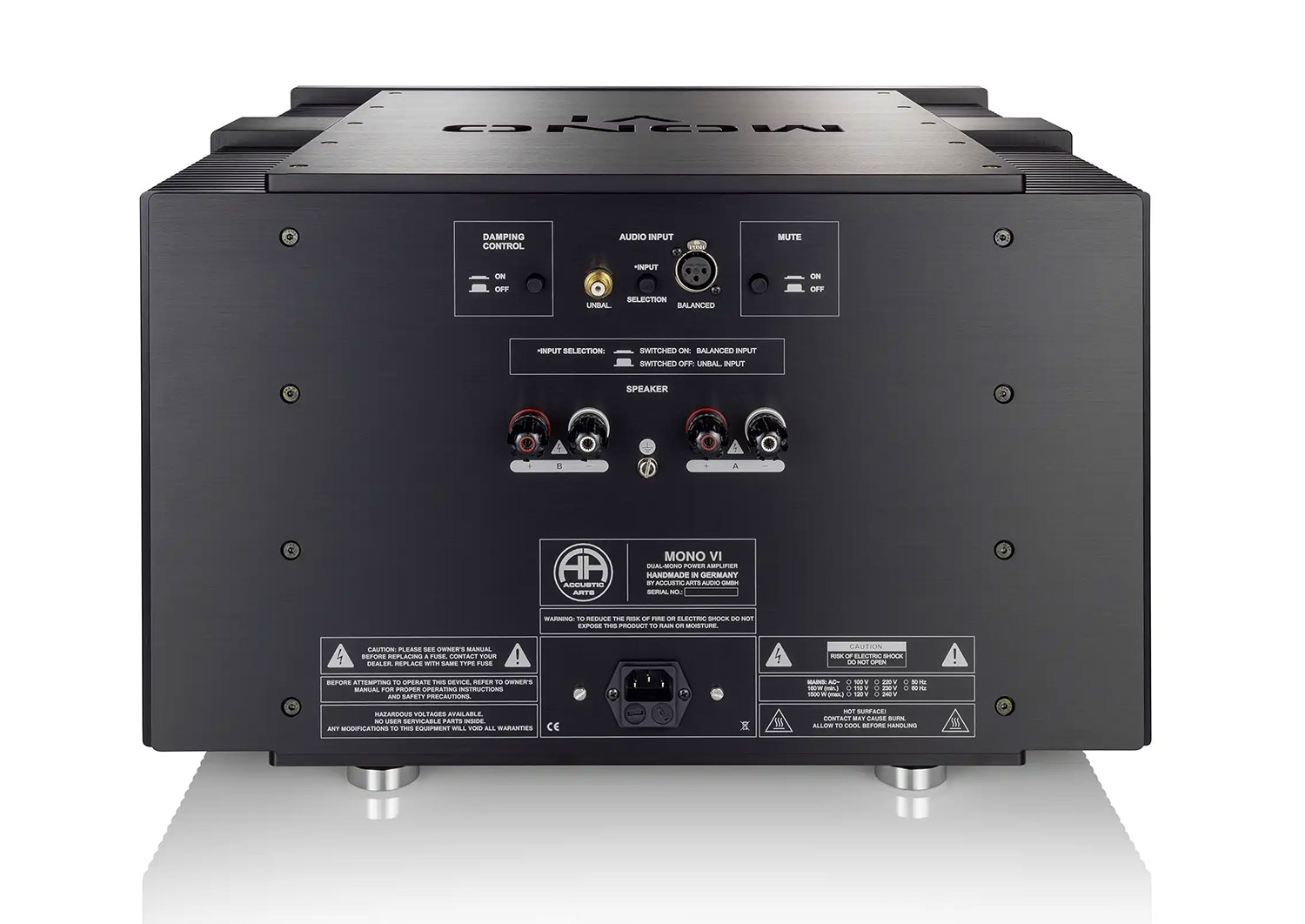

- Balanced Input (XLR) and unbalanced input (RCA) – the inputs are switchable
- All used components and parts are selected and of highest quality
- Very high quality, gold-plated bi-wiring/bi-amping speaker terminal
- Extremely stable and resonance optimized, massive aluminium housing; inlay made of massive, high gloss polished and chromed brass
- ACCUSTIC ARTS® MONO VI is “Handmade in Germany”
Specifications
Voltage gain:
30.0 dB
Power consumption without load:
approx. 125 wattst
Power supply capacity:
approx. 110,000 µF
Input resistance:
balanced (XLR): 2 x 16 kΩ
unbalanced (RCA): 15 kΩ
Rated power output (at THD+N = 1 %):
> 1,600 watts on 2 Ω
> 1,500 watts on 4 Ω
> 950 watts on 8 Ω
Signal to noise ratio:
-96 dBA (ref. 6.325 V)
Distortion (THD+N):
0.002 % on 4 Ω load at 1 kHz and 10 watts
Dimensions (H x W x D):
328 x 530 x 545 mm / 12.9 x 20.9 x 21.5 inches
Weight:
approx. 74 kg | 163 lbs
+ 22 kg / 48.5 lbs flight case
