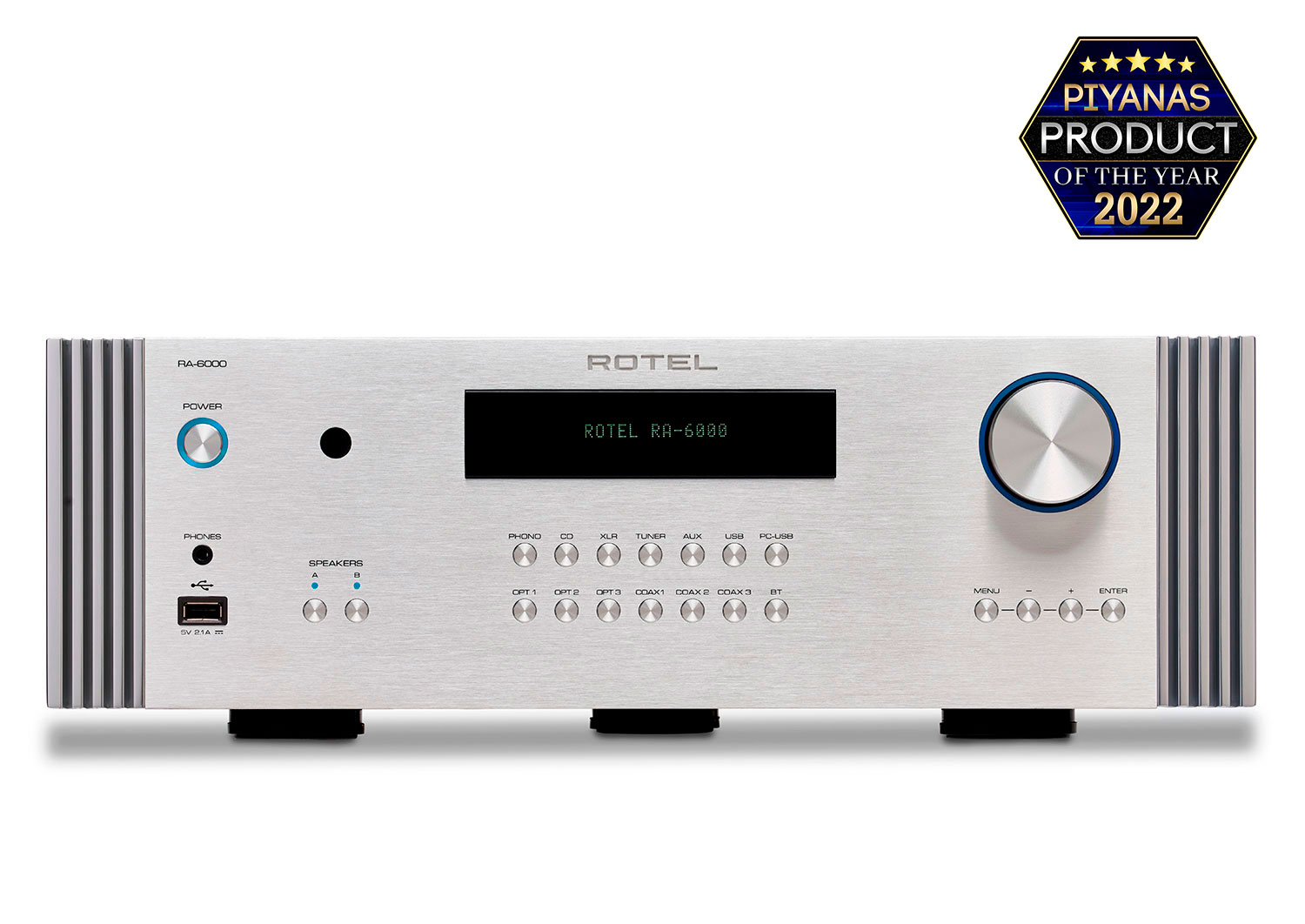

Rotel RA-6000 (Silver)



Features

• Certified Roon Tested
• Supports MQA and MQA Studio
• 2 x 350 Watts of robust Class AB power, 4 Ohms
• Wireless aptX™ HD and AAC Bluetooth
• Texas Instruments premium 32-bit/384kHz Digital to Analog Converter

The Diamond Series RA-6000 Integrated Amplifier celebrates Rotel’s 60-Years of Japanese heritage. The RA-6000 supports a wide array of modern and legacy analog and digital sources delivering 350 watts of Class AB power into 4 ohms with exceptional acoustic detail and controlled rich, deep bass energy.

Digital inputs support 24-bit/192kHz audio streams. The asynchronous PC-USB input supports up to 32-bit/384kHz audio, decodes and renders MQA, and is fully certified Roon Tested.  A Moving Magnet Phono stage is also included for vinyl fans.

Front panel controls, back-lit IR remote and 2-line display ensure intuitive operation.

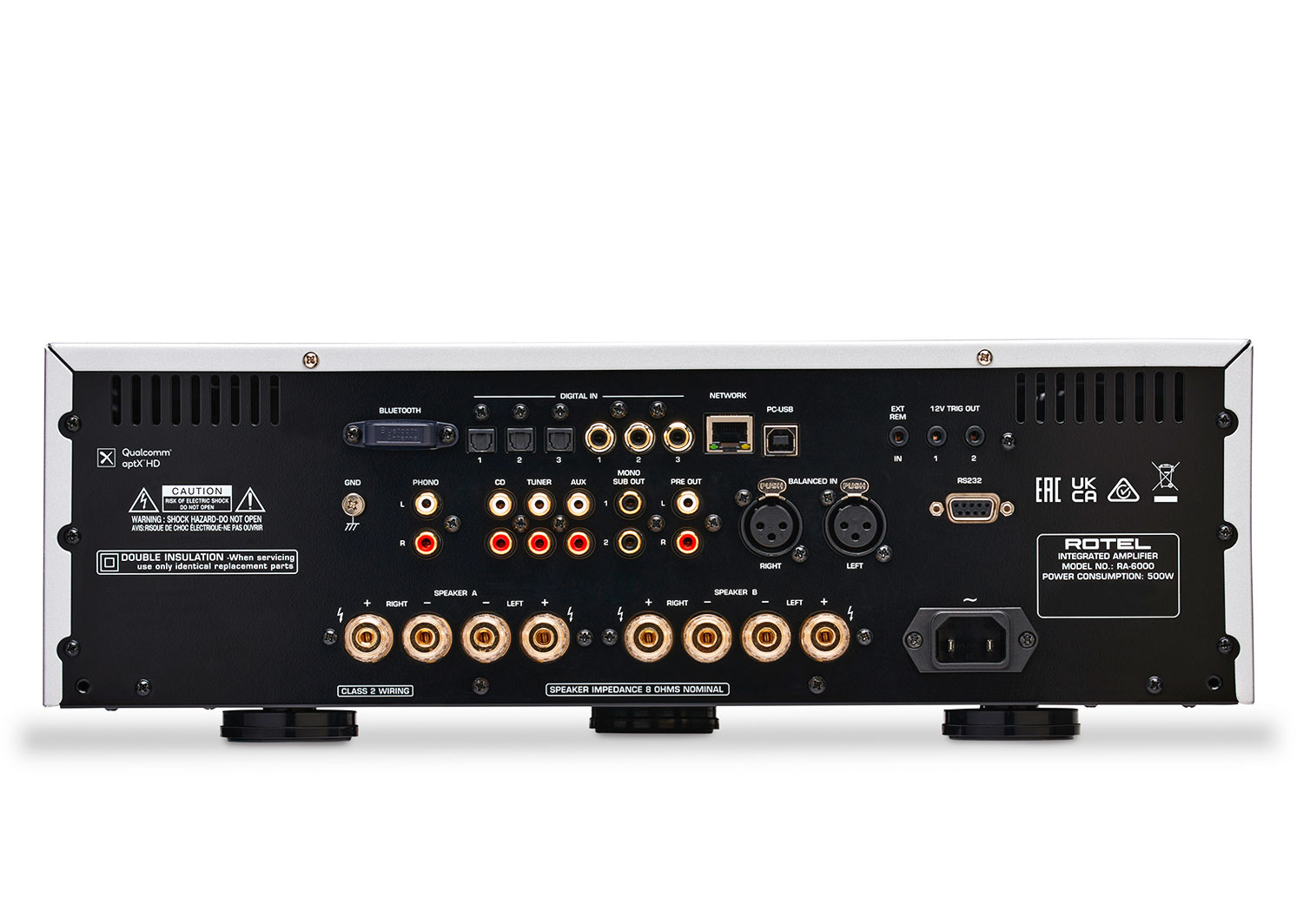

Ethernet, RS232,12V trigger and external remote input simplify integration with control systems.

Specification

Maximum Power Output	350 watts/ch (4 ohms)
Continuous Power Output	200 watts/ch (8 ohms)
Total Harmonic Distortion (THD)	< 0.0075%
Intermodulation Distortion (60 Hz : 7kHz, 4:1)	< 0.03%
Frequency Response Phono Input Line Level Input	20 Hz - 20k Hz, 0 ± 0.5 dB 10 Hz - 100k Hz, 0 ± 0.5 dB
Damping Factor (20 Hz - 20 kHz, 8 ohms)	600
Input Sensitivity / Impedance
Phono Input (MM) Line Level Inputs (RCA)  Line Level Inputs (XLR)	5.2 mV / 47k ohms 340 mV / 5.6k ohms 540 mV / 100k ohms
Input Overload
Phono Input (MM) Line Level Inputs (RCA) Line Level Inputs (XLR)	52 mV 3.5 V 4.5 V
Standby Power Consumption	<0.5W
Preamplifier Output / Impedance	1.9 V / 100 ohms
Intermodulation Distortion (60Hz:7kHz, 4:1)	<0.03%
Signal to Noise Ratio (IHF A-weighted)
Phono Input (MM) Line Level Inputs	80 dB 103 dB
Digital to Analog Converters	Texas Instruments
Power Consumption	500W
Digital Section
Frequency Response	10 Hz - 90k Hz (0 ± 2 dB, Max)
Signal to Noise Ratio (IHF A-weighted	102 dB
Input Sensitivity/Impedance	0 dBfs / 75 ohms
Preamplifier Output Level	1.43 V (at -20 dB)
Coaxial/Optical Digital Signals	SPDIF LPCM (up to 24-bit / 192k Hz)
PC-USB	USB Audio Class 2.0  (up to 32-bit / 384k Hz )* *Driver installation required Support MQA and MQA Studio (up to 24-bit / 384k Hz ) Roon Tested
Power Requirements
USA EC	60 Hz 50 Hz
Standby Power Consumption
Normal Network Standby	< 0.5 watts < 2 watts
BTU (4 ohms, 1/8th power)	1239 BTU/h
Dimensions (W x H x D)	431 x 144 x 425 mm 17 x 5 7/8 x 16 ins
Front Panel Height	3U / 132.6 mm / 5 1/4 ins
Weight (net)	18.81 kg, 41.47 lbs.
Finish	Silver and Black
Info Sheet
