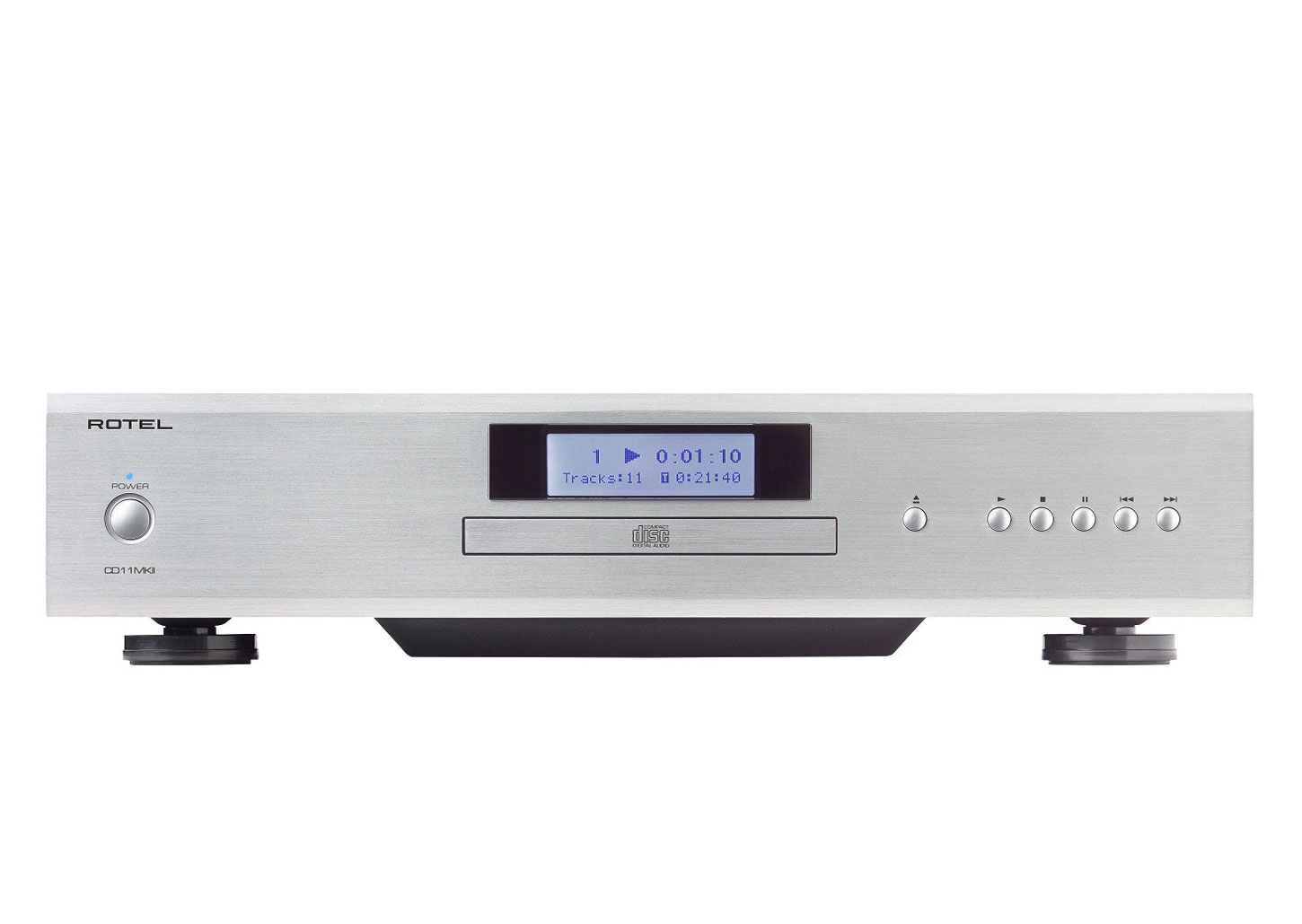

Rotel CD-11 MKII (Silver)​

• Texas Instruments premium PCM5102A 32-bit/384k Hz Digital to Analog Converter
• Smooth tray loading CD mechanism

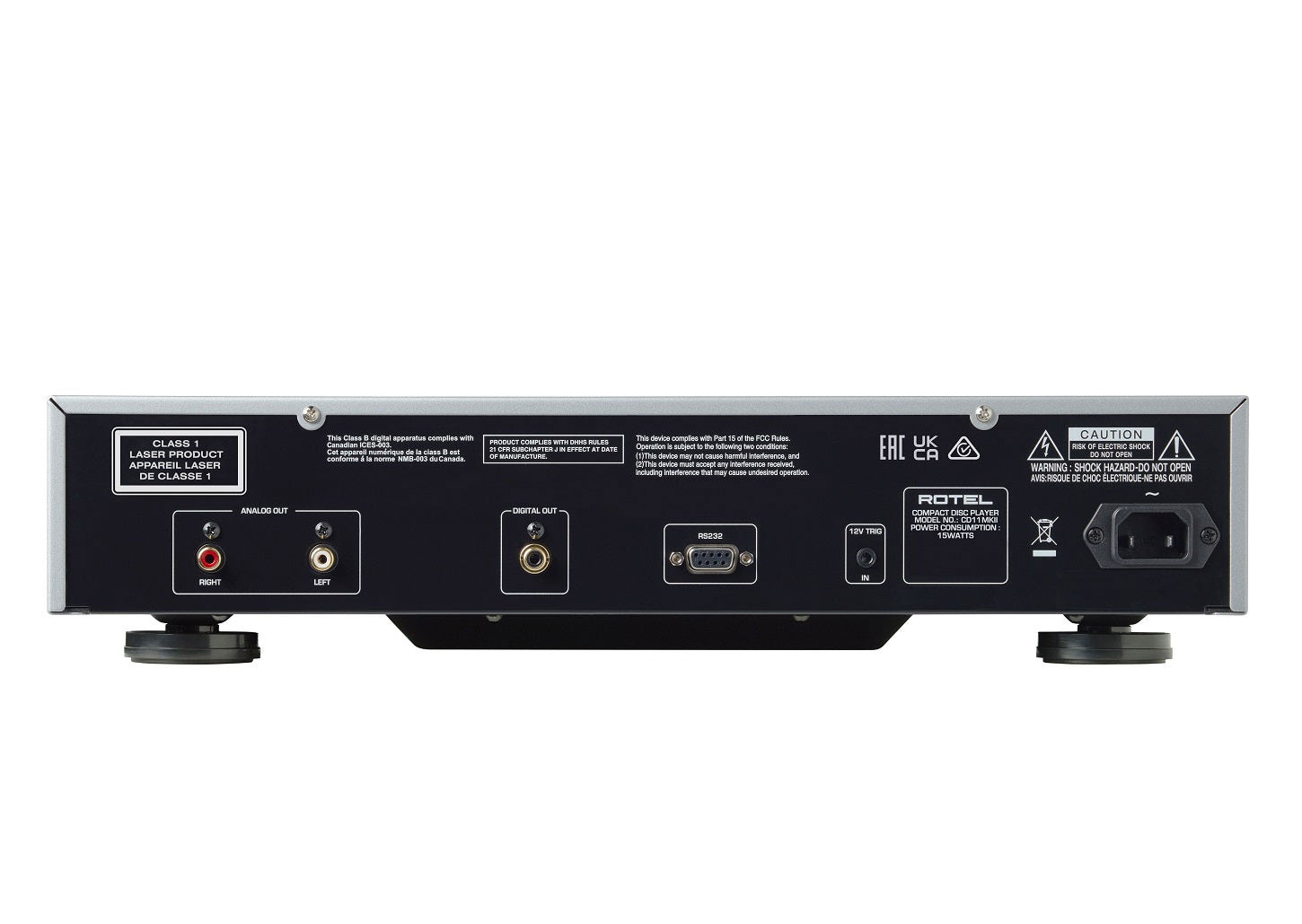

• Outputs including RCA analogue and Coaxial digital
• 12 volt trigger input
• Includes remote control

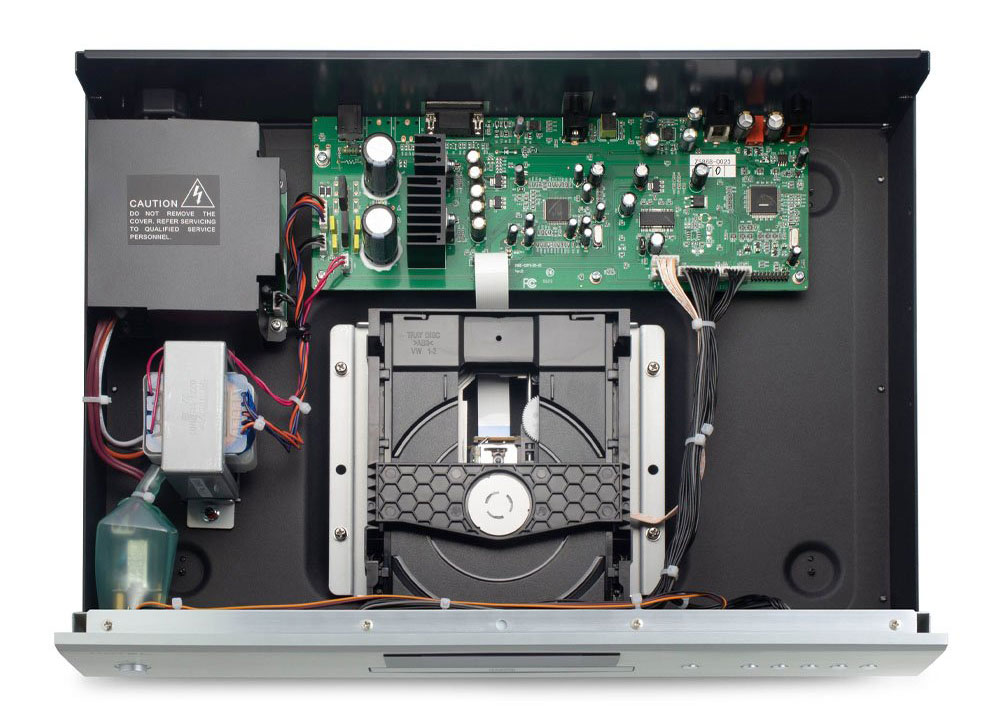

The CD11MKII CD Player furthers Rotel’s 30+ year legacy of delivering high performance, high value CD players. The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs. The CD 11MKII’s smooth, tray-loading mechanism, precise laser pickup and silent running motor controller ensures seamless, worry-free playback of your CD collection, including MP3s.

Specifications

Total Harmonic Distortion + Noise
0.009% @ 1k Hz

Frequency Response
20 Hz - 20k Hz, ±0.5 dB

S/N Ratio (IHF "A" Weighted)
>125 dB

Dynamic Range
>99 dB

Digital to Analog Converters
Texas Instruments PCM5102A 32-bit/384k Hz

Channel Balance
±0.5 dB

Channel Separation
>115 dB @ 10k Hz

Intermodulation Distortion
0.009% @ 1k Hz

Phase Linearity
± 0.5 degree

Analog Output impedance
470 Ohms

Digital Output
0.5 V, Peak to Peak

Load Impedance
75 Ohms

Coax Digital Input Signals
SPDIF LPCM (Up to 24-bit/192k Hz)

Dimensions (W × H × D)
430 × 98 × 314 mm
17" × 3.8" × 12.4"

Front Panel Height
80 mm (3.15")

Power Requirements
120 V, 60 Hz

Power Consumption
15 W

Standby Power Consumption
<0.5 W

Net Weight
6.2 kg (13.7 lbs.)

BTU Rating
40 BTU/h
