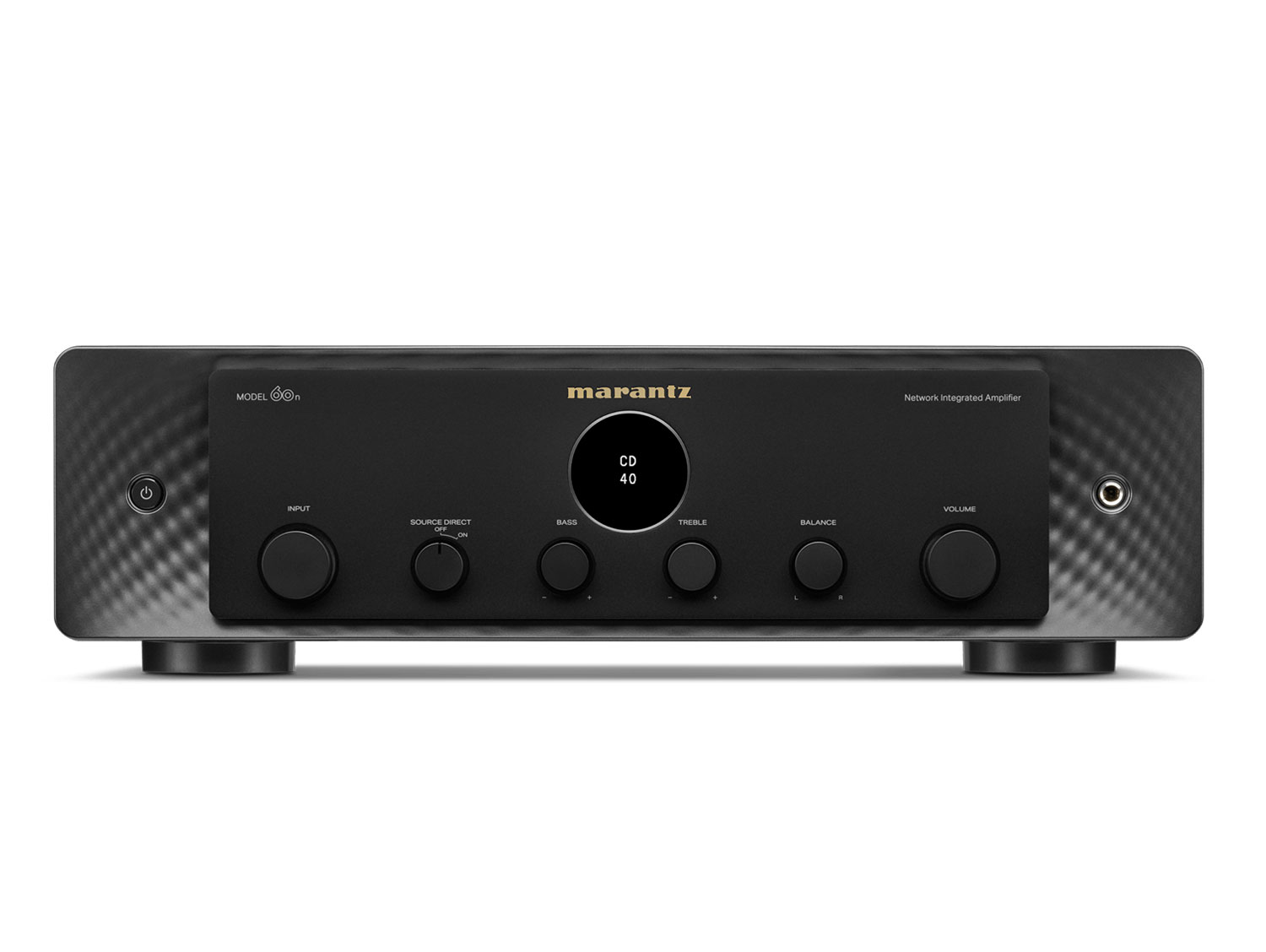

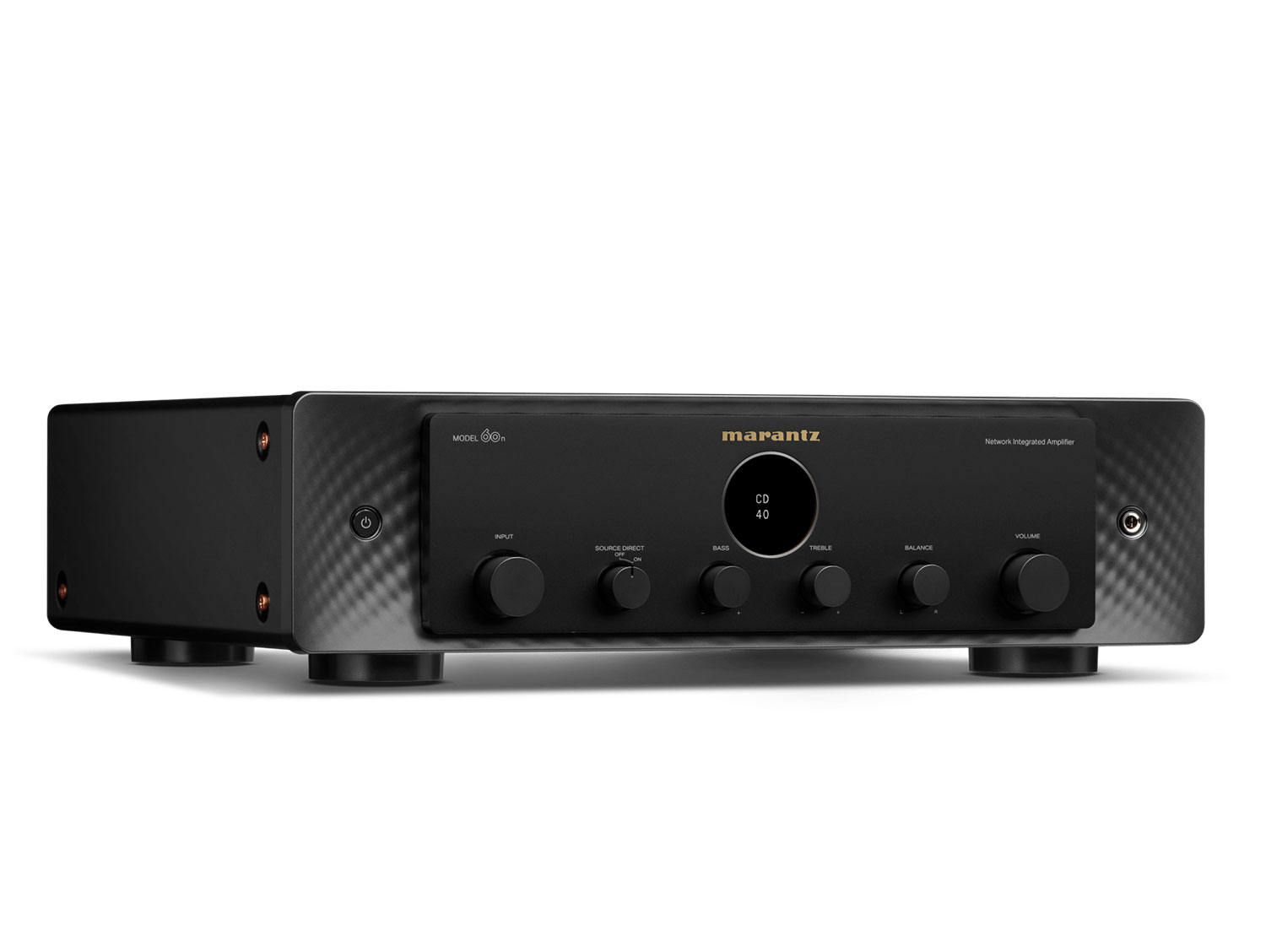

MARANTZ MODEL-60n (Black)
2 Channel Network Integrated Amplifier with 60W and HEOS® Built-in
MODEL 60n is a network integrated amplifier engineered for exceptional hi-fi performance and comprehensive connectivity. Stream in high-resolution via HEOS® Built-in, connect your CD player or turntable and complete your hi-fi system with the speakers of your choice, or an optional subwoofer.
- 60W per channel at 8 ohms connection
- Effortless streaming with HEOS® Built-in, WiFi, AirPlay2, Bluetooth
- HDMI ARC with CEC support superior TV and gaming sound
- Marantz proprietary HDAM® circuits for detailed audio reproduction
- Hi-Res audio support up to 24-bit 192kHz and Roon-Ready
- Four gold-plated CD and MM phono inputs
- 2.1 channel subwoofer output, Marantz custom speaker terminals
- Rear USB-A input for USB Mass Storage device
- Amazon Alexa, Apple Siri voice control
- Marantz industrial design
Superb Marantz Sound
Sound Master tuned and engineered to bring you all the texture, nuance, and clarity of the Marantz signature sound.
High Resolution Streaming
Stream in high-resoultion from today’s most popular music services, including TIDAL, with HEOS® Built-in.
Build Your Hi-Fi System
Wide range of connections, including for a CD player and turntable, enable you to build a comprehensive hi-fi system.
Enhanced TV Sound
Enjoy superior TV sound for your favorite movies and shows and enhance your gaming experience with MODEL 60n’s HDMI ARC connection.

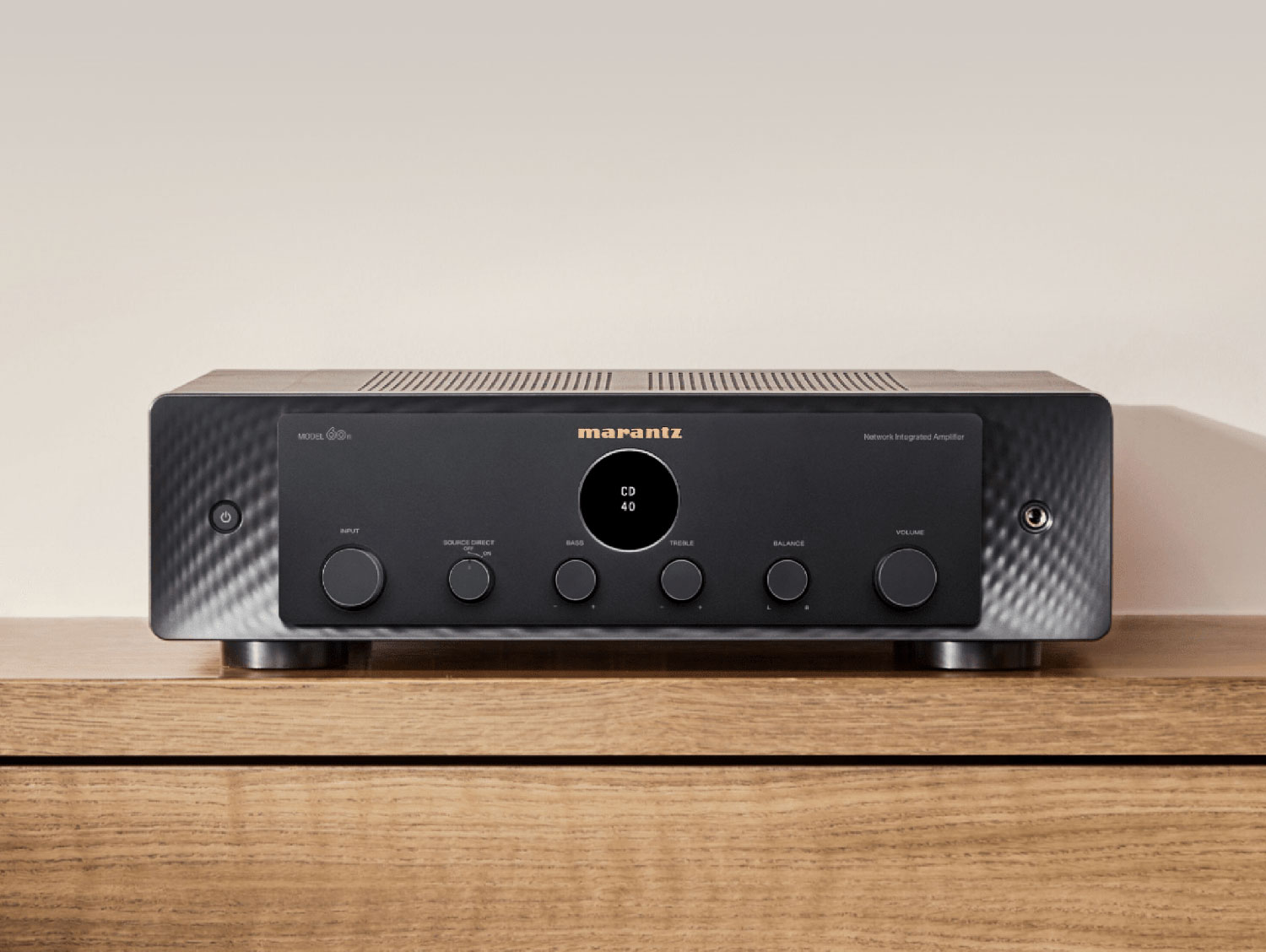

Marantz Industrial Design
Intuitive operation, designed with robust yet refined materials and available in two colorways: black and silver-gold.

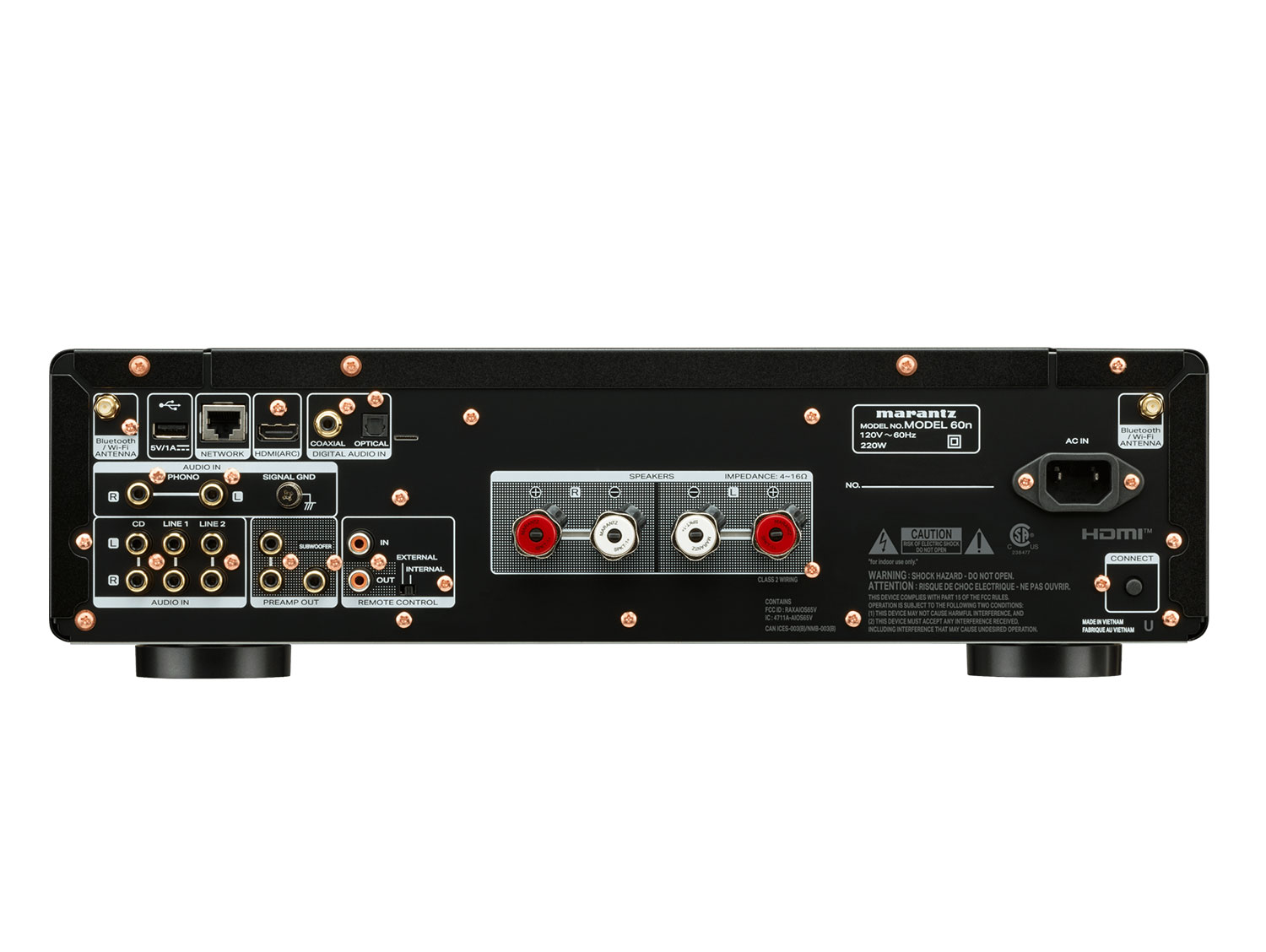

Specifications
Amplifier
- Channels 2
- PSU Transformer Toroidal
- Speaker A / B No
- Speaker Terminals Marantz SPKT-1+
- Number of Terminals 2
- Power Output (8 / 4 Ohm RMS) 60 W / 80 W
- Topology Class A/B
Audio Components and Technologies
- Current Feedback Topology Yes
- HDAM Version SA3, SA2
- High Grade Audio Components Yes
- Customised Components Yes
- Symmetric PCB Layout Yes
- Aluminium Extrusion Heat Sink Yes
- Copper Plated Chassis No
- Marantz Musical Digital Filtering No
- Linear Drive Power Supply Yes
- BI-AMP and Multichannel Option No
- Shottky Diodes Yes
DAC
- Digital Inputs Coaxial, Optical, USB-A
- Max PCM Sample Rate 192 kHz / 24-bit
- Max DSD Sample Rate DSD 4X (11.2 MHz)
- HDMI 1 ARC
HEOS
- Streaming Technologies Bluetooth, Airplay 2, Roon Ready, Spotify Connect, Tidal Connect
- Streaming Services (subject to change and local availability) Tidal (Hi Res), Deezer (Hi Res), Amazon Music HD, Pandora, TuneIn, iHeartRadio, SoundCloud, SiriusXM, AWA, Mood:Mix, Qplay, Sony HiRes
- HEOS Multiroom and Streaming Yes
- Lossy Formats MP3, WMA, AAC
- Lossless Formats DSD/DSF, FLAC, ALAC, WAV
- Gapless Playback Yes
- HEOS App iOS, Android
Network
- Wi-Fi / Wired LAN Yes / Yes
Other
- Display Low-Noise OLED Monochrome
Preamp
- Phono EQ MM Standard
- Tuner: FM / AM No
- Audio Adjustments Yes
- Power Amp Direct No
- Balanced In / Out No / No
- Preamp Outputs 1
- Subwoofer Output 1 Mono
- Headphone Out Yes
Specifications
- Frequency Response 5 Hz-100 kHz
- Total Harmonic Distortion 0.02 %
- Damping Factor 100<
- Input Sensitivity: MM 1.9 mV / 47 kOhm
- Signal to Noise Ratio: MM/MC 87 dB / -
- Input Sensitivity: High Level 190 mV / 20 kOhm
- Signal to Noise Ratio: High Level 113dB
- Treble Control ± 10 dB at 15kHz
- Bass Control ± 10 dB at 50Hz
- Metal Front Panel Yes
- Power Consumption in W 220
- Standby Consumption in W 0.3
- Auto Power Off Yes
- Detachable Power Cable Yes
- Remote Control RC006PM
- System Remote Function Yes
- Maximum Dimensions (W x D x H) mm 442 x 431 x 129
- Carton Maximum Dimensions (W x D x H) mm 527 x 517 x 255
- Carton Weight (inc. product) in kg 15.5
- Maximum Dimensions (W x D x H) in 17.4 x 17 x 5.1
- Weight in LBS 28.1
- Carton Maximum Dimensions (W x D x H) in 20.8 x 20.4 x 10.1
- Carton Weight (inc. product) in LBS 34.3
