MARANTZ MODEL-M1 (Black)
2 Channel Wireless Streaming Amplifier with 100W, eARC and HEOS Built-in
"This amplifier’s superb sonic performance stays true to Marantz’s heritage."
– EISA
MODEL M1 is a wireless streaming amplifier engineered with performance and versatility in mind. Enjoy your favorite music or TV shows with seamless connectivity from one elegant, compact device.
- 2.1 channel output allows for loudspeaker and subwoofer connection
- 100W per channel high power and crystal clarity
- Switching, digital end-to-end amplifier topology
- Enhanced performance with Marantz Musical Digital Filtering (MMDF)
- Effortless streaming with HEOS® Built-in, WiFi, AirPlay 2, Spotify Connect
- Toslink optical audio and HDMI eARC digital audio inputs
- Digital decoding with Dolby Digital+
- Sound Master tuned, designed, and built by Shirakawa Audio Works in Japan
- Small footprint, rack-mountable, high-end materials, and refined Marantz industrial design
- 1 pair RCA analog audio inputs with gold-plated brass terminals
True Marantz Power
MODEL M1’s 100W per channel of high-quality, low-distortion amplification delivers pristine sound anywhere, while a subwoofer output delivers room-filling scale in larger spaces.
High Resolution Digital Direct
However you choose to stream your high-resolution music, MODEL M1 has you covered, with support for HEOS, AirPlay2, Bluetooth, Spotify Connect, and more.
Marantz Multi-Room
The expansive feature set yet diminutive size of M1 makes it the ideal partner for multi-room listening.
Marantz Musical Digital Filtering
MMDF is a unique and sophisticated digital filtering technology that reveals the natural detail and tonality in sound.
TV Sound: Marantz Quality, Soundbar Simplicity
Unveil superb sound from movies and TV programs with MODEL M1 using HDMI eARC and onboard Dolby Digital+ processing.
Specifications
Amplifier
- Power Amplifier Rated output & THD (8 ohm) 100 W+100 W (8 Ω, THD 0.05%)
- Power Amplifier Rated output & THD (4ohm) 125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.05%)
- Frequency Response 20 Hz to 20 kHz : ±1 dB
- Connected loudspeaker Impedance 4 – 16 Ω/ohms

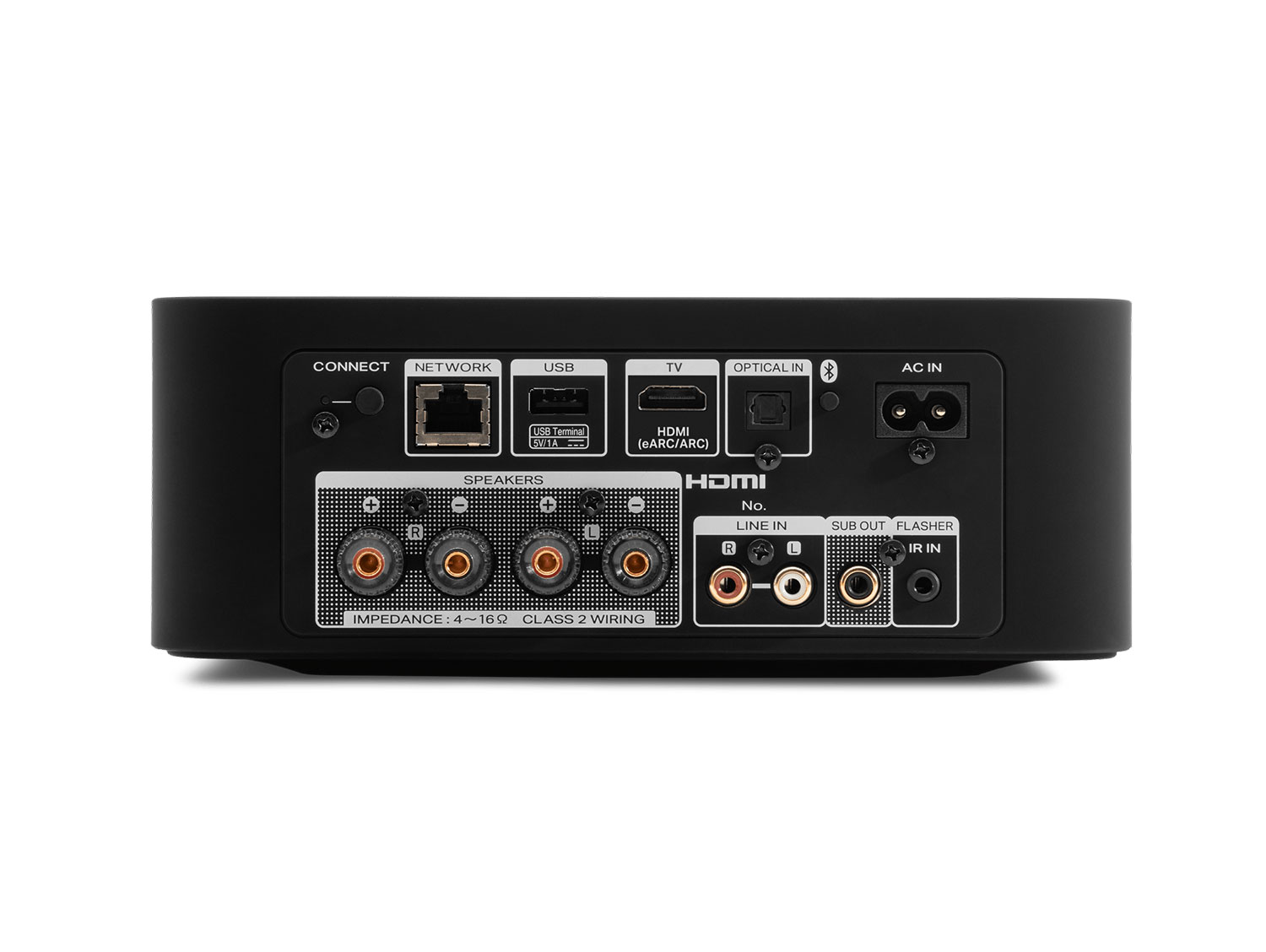

Audio Inputs / Outputs
- Loudspeaker Binding Posts 4-way binding posts
- Digital Inputs HDMI (eARC), TOSLINK
- Analog Inputs RCA L/R
- Subwoofer Out RCA Mono
Inputs Audio Options
- Channel Assignments Stereo (Default), Dual Mono
- Volume Limit 80-100%
- Balance -15dB to +15dB
- Adjustable High Pass / Low Pass Filters 40-250 Hz / 40-120 Hz
- EQ Bass, Treble -5dB to +5dB
- Sound Modes Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
- TV Sound Grouping Yes
Audio Format Support
- Decoding Dolby Digital +, Dolby Digital, LPCM, DSD
- Stereo PCM / Multi-channel PCM Yes / Yes
- Stereo File Formats (HEOS network share or USB) WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz
Streaming Technologies
- Bluetooth Receive BT 4.2.X
- Bluetooth Trasmit No
- AirPlay AirPlay 2
- Spotify Spotify Connect
Music Services and Sources
- Music Services Supported (HEOS®, subject to change and local availability) Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
- Music stored on mobile device Yes (iOS, Android or Kindle Fire)
- NAS (Network Attached Storage) Network share
- USB Storage Device Playback Yes (FAT32, NTFS formatted drives)
Networking & Control
- Wired Connectivity Ethernet
- Wireless Connectivity Dual band, 802.11 a/b/g/n/ac
- IR Input 3.5mm
- IR Learning Yes
- Control System Compatibility via TCP/IP Creston, Control4, AMX
- HEOS® App iOS, Android, Kindle Fire
General
- Product Color Black
- User Interface Volume up/down, Play / Pause, Multi colored LED status indicator, Connect button (rear), Bluetooth button (rear)
- Dimensions (W x D x H) Inches 9.41 x 3.31 x 8.54
- Dimensions (W x D x H) mm 239 x 84 x 217
- Weight (lbs) 4.84
- Weight (kg) 2.2
