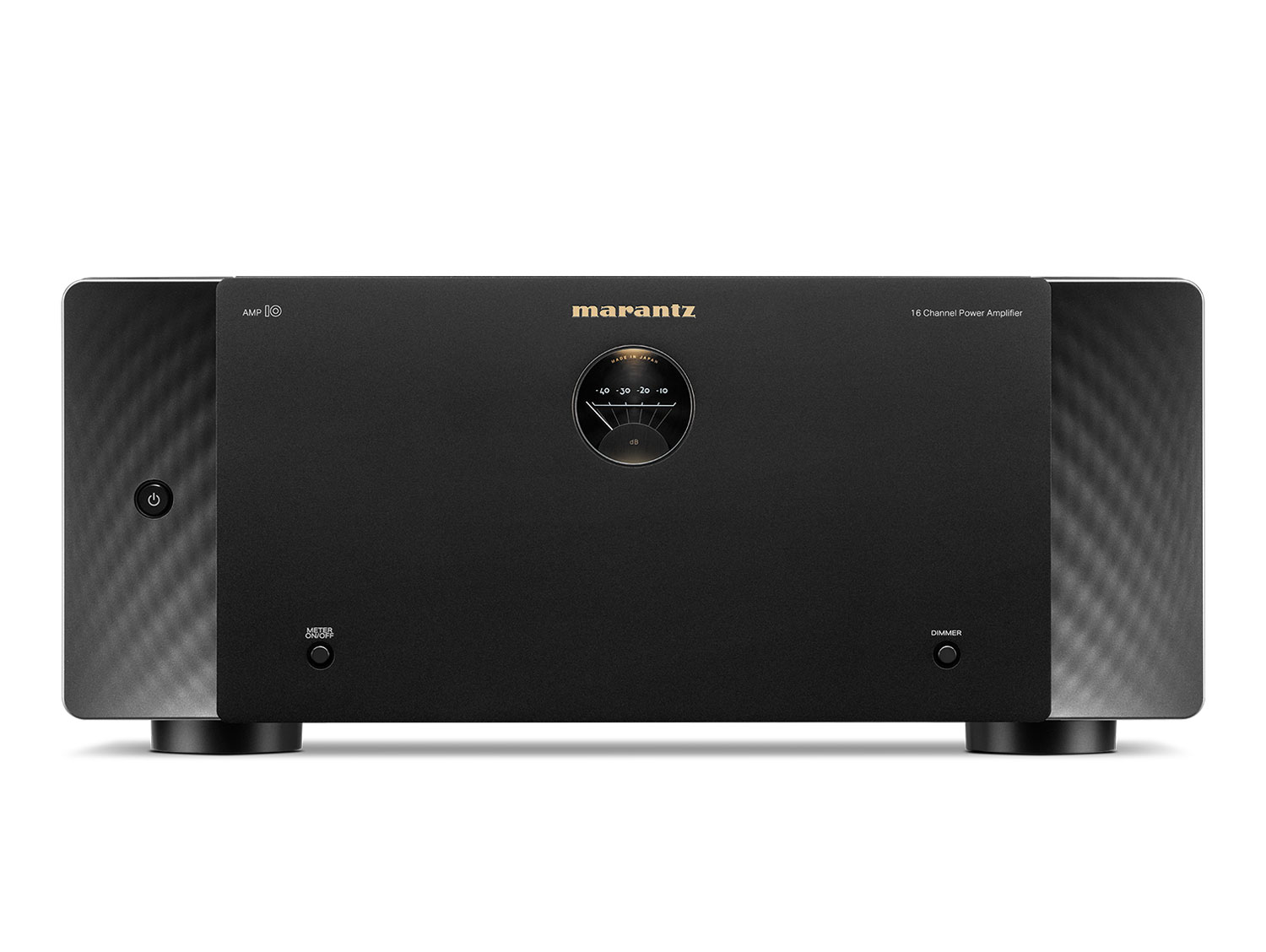

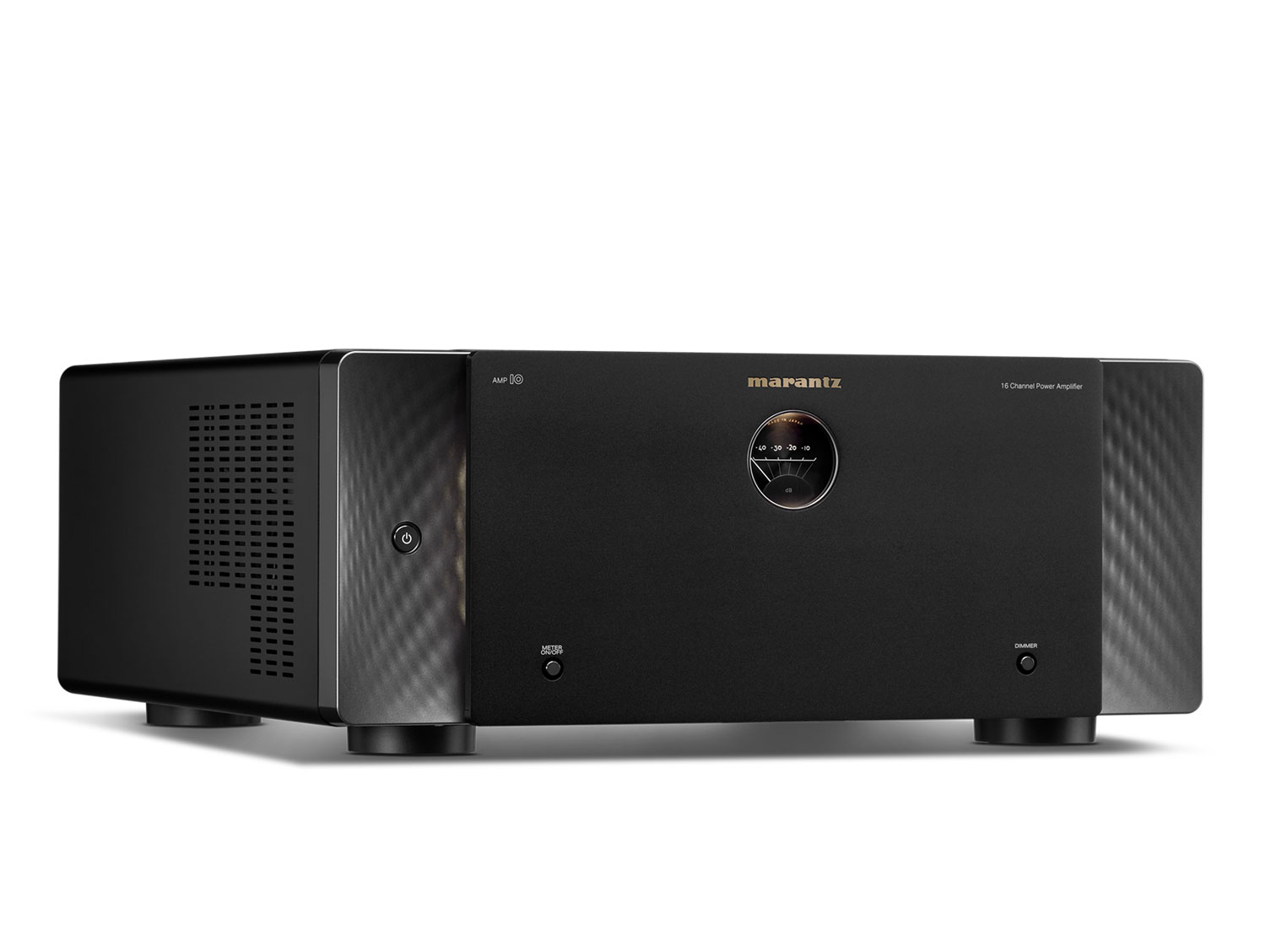

MARANTZ AMP-10 (Black)
Reference 16 Channel Amplifier with 200W and Custom HDAM
Engineered with best-in-class technologies, AMP 10 cleverly combines very high-power output and high channel count to create a master reference-level amplifier for ultimate home theater performance.
- Crafted in Shirakawa, Japan
- 16 Channels
- 200 Watts per Channel
- Custom HDAM
- Custom Switching Amplifiers
- Selectable Output Modes
- 5 Year Warranty

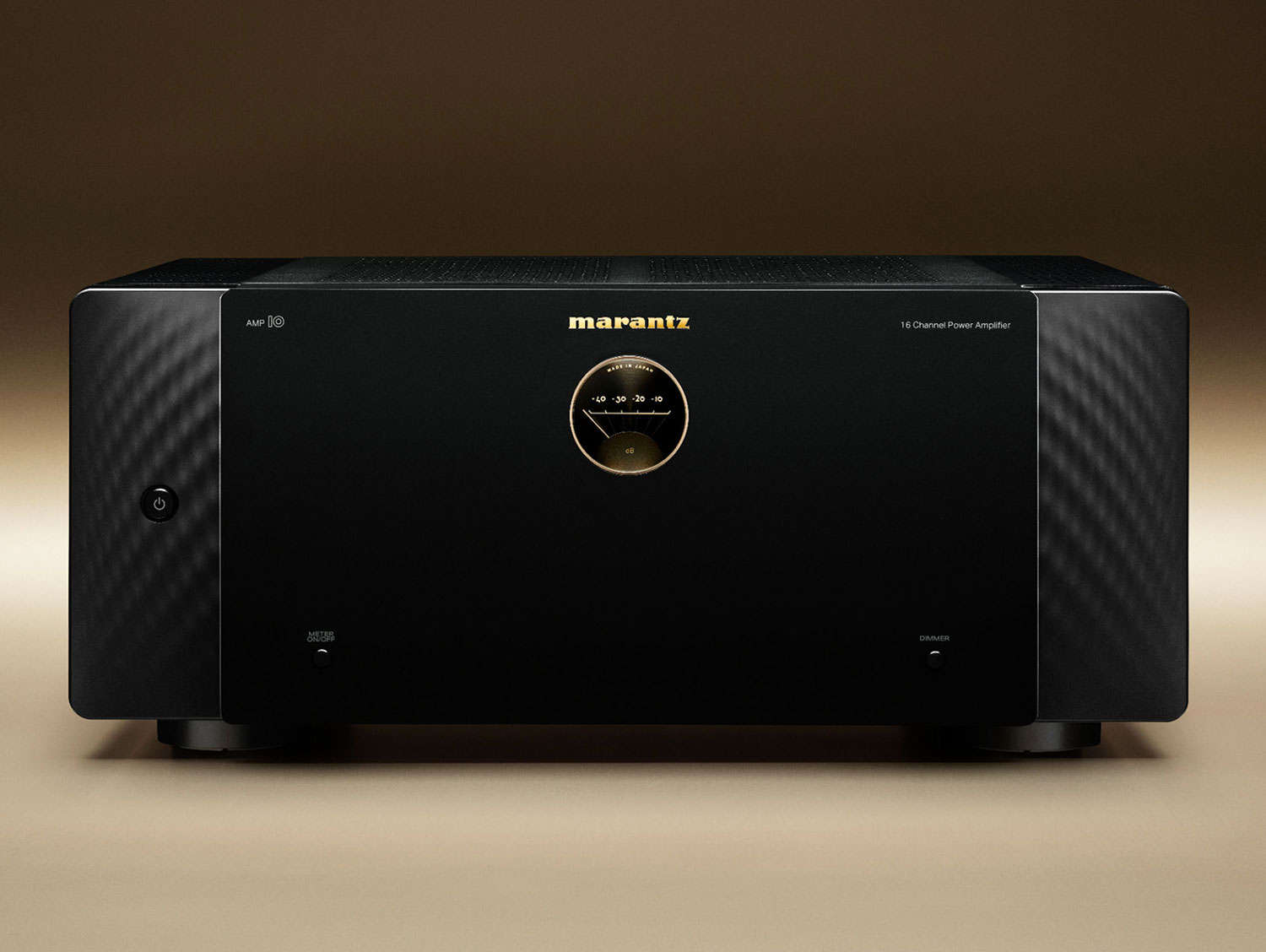

Exquisite Design
A modern expression of timeless design principles, AMP 10 features the iconic Marantz porthole level meter, premium materials, and subtle sidelights that illuminate the front panel.

Ultimate Performance
We developed custom Class D amplifiers and refined our own HDAM-SA2 technology to create the most incredible theatrical experience possible in your home.

Sound Master Tuned
The Marantz Sound Master meticulously tuned AMP 10 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.

Technology Leader
AMP 10 is engineered using best-in class technologies to enable extraordinary power output; high channel count; and the dynamic, rich, warm sound for which Marantz is highly renowned.
Specifications
Multi-Room CI
- IP Control / RS232 Control / Web Control / App Control No / Yes / No / No
- IR Flasher In Yes
- Marantz Remote Bus Yes
- DC Trigger Input/ Output 1 / 1
Others
- Front Display Level Meter
- Firmware Update by Network / USB / RS232C No / No / No
- Auto Power off Yes

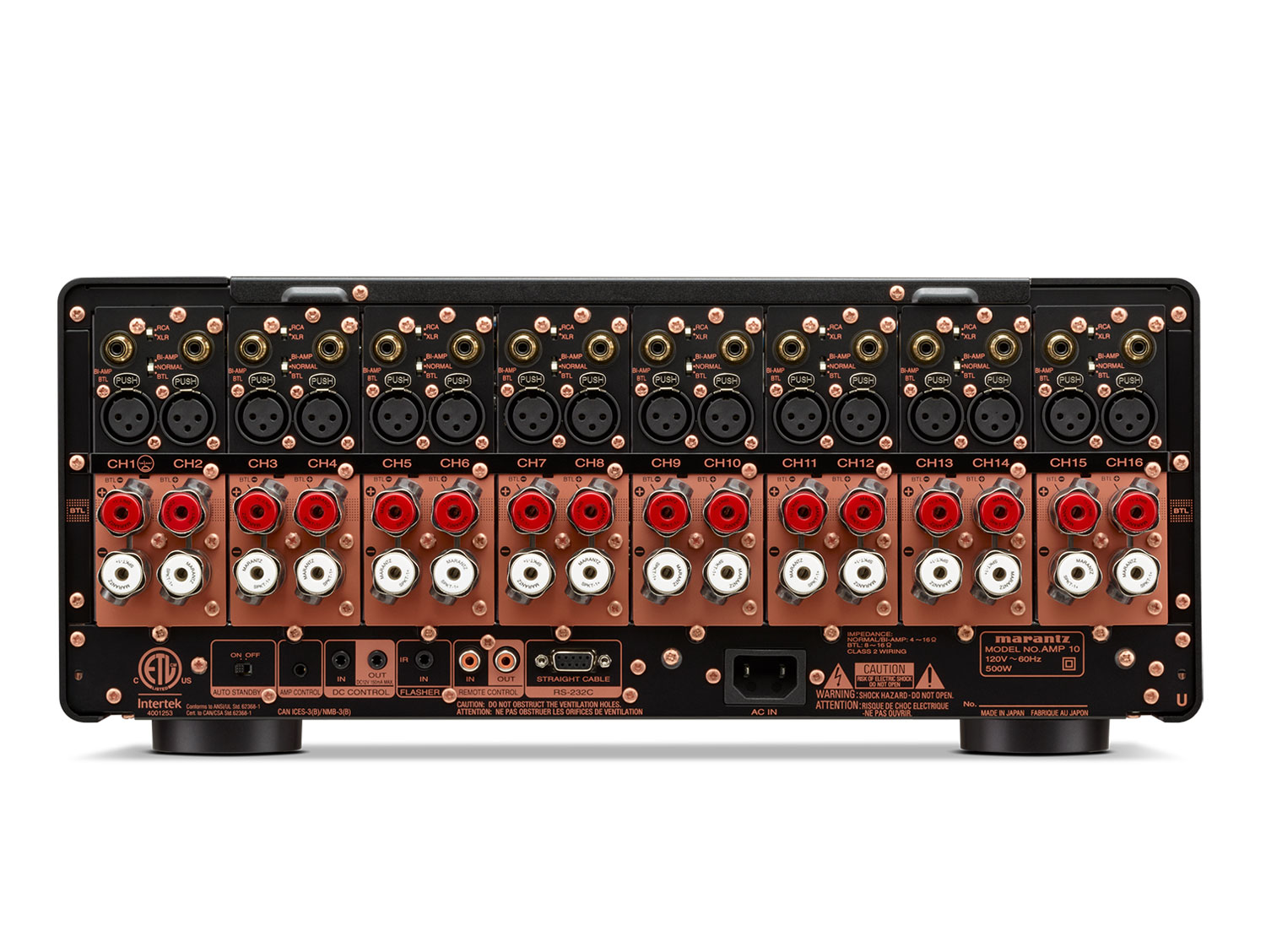

Inputs Outputs
- Main Amplifier in Balanced & Unbalanced: 16ch (Exclusive use by a selector switch.)
- Speaker Terminal SPKT-1+
- Number of Speaker Terminals 16
- Bi-Amp Drive /BTL Drive Yes / Yes
- Level Meter Yes
- Chasiss Copper Plated
Specifications
- Number of poweramps 16
- Power Output (8 ohm, 1 kHz, 0.05% 2ch Drive) Normal / BTL 200W / 400W
- Power Output (4 ohm, 1 kHz, 0.7% 2ch Drive) Normal 400W
- Power Output (8 ohm, 1 kHz, 0.7% 5ch Drive) Normal 200W
- 70% Guarantee(Normal/Bi-Amp/BTL) Yes
- 100% Guarantee(Normal/Bi-Amp) Yes
General
- Metal Front Panel Yes
- Pre-Programmed / Learnable / LCD Display No / No / No
- Power Consumption in W 500
- Power Consumption No-Sound in W 140W
- Standby Consumption in W 0.2
- Maximum Dimensions 【 17.4 x 19.2 x 7.4 】
- Weight in lbs. 43.7
- What's in the box Main unit, quick start guide, AC cord,
Amp control cable, Remote control cable,
SP terminal wrench
