ELAC CINEMA-10
Performance on a grand scale.

The Cinema 10 Set delights from the first opening scene with its combination of all-inclusive functionality and plug-and-play convenience. Thanks to the matching accessories, you will quickly find the perfect position for these elegant and unobtrusive satellite loudspeakers. With their elegant brushed aluminum cabinets, the end result is a visual treat. And the sound! Combined with the powerful Debut S10 subwoofer, film soundtracks and music convey the powerful low-frequency foundation that brings life and realism to your home theater or surround-sound system.

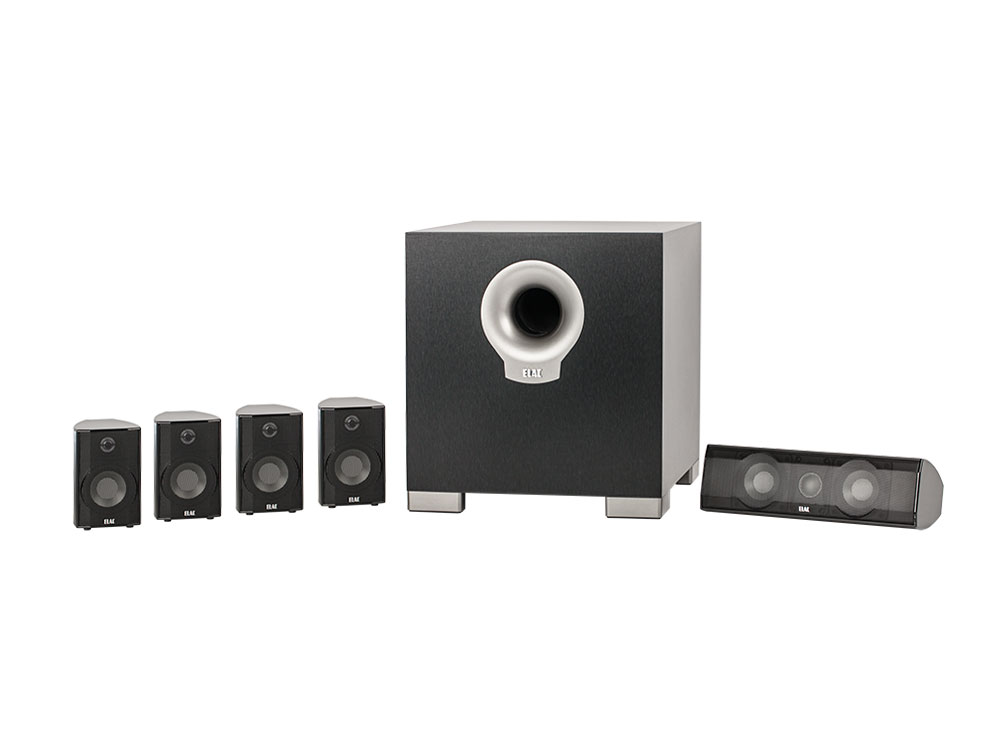

One Cinema 10 Set contains:

• 1 pc. S10
• 4 pcs. Cinema 2 SAT

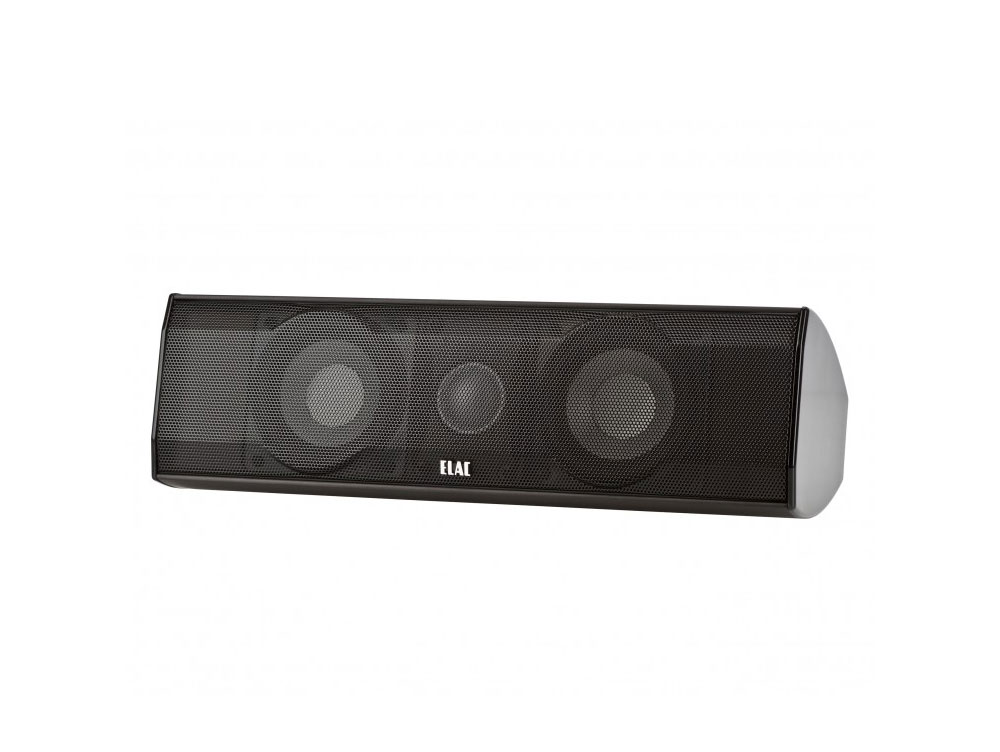

• 1 pc. Cinema XL Center

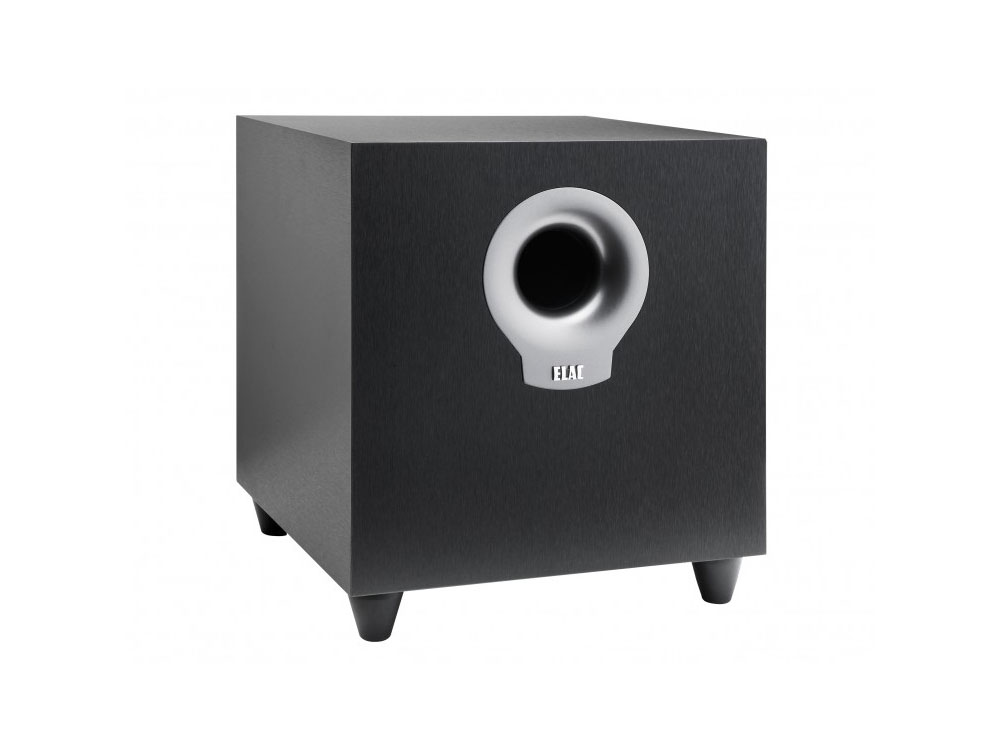

S10 Specifications

• Speaker type: Powered bass-reflex subwoofer
• Woofer: 1 x 10-inch high-excursion doped paper cone
• Frequency response: 35 to 150 Hz
• Crossover frequency: 50 to 150 Hz, continuously adjustable
• Amplifier Type: BASH-Tracking
• Maximum amplifier power: 200 Watts peak / 100 Watts RMS
• Standby power consumption: 0.5 Watt
• Inputs: LFE RCA
• Cabinet finish: Black brushed vinyl
• Accessories included: AC power cable
• Height: 13.5 in / 343 mm
• Width: 13.5 in / 343 mm
• Depth: 13.5 in / 343 mm
• Net weight: 28.7 lb / 13.0 kg

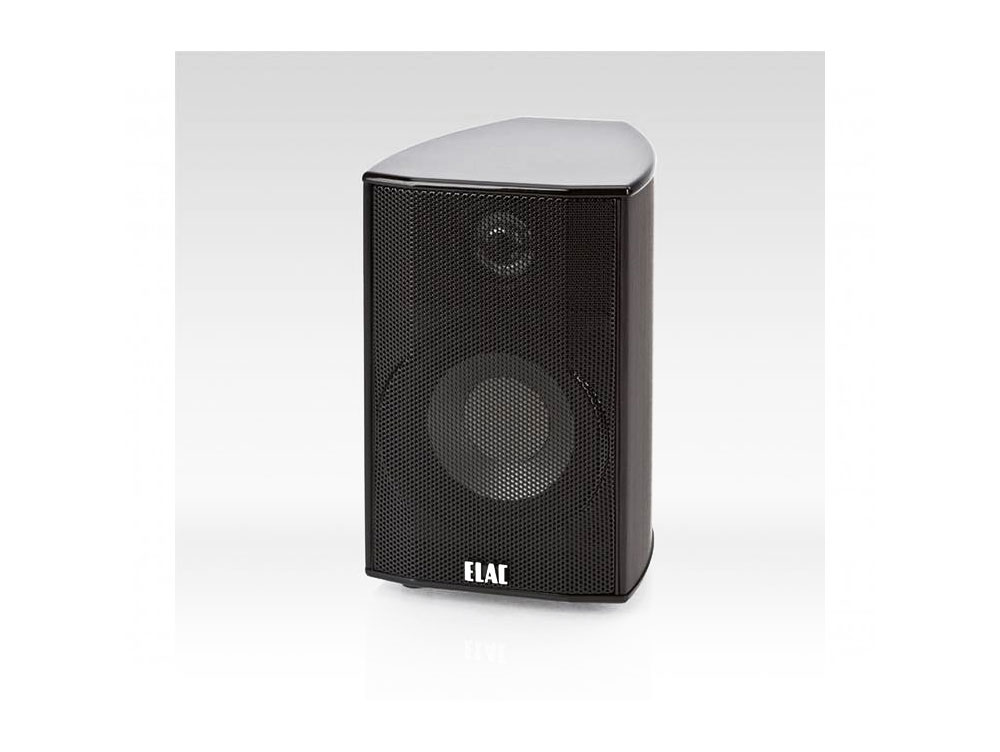

Cinema SAT Specifications

• Speaker type: 2-way, closed box, integrated high-pass
• Tweeter: 1 x 19 mm ring dome
• Woofer: 1 x 80 mm cone
• Crossover frequency: 90 / 3,800 Hz
• Frequency response: 90 to 21,000 Hz
• Sensitivity: 85 dB at 2.83 v/1m
• Recommended amplifier power: 20 to 120 wpc
• Nominal/peak power handling: 45 / 65 wpc
• Nominal impedance: 6 Ω; minimum 4.8 Ω @ 450 Hz
• Magnetic shielding: Yes
• Cabinet finish: High gloss black aluminum
• Height: 5.2 in / 132 mm
• Width: 3.5 in / 88 mm
• Depth: 4.0 in / 102 mm
• Net weight (each): 2.1 lb / 0.95 kg
