ELAC CINEMA-30
Compact home theater at its best.

Based on the successful BS 302, the Cinema 30 Set offers a full complement of loudspeakers, but with dimensions that make it hard to believe its true capabilities. The high-gloss paintwork also makes them an elegant addition to any interior. Supported by the powerful SUB 2030, this surround-sound system creates a huge soundstage where even the finest details of movies and music are revealed and the lowest frequencies are felt as well as heard.

Small footprint, big impression
The Cinema 30 and Cinema 10 Sets can be mounted on stands or wall brackets. The subwoofer can be discreetly placed to the side or even rear, while the center-channel speaker, positioned under the TV monitor or flat screen, adds maximum spatial realism.

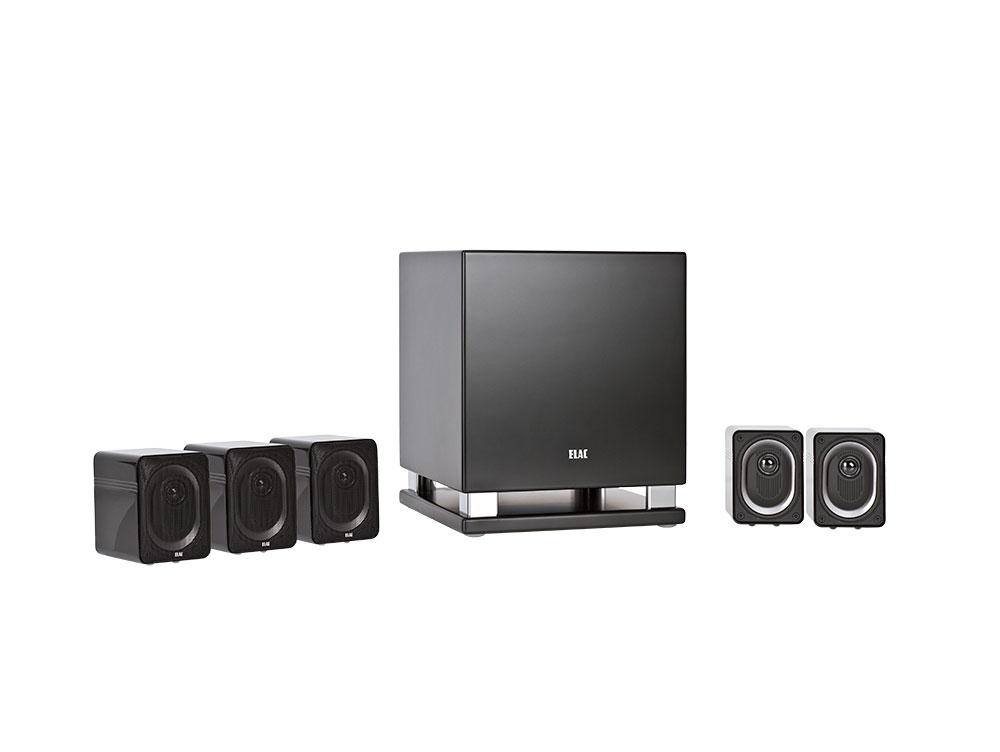

One Cinema 30 Set contains:

• 1 pc. SUB 2030
• 5 pcs. BS 302

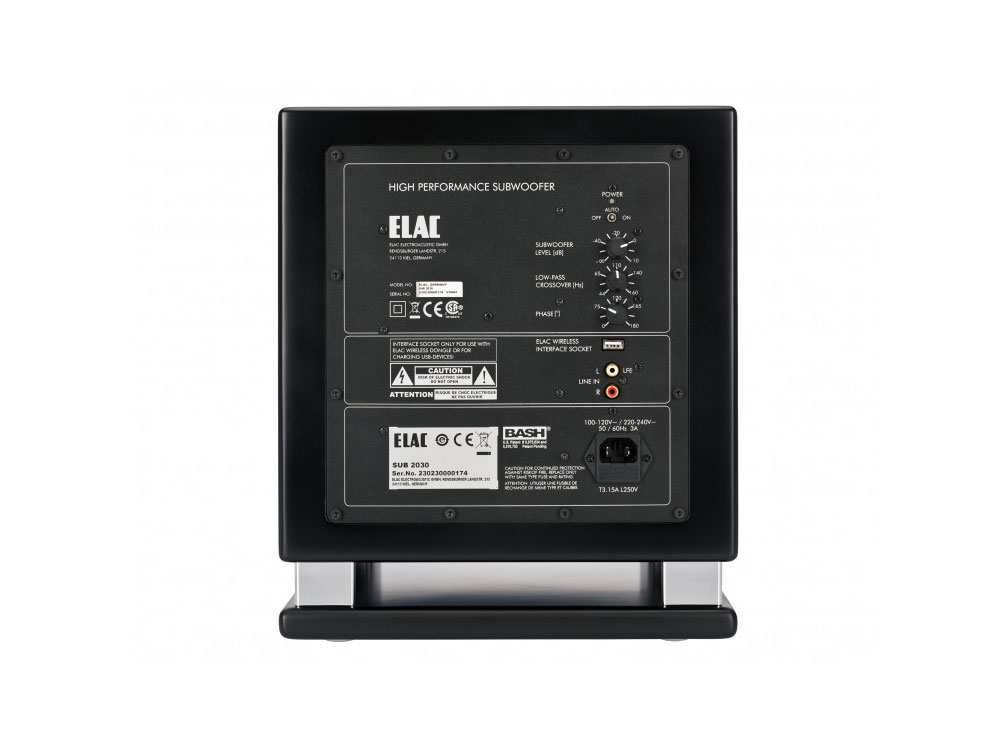

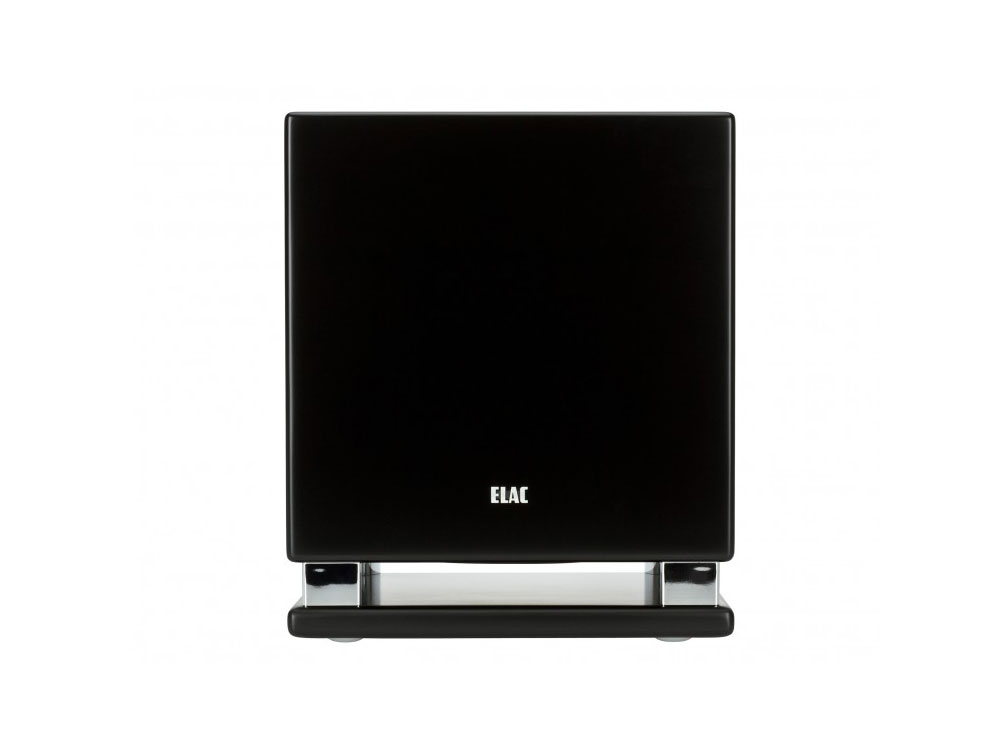

SUB 2030 Specifications

• Speaker type: Powered subwoofer, closed box
• Woofer: 1 x 250 mm cone Frequency response: 20 to 180 Hz
• Crossover frequency: 44 to 160 Hz, selectable
• Amplifier Type: BASH-Tracking
• Maximum amplifier power: 350 Watts Max
• Standby power consumption: 1 Watt
• Maximum power consumption: 480 Watts (full load)
• Inputs: 2 x line-channel (RCA)
• Input sensitivity: 2 x 70 mV (RCA)
• Input impedance: 10 kΩ (RCA)
• Cabinet finish: Matte black or white
• Accessories included: AC power cable
• Height: 14.0 in / 356 mm
• Width: 11.8 in / 300 mm
• Depth: 12.4 in / 315 mm
• Net weight: 30.1 lb / 14.0 kg

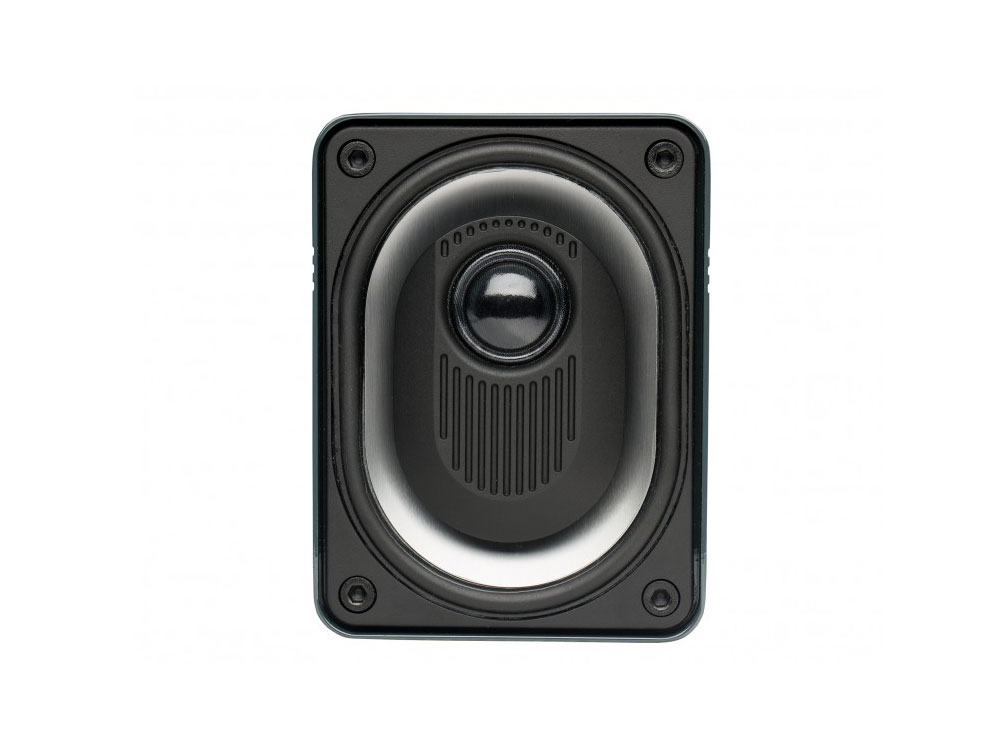

BS302 Specifications

• Speaker type: 2-way, closed box, high-pass integrated
• Tweeter: 1 x 20 mm cloth dome
• Woofer: 1 x 78 x 108 mm AS oval cone
• Crossover frequency: 80/2,390 Hz
• Frequency response: 80 to 35,000 Hz
• Sensitivity: 86 dB at 2.83 v/1m
• Recommended amplifier power: 20 to 120 wpc
• Nominal/peak power handling: 60 / 75 wpc
• Nominal impedance: 4 Ω; minimum 3.5 Ω @ 1,200 Hz

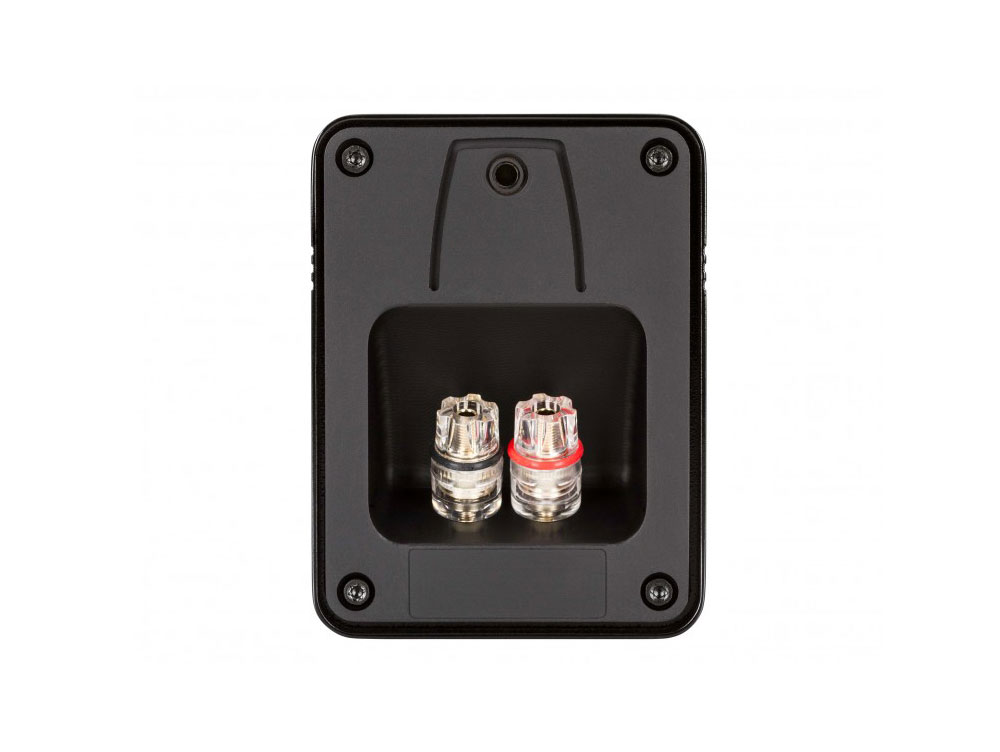

• Binding posts: 5-way metal
• Magnetic shielding: Yes
• Cabinet finishes: High gloss black, gray or white
• Accessories included: Metal grille
• Height: 4.8 in / 121 mm
• Width: 3.6 in / 91 mm
• Depth: 4.4 in / 111 mm
• Net weight (each): 2.9 lb / 1.3 kg
