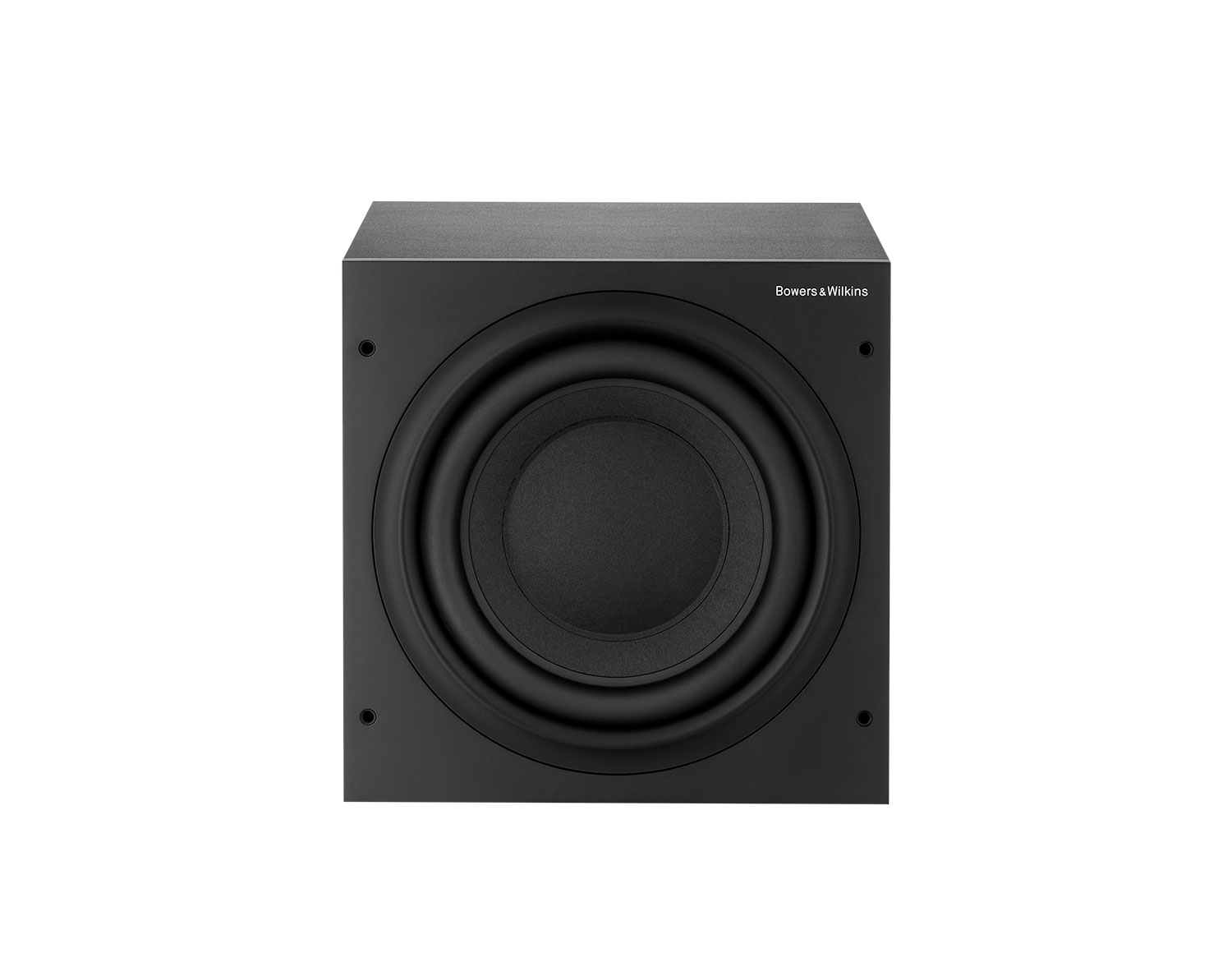

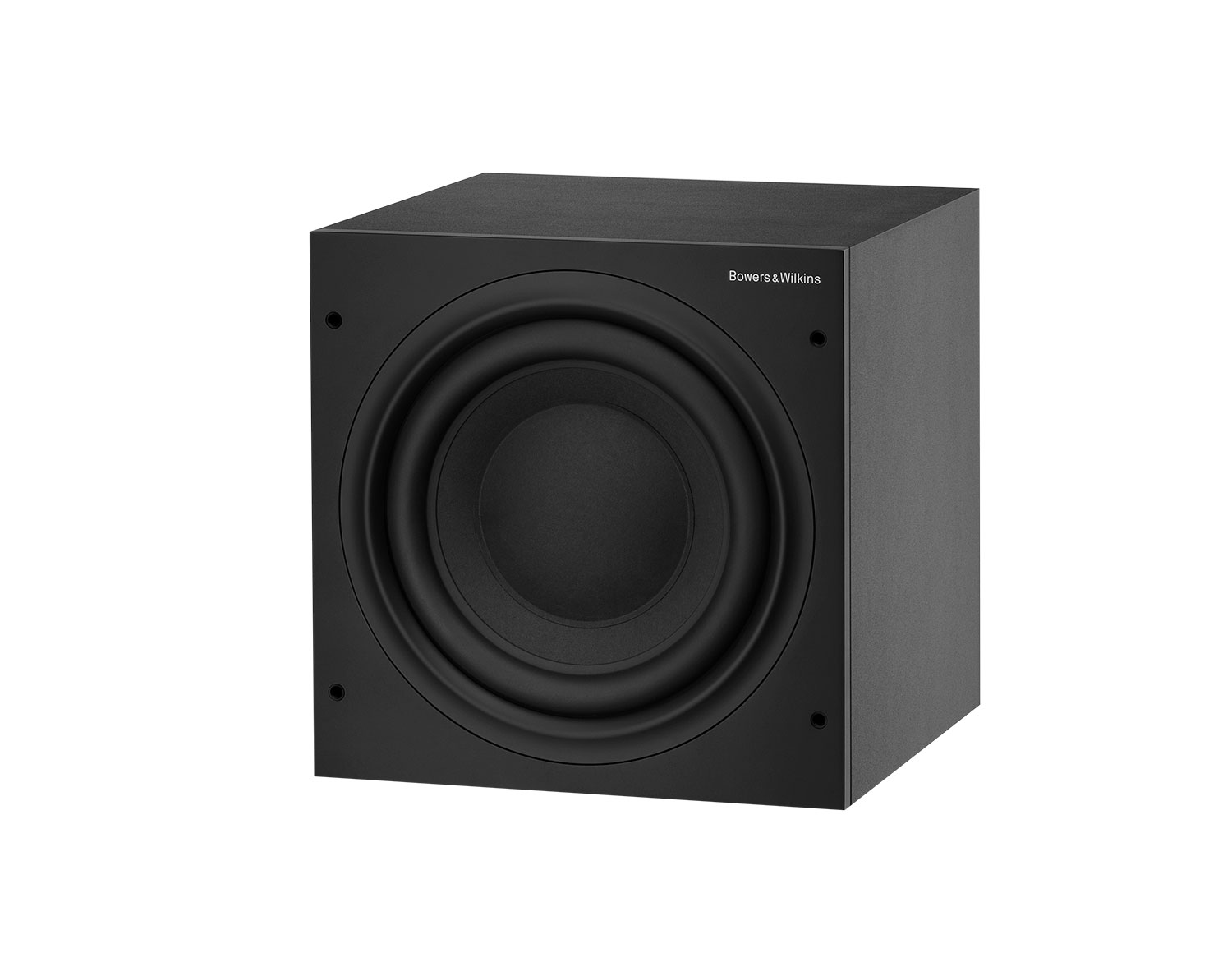

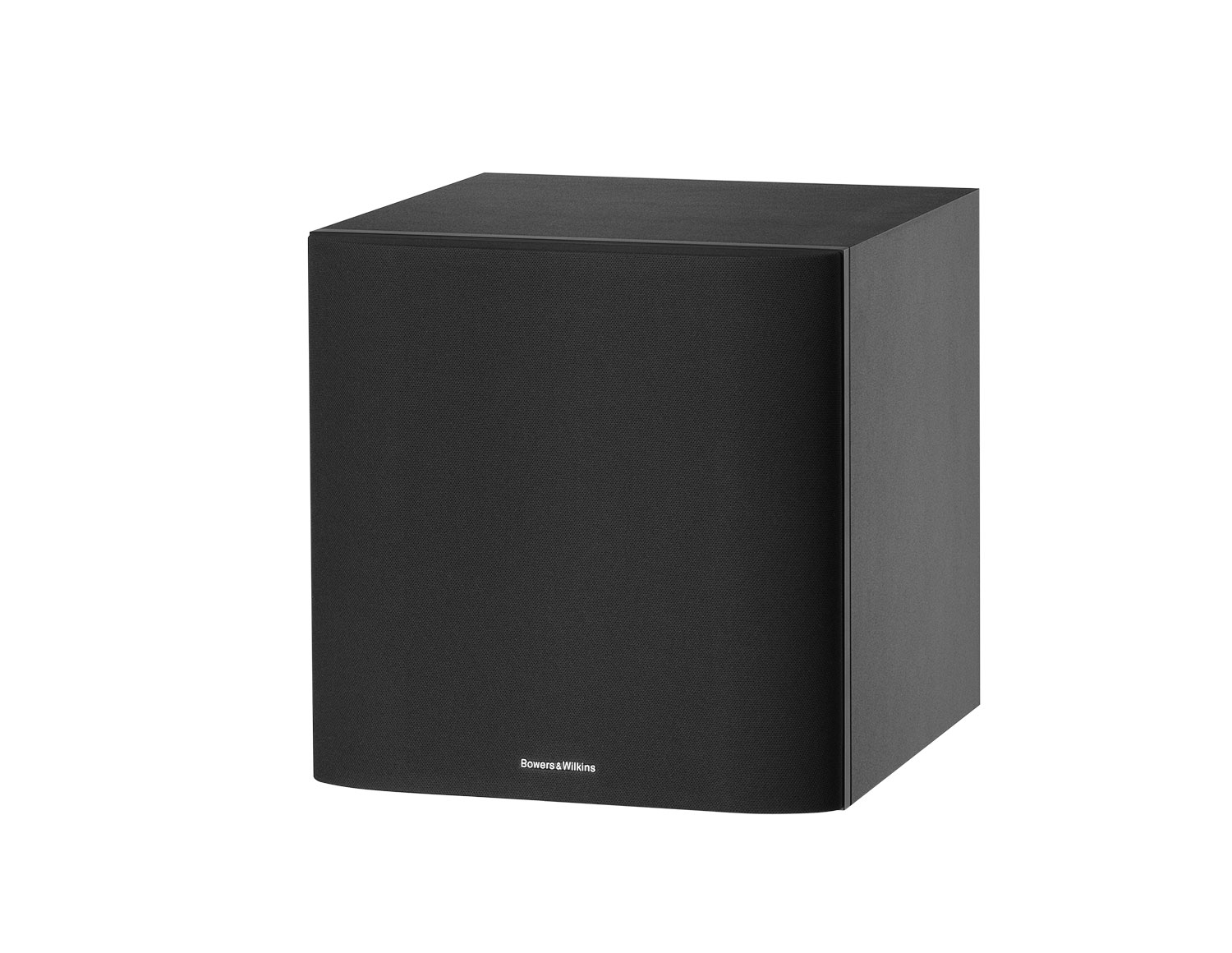

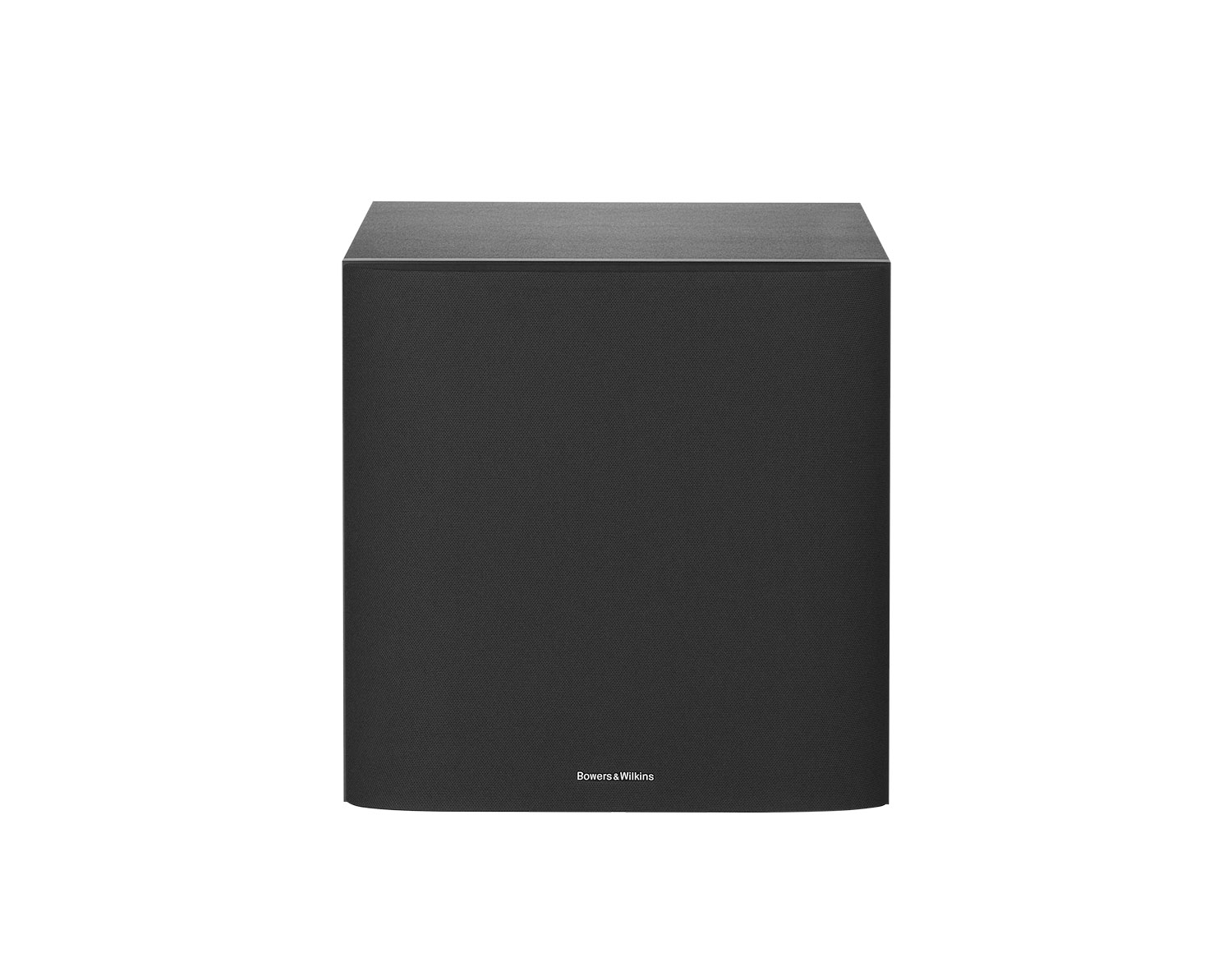

B&W ASW-610XP
The ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch – or finishing thump – to a hi-fi or home theatre system for larger rooms.
The ASW610XP, the most powerful of the 600 Series subwoofers, delivers the finishing touch – or finishing thump – to a hi-fi or home theatre system for larger rooms. Serious bass power is developed in a compact cabinet thanks to the unit’s 500W amplifier, long-throw 250mm driver. Equipped with audiophile-standard Class D circuitry, the unit remains cool and efficient under pressure.
In all of the 600 Series subwoofers, the bass driver diaphragms are constructed from a rugged, finely-tuned mix of paper pulp, Kevlar® fibres and resin, which provides the stiffness needed to withstand the tremendous physical forces exerted by the voice coil and pressures inside the cabinet.
Ultra-solid construction delivers slamming bass, drum kicks, and special movie effects. Deformation is minimised; bass precision, power and enjoyment are maximised.
Specifications
Description | Active closed-box subwoofer system |
Drive unit | ø250mm (10 in) paper/Kevlar® cone long-throw |
Frequency range | -6dB at 20Hz and 25/140Hz adjustable (EQ at A) |
Frequency response | ±3dB 27Hz – 40/140Hz adjustable (EQ at A) |
Bass Extension | -6dB at 20Hz (position A) -6dB at 25Hz (position B) -6dB at 30Hz (position C) |
Power output: | 500W |
Rated power consumption: | 98W / 1W standby |
Input impedance: | 33kΩ |
Signal / noise: | >90dB |
Functions: | Input level (line in) Input level (speaker in) Low-pass filter bypass Bass extension Bass roll-off alignment Auto sense on/standby Phase switch |
Inputs: | Line In (RCA Phono) Speaker in (Binding post) 12v trigger (3.5mm jack) Low-pass filter Active 4th-order, variable cut-off frequency |
Dimensions | Height: 325mm (12.8 in) not including feet Width: 325mm (12.8 in) Depth: 375mm (14.8 in) including grille and controls |
Net weight | 15.5kg (34.4 lb) |
Finishes | Black |
